LEGRAND 5 742 02 User manual
This product is a connected accessory which requires you to buy and install the Arteor
with Netatmo connected starter pack first.
Pack contents:
Connected switch
(with dimmer option)+ bleeder
Characteristics
In default operating mode (on/off), this switch works with the following bulbs:
(*)
Or 5 lamps max. For comfortable lighting, we recommend using bulbs of the same type and brand.
(**)Use only with transformers designed to function with electronic switches.
Take account of transformer losses when calculating power.
Transformers must be loaded at more than 60% of their power.
With the dimmer option operating mode (which can be activated with the App),
this switch only works with variable intensity bulbs (which can be identified by
the logo on the packaging).
0 401 49
Bleeder 100 - 240 V~
50/60 Hz
- 5° C "+ 55° C
Connected switch
5 742 02/12/21/30
LE11040AB
+ 45° C
+ 5° C
Dimmable
LED
**
50/60 Hz 2 x 2.5 mm2
240 Vac Max. 300 W (*)50 W 50 W 300 VA 300 VA
Min. 7 W 5 W 9 W 10 VA 35 VA
100 Vac Max. 150 W (*)25 W 25 W 125 VA 125 VA
Min. 7 W 5 W 9 W 10 VA 35 VA
2
Before you start: wiring precautions
If you plan to install two-way light switches, read the following precautions:
To control a light with two or more switches, only use the products:
x1
x1
or several
Connected switch
Wireless controls for all control points
(not included in this pack)
AND
Do not use: two connected switches to control the same lighting point.
Tip if replacing a two-way switch:
old flush-mounted switch replaced
by the wireless control.
Live
Traveller1
Traveller2
Use a connector
to connect live wire
and traveller wires
1 and 2.
x1
or several
AND
/
OR
3

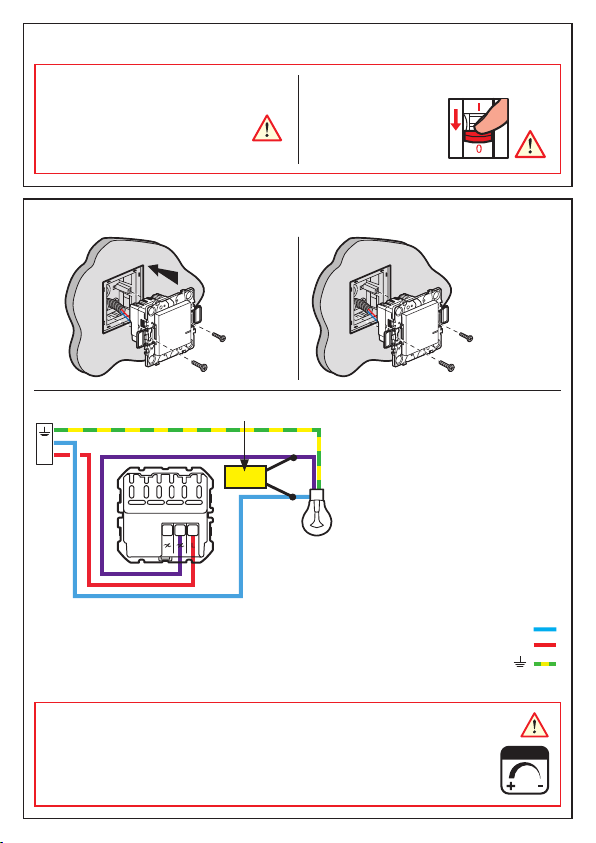

1Necessary safety precautions
1 2
OFF
Switch OFF the power
at the main circuit
breaker
Make sure that the power
is OFF before continuing
with the installation.
2 Install the connected switch
1
2Wire the connected switch
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 100mW
Remove
the existing
switch
3
N (neutral) = blue
L (live) = any except blue and green/yellow
(earth) = green/yellow
م
ك
> 5 W
< 300 W
Bleeder (mandatory)
To ensure that your connected
switch (with dimmer option)
works correctly, you must wire
the bleeder provided as close
to the load as possible and put
a bulb in before turning the
power on.
The connected switch (with dimmer
option) works with standard bulbs
or dimmable bulbs including LEDs
over 5W.
Using dimmable LEDs is mandatory
for optimal installation results.
If you have wired your bleeder but
you are using non-dimmable LED
bulbs, it is possible that your bulbs
will not go out fully or will icker.
3 To add a connected product to your connected installation, you should
follow the instructions:
- in the Legrand Home + Control application (Settings/Add a new product section)
- or consult the user manual on legrand.com
SIMPLIFIED EU DECLARATION OF CONFORMITY
The undersigned,
Legrand
declares that the radio-electric equipment referred to in these instructions
complies with directive 2014/53/EU.
The full text of the EU declaration of conformity
is available on the following website:
www.legrandoc.com
LEGRAND - Pro and Consumer Service - BP 30076
87002 LIMOGES CEDEX FRANCE • www.legrand.com
www.legrand.com
Safety instructions
This product should be installed in compliance with installation rules, preferably by a qualied electrician.
Incorrect installation and/or incorrect use can lead to risk of electric shock or re.
Before carrying out the installation, read the instructions and take account of the product’s specic
mounting location.
Do not open up, dismantle, alter or modify the device except where specically required to do so by the
instructions. All Legrand products must be opened and repaired exclusively by personnel trained and
approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights
to replacement and guarantees. Use only Legrand brand accessories.
بلطتي
.Arteor with Netatmo
: ( /)
. . 5 (*)
. (**)
.
.%60
( )
.( )
**
LED حﺎﺑﺻﻣ
ةءﺎﺿﻹا جردﺗﻣ م°45 +
م°5 +
2 2.5 x 1
240-100
50/60
300 300 50 50* 300 240
35 10 9 5 7
150 150 25 25* 150 100
35 10 9 5 7
ةءﺎﺿﻹا جردﺗﻣ
5 742 02/12/2021/30
+ ( )
240 - 100
50/60
°55 + °5 -
0 401 49
6
:
:
:
1
1
( )
. :
:
.
1
2
.2 1
1
7
2.4835 - 2.4 :
100 > :
م
ك
5 <
300 >
()
)
(
.
.
= ()
/ = ( )
/ = ()
)
(
. 5 LED
LED مادختسإ مزلي
.
LED
. ةءﺎﺿﻹا جردﺗﻣ
:
( / ) Legrand Home + Control -
legrand.com -
SIMPLIFIED EU DECLARATION OF CONFORMITY
The undersigned,
Legrand
declares that the radio-electric equipment referred to in these instructions
complies with directive 2014/53/EU.
The full text of the EU declaration of conformity
is available on the following website:
www.legrandoc.com
LEGRAND - Pro and Consumer Service - BP 30076
87002 LIMOGES CEDEX FRANCE • www.legrand.com
www.legrand.com
:
/ .
.
.
Legrand .
.
.Legrand
. Legrand
