Lefroy Brooks M1-1103 Assembly instructions
INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
M1-1103
LEVER 3-HOLE BASIN MIXER WITH P.U.W. WITHOUT LB LOGO
2
Contents
Dimensions 3
InstalLation Procedure 4
Parts List 6
Fault Finder 7
Safety Tips, Care and Maintenance 8
Guarantee 9
1 1/2"-18UNEF
Ø2 1/4"
Ø1 1/4"
1"
6"~12"
1/2"-14NPSM
1"-20UNEF
2 3/8"
1/16"~1 11/16"
8"
H2 3/8"
8"Max
5 1/2"
1 15/16"
3/8"
4"
1/2"-14NPSM
Ø2 3/16"
3 1/8"
1 1/2"~2" 1/2"
7 1/4"
(Ø56.5mm)
(Ø31.75mm)
(26mm)
(152.4~305mm)
(60mm)
(1~43mm)
(203mm)
(H60mm)
(203mm)
(140mm)
(50mm)
(10mm)
(101mm)
(Ø55mm)
(80mm)
(38.1~50.8mm) (12.7mm)
(183.5mm)
3 1/8"
(80mm)
3
Dimensions in Inches (& Millimetres)
Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without
notice as part of the company’s product development process.
2 3
1
4
Steps 1-3
InstallationProcedure
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.
1Install left handle assembly, headwork cover and side body.
2Install other handle assembly, headwork cover and side body.
3Fit spout and install the connector assembly.
5 6
4
5
InstallationProcedure Steps 4-6
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.
4Install Pop-up rod.
5Connect Pop-up rod.
6Connect flexi-hoses.
Warning! When installing flexible hose, please notice:
There should be no torsion or deformation
Do not fold into a V or L shape.
Do not use if there is any crack or deformation.
3
4
8
9
10
11
12
13
16
15
32
18
19
20
21
22
23
24
25
26
27
28
33
34
35
38
39
40
17
31
29
14
2
36
1
5
6
30
7
37
1 Handle ( C ) (029686C-T)
2 Canopy (018295)
3 Clip (012242)
4 Stem extension (110409)
5 Screw (008486)
6 Adaptor (057507)
7 Cartridge assembly ( C ) (507176W)
8 Escutcheon (071473)
9 O-ring (004617)
10 Oil-seal (010017)
11 Washer (013158)
12 Nut (009834)
13 Body (061893W)
14 Pop-up knob (124390)
15 O-ring (048027N)
16 Spout (002252W)
17 O-ring (004072N)
18 O-ring (004001N)
19 Brass tube (043412N)
20 O-ring (004043N)
21 Connection tube (014016W)
22 O-ring (004115N)
23 O-ring (004005N)
24 Washer (060041)
25 Washer (013202)
26 Nut (009009)
27 Connector (015001W)
28 Nut (009002)
29 Oil-seal (010095N)
30 Aerator insert (553648N)
31 Aerator housing (305800N-50)
32 Pop-up rod (125412)
33 Connector (077125)
34 Pop-up rod (110041)
35 Pop-up waste (556781)
36 Handle ( H ) (029686H-T)
37 Cartridge assembly ( H ) (507175W)
38 Flexible hose (105750W)
39 Pipework nuts (504003)
40 Spanner (031025)
6
PartsList Exploded view
7
FaultFinder
Fault Cause Rectification
Leaks around handle. Cartridge has come loose or
damaged.
Tighten/reinstall the cartridge or
replacement the cartridge if it is
damaged.
Leaks around the base of spout. Gasket is misfitted or damaged. Check for gasket placement.
Aerator leaks or has an inconsistent
water flow pattern.
Aerator is dirty or misfitted. Unscrew the aerator to check rubber
packing or replace the aerator.
8
SafetyTips,CareandMaintenance
Safety Tips
If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to
applying flame, otherwise you will void the warranty.
Cover drain openings to avoid losing small parts.
When cutting or soldering pipe, use safety glasses to protect your eyes.
Important Points
Prior to beginning installation. turn off the cold and hot water lines and open the old faucet to release
built-up pressure.
Overtightening nuts may cause damage.
Wrap all threaded connections with pipe tape available at your local plumbing supply store.
Always wrap in a clockwise direction. The fittings should be installed by a state-licenced plumber.
Please note:
When there is a difference in water pressure between hot and cold supplies to the mixing valve, the
pressures should be equalized by a plumber in accordance with best practice and legislation.
Maintenance
Your new bathroom faucet is designed for years of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid abrasive cleaners, wire wool and harsh chemicals as
these will dull the finish and void your warranty.
Routine Maintenance
The frequency and extent of attention required will vary according to prevailing site and operational
conditions, however a 12 monthly maintenance schedule is recommended.
If the product has operated satisfactorily for some time, but performance has been degraded, please
check the Fault Finder section to identify the problem.
Maintenance Check List
s 7ORNORDAMAGEDSEALSANDWASHERS
s $AMAGEDSEALFACES
s 4HREADWEAR
s )NCORRECTADJUSTMENT
s #OMPONENTFAILURE
s $EBRISORLIMESCALEBUILDUP
9
Guarantee
Guarantee of Quality
This product is guaranteed against faulty materials and workmanship for 12 months from date
of purchase. For the guarantee to be valid, the unit must be installed by a competent person, in
accordance with the instruction booklet.
Any part found to be defective during the guarantee period, will (at our option) be repaired or
replaced, free of charge, provided the unit has been installed, and properly used in
accordance with the instruction booklet.
Our products correspond to the valid technical and water supply standards as well as the relevant
approvals requirements. We guarantee them to be free of design and production faults at the time
of delivery and that with correct use and care in accordance with our printed instructions they will
function reliably.
Guarantee period
sThe guarantee is valid in private homes for 5 years from the purchase date. Proof of purchase
has to be provided when making a guarantee claim.
sBy use in commercial or institutional applications the guarantee is valid for 1 year after first use.
To make a guarantee claim, proof of purchase or, the beginning of use is required.
Not Covered by this Guarantee
Damage or defects arising from incorrect installation, improper use or lack of maintenance.
Installed product damaged in transit Consequential loss, damage or product removal and installation
costs.
Lefroy Brooks is not responsible for any on site labour charges.
The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design
registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).
LEFROY BROOKS INC, 1828 TROUTMAN STREET, RIDGEWOOD, NY, 11385

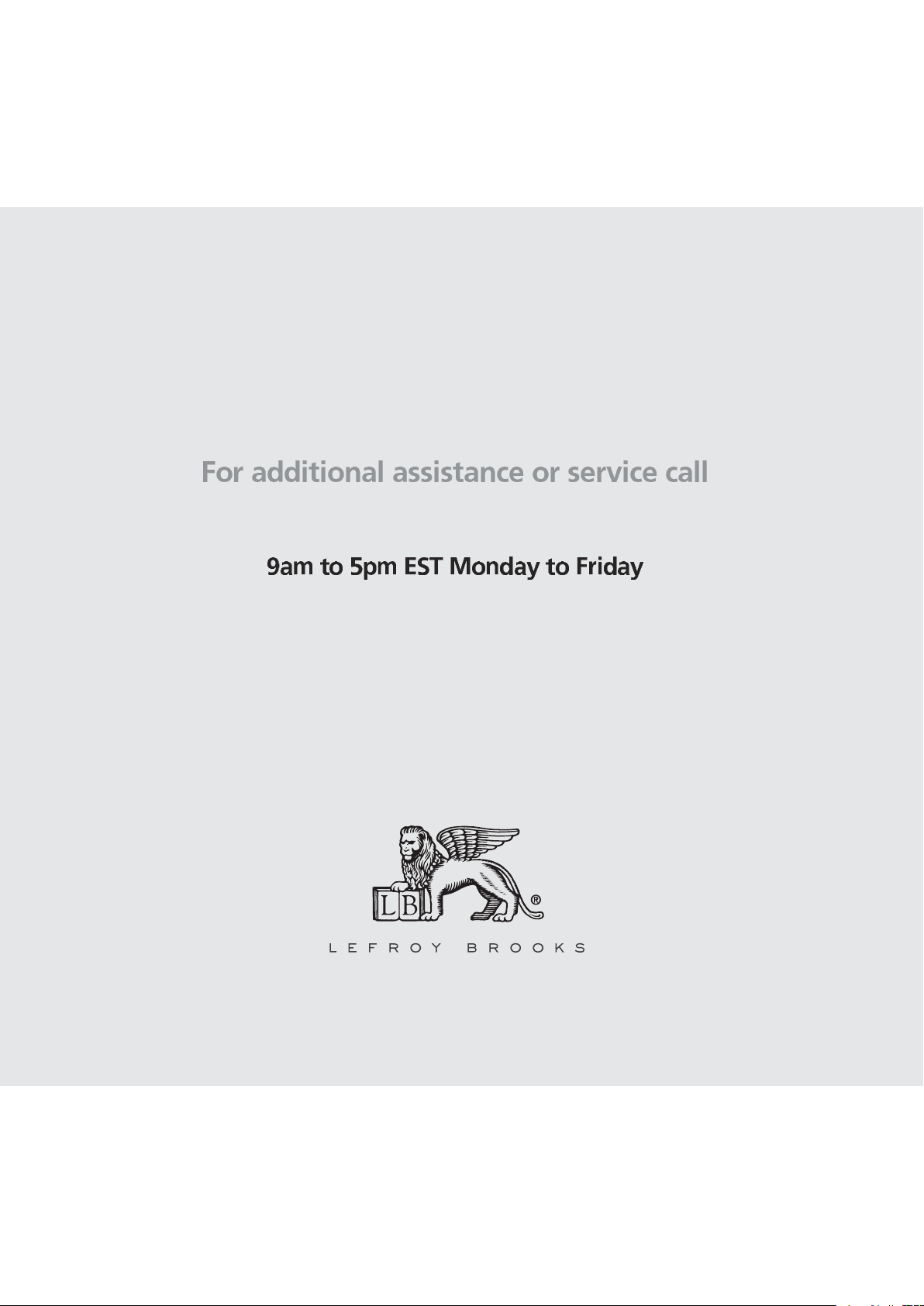

TELEPHONE: 718-302-5292. FAX: 718-302-4177
COPYRIGHT©LBIP LTD 2013
718-302-5292
www.lefroybrooks.com
