Lefroy Brooks TT 4975 User manual

TT 4975

TEN TEN DOUBLE PAPER HOLDER

INSTALLATION GUIDE

2

DIMENSIONS

TOOLS REQUIRED

Powered drill with Ø6mm drill bit Flat blade screwdriver Spirit level

60mm

265mm

93mm

3

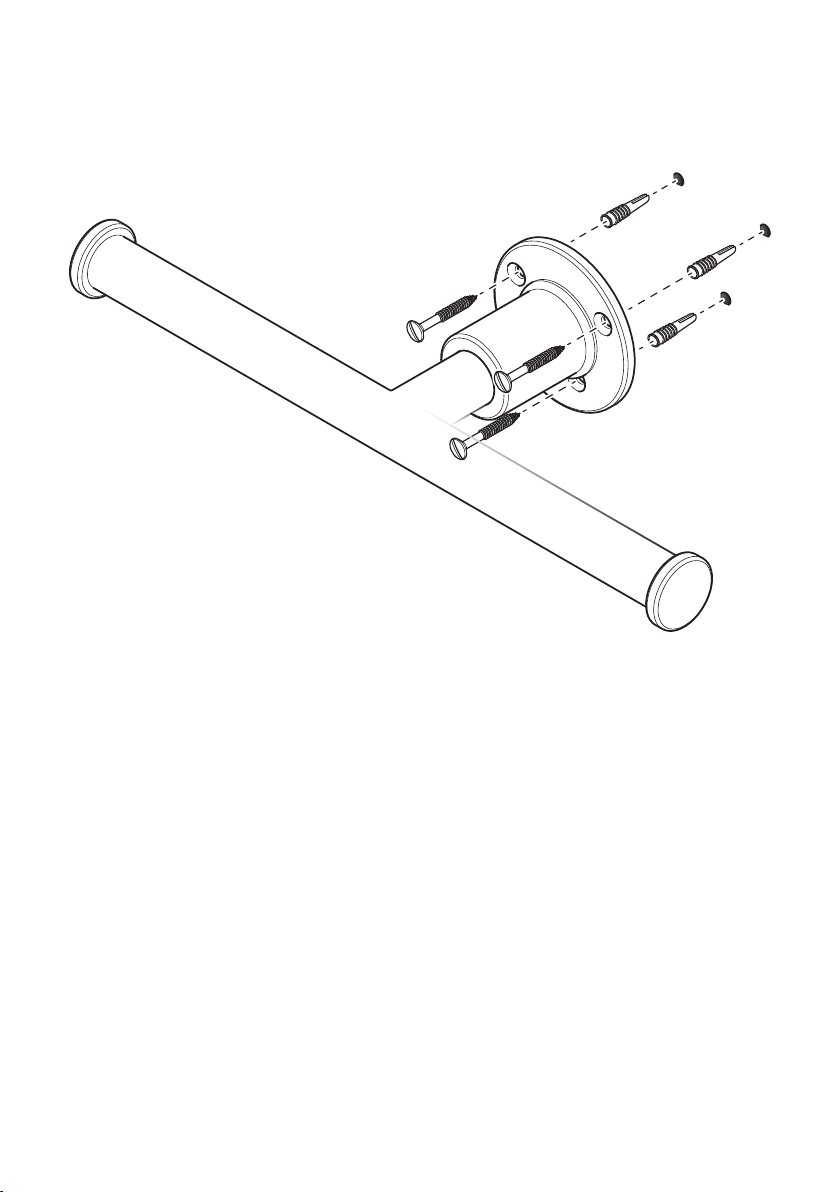

INSTALLATION

1 Use a spirit level to ensure the upper holes

are level then mark the hole positions on the

mounting surface.

2 Drill holes using a Ø6mm drill bit.

3 Insert the wall plugs into the holes then secure

the double paper holder using the screws

supplied. Alternative wall plugs should be used

subject to mounting surface construction (not

supplied).

CUSTOMER SUPPORT

+44 (0)1992 708 316

LEFROYBROOKS.CO.UK

Whilst every effort is made to ensure the accuracy of these, they are subject to change without notice as part

of the company’s product development process. The use of trademarks, product design and artwork is subject to

licence or agreement with LBIP Ltd. The design registrations, trademark registrations and copyrights are protected

by law and the use or reproduction outside the terms of an agreement is prohibited. The right to modify designs

and dimensions is reserved. LBIP Ltd is a member of ACID (Anti Copying in Design).

© LBIP Ltd 2016

20.065.258A / OCTOBER 2016
