Larson Electronics TPM-GL20004-12C-1227-10C User manual

TPM-GL20004-12C-1227-10C

INSTRUCTION MANUAL

TPM-GL20004-12C-1227-10C

Larson Electronics, LLC

Phone: 877-348-9680

Fax: (903) 498-3364 www.larsonelectronics.com

1 of 5

Golight LED Spotlight on Telescoping Pole Mount - 120-277V

AC - 22' Total Cord Length - Wireless Remote - Surface

Mounting Bracket

Instruction Manual

Thank you for your purchase of the TPM-GL20004-12C-1227-10C from Larson Electronics.

WARNING

Standard Warning (General)

WARNING:

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CRITICAL SAFETY INSTRUCTIONS:

•INSTALLATION SHOULD ONLY BECONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY

RELEVANT LOCAL BUILDING CODES.

•RISK OFFIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF FIXTURE'S ELECTRICAL

SYSTEMS. IFNOTQUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE FIXTURE'S RATED VOLTAGE.

•TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP

OBJECTS. SUITABLE FOR DAMP LOCATIONS.

WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE

INSTALLATION OR PERFORMING ANY MAINTENANCE.

RISK OF FIRE/ELECTRIC SHOCK –DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.

RISK OF PERSONAL INJURY –FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.

RISK OF BURN –ALLOW FIXTURE TO COOL BEFORE SERVICING.

IMPORTANT SAFETY INFORMATION

This symbol is to alert you to important operating or servicing

instructions that appear in your instructions. Always follow

basic safety precautions when using this product to reduce

the risk of injury, fire or electric shock.

This light is for off road and utility use only. It is not de-

signed for road use as a driving light.

The RadioRay® complies with Part. 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This

light and remote may not cause harmful interference, and (2)

this light and remote must accept any interference received,

including interference that may cause undesired operation.

 FCC RULE Part. 15.21 - Changes or modiﬁcations made by

the user not expressly approved by Golight, Inc. for compli-

ance could void the user’s authority to operate the equip-

ment.

For safe and efﬁcient operation of your Golight® RadioRay®,

observe these guidelines:

Using your RadioRay® in icing conditions could damage the gear

motors.

The remote must be kept clean and dry to avoid damage to the

internal circuitry.

Your Golight® RadioRay® is a radio transmitter and receiver

operating at 433MHz. Whenever the light is on, the internally

mounted antenna sends out and receives radio frequency (RF)

energy.

• Modern electronic equipment, i.e. Personal medical device

such as pacemakers, hearing aids, etc., are shielded from RF

energy. However, RF energy may affect some electronic equip-

ment.

•Vehicle electronic systems may be affected by RF energy.

Check with your vehicle manufacturer representative to be

sure that your RadioRay® will not affect the electronic system

of your vehicle.

TPM-GL20004-12C-1227-10C

Larson Electronics, LLC

Phone: 877-348-9680

Fax: (903) 498-3364 www.larsonelectronics.com

2 of 5

MOUNTING

The pole used with the TPM-GL20004-12C-1227-10C is the ALU-P-158. The pole is adjustable from 4 feet

to 9.08 feet with the Golight attached and from 3.19 feet to 8.35 feet with the Golight removed. The pole

mount allows the light to be easily installed and/or removed and stored from the top of the pole. The TPM-

GL20004-12C-1227-10C also includes a mounting bracket that allows operators to install the light in their

required location. The mount bracket features four predrilled holes for mounting to any flat vertical surface.

Once the mounting bracket is installed, the pole is then slipped into the bracket and secured with a T-

handle bolt.

POLE OPERATION

This aluminum pole can be easily raised or lowered to any desired position between the maximum

extension and the retracted position. This pole has a built-in safety mechanism to prevent the load

from falling rapidly, even with the 40 pound maximum load.

EXTENDING THE POLE

It is recommended to raise the sections from top to bottom.

1. Hold on to the lower section with one hand.

2. Use another hand to raise an upper section.

3. Let go at the desired height. The pole will stay in the position until it is further raised OR lowered

by the steps below.

LOWERING THE POLE

It is recommended to lower the sections from bottom to top.

1. Hold on to a lower section with one hand.

2. Place the thumb of the other hand on the locking ring over the upward-pointing arrow to push

the locking ring up slightly. The load will fall down naturally.

3. Let go of the locking ring at the desired height. The load will stop falling instantly.

WARNING

1. The pole must be mounted vertically AND securely.

2. DO NOT buckle any pole section as to deform the pole.

3. DO NOT allow grease to get on the outside of the pole.

4. MAXIMUM load is 40 lbs. DO NOT OVERLOAD THE POLE.

TPM-GL20004-12C-1227-10C

Larson Electronics, LLC

Phone: 877-348-9680

Fax: (903) 498-3364 www.larsonelectronics.com

3 of 5

PROGRAMMING

The 12 Volt DC power wire should be joined to the leads under the lamp with appropriate automotive wire attachments.

The light is not polarity sensitive. Power should be fused at 10 Amps and be on a dedicated circuit, or wired to an

appropriate automotive relay system.

PROGRAMMABLE REMOTE INSTRUCTIONS

The Golight® RadioRay® is controlled with a programmable remote with 2187 different channels. This feature allows you

the freedom to change the channel selection, and the receiver relearns the new selection.

PROGRAMMING THE TRANSMITTER

This light has been pre-programmed at the factory, and it is not necessary to re-program the transmitter, unless you

experience outside interference.

1. IMPORTANT: Disconnect power by removing fuse or disconnecting vehicle battery.

2. Remove battery cover from remote control.

3. Set the 7 dip switches to a selection of your choice. There are 3 positions on each; positive, negative and neutral.

Use a small screwdriver and select a position for each dip switch. *Please note that the orientation of the +/– switch

positions may vary among different models of wireless remote controls.

4. Insert both A23 12V batteries with the +/– in the same direction. Be sure batteries have adequate charge.

5. Replace battery cover.

a. Depress the on/off button and hold it down. Red LED

will light.

b. While holding the on/off button down, reinstall the power (replace fuse or connect power cord).

c. Keep your finger on the on/off button for 5-6 seconds and then release. The light should now be programmed.

LIGHT OPERATION

1. Using the remote control, turn on the light by depressing the on/off button.

2. With the 4-way arrows on the remote control, rotate your light to the desired location. Depending upon conditions,

the wireless remote may be used up to 80 feet from the RadioRay®.

3. The speed of the light rotation can be controlled by depressing the tortoise/hare button one time and by depressing

it again to restore the original speed.

4. The spotlight should not be turned on when the snap on lens cover (rockguard) is attached. (Not applicapble for

LED)

BATTERY INSTALLATION AND DISPOSAL

Remove Battery Cover: Remove the Phillips head screw securing the battery cover then remove the cover. With the

battery compartment now exposed, insert batteries according to correct polarity. Remove the batteries by gripping the

positive end of each battery and lifting.

TPM-GL20004-12C-1227-10C

Larson Electronics, LLC

Phone: 877-348-9680

Fax: (903) 498-3364 www.larsonelectronics.com

4 of 5

BATTERY INSTALLATION AND DISPOSAL (cont.)

For information regarding the proper disposal/recycling of the batteries contact Larson Electronics at (800) 369-6671

Use only 12v-A23 batteries in the Golight remote control.

USAGE

» This light is intended for off-road and utility use only

» This light is intended to be mounted outside the vehicle while in use

» This light may only be disassembled and repaired by an authorized representative

MISUSE

» This light is not approved for road or highway use

» This light is not approved for underwater use

» This light is not approved for inverted mounting

» This light is not approved for use inside a vehicle or enclosure and power should be removed prior to placing the

light in such circumstance

» This light may be damaged if operated in icing conditions

» This light may only be dismantled by an authorized Golight representative

» Any violation of the above referenced misuses will be considered grounds for warranty refusal

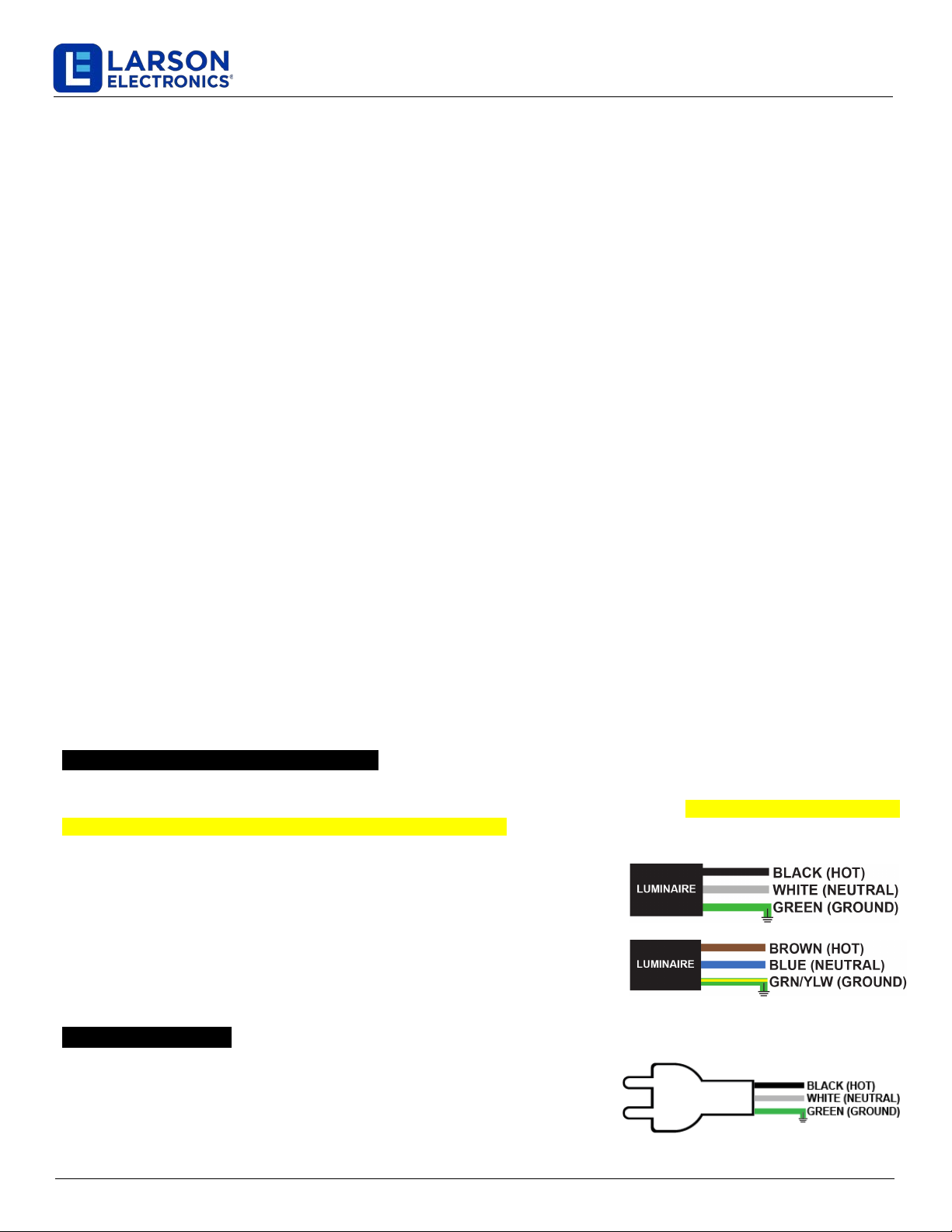

Standard pigtail(flying leads) wiring

We strongly encourage a licensed electrician install this product, in all locations especially in outdoor areas

where weatherproofing may be required. Universal voltage driver permits operation at 100V - 277V AC, 50 or 60Hz

except those factory ordered with low voltage 11V to 25V AC/DC.

Warning: Check product label for correct input voltage!

Attach supply line wires to the appropriate light fixture wires as shown

in the diagram 

Secure each pair of wires according to the diagram. Utilize a junction box or

similar device and take precautionary steps for weatherproofing all

connections if installed in a location where water may come in contact with the

unit. Ensure the unit is properly grounded and that wiring is done according to

all local and national electrical/building codes.

Standard Cord Cap

This unit comes pre-wired from factory with the selected cord cap. Take

precautionary steps for weatherproofing all connections if installed in a

location where water may come in contact with the unit. All outdoor

installations and indoor installations near a wet location require the use of a

GFCI device for safety, according to the National Electrical Code® (NEC).

Ensure the unit is properly grounded.

WIRING

TPM-GL20004-12C-1227-10C

Larson Electronics, LLC

Phone: 877-348-9680

Fax: (903) 498-3364 www.larsonelectronics.com

5 of 5

WIRING (cont.)

DETACHABLE CORDS

•Cord is attached via a weatherproof 2-pin Deutsch connector.

•The cord is detachable by depressing the tab on the top of the connectors. This enables the

operator to remove and store the light while leaving the cord connected to the power source.

•Additional or replacement cords can be ordered from our website. Contact us or visit LarsonElectronics.com for more

information.

MAINTENANCE

There are no serviceable parts inside the fixture. However, it is good practice to routinely clean and check the

fixture for proper function.

•Disconnect power running to the lamp and be sure the fixture is cool to the touch.

•Use a non-abrasive glass cleaning solution to clean the lens.

Note: It is not necessary to open the fixture and clean or touch the LED’s.

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The TPM-GL20004-12C-1227-10C is designed to provide years of reliable performance. Should the need for

replacement parts arise, please contact Larson Electronics.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SAL[email protected] OR BY PHONE AT 1-877-348-9680 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.

HALOGEN BULB REPLACEMENT / PARTS / ACCESSORIES

The Golight® RadioRay® utilizes a Philips® H-9 bulb, which may

be purchased through Golight, Inc. along with other parts and accessories. Visit our

web store at: https://www.larsonelectronics.com/ or contact us at (800) 369-6671.

THREE YEAR LIMITED WARRANTY

Golight, Inc. warrants the RadioRay® against any deemed defects

that are due to workmanship for parts or faulty materials, except halogen lamps, for

three years from the date of the original

purchase. This warranty to the RadioRay® does not cover damage resulting from

unreasonable use or misuse, unreasonable maintenance or loss, or labor costs.

Mounting the light upside down will void the warranty.

Warranty information must be ﬁlled out within 30 days of purchase

at: https://www.larsonelectronics.com, for warranty

protection.

Any consequential damages to person or property are excluded

from this warranty. Some states do not allow the exclusion and limitation of incidental

or consequential damages, therefore the

above limitations or exclusions may not apply to you. This war-

ranty gives you speciﬁc legal rights and you may also have other rights.

Table of contents

Other Larson Electronics Lighting Equipment manuals

Larson Electronics

Larson Electronics EPL-FL1524-100 User manual

Larson Electronics

Larson Electronics EPP-3P4W-30A-N7 User manual

Larson Electronics

Larson Electronics EXP-LED-1XB-9W User manual

Larson Electronics

Larson Electronics LM-25-3S-EW-THM-12VDC User manual

Larson Electronics

Larson Electronics EPLRL-50-16.4-HR-SWB User manual

Larson Electronics

Larson Electronics EPL-HB-150LED-RT User manual

Larson Electronics

Larson Electronics EPL-FL26-LED Series User manual

Larson Electronics

Larson Electronics EPL-PM-50LED-100 User manual

Larson Electronics

Larson Electronics IND-HVAC-ACS-R1-DP-24-2L-XB User manual

Larson Electronics

Larson Electronics EPL-HB-150LED-RT-NSF User manual

Larson Electronics

Larson Electronics EPL-QC-16C-1X150LED-RT-100-EPP User manual

Larson Electronics

Larson Electronics WAL-TL-3XTL-C-SOL-100C User manual

Larson Electronics

Larson Electronics WAL-C-4XM User manual

Larson Electronics

Larson Electronics EPL-PT-150LED User manual

Larson Electronics

Larson Electronics HALP-24-2L-LED-2XH User manual

Larson Electronics

Larson Electronics EPL-48-2L-LED-BLC User manual

Larson Electronics

Larson Electronics EPL-48-4L-LED-D-V2-100C User manual

Larson Electronics

Larson Electronics IND-RL-HDB-BX9-120V User manual

Larson Electronics

Larson Electronics EPL-TFM-150LED-RT User manual

Larson Electronics

Larson Electronics EPL-QP-2X50LED-RT-100 User manual

Larson Electronics

Larson Electronics EPLC2-QP-1X70LED-100 User manual

Larson Electronics

Larson Electronics EPL-DL-12-25-1523 User manual

Larson Electronics

Larson Electronics EPL-HB-150LED-RT-DLC User manual

Larson Electronics

Larson Electronics EPL-LED-150W-RT-SS-HC User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
