Lantronix UDS2100 User manual
2008 Copyright © Lantronix is a trademark of Lantronix. All rights reserved. 900-447 Rev. B 7/08
UDS2100 Quick Start Guide
UDS2100
UDS2100 QUICK START CONTENTS
What’s In the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IP Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Install the DeviceInstaller GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Assign IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7
Configure the UDS2100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Troubleshoot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
UDS2100
IP ADDRESSING
Your unit must have a unique IP address on your network. Two ways to assign
an IP address are described below.
DHCP
Many networks use an automatic method of assigning an IP address called
DHCP. If you are unsure whether your network uses DHCP, check with your
systems administrator.
The UDS2100 looks for a DHCP server when it first powers up.You can use the
DeviceInstaller software to search the network for the IP your unit has been
assigned by the DHCP server and add it to the list of Lantronix devices on the
network. (See Add the Unit to the Manage List.)
If the UDS2100 does not acquire an IP, or you do not use DHCP, you must assign a
fixed IP address.
FIXED IP ADDRESS
In most installations, a fixed IP address is desirable. The systems administrator
generally provides the IP address.
The IP address must be within a valid range, unique to your network, and in the
same subnet as your PC.You’ll need the following information before you set up
the unit as described in Assign IP Address.
IP Address:
___ ___ ___ ___
Subnet Mask:
___ ___ ___ ___
Gateway:
___ ___ ___ ___
The UDS2100 allows serial devices to securely connect
to and communicate over an Ethernet network.
This Quick Start explains how to connect, configure,
and troubleshoot your unit using a network
connection and our DeviceInstaller software. For
more detailed information or alternative configuration
methods, refer to the UDS2100 User Guide on the CD.
2WWW.LANTRONIX.COM
Ethernet, Power, and
Serial Connections
3
Quick Start Guide
UDS2100
WHAT’S IN THE BOX
In addition to the UDS, the box contains the following items:
•DB9F to DB9F Null Modem Cable (P/N 500-164)
•Power supply
•CD with UDS2100 User Guide and utilities
(DeviceInstaller and Com Port Redirector)
•Quick Start Guide

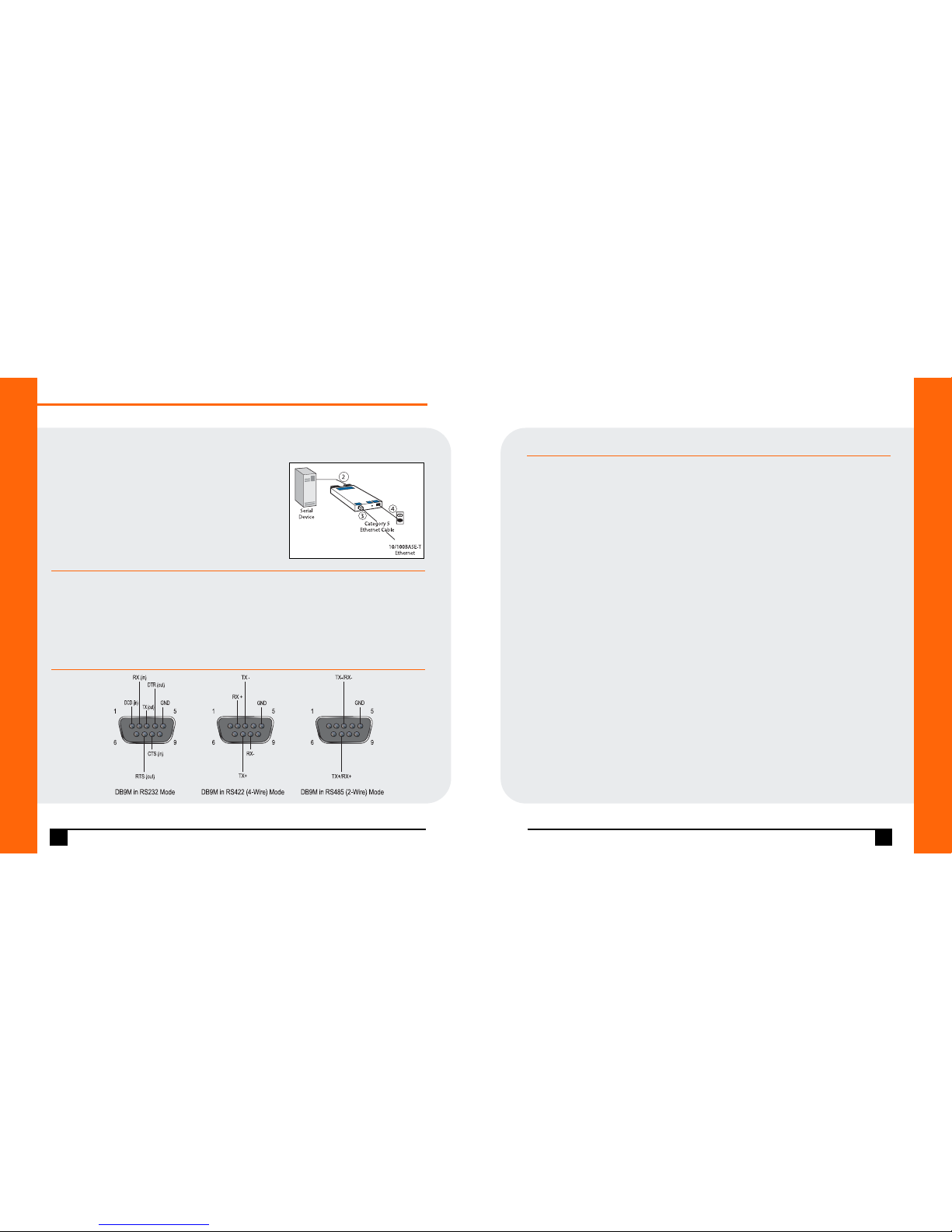

UDS2100 PINOUTS
ASSIGN IP ADDRESS AND NETWORK CLASS
1. Click the Start button on the Task Bar and select Programs ➜Lantronix ➜
DeviceInstaller ➜ DeviceInstaller. The DeviceInstaller window displays.
2. Click the Assign IP icon . The Device Identification window displays.
3. Enter the Hardware address of the device.
4WWW.LANTRONIX.COM
CONNECT
1. Connect your Ethernet cable to the 10/100 Base-T Ethernet port
on the unit and attach the other end to the network drop.
2. Connect the external power supply (9 to 30 VDC, 2W maximum).
3. Confirm that one of the Link LEDs lights up. (Yellow LED is 10Mbps
link/activity; green LED is 100Mbps link/activity.)
INSTALL THE DEVICEINSTALLER GUI
1. Insert the CD into your CD-ROM drive.
If the CD does not launch automatically:
a) Click the Start button on the Task Bar and select Run.
b) Enter your CD drive letter, colon, backslash,
device_installer, backslash, DeviceInstaller.exe
(e.g., E:\device_installer\DeviceInstaller.exe).
2. Respond to the installation wizard prompts.
5
Quick Start Guide
UDS2100
Figure 1. DeviceInstaller Window
Figure 2. Device Identification
ASSIGN IP ADDRESS CONTINUED...
4. Select Assign a specific IP address to assign a static IP address to the
device, or select Obtain an IP address automatically to enable BOOTP, DHCP
or Auto IP on the device. Click Next.
6WWW.LANTRONIX.COM
ASSIGN IP ADDRESS CONTINUED
5. Enter the IP address,
subnet mask, and
gateway for the device
in XXX.XXX.XXX.XXX
format. Click Next.
6. Click the Assign
button to finalize the
IP assignment.
7
Quick Start Guide
UDS2100
Figure 3. Assignment Method
Figure 4. IP Settings
Figure 5. Assignment
8WWW.LANTRONIX.COM 9
Quick Start Guide
UDS2100
CONFIGURE THE UDS2100
Once the UDS2100 is in the device list, it can be configured.
1. Double-click the unit in the list. Details about the unit display.
2. Select one of the following tabs:
Note: For details about configuration settings, see the UDS2100 User Guide.
LED TROUBLESHOOTING
The following LEDs are on the top of the UDS2100:
Power / Diagnostic (Blue)
RX Serial 1 Activity LED (Green)
TX Serial 1 Activity LED (Yellow)
RX Serial 2 Activity LED (Green)
TX Serial 2 Activity LED (Yellow)
The following LEDs are on the RJ45 Ethernet connector:
Ethernet Link LED on the left (Bi-color, 10Mbps = Yellow,
100 Mbps = Green)
Ethernet Activities LED on the right (Bi-color, Half Duplex = Yellow,
Full Duplex = Green)
LEDS MEANING
Power/Diagnostic
(Blue)
Steady On = Power OK
Blinking 2x = No DHCP response
Blinking 2x = Setup Menu active
RX Serial 1 Activity LED
(Green)
Off = No data activity
Blinking = Data being received by UDS2100 on channel 1
TX Serial 1 Activity LED
(Yellow)
Off = No data activity
Blinking = Data being transmitted from UDS2100 on channel 1
RX Serial 2 Activity LED
(Green)
Off = No data activity
Blinking = Data being received by UDS2100 on channel 2
TX Serial 2 Activity LED
(Yellow)
Off = No data activity
Blinking = Data being transmitted from UDS2100 on channel 2
Ethernet Link LED Off = No Ethernet link established
on the left (Bi-color) Solid Yellow = 10Mbps Ethernet link established
Solid Green = 100 Mbps Ethernet Link established
Ethernet Activity LED Off = No data activity
on the right (Bi-color) Blinking Yellow = Half Duplex data activity
Blinking Green = Full Duplex data activity
CONTACT
For questions and technical support, please check our online knowledge base
at www.lantronix.com/support
Lantronix
15353 Barranca Parkway, Irvine, CA 92618, USA
Phone: (949) 453-3990 or Fax: (949) 453-3995
www.lantronix.com
