Lantech IPES-5222T Series User manual

IPES/IES-5222T Series

22 10/100TX + 2 1000T L2+(w/8 PoE at/af) Industrial Managed

Switch w/Enhanced G.8032 Ring

User Manual (Hardware)

IPES-5222T-8-67

IES-5222T-67

Dec. 2015

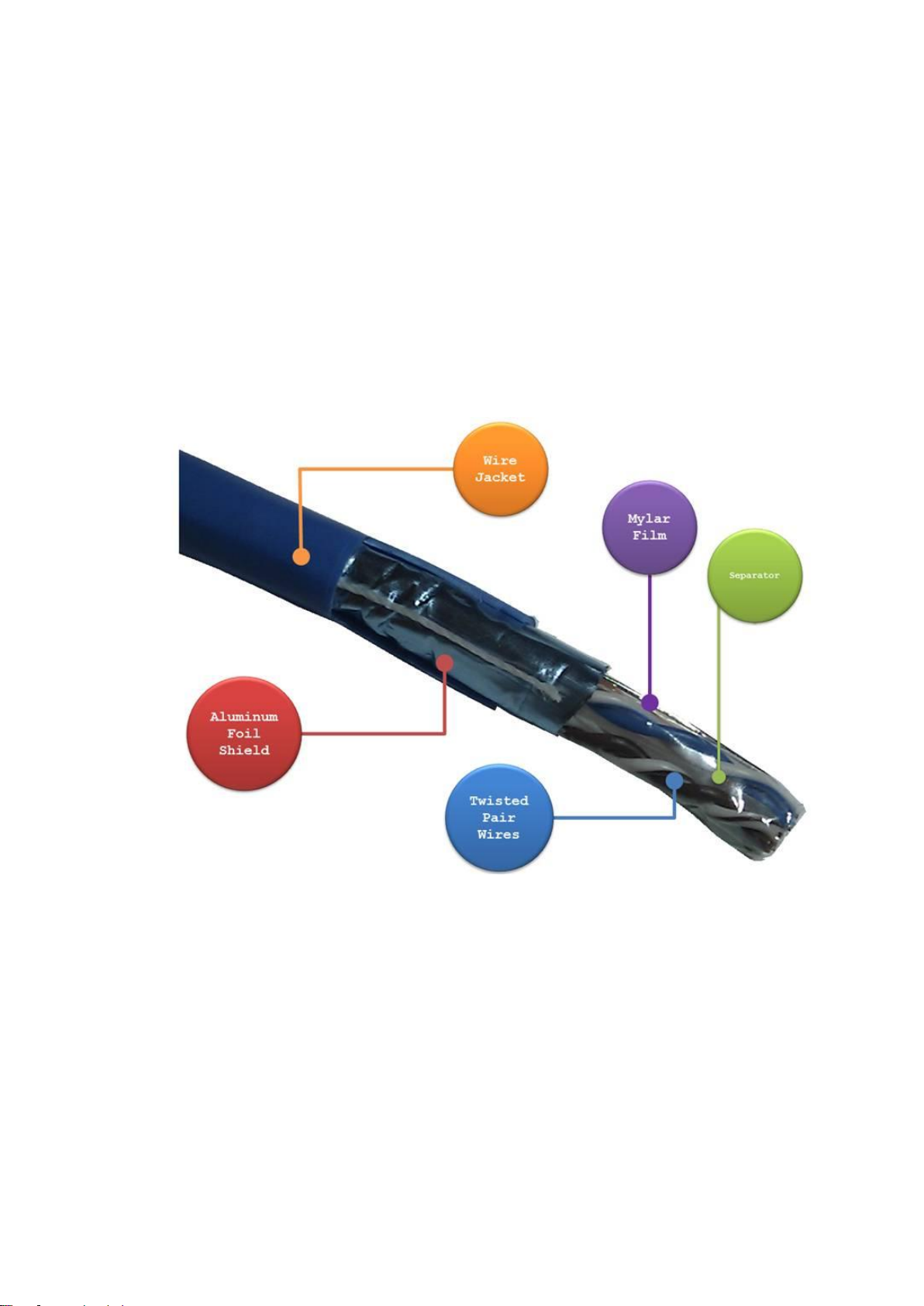

Recommendation for Shielded network cables

STP cables have additional shielding material that is used to reduce external interference.

The shield also reduces the emission at any point in the path of the cable. Our

recommendation is to deploy an STP network cable in demanding electrical environments.

Examples of demanding indoor environments are where the network cable is located in

parallel with electrical mains supply cables or where large inductive loads such as motors

or contactors are in close vicinity to the camera or its cable. It is also mandatory to use an

STP cable where the power device (like IP camera) is used outdoors or where the network

cable is routed outdoors.

Important Notice

Lantech Communications Global, Inc. reserves the right to modify the

equipment, its specification or this manual without prior notice, in the interest

of improving performance, reliability, or servicing. At the time of publication

all data is correct for the operation of the equipment at the voltage and/or

temperature referred to. Performance data indicates typical values related to

the particular product.

No part of this documentation or information supplied may be divulged to any

third party without the express written consent of Lantech Communications

Global Inc. Products offered may contain software which is proprietary to

Lantech Communications Global Inc. The offer or supply of these products

and services does not include or infer any transfer of ownership.

Interference Issues

This Equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a

commercial or industrial installation. This equipment generates, uses, and

can radiate radio frequency energy. It may cause harmful interference to

radio communications if the equipment is not installed and used in

accordance with the instructions.

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy. It may cause harmful interference to radio

communications if the equipment is not installed and used in accordance

with the instructions. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Content

Chapter 1 Introduction.............................................5

Specification............................................................. 5

Chapter 2 Hardware Description ..........................11

2.1Physical Dimension...................................... 11

2.2 IP Protection................................................. 13

2.3 LED Indicators.............................................. 16

Chapter 3 Hardware Installation...........................18

Chapter 4 Network Application.............................24

4.1 ITU G.8032 Scheme...................................... 24

4.2 Ring Coupling................................................ 24

4.3 Multiple Rings................................................ 25

4.4 Dual Homing.................................................. 26

4.5 Chain............................................................. 26

Chapter 5 Console Management ..........................28

5.1 Connecting to the Console Port................... 28

5.2 Login in the Console Interface..................... 28

Chapter 1 Introduction

Lantech IES-5222T & IPES-5222T-8 (IP67/IP43) series is a high performance L2+

IP67/IP43 industrial Gigabit uplink switch with 22x10/100TX + 2 GigaT (w/8 PoE at/af

injectors-IPES model) by M12 connectors which provides L2 wire speed and advanced

security function for connecting PD network.

Specification

IES-5222T series

Standards

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX

IEEE 802.3ab 1000BaseT

IEEE802.3x Flow Control and Back Pressure

IEEE802.3ad Port trunk with LACP

IEEE802.1d Spanning Tree

IEEE802.1w Rapid Spanning Tree

IEEE802.1s Multiple Spanning Tree

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

IEEE 802.1X User Authentication (Radius)

IEEE802.1p Class of Service

IEEE802.1Q VLAN Tag

Switch

Architecture

Back-plane (Switching Fabric):8.4Gbps

Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port

148,800pps for Fast Ethernet port

1,488,000pps for Gigabit Fiber Ethernet port

CPU

Marvell 800Mhz

RAM

256M Byte

Flash

128M Byte

Mac Address

16K MAC address table

Jumbo frame

9KB on all ports

Connector

10/100TX: 22 x M12 4-pole D-coded with auto MDI/MDI-X

function

10/100/1000T: 2 x M12 8-pole A-coded with auto

MDI/MDI-X function

RS-232 connector: 1 x M12 5-pole A-coded

Power Input connector : 1 x M12 5-pole A-coded

Relay contact : 1 x M12 5-pole A-coded

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable

EIA/TIA-568 100-ohm (100m)

100Base-TX: 2-pair UTP/STP Cat. 5/ 5E cable

EIA/TIA-568 100-ohm (100m)

Protocol

CSMA/CD

Bypass

Protection**

High-speed optical switching (<4ms)

Minimal insertion loss (Max 1.6dB as Bypass Mode)

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red)

Ethernet port: Link/Activity (Green), Speed (Green); GigaT:

Link/Activity (Green)

DI / DO

1 Digital Input (DI) :

Level 0: -30~2V / Level 1: 10~30V

Max. input current:8mA

1 Digital Output(DO): Open collector to 40 VDC, 200mA

Operating

Humidity

5% ~ 95% (Non-condensing)

Operating

Temperature

-40°C~75°C / -40°F~167°F

Storage

Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Standard model:9.5~60VDC dual input

72V model: 50.4~90VDC dual input

110V model: 43~137.5VDC dual input

Power

Consumption

Max. 16W

Case

Dimension

IP67 Aluminum case

285mm(W)x201.4mm(H)x77.6mm(D)

Weight

2.1kgs

Installation

DIN Rail** and Wall Mount Design

EMI & EMS

FCC Class A,

CE EN55022 Class A, CE EN55024, CE EN61000-4-2, CE

EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-

4-6, CE N61000-4-8, EN61000-4-11

Stability Testing

IEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)

MTBF

n/a

Verifications&

report

EN50155/EN50121-3-2/EN50121-4 verification

EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-

100-1 & 2) Fire & Smoke verification

Warranty

5 years

*Future release

**Optional

IPES-5222T-8 series

Standards

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX

IEEE 802.3ab 1000BaseT

IEEE802.3x Flow Control and Back Pressure

IEEE802.3ad Port trunk with LACP

IEEE802.1d Spanning Tree

IEEE802.1w Rapid Spanning Tree

IEEE802.1s Multiple Spanning Tree

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

IEEE 802.1X User Authentication (Radius)

IEEE802.1p Class of Service

IEEE802.1Q VLAN Tag

IEEE802.3at/af PoE

Switch

Back-plane (Switching Fabric):8.4Gbps

Architecture

Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port

148,800pps for Fast Ethernet port

1,488,000pps for Gigabit Fiber Ethernet port

CPU

Marvell 800Mhz

RAM

256M Byte

Flash

128M Byte

Mac Address

16K MAC address table

Jumbo frame

9KB on all ports

Connector

10/100TX: 22 x M12 4-pole D-coded with auto MDI/MDI-X

function

10/100/1000T: 2 x M12 8-pole A-coded with auto

MDI/MDI-X function

RS-232 connector: 1 x M12 5-pole A-coded

Power Input connector : 1 x M23 5-pole A-coded

Relay contact : 1 x M12 5-pole A-coded

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable

EIA/TIA-568 100-ohm (100m)

100Base-TX: 2-pair UTP/STP Cat. 5/ 5E cable

EIA/TIA-568 100-ohm (100m)

Protocol

CSMA/CD

PoE Budget

240W for 45~56V input

(55V input is recommended for 802.3at 30W applications)

120W for 12V input

120W for 72V Input

PoE pin

assignment

M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A

mode. Per port provides 30W PoE at/ 15W PoE af.

Bypass

High-speed optical switching (<4ms)

Protection**

Minimal insertion loss (Max 1.6dB as Bypass Mode)

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red)

Ethernet port: Link/Activity (Green), Speed (Green); GigaT:

Link/Activity (Green)

DI / DO

1 Digital Input (DI) :

Level 0: -30~2V / Level 1: 10~30V

Max. input current:8mA

1 Digital Output(DO): Open collector to 40 VDC, 200mA

Operating

Humidity

5% ~ 95% (Non-condensing)

Operating

Temperature

-40°C~75°C / -40°F~167°F

Storage

Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Standard model:33.6~56VDC dual input

12V model: 9.5~56VDC dual input

72V model: 50.4~90VDC dual input

Power

Consumption

Max. 13W 12V~48VDC input

Max. 16W 72VDC

Case

Dimension

IP67 Aluminum case

285mm(W)x201.4mm(H)x77.6mm(D)

Weight

2.1kgs

Installation

DIN Rail** and Wall Mount Design

EMI & EMS

FCC Class A,

CE EN55022 Class A, CE EN55024, CE EN61000-4-2, CE

EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-

4-6, CE N61000-4-8, EN61000-4-11

Stability Testing

IEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)

MTBF

n/a

Verifications&

report

EN50155/EN50121-3-2/EN50121-4 verification

EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-

100-1 & 2) Fire & Smoke verification

Warranty

5 years

This manual suits for next models

Table of contents

Other Lantech Switch manuals

Lantech

Lantech IES-5216DF User manual

Lantech

Lantech IPGS-5008T Series User manual

Lantech

Lantech IES-5416DF Series User manual

Lantech

Lantech IES-3208C User manual

Lantech

Lantech IGS-2404 User manual

Lantech

Lantech IGS-2206C User manual

Lantech

Lantech IPES-3408 Series User manual

Lantech

Lantech GE-800 User manual

Lantech

Lantech 5 10/100TX w/ 4 PoE Injector Industrial... User manual

Lantech

Lantech LPES-2208CA User manual

Lantech

Lantech TES-R6616XFT User manual

Lantech

Lantech IPES/IES-5416DFT Series User manual

Lantech

Lantech IES-0208CA User manual

Lantech

Lantech IPGS-0204DSFP-12V User manual

Lantech

Lantech IPES/IES-5416T Series User manual

Lantech

Lantech IES-0008-M12 User manual

Lantech

Lantech IES-5408T User manual

Lantech

Lantech IPES-0005B Series User manual

Lantech

Lantech IPWMR-3204DF User manual

Lantech

Lantech IPES-5208T-X Series User manual

Lantech

Lantech LGS-2816C-RPS User manual

Lantech

Lantech IPES-5416DF Series User manual

Lantech

Lantech LGS-2424C User manual

Lantech

Lantech IGS-L5408MGSFPR-AC User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
