Lantech IPGS-0204DSFP-12V User manual
Lantech
IPGS-0204DSFP
4 10/100/1000T PoE at/af + 2 Dual Speed SFP Industrial Unmanaged Switch
IGS-0204DSFP
4 10/100/1000T + 2 Dual Speed SFP Industrial Unmanaged Switch
User Manual
V1.00
Jul-2016
Content
Overview.............................................................1
Introduction ..............................................................1
Features / Model List................................................2
Packing List..............................................................3
Safety Precaution.....................................................3
Hardware Description.........................................4
Dimensions ..............................................................4
Wiring the Power Inputs...........................................5
Wiring the Fault Alarm Contact................................6
LED Indicators..........................................................7
Dip Switch (IES-0204DFT / IPES-0204DFT-4)........8
RJ-45 Pin Assignments............................................9
Cabling...................................................................11
Mounting Installation ........................................15
DIN-Rail Mounting..................................................15
Wall-Mount Plate Mounting (Optional)...................17
Hardware Installation........................................18
Recommendation for Shielded network
cables
STP cables have additional shielding material that is used to reduce external interference.
The shield also reduces the emission at any point in the path of the cable. Our
recommendation is to deploy an STP network cable in demanding electrical
environments. Examples of demanding indoor environments are where the network
cable is located in parallel with electrical mains supply cables or where large inductive
loads such as motors or contactors are in close vicinity to the camera or its cable. It is
also mandatory to use an STP cable where the power device (like IP camera) is used
outdoors or where the network cable is routed outdoors.
Important Notice
Lantech Communications Global, Inc. reserves the right to modify the
equipment, its specification or this manual without prior notice, in the
interest of improving performance, reliability, or servicing. At the time of
publication all data is correct for the operation of the equipment at the
voltage and/or temperature referred to. Performance data indicates typical
values related to the particular product.
No part of this documentation or information supplied may be divulged to
any third party without the express written consent of Lantech
Communications Global Inc. Products offered may contain software which is
proprietary to Lantech Communications Global Inc. The offer or supply of
these products and services does not include or infer any transfer of
ownership.
Interference Issues
This Equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
commercial or industrial installation. This equipment generates, uses, and
can radiate radio frequency energy. It may cause harmful interference to
radio communications if the equipment is not installed and used in
accordance with the instructions.
FCC Warning
This Equipment has been tested and found to comply with the limits for a
Class-A digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy. It may cause harmful interference
to radio communications if the equipment is not installed and used in
accordance with the instructions. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
1
Overview
Introduction
The unmanaged industrial switch is a cost-effective solution and meets
the high reliability requirements demanded by industrial applications.
High-Speed Transmissions
The Industrial switch includes a switch controller that can automatically
sense transmission speeds (10/100/1000 Mbps). The RJ-45 interface
can also be auto-detected, so MDI or MDI-X is automatically selected
and a crossover cable is not required. All Ethernet ports have memory
buffers that support the store-and-forward mechanism. This assures
that data is properly transmitted.
Dual Power Inputs
To reduce the risk of power failure, the Industrial switch provides dual
power inputs. When power failure occurs, the device will automatically
switch to the secondary power input.
Flexible Mounting
The industrial switch is extremely compact and can be mounted on a
DIN-rail or a panel, so it is suitable for any space-constrained
environment.
Wide Operating Temperature
The operating temperature of the Industrial switch is in the range
between -40 ~ 75oC. With such a wide range, you can use the Industrial
switch in some of the harshest industrial environments that exist.
Easy Troubleshooting
LED indicators make troubleshooting quick and easy. Each
10/100/1000T port has 2 LED indicators that display the link status,
transmission speed and collision status. Also other LED indicators help
you diagnose the system immediately.
2
Features / Model List
Store-and-Forward switching architecture
8K MAC address table
Supports full/half duplex flow control
IEEE 802.3at/af PoE+ standard (PoE models)
Supports MDI/MDI-X auto-crossover
Relay contact to connect with alarm system
Provides flexible mounting: DIN-rail, Panel Mounting*
Model Name
10/100/1000T
100/1000M
SFP
Power
Supply
Operating
Temperature
IPGS-0204DSFP-12V
4 (PoE)
2
9.5~57VDC
-40 ~ 75℃
IPGS-0204DSFP-48V
4 (PoE)
2
45~57VDC
-40 ~ 75℃
IGS-0204DSFP
4
2
9.5~60VDC
-40 ~ 75℃
*Optional
3
Packing List
1 x Industrial Ethernet Switch (w/ terminal block and DIN-Rail kit)
Caps for RJ45-port and SFP-port
Safety Precaution
Attention
If DC voltage is supplied by an external circuit, please use a
protection device on the power supply input.
4
Hardware Description
In this paragraph, we will introduce the Industrial switch’s dimensions,
port, cabling information, and wiring installation.

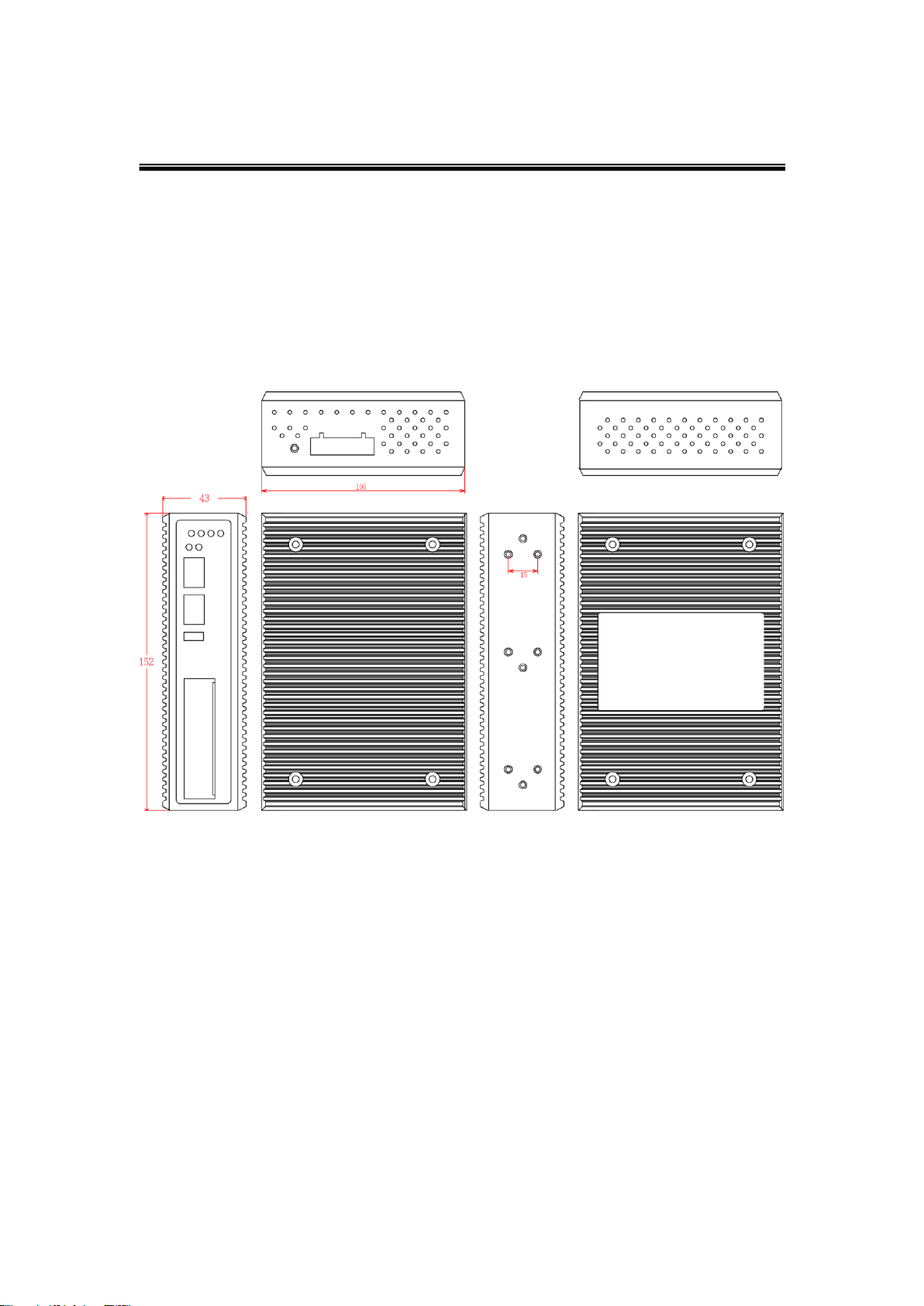

Dimensions
43 x 152 x 105 mm (W x H x D)
