Lancer TD 1700 series Manual

INSTALLATION AND SERVICE MANUAL

FOR

LANCER SERIES TD 1700

TEA DISPENSER

PART NUMBER DESCRIPTION

85-1711 TEA DISPENSER, 115V, 60Hz

85-1712 TEA DISPENSER, 230V, 50HZ

REV: 10/28/98

P.N. 28–0199/01

FAX ENGINEERING: • 210-310-7096

This Manual supersedes Installation and Service Manual, 28-0199, dated 02/07/94

Please refer to the Lancer web site (www.lancercorp.com) for

information relating to Lancer Installation and Service Manuals,

Instruction Sheets, Technical Bulletins, Service Bulletins, etc.

6655 LANCER BLVD. • SAN ANTONIO, TEXAS 78219 USA • (210) 310-7000

FAX SALES

• NORTH AMERICA – 210-310-7245 • INTERNATIONAL SALES – 210-310-7242 • CUSTOMER SERVICE – 210-310-7242 •

• LATIN AMERICA – 210-310-7245 • EUROPE – 32-2-755-2399 • PACIFIC – 61-8-8268-1978 •

TABLE OF CONTENTS

TABLE OF CONTENTS ......................................................................................................................................I

SPECIFICATIONS...............................................................................................................................................I

1. INSTALLATION ...........................................................................................................................................1

1.1 RECEIVING........................................................................................................................................1

1.2 UNPACKING ......................................................................................................................................1

1.3 SELECTING A COUNTER LOCATION ..............................................................................................1

1.4 WATER SUPPLY ................................................................................................................................1

1.5 ELECTRICAL SUPPLY ......................................................................................................................1

1.6 INSTALLATION ..................................................................................................................................1

2. SYRUP AND WATER RATIO ADJUSTMENT.............................................................................................2

2.1 PREPARING DISPENSER FOR ADJUSTMENT ...............................................................................2

2.2 ADJUSTMENT PROCEDURE ...........................................................................................................2

3. CLEANING AND MAINTENANCE ..............................................................................................................3

3.1 CLEANING INFORMATION ...............................................................................................................3

3.2 REQUIRED CLEANING EQUIPMENT...............................................................................................3

3.3 CLEANING AND SANITIZING PROCEDURE ...................................................................................4

4. REMOVING DISPENSER FROM SERVICE ...............................................................................................4

5. SERVICE AND TROUBLESHOOTING .......................................................................................................5

6. DISPENSER TROUBLESHOOTING GUIDE ...........................................................................................5-6

7. ILLUSTRATIONS AND PARTS LISTINGS .................................................................................................7

7.1 LANCER TEA DISPENSER ASSEMBLY ...........................................................................................7

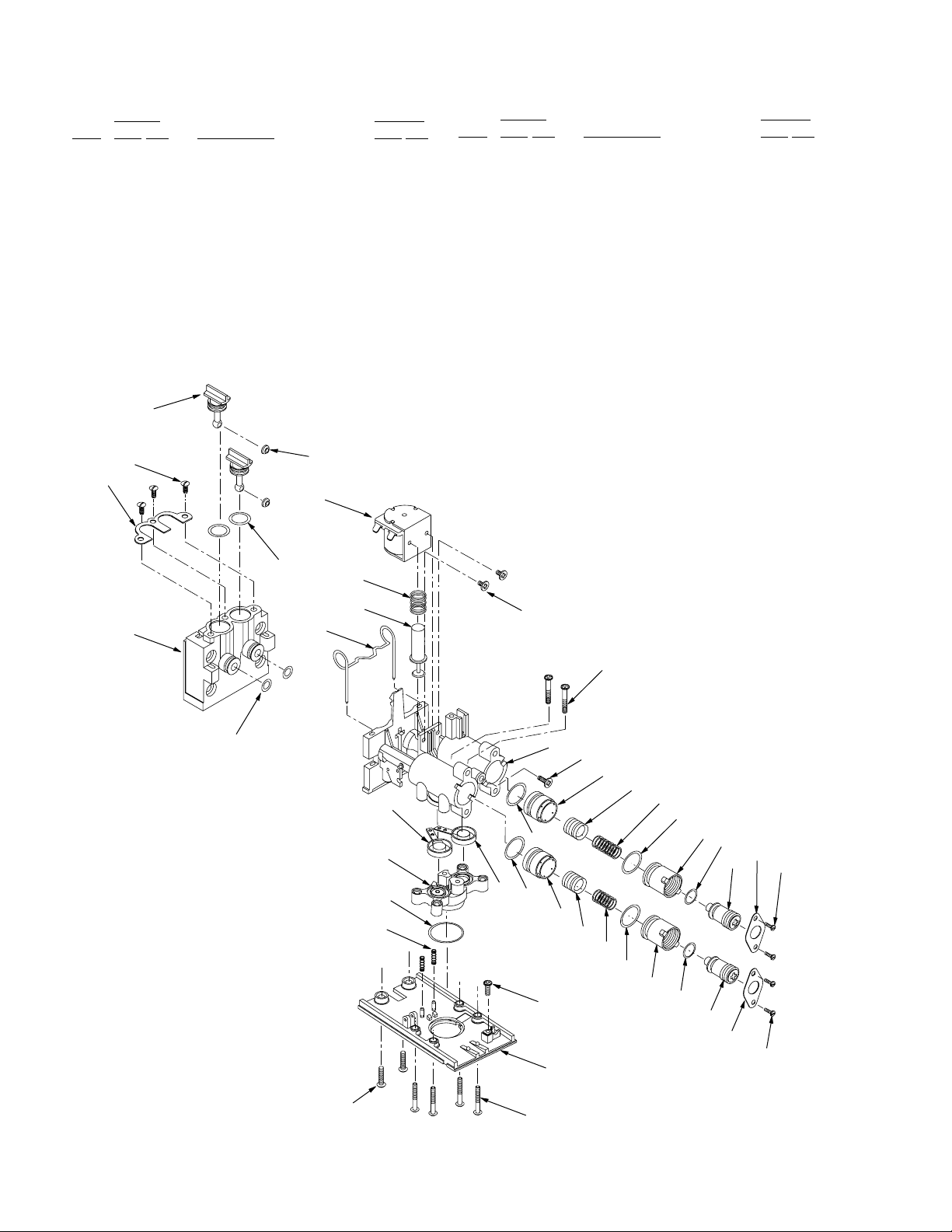

7.2 LANCER TEA DISPENSER - VALVE ASSEMBLY (PN 19-0137)......................................................8

7.3 LANCER TEA DISPENSER - NOZZLE EXTENSION ASSEMBLY (PN 54-0132).............................9

SPECIFICATIONS

DIMENSIONS

Width 10 inches (25.4 cm)

Depth 14 7/8 inches (37.78 cm)

Height 23 7/8 inches (60.64 cm)

WEIGHT

Shipping 20 lbs (9.1 kg)

Operating 12.5 lbs (5.68 kg)

ELECTRICAL RATING

0.5 AMP

24 VAC

60 HZ

NOTE

Power supplied to dispenser by a remote transformer which converts 115 VAC (for PN 85-1711)

or 230V (for PN 85-1712) to 24 VAC.

SUPPLY CONNECTIONS

Water 3/8 inch (9.52 mm) barb

Syrup 3/8 inch (9.52 mm) barb

FEATURES

• Cup rest and drip pan are readily removable for cleaning.

NOTE

Drip pan drain is capped at the factory. Cap needs to be removed if connected to permanent drain.

• Nozzle extension assembly is readily removable for cleaning.

• Dispensing valve is readily accessible for inspection, cleaning and servicing.

1. INSTALLATION OF LANCER TEA DISPENSER

1.1 RECEIVING

Each unit is completely tested under operating conditions and thoroughly inspected before

shipment. At the time of shipment, the carrier accepts the unit, and any claim for damage must be

made with the carrier. Upon receiving unit(s) from the delivering carrier, carefully inspect carton(s)

for visible indication(s) of damage. If damage exists, have carrier note the same on the bill of

lading and file a claim with the carrier.

1.2 UNPACKING

A. The Lancer Tea Dispenser is shipped in a corrugated shipping carton.

B. Carefully remove the corrugated shipping carton.

C. Check to see that the following items are included:

• Tea Dispenser

• Remote Transformer

• Installation Kit

D. Inspect items for concealed damage. If evident, notify delivering carrier and file a claim against

same.

1.3 SELECTING A COUNTER LOCATION

A. Select a counter location which is close to a properly grounded electrical outlet, and a water

supply that meets the requirements specified in Section 1.4 below.

1.4 WATER SUPPLY

A. The dispenser requires a minimum water flowing pressure of 40 PSI.

B. Water pipe connections and fixtures directly connected to a potable water supply shall be sized,

installed, and maintained according to federal, state and local laws.

1.5 ELECTRICAL SUPPLY

WARNING

THE POWER SUPPLY MUST BE PROPERLY ELECTRICALLY GROUNDED TO AVOID

POSSIBLE ELECTRICAL SHOCK OR SERIOUS INJURY TO THE OPERATOR. THE POWER

CORD IS PROVIDED WITH A THREE PRONG GROUNDED PLUG. IF A THREE-HOLE

GROUNDED ELECTRICAL OUTLET IS NOT AVAILABLE, USE AN APPROVED METHOD TO

GROUND THE UNIT.

A. The dispenser requires connection to a properly grounded electrical source: 115V, 60HZ (for

PN 85-1711) or 230V, 50HZ (for PN 85-1712).

NOTE

In the event more than one dispenser is installed, each dispenser should be on a separate 15

amp fused circuit.

B. Power is supplied to each dispenser by the remote transformer (included in Installation Kit)

which converts 115V (for PN 85-1711) or 230V (for PN 85-1712) to 24 VAC.

1.6 INSTALLATION

A. Place Tea Dispenser on counter top. Lay Tea Dispenser on its side to expose product supply

and electrical connections.

B. Identify supply connections in channel on underside of base. The water connection is a 3/8"

barb fitting, and the syrup connection is a 3/8" barb fitting.

C. Thoroughly flush all incoming lines before connecting (see Section 3.3, Cleaning and Sanitizing

Procedure). Avoid putting excessive strain on the lines to the unit; use sufficient line lengths.

D. Identify electrical connector in channel on underside of base.

E. Connect dispenser connector to output of remote transformer.

F. Connect input cord on remote transformer to properly grounded electrical source.

G. Turn Tea Dispenser upright and place in desired location.

H Secure Tea Dispenser to counter top with the four (4) #10 Mounting Screws and Wingnuts

included in the Installation Kit.

NOTE

The Lancer Tea Dispenser Template (PN 28-0346) is included in the Installation Kit.

I. Remove lid from dispenser by unscrewing the knob.

J. Turn on water and syrup supplies. Check for leaks.

NOTE

When using Figal Syrup Supply Tanks, pressurize with clean air or Nitrogen (not CO2).

K. Check operation of unit by activating the handle on the nozzle extension portion of unit.

L. Check dispensing valve for proper flow ratio (see Section 2).

M. Replace lid and secure with knob.

2. SYRUP AND WATER RATIO ADJUSTMENT

2.1 PREPARING DISPENSER FOR ADJUSTMENT

A. Remove nozzle from nozzle extension by twisting it to the left and pulling downward. Remove

diffuser by pulling downward.

B. Replace the nozzle and diffuser with the syrup separator (see Figure l). Push the syrup

separator upward and twist it to the right.

2.2 ADJUSTMENT PROCEDURE

A. Hold ratio cup under the syrup separator (see Figure l). Hold small chamber marked "4.50 to 1"

under the syrup spout.

B. Actuate the valve until approximately five (5) ounces (148 ml) of water fills the main chamber.

1. Set the ratio cup on a level surface, and note whether the syrup level is above or below the

water level.

Front View, Syrup Separator and Ratio Cup

Figure 1

View Looking Down, Valve Adjustment

Figure 2

2. If the syrup and water are at the same level, the ratio is properly adjusted. If the syrup and

water are not at the same level, continue with the valve adjustment procedure below.

C. Remove the lid from the dispenser by unscrewing the knob.

D. Locate the two flow control adjustment screws on the front of the valve (see Figure 2). The

water side flow control adjustment screw is on the left. The syrup side flow control adjustment

screw is on the right.

NOTE

The water side flow control is factory preset to dispense 2 1/2 fluid ounces per second

(74 ml/sec) and should require no adjustment.

E. Increase or decrease the syrup flow to cause the two liquid levels to become even in the ratio

cup. To increase syrup flow, turn the adjustment screw in (clockwise); to decrease flow, turn the

screw out (counter clockwise).

F. Rinse out the ratio cup with water.

G. Repeat steps E and F until syrup and water levels are even.

H Remove the syrup separator, replace the diffuser and nozzle, and reinstall the lid on the

dispenser.

3. CLEANING AND MAINTENANCE

NOTE:

The dispenser must be cleaned and sanitized after installation is complete and, thereafter as required by

state and local authorities, or every six months, minimum.

3.1 CLEANING INFORMATION

A. Clean external surfaces with mild soap and warm water. Rinse with clean water.

B. Remove four (4) Wingnuts and Mounting Screws securing Tea Dispenser to counter. Clean

under unit as required.

C. Do NOT use strong bleaches or detergents. They tend to discolor and corrode various

materials.

D. Do NOT use steel wool, scouring pads, abrasives, etc., on the dispenser.

E. Do NOT use hot water exceeding a temperature of 140oF (60oC). This may damage certain

materials.

F. Continuous maintenance is a basic requirement for proper operation and sanitation of this unit.

G. Daily routine cleaning should be performed. This should consist of washing the cup rest and

drip pan in cleaning solution. Then rinse with tap water. Wipe all splash areas clean, using a

damp cloth soaked in cleaning solution.

B. Reinstall Tea Dispenser to counter location. Secure with four Mounting Screws and Wingnuts

removed in Step A above.

3.2 REQUIRED CLEANING EQUIPMENT

A. Prepare a cleaning solution consisting of two (2) ounces of CHECK-MARK DDS-164 (NCH

Corp./Kernite) per gallon of tap water (200 ppm Quaternaries) at 75oF. An equivalent cleaning

solution may be used if prepared in accordance with the manufacturer’s instructions.

Approximately 3 1/2 gallons should be prepared.

B. Prepare a sanitizing solution consisting of one (1) ounce of CHECK-MARK DDS-185 (NCH

Corp./Kernite) per four (4) gallons of tap water (200 ppm Quaternaries) at 75oF. An equivalent

sanitizing solution may be used if prepared in accordance with the manufacturer’s instructions.

Approximately 3 1/2 gallons should be prepared.

C. Two pressure tanks are required. Use one tank for the cleaning solution, and one for the

sanitizing solution.

D. Other:

• Clean cloth towels

• Bucket

• Small brush (PN 22-0017, included with installation kit)

• Extra nozzle

3.3 CLEANING AND SANITIZING PROCEDURE

NOTE

Routine cleaning should be performed prior to cleaning and sanitizing.

Cleaning and sanitizing are not required for potable water circuits. The potable water lines

should remain connected during the cleaning and sanitizing procedures for the syrup circuits to

avoid contamination.

A. Neutralize pressure and disconnect syrup container from valve product line. Remove product

from the line by purging with carbon dioxide (CO2). Purge completion is evident by sputtering

from the valve.

B. Clean the line and fitting with cleaning solution (prepared IAW Section 3.2), and rinse with clean,

room temperature water to remove all traces of residual product.

C. Attach valve product line to the pressure tank containing the cleaning solution. Pressurize and

fill the syrup line by activating the valve. Make sure the line is full by running at least three (3)

gallons (11 liters) through the valve and allow to stand pressurized for at least 10 minutes.

D. Flush the cleaning solution from the line with clean water. Continue flushing until testing with

phenolphthalein shows the rinse water to be free of residual detergent.

E. Attach the valve line to the pressure tank containing the sanitizing solution (prepared IAW

Section 3.2). Pressurize and fill the lines with sanitizing solution. Make sure the lines are

completely filled by running at least three (3) gallons (11 liters) through the valve and allow to

stand pressurized for at least 10 minutes.

NOTE

A sufficient amount of sanitizing solution should be placed in a separate container for the

purpose of cleaning and sanitizing the nozzle and diffuser.

F. Twist off the mixing nozzle and remove the diffuser from under the nozzle extension. Wearing

sanitary gloves, clean and sanitize these items, allowing them to remain in the sanitizing

solution for at least 10 minutes. Then, reinstall the nozzle and diffuser without rinsing them.

NOTE

Please note that a fresh water rinse cannot follow sanitization of equipment being actively

operated. Purge only with CO2or the end use product. This is an NSF requirement.

G. Purge the sanitizer from the syrup line with carbon dioxide.

H. Reconnect the syrup container to the valve line and ready the dispenser for operation.

WARNING

FLUSH SANITIZING SOLUTION FROM SYRUP SYSTEMS AS INSTRUCTED. RESIDUAL

SANITIZING SOLUTION LEFT IN SYSTEM COULD CREATE HEALTH HAZARD.

I. Draw drinks to refill the line and flush the sanitizing solution (chlorine solution) from the

dispenser. Taste the beverage to verify that there is no off-taste.

4. REMOVING DISPENSER FROM SERVICE

4.1 If it becomes necessary to remove a dispenser from service, complete the following procedure.

A. Neutralize pressure on water and syrup supply lines. Disconnect water and syrup lines from the

dispenser.

B. Connect suitable pressure tank containing sanitizing solution (prepared IAW Section 3.2) to CO2

supply and syrup inlet line. Then flush sanitizing solution through system. When chlorine

solution appears, disconnect tank and allow to stand five (5) minutes.

CAUTION

INSURE ALL SANITIZING SOLUTION IS DRAINED OR BLOWN OUT OF SYSTEM. ALL

PRODUCT TUBES MUST BE FREE OF SANITIZING SOLUTION AND OR WATER BEFORE

SHIPPING OR STORING UNIT. RESIDUAL WATER IN DISPENSER (STORED IN A FREEZING

ENVIRONMENT) CAN CAUSE INTERNAL DAMAGE TO THE UNIT.

C. Connect clean potable water to syrup inlet line. Then, flush system thoroughly to remove all

traces of chlorine.

D. Connect CO2supply to syrup inlet line and force all water out of syrup line with CO2pressure.

E. Connect CO2supply to water inlet line and force all water out of water line with CO2pressure.

F. Place a disposable plastic bag over dispensing valve nozzle (or entire dispenser), and syrup

and water line fittings. Secure in place with tape.

5. SERVICE AND TROUBLESHOOTING

5.1 Problems found in the operation of the dispenser can be solved by using the procedures listed

below, the Troubleshooting guide, or by calling Lancer Customer Service or the Coca-Cola

Company at the numbers listed below.

5.2 Before seeking repair assistance, check the following.

A. Does the syrup container contain syrup?

B. Is the syrup line properly connected to the syrup tank or bag?

C. Is the syrup outlet line properly connected to the pump stand fitting ( BIB only)?

D. Is the CO2outlet line properly connected to the pump stand fitting (BIB only)?

E. Is the dispenser unplugged?

F. Do the CO2cylinders contain adequate CO2supply?

G. Are the CO2regulators properly set?

H. Are the circuit breakers in the "OFF" position, or electrical fuses blown?

I. Service for dispensing systems can be obtained by calling the following:

1. The Coca-Cola Company at 1-800-241-COKE (2693)

2. Lancer at 1-800-729-1565

Monday through Friday, 7:30 a.m. - 5:30 p.m., CST.

6. DISPENSER TROUBLESHOOTING GUIDE

The following chart is designed to aid in correcting Tea Dispenser problems. Indicated corrective actions

should be made by qualified dispensing service personnel only.

PROBLEM CAUSE CORRECTIVE ACTION

1. No product dispensed A. No electricity to dispenser. A. Check fuse or circuit breaker and

from valve. replace or reset as applicable.

*If circuit opens again, locate short

in electrical system and correct.

B. No gas pressure on system. B. Check gas pressure(s) on CO2

tank(s) - valve open?

C. Transformer not connected, C. *Check output transformer. Should

or defective transformer. be 24 VAC. Replace if defective.

D. Loose or defective D. *Check all connections between

connections. transformer and dispensing valve.

Tighten if loose. If defective,

Replace.

2. Only water dispensed - A. Syrup tank is empty (usually A. *Replace or fill syrup tank.

no syrup. accompanied by hissing

and sputtering).

B. Gas or liquid syrup tank B. Check that both disconnects are

disconnects not secure. locked in position.

C. Syrup or gas lines to tank C. Adjust lines or replace.

are kinked.

D. Syrup mounting block shutoff D. Open valve.

valve closed.

E. Lack of pressure to syrup E. Check secondary regulator. Adjust

tanks. to 60 PSIG (414 KPA) if sugar

based. Adjust to 15 PSIG

(103 KPA) if sugar free. For BIB,

adjust to 60 PSIG for all pumps.

*Servicing must be performed by

(Continued next page) qualified service personnel.

(Continued from previous page) F. Dip tube in syrup tank blocked. F. Remove both quick disconnects

from syrup container. Depressurize

tank through relief valve. Remove

syrup and wash tank. Interchange

quick disconnects and pressurize to

the syrup out connection to remove

debris from dip tube. Clean tank

again. Upon completion, restore

disconnects to their original

locations.

G. Dispensing valve port blocked. G. Back-flush system.

3. Only syrup dispensed, A. Water mounting block shutoff A. Open valve.

no water. valve closed.

B. Water supply off. B. Open water supply valve.

C. Inadequate water supply C. Check pressure. Consider

pressure. installation of water pressure

booster kit.

4. Ratio cannot be set. A. Inadequate water supply A. Turn water flow control (left side) to

pressure. full open (CW). Measure flow rate.

If greater than 2.5 oz/sec

(74 ml/sec), adjust water to

2.5 oz/sec., then adjust syrup. If

less than 2.5 oz/sec with flow

control at maximum setting, adjust

syrup to proper ratio with water at

maximum setting.

B. Product lines not installed B. Ensure water supply is connected

properly. to water inlet and syrup supply is

connected to syrup inlet.

5. Bad taste or odor. A. Dirty valve. A. Clean nozzle and diffuser

thoroughly.

B. Foreign substance in water. B. If water is free of impurities, it is

tasteless and odorless. Clean and

flush the system, and service the

water filter. (If the system does not

have a water filter, consider

installing one.)

C. Contaminated ice. C. Same conditions may exist in ice as

in plain water. Check with ice

machine service personnel to have

filter installed. Clean ice bin or

chest.

D. Contaminated syrup. D. Clean and sanitize lids, lid gaskets,

tanks and syrup/CO2couplers per

tank manufacturers or maintenance

instructions.

E. Impure CO2gas. E. Carbon dioxide gas is odorless,

colorless and tasteless. If CO2gas

should contain any oil or sludge

from filling tanks, a bad taste could

result. Use only beverage grade

CO2. Welding grade CO2can be

contaminated.

F. Plumber's pipe compound. F. Some of these compounds impart a

taste to the water. Remove piping

and clean joints. *Replace piping,

using only teflon tape.

G. Improper sealing of conduit G. *Be sure conduit and chases are

and floor chases. properly caulked and sealed with

approved materials.

*Servicing must be performed by

qualified service personnel.

PROBLEM CAUSE CORRECTIVE ACTION

7. ILLUSTRATIONS AND AND PARTS LISTINGS

7.1 LANCER TEA DISPENSER ASSEMBLY

Lancer CCUSA

Item Part No. Description Part No.

1 19-0137 Valve Assy 22330

2 54-0132 Nozzle Extension 22331

Assy

3 05-0881 Drip Tray, Tea Urn 23055

R4 30-5455/01 Wrapper, Tea Urn

5 30-5478 Lid 22334

6 05-0805 Knob 22335

7 05-0808 Retainer 22336

8 52-1194 Harness, Valve Wiring 22337

R9 52-1186/01 Wire Harness 22338

10 48-0725 Water Supply Tube 22339

R11 48-0725 Syrup Supply Tube 22339

Lancer CCUSA

Item Part No. Description Part No.

R12 30-5871 Rear Bracket

R13 30-5870 Front Bracket

14 30-5459 Tube Spacer 22343

15 04-0310 Screw (#8-16 x .600) 18630

16 04-0148 Screw (#l0-32 x 1/4) 22346

17 25-0049 Transformer Assy 22347

18 04-0494 Screw (#l0-32 x 0.625) 22348

19 23-0924 Cup Rest, Wire 23053

20 30-5750 Bracket, Left, Drip Tray 23052

21 30-5813 Bracket, Right, Drip Tray 23051

22 54-0151 Base Assembly 23054

23 04-0372 Screw (#8-32 X.500)

R24 05-1571 Sleeve, Nozzle Ext

R- 08-0082 Drain Hose, Vinyl, 15512

0.500 ID x 0.750 OD

Rin margin indicates revision or change

18 19

21

10 11

12 13 16

18 19

20 21

7.2 LANCER TEA DISPENSER - VALVE ASSEMBLY (PN 19-0137)

Lancer CCUSA

Item Part No. Description Part No.

R1 05-0266 Valve Stem 12270

R2 05-0267 Washer 12286

R3 02-0047 O-Ring 15175

R4 04-0269 Screw 19894

R5 03-0087 Retainer 12263

R6 05-0265 Mounting Block 12189

R7 03-0233 Retainer, Valve 24231

8 03-0143 Spring, Pin

R9 04-0270 Screw 18635

R10 54-0189 Body, Upper Assy 25729

R11 04-0302 Screw 21691

R12 81-0274 Sleeve, Ceramic 22421

R13 81-0273 Spool, Ceramic (Syrup) 22422

R14 02-0132 O-Ring 10708

R15 81-0275 Spool Ceramic (Soda) 22423

R16 03-0169 Spring (Syrup) 11144

17 03-0171 Spring (Soda)

R18 05-0262 Bonnet Flow Control 15023

R19 02-0126 O-Ring 10706

R20 05-0645 Plug, Adjustment 26659

R21 03-0088 Retainer, Flow Control 23777

R22 04-0267 Screw 23779

R23 82-0190 Paddle Arm Assy 18722

R24 54-0046 Body, Lower Assy 19781

25 02-0127 O-Ring

R26 05-0232 Plate, Bottom 15457

R27 04-0310 Screw 18630

R31 52-0288 Coil Assy 15479

R32 03-0125 Spring, Solenoid 19933

R33 10-0117 Armature 15382

R34 04-0486 Screw 26660

R35 04-0470 Screw 22059

Rin margin indicates revision or change

Lancer CCUSA

Item Part No. Description Part No.

Other manuals for TD 1700 series

This manual suits for next models

Table of contents

Other lancer Dispenser manuals

lancer

lancer Blue Star CB Series User manual

lancer

lancer Flavor Select 30 User manual

lancer

lancer Barrilitos Beverage Tower User manual

lancer

lancer FS 22 User manual

lancer

lancer 2200 Series User manual

lancer

lancer 2200 Series User manual

lancer

lancer DROPIN 1522 Bargun Manual

lancer

lancer Spartan Ice User manual

lancer

lancer CoCo Fountain Tower User manual

lancer

lancer Twin Pour 30 User manual

lancer

lancer DELTA III 9100 Series User manual

lancer

lancer UNICORN TOWER User manual

lancer

lancer Twin Pour User manual

lancer

lancer IBD 22 User manual

lancer

lancer 4400 Series User manual

lancer

lancer CED-04 User manual

lancer

lancer 2500 REMOTE series User manual

lancer

lancer bridge tower User manual

lancer

lancer 500 Series Manual

lancer

lancer Flavor Select 22 User manual

lancer

lancer 9000 series User manual

lancer

lancer FS 30 User manual

lancer

lancer TD 1700 series User manual

lancer

lancer MAX II User manual

Popular Dispenser manuals by other brands

Silver King

Silver King Majestic SK12MAJ Technical manual and replacement parts list

Franke

Franke F3Dn Twin Service manual

STIEBEL ELTRON

STIEBEL ELTRON UltraHot Plus Operation and installation instructions

DAN DRYER

DAN DRYER 282 installation guide

Essity

Essity Tork 473208 manual

CBS

CBS SD300BU-88 COMPONENT MAINTENANCE MANUAL WITH ILLUSTRATED PARTS LIST

Sealey

Sealey MK77 manual

Fluid Management

Fluid Management Accutinter 1600 End user guide

Franke

Franke DVS SD99-010 Installation and operating instructions

Graco

Graco Dispensit 1053-10C operation & maintenance

ITALTINTO

ITALTINTO i50 user manual

Coca-Cola

Coca-Cola FREESTYLE 9000 user guide

Graco

Graco ProMix 2KE Operation

TECHCON SYSTEMS

TECHCON SYSTEMS TS1251 user manual

Wayne

Wayne GLOBAL VISTA CNG instruction manual

clarsen

clarsen H133 Instructions for use

PicoBrew

PicoBrew Zymatic user manual

BOWMAN

BOWMAN BP-007 manual

lancer TD 1700 series Manual

Popular Dispenser manuals by other brands
