Lancer FS 30 User manual

1CONTINUED ON NEXT PAGELancer PN: 28-3015

FS30, Mariani Video Merchandiser

Installation Kit

Instruction Sheet

The following illustrates how to remove the existing unit merchandiser and replace it with the

new Mariani Video Merchandiser for a FS30 unit.

Installation - New Merchandiser Assembly

Disconnect power from unit prior to servicing or

cleaning.

F WARNING

 Steps5-6highlighthowtoremovetheuorescent

lighting components and Steps 7 - 8 highlight how to

remove the LED lighting components.

NOTE

1. Unplug unit power cord from wall outlet to power down

unit.

2. Remove the existing merchandiser by lifting straight up

and pulling away from the unit.

3. Using the pins towards the top of the reector

assembly, ip up the reector and lock in place.

4. Remove the cover panel from the unit control board.

5. Disconnect the uorescent reector harness from the

unit control board.

6. Unscrew the reector and remove from unit.

7. Disconnect the brown and blue wires of the LED driver

harness from the “Ballast” connection on the control

board.

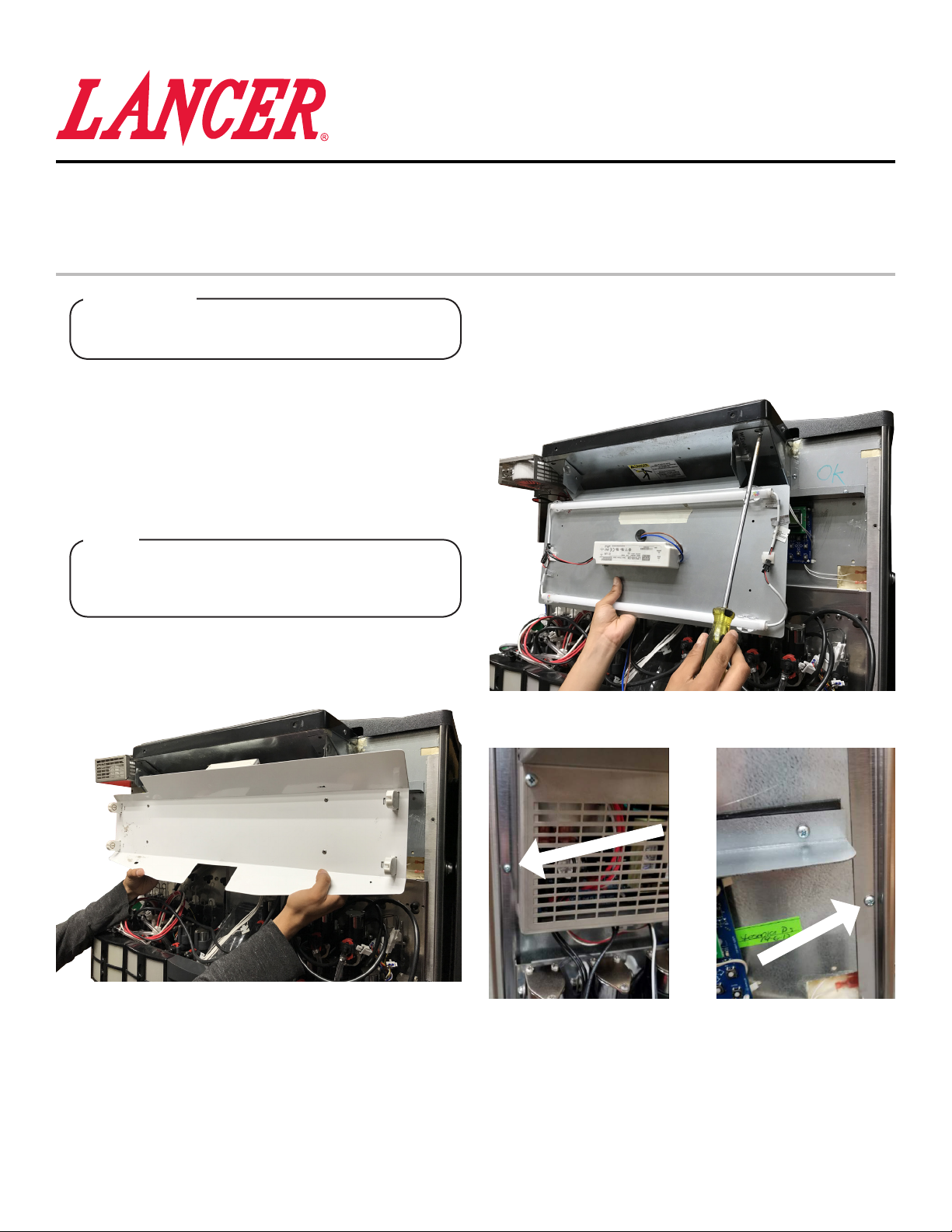

8. Unscrew the reector and LED Driver Assembly and

remove from the unit

9. Remove the screw from the left and right side edge of

the unit.

2CONTINUED ON NEXT PAGELancer PN: 28-3015

More than likely, a grounded power strip will be

required for monitor to reach a grounded electrical

outlet.

NOTE

10. Position the new Merchandiser Frame in place,

starting at the top of the unit.

11. Slide the Merchandiser Frame into place with the

bottom of the frame sliding behind the valve plate.

12. Install new self-tapping screws into the existing screw

placements removed in Step 9.

13. Remove the Monitor Bracket from the Merchandiser

Frame by lifting up and pulling away from the frame.

14. Slide the top of the Monitor into the top of the Monitor

Bracket then place the bottom of the monitor into the

lower portion of the bracket.

15. Secure the Monitor Bracket to the back of the Monitor

using the screws and nuts included in kit.

16. With the new Monitor installed to the Monitor Brack-

et, re-install the Monitor Bracket to the Merchandiser

Frame.

17. Plug the Monitor power cord into the back of the

Monitor.

18. If the unit utilizes an ice-maker: Run the power cord

out the top of the Merchandiser Frame and alongside

the ice-maker then plug into a grounded electrical

outlet.

Keep the front ice bin lid installed during installation

and operation of the Monitor.

! ATTENTION

19. Alternatively, run the power cord down behind the

valve plate and splash plate and plug into a grounded

electrical outlet.

3CONTINUED ON NEXT PAGELancer PN: 28-3015

Uploading New Video Content

1. Using the key provided, unlock the Merchandiser

Frame and open to gain access to the monitor.

2. Turn on the screen by pressing the power button on

the remote provided.

Aim the remote at the remote sensor on the lower left

corner of the monitor for best accuracy.

NOTE

Once plugged in, the screen should show the video

leaswellasthenameoftheUSB,“CruzerGlide”.

NOTE

Once the copy function is complete, the screen should

nowshowtwo(2)ofthesamevideole.

NOTE

 Oneofthevideolesonthescreenshoulddisappear

aftertheUSBdriveisremoved.

NOTE

Video will begin to play on a continuous loop, press

the back button to return to the menu.

NOTE

3. Once the screen has turned on, press the “Home” icon

button on the remote.

4. Use the arrows on the remote to navigate the Home

screen, and select the “Player” menu from the bottom

row of menu options.

8. Use the remote to scroll to the “Copy” icon, then press

OK.

9. Select the device “LG Signage Internal Storage” then

select the “Select” icon and press OK on the remote.

11. Remove the USB drive from the side of the monitor.

12. Use the remote to scroll to the “Continuous Play” icon,

then press OK.

15. Close the merchandiser frame and lock in place using

the key provided.

5. Plug the USB drive, containing the video le to be

loaded to the monitor, into the USB port on the top-left

side of the monitor.

6. Use the remote to scroll to the “Export” icon, then

press OK.

10. Select Yes on the “Single Item Selected. Copy Now?”

menu and press OK on the remote to begin the copy.

13. Select the video or videos you wish to play, then scroll

the “Play” icon and press OK.

14. Select No from the “Do you want to save Media to

Playlist?” menu then press OK.

7. Press OK on the remote to select the video to be

uploaded.

Lancer PN: 28-3015

Lancer Corp., 6655 Lancer Blvd., San Antonio, Texas 78219 - 800-729-1500 - Technical Support/Warranty: 800-729-1550

[email protected] - lancercorp.com - Manual PN: 28-3015 - August 2018
