La Crosse Technology WS-8001U User manual

WS-8001U

Radio Controlled Moon Phase Clock

Instruction Manual

Ρ Α ∆ Ι Ο Χ Ο Ν Τ Ρ Ο Λ Λ Ε ∆

TABLE OF CONTENTS

Topic Page

Inventory of Contents/ Additional Equipment 3

About WWVB 3

Quick Set-Up Guide 3

Detailed Set-Up Guide

Battery Installation 4

Program Mode

Function Buttons 5

Time Zone Setting 5

DST (Daylight Saving Time) Setting 6

Language Selection 6

Time Setting 6

Calendar Setting 7

12/24-Hour Setting 7

Selecting °F or °C 7

Features & Operations

Displaying the Seconds 8

The Alarm 8-9

Moon Phase 9

Mounting 10

Maintenance & Care 11

Troubleshooting 12

Specifications 12

Warranty Information 13

INVENTORY OF CONTENTS

1) WS-8001U

2) Instruction manual and warranty card.

ADDITIONAL EQUIPMENT (not included)

1) Two fresh 1.5V AA batteries.

2) Three wall-hanging screws.

3) Appropriate screwdriver for screws.

ABOUT WWVB (Radio Controlled Time)

The NIST (National Institute of Standards and Technology—Time and Frequency

Division) WWVB radio station is located in Ft. Collins, Colorado, and transmits the exact

time signal continuously throughout the United States at 60 kHz. The signal can be

received up to 2, 000 miles away through the internal antenna in the Moon Phase Clock.

However, due to the nature of the Earth’s Ionosphere, reception is very limited during

daylight hours. The Moon Phase Clock will search for a signal every night when

reception is best. The WWVB radio station derives its signal from the NIST Atomic

clock in Boulder, Colorado. A team of atomic physicists is continually measuring every

second, of every day, to an accuracy of ten billionths of a second per day. These

physicists have created an international standard, measuring a second as 9,192,631,770

vibrations of a Cesium-133 atom in a vacuum. This Moon Phase Clock is regulated by

the WWVB transmitter.

QUICK SET-UP GUIDE

1) Insert two AA batteries into the Moon Phase Clock.

2) Wait 10 minutes for WWVB reception.

3) If there is no WWVB reception, manually set the time and date (instructions

in the Program Mode).

4) Program the settings.

5) Mount the WS-8001U in a suitable location, where WWVB signals can be

received.

DETAILED SET-UP GUIDE

I) BATTERY INSTALLATION

Note: To avoid start-up problems make sure that the batteries do not spring free.

A) MOON PHASE CLOCK

1) Remove the battery cover,

located on the backside of the

unit and directly below the

function buttons.

2) Observe the correct polarity,

and install 2 AA batteries.

3) Replace the battery cover.

Note: After the batteries have been installed a tone will sound, and all the

LCD’s (Liquid Crystal Display) will briefly light up. Then the indoor

temperature, the date as “1/ 1”, the weekday as “MON”, and the Moon

Phase will be displayed. Also, the time will appear as “-:--” for

approximately 1 minute. Then the WWVB search is automatically initiated,

and a tower icon appears and flashes with the time colon (no tower icon

will appear if the WWVB is too weak to be detected). While the WWVB

search is being conducted various numbers will appear in the time display.

The numbers “0”, “1”, or “8” will appear in the hour position and the

seconds will appear in the minute display. The Moon Phase Clock will

either display the WWVB time, or discontinue the search after 10 minutes if

the time is not found. When the search is cancelled “-:--”will appear in the

time LCD. The Moon Phase Clock will conduct a WWVB search every hour

until the first signal is found. Once the WWVB time is found, a search is

automatically conducted nightly at midnight. If the signal is found at

midnight, the tower icon will remain, if not, another search will take place

every hour(up to 6:00 am) until the signal is found successfully. If no signal

is found during this period, the tower icon will not appear and the clock will

search again at 12:00 am the next night.

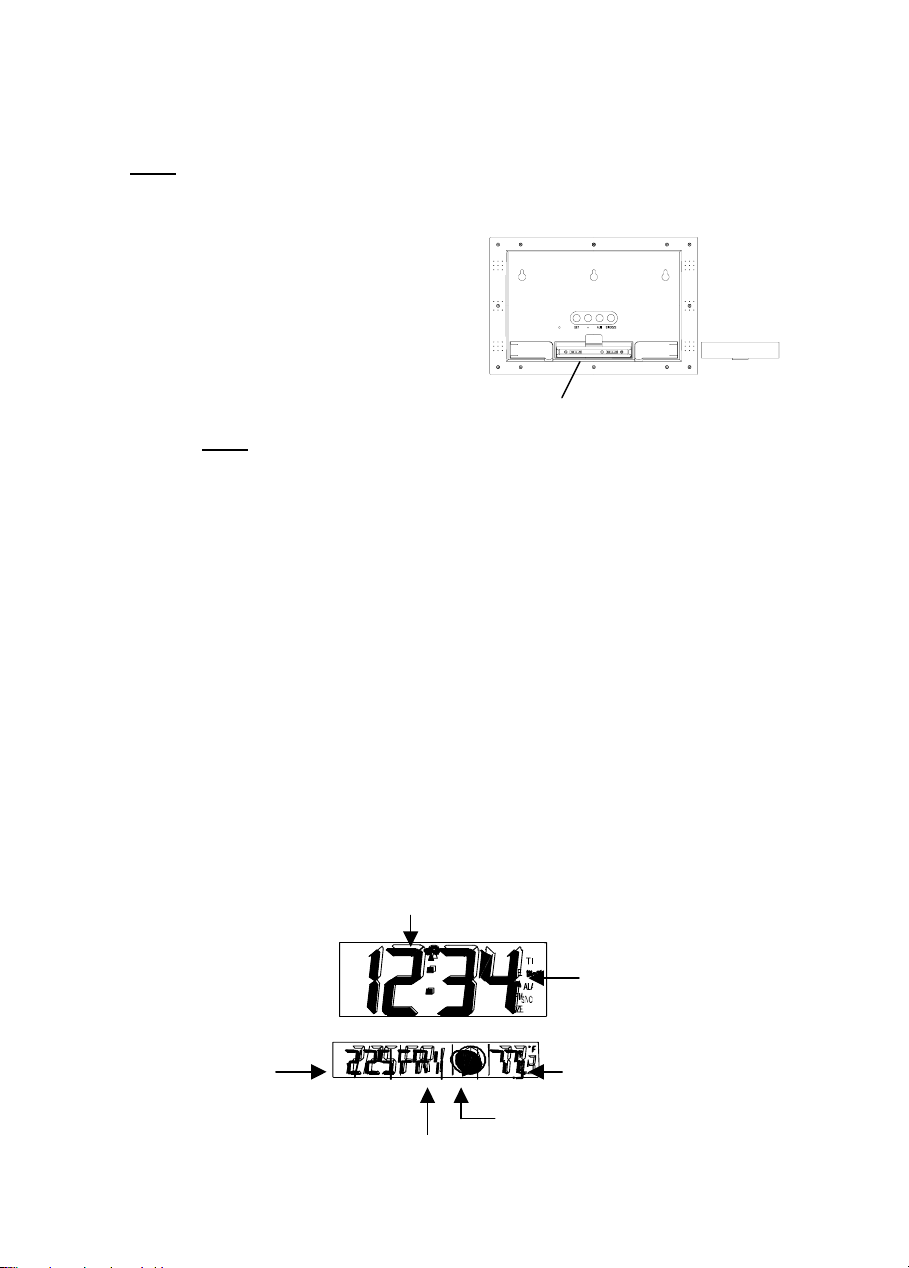

Battery Compartment

Battery Cover

Month/Da

Weekda

Indoor

Moon Phase Icon

Alarm sound Icon

WWVB Tower

PROGRAM MODE

To enter the Program Mode hold down the “SET” button for 2 seconds, until “-5EST”

flashes in the Date LCD. The Program Mode is laid out in a manner that allows you to

program each function separately, or you can follow the instructions entirely to program

the Moon Phase Clock. Complete programming is usually done for the initial set-up, and

will require you to skip step 1 of programming sections III through VIII. Press the

“SNOOZE” button at any time to exit the Program Mode, or wait approximately 15

seconds for the Moon Phase Clock to automatically return to normal operation.

I) FUNCTION BUTTONS

There are 4 function buttons located on the backside of the Moon Phase Clock. The

function buttons are labeled: SET, +, ALARM, and SNOOZE.

II) TIME ZONE SETTING

1) Hold down the “SET” button for 2 seconds, the default setting “-5EST” will

flash in the Date LCD.

2) Press the “+” button to select the appropriate time zone. There are 13 time

zones to choose from:

-5EST Eastern Time (default setting)

-6CST Central Time

-7MST Mountain Time

-8PST Pacific Time

-9ALA Alaskan Time

-10HAW Hawaiian Time

-11

-12

GMT Greenwich Mean Time

-1

-2

-3

-4ATL Atlantic Time

3) Press the “SET” button to confirm the time zone setting, and to advance to

DST (Daylight saving time) setting.

III) DST (DAYLIGHT SAVING TIME) SETTING

Note: The DST default is “On”, meaning that the WWVB will automatically change

the time according to Daylight Saving Time in the spring and fall. For areas that do

not recognize DST changes (Arizona and parts of Indiana) turn the DST “OFF”.

1) Hold down the “SET” button for 2 seconds (the selected time zone will

flash), press the “SET” button once more until “On” flashes in the time

LCD and “DST” flashes where the Weekday normally appears.

2) Press the “+” button to turn the DST off, as will be indicated by the display

of “OFF” in the time LCD.

3) Press the “SET” button to confirm the DST setting, and to advance to select

the language for the weekday.

IV) LANGUAGE SELECTION FOR THE WEEKDAY

1) Hold down the “SET” button for 2 seconds (the selected time zone will

flash), press the “SET” button 2 more times, until the default language

“US” flashes in the time LCD.

2) Press the “+” button to toggle through and to select the desired language.

There are 3 languages to select from:

US English

F French

E Spanish

3) Press the “SET” button to confirm the language setting, and to advance to

manually set the time.

V) TIME SETTING

Note: When the WWVB signal is found, that time will over-ride the manually set

time.

1) Hold down the “SET” button for 2 seconds (the selected time zone will

flash), press the “SET” button 3 more times, until the hour “12” flashes in

the time LCD.

2) Press the “+” button to select the hour. Note: when setting the hour, “PM”

will appear to the left of the hour display, if it is AM nothing will be

displayed.

3) Press the “SET” button to confirm the hour setting, and to shift to select the

minutes.

4) Press the “+” button to select the minutes.

5) Press the “SET” button to confirm the time setting, and to advance to

manually set the calendar.

VI) CALENDAR SETTING

Note: When the WWVB signal is found, that date will over-ride the manually set

date.

1) Hold down the “SET” button for 2 seconds (the selected time zone will

flash), press the “SET” button 5 more times, until the default year “00”

flashes in the date LCD.

2) Press the “+” button to select the year.

3) Press the “SET” button to confirm the year, and to set the month.

4) The default month “1” will flash. Press the “+” button to select the

appropriate month.

5) Press the “SET” button to confirm the month, and to set the date.

6) The default date “1” will flash. Press the “+” button to select the

appropriate date.

7) Press the “SET” button to confirm the date, and to set the weekday.

8) The default weekday “MON” (depends on selected language) will flash.

Press the “+” button to select the appropriate weekday.

9) Press the “SET” button to confirm the calendar settings, and to advance to

select either 12 or 24-hour time display.

VII) 12/24-HOUR SETTING

1) Hold down the “SET” button for 2 seconds (the selected time zone will

flash), press the “SET” button 9 more times, until the “12” hour time

display flashes in the time LCD.

2) Press the “+” button to toggle between 12 and 24 hour time.

3) Press the “SET” button to confirm the 12/24-hour time display, and to

advance to select either °F or °C.

VIII) SELECTING °F OR °C

1) Hold down the “SET” button for 2 seconds (the selected time zone will

flash), press the “SET” button 10 more times, until the default “°F” flashes

in the time LCD.

2) Press the “+” button to toggle between °F and °C.

3) Press the “SET” button to confirm the °F or °C selection, and exit the

Program Mode.

FEATURES & OPERATIONS

I) CHANGING DISPLAY MODE (DAY, SECONDS, AND TEMPERATURE)

There are three possible display modes to view the day, seconds, and temperature.

The month&date/weekday/moon phase/indoor temperature is the default.

To change the display:

1) Press the “+” button. The display should now show the

month&date/weekday/moon phase/seconds.

2) Press the “+” button a second time and the display will now show the

month&date/seconds/moon phase/indoor temperature.

3) Press the “+” button a third time and the display will return to the normal

display.

II) THE ALARM

A) SETTING THE ALARM

Note: The duration of the alarm is 85 seconds. After each of the first two 25

second periods, the rate of the alarm increases.

1) Hold down the “ALARM” button for 5 seconds. The “TIME” icon to the

right of the minutes (in the time LCD) shifts to “ALARM”, and the hour

digit of the alarm flashes.

2) Press the “+” button to set the alarm hour.

3) Press the “ALARM” button to confirm the hour, and to set the alarm

minutes.

4) The alarm minutes flash, press the “+” button to set the alarm minutes.

5) Press the “ALARM” button to confirm and to exit the alarm setting mode.

Note: The alarm will be automatically set to sound when exiting the alarm-

setting mode (indicated by the alarm “sound” icon to the right of the time).

B) ACTIVATING/DEACTIVATING THE ALARM

1) The alarm will be automatically set to sound when exiting the alarm-setting

mode (indicated by the alarm “sound” icon to the right of the time).

2) Press the “ALARM” button to activate and deactivate the alarm. The alarm

“sound” icon to the right of the time will appear or disappear, and the alarm

time will be displayed briefly before returning to the normal display mode.

C) ACTIVATING THE SNOOZE FUNCTION

1) While the alarm is sounding, press the “SNOOZE” button to activate the

snooze function. The alarm “sound” icon and “SNOOZE” icon (to the right

of the time) will flash. The duration of the snooze function is 10 minutes,

then the alarm will resume.

D) SUSPENDING ALARM

1) While the alarm is sounding or the SNOOZE is active, press the “ALARM”

button to suspend the alarm until the next day.

III) MOON PHASE

The Moon Phases, and their corresponding dates appear in the Date LCD. There are

8 visible Moon Phases that will show in the Date LCD:

The Weather Center is programmed with all moon phases and corresponding dates

from the year 2000 until 2019.

Waxing Moon Phases Waning Moon Phases

Crescent Moon

Last Quarter Moon

Gibbous

Full Moon

Gibbous

First Quarter Moon

Crescent Moon

New Moon

IV) INDOOR TEMPERATURE

The Indoor Temperature appears on the right side of the Date LCD. The temperature is

checked every 10 seconds, and updated whenever there is a change.

MOUNTING

There are two possible ways to mount the Moon Phase Clock:

• use of the foldout table stands, or

 



         





Function Buttons

Foldout Table Stands

Hanging Holes

• wall mounting.

I) FOLDOUT TABLE STANDS

The Foldout table stand legs are located on the backside,

at the lower corners, and on both sides of the battery

cover. The hinges are towards the edges of the Moon

Phase Clock, and the ends (with no hinge) need to be

folded out towards the edge. Once the Foldout table

stands are extended, place the Moon Phase Clock in an

appropriate location.

II) WALL MOUNTING

1) Using a straightedge, horizontally space at 3-

15/16 of an inch (100.58mm) three screw

positions on a wall.

2) Install three mounting screws (not included) into

a wall within transmission range—leaving

approximately 3/16 of an inch (5mm) extended

from the wall.

3) Place the Moon Phase Clock onto the screws, using the hanging holes on

the backside. Gently pull the Moon Phase Clock down to lock the screws

into place.

Other manuals for WS-8001U

Table of contents

Other La Crosse Technology Clock manuals

La Crosse Technology

La Crosse Technology 404-54667 User manual

La Crosse Technology

La Crosse Technology Payton 404-3015CC User manual

La Crosse Technology

La Crosse Technology 513-1311OT Dimensions

La Crosse Technology

La Crosse Technology BBB87269 User manual

La Crosse Technology

La Crosse Technology 513-1311 User manual

La Crosse Technology

La Crosse Technology BBB87276 User manual

La Crosse Technology

La Crosse Technology Radio Controlled Analog Clock WT-3181bz User manual

La Crosse Technology

La Crosse Technology BBB86088v2 User manual

La Crosse Technology

La Crosse Technology BBB82684 User manual

La Crosse Technology

La Crosse Technology WT-5350 User manual

La Crosse Technology

La Crosse Technology 404-1220 User manual

La Crosse Technology

La Crosse Technology WS-8007U User manual

La Crosse Technology

La Crosse Technology 513-148 User manual

La Crosse Technology

La Crosse Technology BBB86088 User manual

La Crosse Technology

La Crosse Technology C86279 Operating and maintenance manual

La Crosse Technology

La Crosse Technology WT-3161 Installation guide

La Crosse Technology

La Crosse Technology 404-1225 User manual

La Crosse Technology

La Crosse Technology 513-1419BL User manual

La Crosse Technology

La Crosse Technology WT-3129B User manual

La Crosse Technology

La Crosse Technology 515-1419 User manual

La Crosse Technology

La Crosse Technology WS-8236U User manual

La Crosse Technology

La Crosse Technology WT-8005U User manual

La Crosse Technology

La Crosse Technology WT-3144S User manual

La Crosse Technology

La Crosse Technology 513-1918S User manual

Popular Clock manuals by other brands

Silicon Laboratories

Silicon Laboratories SI5324 manual

Heathkit

Heathkit GC-1005 Assembly manual

Oregon Scientific

Oregon Scientific PRYSMA RMR221P manual

Andrew O'Malley

Andrew O'Malley DOTKLOK Assembly instructions

ALGE-Timing

ALGE-Timing ASC3 manual

Bodet

Bodet Profil 960 Installation and operating instructions

Nixie Clock

Nixie Clock Divergence Meter user manual

Mini Gadgets

Mini Gadgets MCPro user manual

Casio

Casio TMR-200 user guide

Progetti

Progetti ILTEMPOSTRINGE Directions

BVItech

BVItech BV-101 instruction manual

Progetti

Progetti KALIMERO Directions

Sharp

Sharp SPC900 instruction manual

Datexx

Datexx DF0063 quick guide

LG LEC-005 owner's manual

IKEA

IKEA ROTBLÖTA manual

U-Line

U-Line Н-2811 instructions

Digiview

Digiview RC305EL user manual
