KTI Networks KS-105F-T User manual
-1-
InstallationGuide
10/100 Fast Ethernet Switch
with 100FX Connectivity
KS-105FSeries
DOC.060302-KS105F
-2-
(C)2005KTINetworksInc.Allrightsreserved.Nopartofthisdocumen-
tation may be reproduced in any form or by any means or used to make
any directive work (such as translation or transformation) without per-
missionfromKTINetworksInc.
KTI Networks Inc. reserves the right to revise this documentation and to
make changes in content from time to time without obligation on the part
of KTI Networks Inc. to provide notification of such revision or change.
For more information, contact:
UnitedStates KTI Networks Inc.
P.O.BOX631008
Houston,Texas77263-1008
Phone: 713-2663891
Fax: 713-2663893
E-mail: [email protected]
WWW: http://www.ktinet.com/
International Fax: 886-2-26983873
E-mail: [email protected]
WWW: http://www.ktinet.com.tw/
-3-
The information contained in this document is subject to change without
prior notice.Copyright (C)All Rights Reserved.
TRADEMARKS
Ethernet is a registered trademark of Xerox Corp.
FCC NOTICE
This device complies with Class B Part 15 the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received including the interference that may cause.
CE NOTICE
Marking by the symbol indicates compliance of this equipment to
the EMC directive of the European Community. Such marking is indica-
tive that this equipment meets or exceeds the following technical stan-
dards:
EMC Class B
EN 50081-1/1992 : EN55022, EN61000-3-2, EN61000-3-3
EN 50082-1/1998 : EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5,
EN61000-4-6, EN61000-4-8, EN61000-4-11
-4-
Table of Contents
1. Introduction ..................................................................5
1.1 Features...........................................................................................6
1.2 Specifications ..................................................................................7
2. InstallingtheSwitch .....................................................9
2.1 Unpacking .......................................................................................9
2.2 CheckingACPower.........................................................................9
2.3 Installing the Switch...................................................................... 10
3. MakingNetwork Connections .................................. 11
3.1 Switched Ports............................................................................... 11
3.2 Making UTP Connections ............................................................. 11
3.3 Making Fiber Connection.............................................................. 12
4. LEDIndicators ...........................................................14
4.1 LEDPanel....................................................................................... 14
4.2 Interpretation................................................................................. 14
-5-

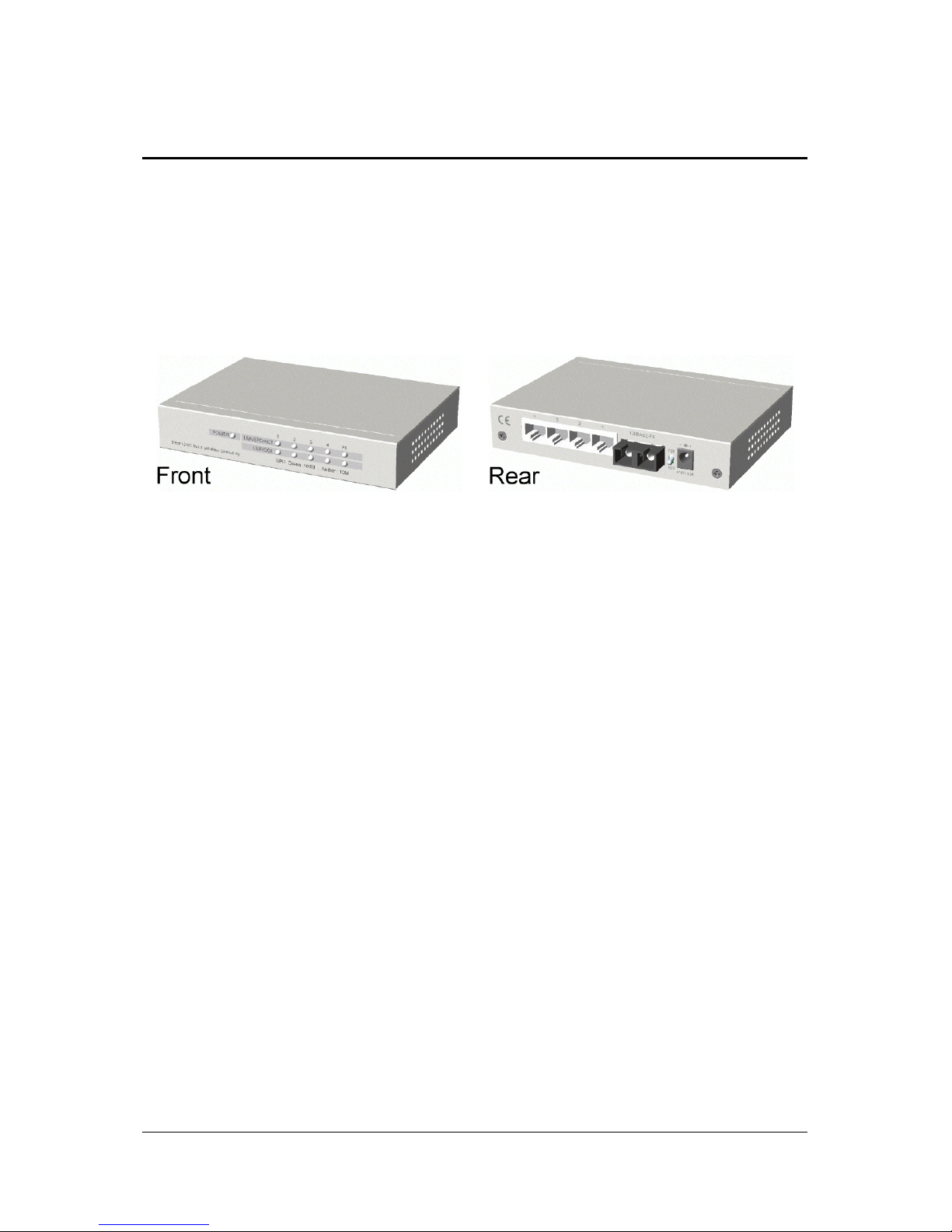

1. Introduction
This 5-port Fast Ethernet switch series provides four 10/100 TP ports and
one 100BASE-FX fiber port, each capable of transmitting or receiving
information simultaneously at full wire speed to control and allocate the
network bandwidth.
The key features of the switch series are:
•OptimizedBandwidth :Combining five100Mbps-based Fast
Ethernet switched ports, the switch delivers a high network
bandwidth for your Fast Ethernet network
•Easy Migration :With 10BASE-Tsupport on each port, the switch
provides a non-disruptive and smooth migration path from
Ethernet to a Fast Ethernet network.
•FiberUplink Support:With 100BASE-FX port, the switchprovides
a connectivity to a Fast Ethernet network via fiber cable.
•Easy Installation : With the functions of auto-speed-sensing and
auto-negotiation on each port, the switch supports plug-and-play
installation which eliminates configuration problems.
-6-
1.1 Features
Designed for resolving congestion problems caused by bandwidth-hun-
gry devices and bandwidth-intensive applications as well as a high num-
ber of users, the switches not only adhere to the IEEE 802.3 10BASE-T,
802.3u100BASE-TXand 100BASE-FX standards, but also feature:
• Four 10/100BASE-TX auto-negotiation switched ports and one
100BASE-FX port for flexible connections to desktop PCs, servers
and Fast Ethernet devices.
• The 10/100BASE-TX switched ports support:
- auto-negotiation with auto-negotiation devices
- full-duplexorhalf-duplex operation
- automatic MDI/MDI-X configuration
• For the 100BASE-FX fiber port, the switch series support variety of
fiber connectors for different application needs. The fiber connec-
tors include ST, SC, MT-RJ, and VF-45 types for multimode and
single mode fiber cables.
• Supports duplex mode selector for the 100BASE-FX fiber port.
• Self learning for active MAC addresses and address aging
• Store and forward switching to ensure only good packets are forwarded
• Forwarding and filtering at full wire speed
• SupportsIEEE 802.3x flow controlfor full-duplex operation
• Supports back-pressure flow control for half-duplex operation
• Comprehensive LED indicators provide quick, easy to read port
and switch information
-7-
1.2 Specifications
10/100 Ports IEEE802.310BASE-T,IEEE802.3u100BASE-TXstd.
Shielded RJ-45 jacks with Auto MDI-X detection
Auto-negotiation capable
Speed for 10Mbps or 100Mbps
Full-duplex or half-duplex mode support
100FXPort IEEE802.3u100BASE-FXcompliant
Fixed 100Mbps operation
Duplexmodeselector-fullduplexorhalfduplex
Flowcontrol IEEE802.3x pause packet for fullduplex operation
Back-pressure for half duplex operation
Cables 10BASE-TCat.3,4,5 orhigher (100meters max.)
100BASE-TX Cat. 5, 5e or higher (100 meters max.)
100BASE-FXmultimode or singlemode fiber cable
LEDindicators Power status
Perport :Speed, Link,Activity,Duplex,Collisionstatus
Forwardingrate 14,880pps for Ethernet (10M)
148,800ppsforFastEthernet(100M)
Filteringaddress Multicast/Broadcast/Unicast address
MACaddress 1K entries
Agingtime 300 seconds
Environment Temperature -5oCto 40oC
Relativehumidity 10% to 90% non-condensing
Dimensions 144mmx104.5mmx26mm(WxDxH)
5.67x4.11x1.02inch
DCINJack Rating+7.5V/1A, D6.3mm D2.0mm
DCINvoltage Operating+6.0V~+12.6VDC(Device DCInput)
Consumption DC input power consumption 3.9W @+7.5V
-8-
100FX Port Fiber Specifications
Duplex Series
Model Fiber Wavelength Tx Power Sens. Ref.Distance
KS-105F-T ST MMF1310nm -19 ~ -14dBm -31dBm 2km
KS-105F-C SC MMF1310nm -19 ~ -14dBm -31dBm 2km
KS-105F-JM MT-RJ MMF1310nm -19 ~ -14dBm -31dBm 2km
KS-105F-VM VF-45 MMF1310nm -20 ~ -14dBm -31dBm 2km
KS-105F-SA2 SC SMF 1310nm -15 ~ -8dBm -31dBm 20km
KS-105F-SL2 SC SMF 1310nm -15 ~ -8dBm -32dBm 20km
KS-105F-SL3 SC SMF 1310nm -15 ~ -8dBm -34dBm 30km
KS-105F-SL4 SC SMF 1310nm -5 ~ 0dBm -34dBm 40km
KS-105F-SL6 SC SMF 1310nm -5 ~ 0dBm -35dBm 60km
KS-105F-SL7 SC SMF 1310nm -3 ~ +3dBm -37dBm 70km
KS-105F-SL9 SC SMF 1310nm 0 ~ +5dBm -37dBm 90km
KS-105F-SL10 SC SMF 1550nm -3 ~ +3dBm -37dBm 100km
KS-105F-SL12 SC SMF 1550nm 0 ~ +5dBm -37dBm 120km
Ref. Distance : reference distance when operating on full duplex mode
MMF : Multimode fiber - 62.5/125µm, 50/125µm
SMF : Single Mode fiber - 9/125µm
Single Fiber Bi-Di WDM Series
Model Fiber Wavelength Tx Power Sens. Ref.Distance
KS-105F-W3515 SC SMF Tx 1310nm -14 ~ -8dBm -31dBm 15-20km
Rx 1550nm
KS-105F-W5315 SC SMF Tx 1550nm -14 ~ -8dBm -31dBm 15-20km
Rx 1310nm
KS-105F-W3540 SC SMF Tx 1310nm -8 ~ 0dBm -34dBm 40km
Rx 1550nm
KS-105F-W5340 SC SMF Tx 1550nm -8 ~ 0dBm -34dBm 40km
Rx 1310nm
Single Mode CWDM Series
Model Fiber Wavelength Tx Power Sens. Ref.Distance
KS-105F-CxxW40 SC SMF Tx 1xx0nm -5 ~ 0dBm -35dBm 40km
Rx 1100-1650nm
KS-105F-CxxW80 SC SMF Tx 1xx0nm 0 ~ +5dBm -37dBm 80km
Rx 1100-1650nm
Tx 1xx0nm : 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610nm
-9-
2. Installing the Switch
2.1 Unpacking
Check to see that you have everything before you start the installation.
• Installation guide
• The switch unit
• OneAC power adapter for the unit
2.2 Checking AC Power
Before you begin the installation, check the AC voltage of your area. The
ACpoweradapter whichisusedtosupply theDCpower forthe unitshould
have the AC voltage matching the commercial power voltage in your area.
The specifications of the AC power adapter are:
• AC input power: AC power voltage of your area
• DC output power: +7.5VDC1Amin.
• DC plug type:
-10-
TheDC power jack for theAC power adapter is located on the rear of the
switch as shown below:
2.3 Installing the Switch
1. Install the switch with the AC power adapter provided.
2. Connect the power adapter cable to the switch before connecting
the adapter to the AC outlet.
