KTI Networks KS-124 User manual

KS-124

24-Port 10/100 Workgroup Switch

User’s Guide

DOC.070524-KS124

1. Introduction

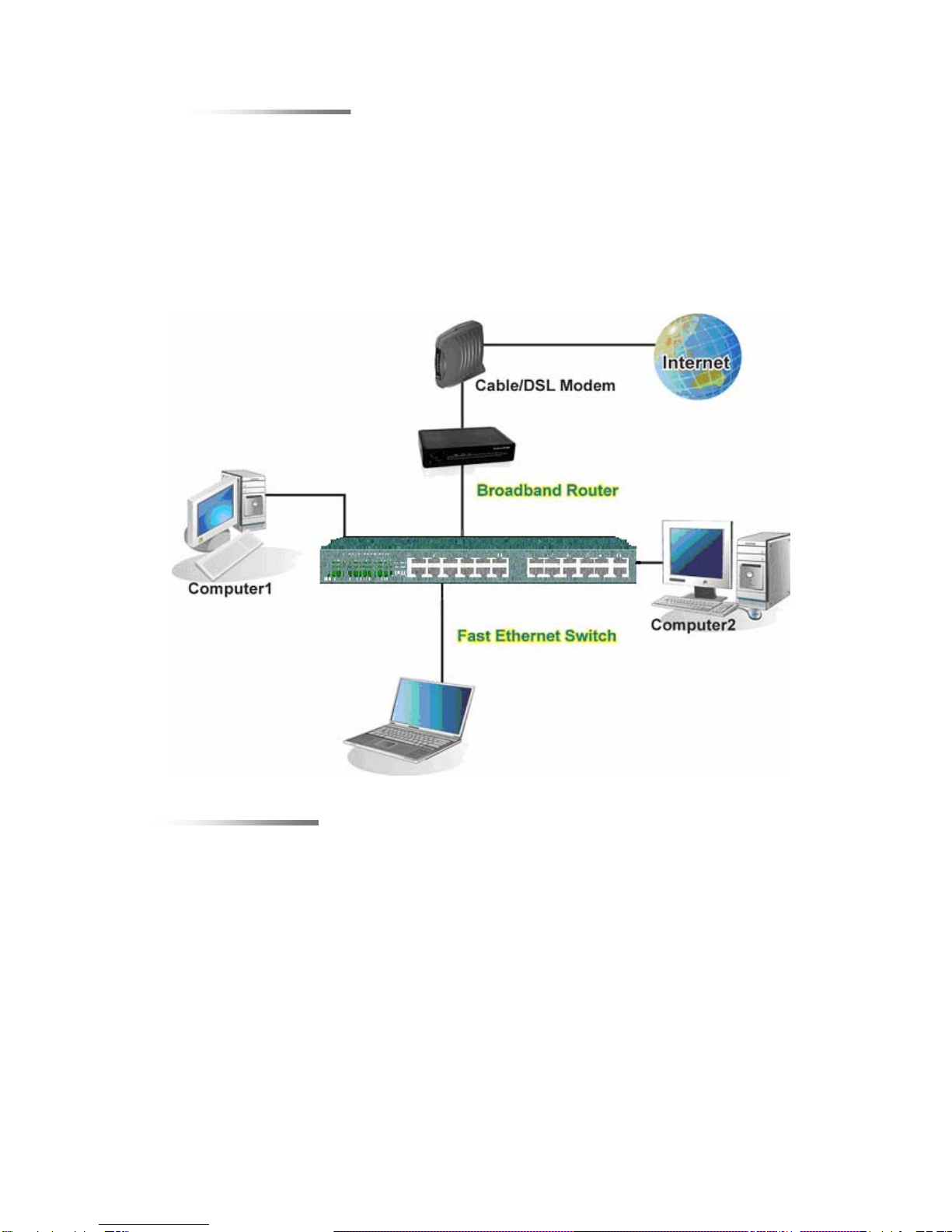

The 10BASE-T/100BASE-TX Switches which are high-performance Fast

Ethernet switches designed for the network core. It provides 24

10BASE-T/100BASE-TX ports that can significantly improve the performance

of your network’s backbone, and deliver the throughput needed to support a

broad range of advanced network applications. With Fast Ethernet Switches

high performance bandwidth, it provides the quickest solution to meeting the

growing demands on your network’s limited resources.

2. Features

zComplies with the IEEE 802.3 10Base-T Ethernet and IEEE 802.3u

100Base-TX Fast Ethernet standard.

z24-port 10/100Mbps Auto-Negotiation.

zHalf/Full duplex capability for each port.

zSupport TP interface Auto-MDI/MDI-X function for auto TX/RX swap.

zAutomatic Source MAC Address Learning and Aging.

zSupport up to total 4K unicast addresses entries.

zSupport up to 2Mbits data buffer.

zSupport Store & Forward architecture and performs forwarding and

filtering.

zBroadcast Storming Filter.

zRunt and CRC Filtering eliminates erroneous packets to optimize the

network bandwidth.

zSupport to handle up to 1522 bytes packet.

zLED indicators for simple diagnostics and management.

zInternal switching power supply.

zPlug and Play.

3. Package Contents

zRackmount Kit.

zUser guide.

zPower cord.

z10/100Mbps Fast Ethernet Switch

4. Hardware Introduction

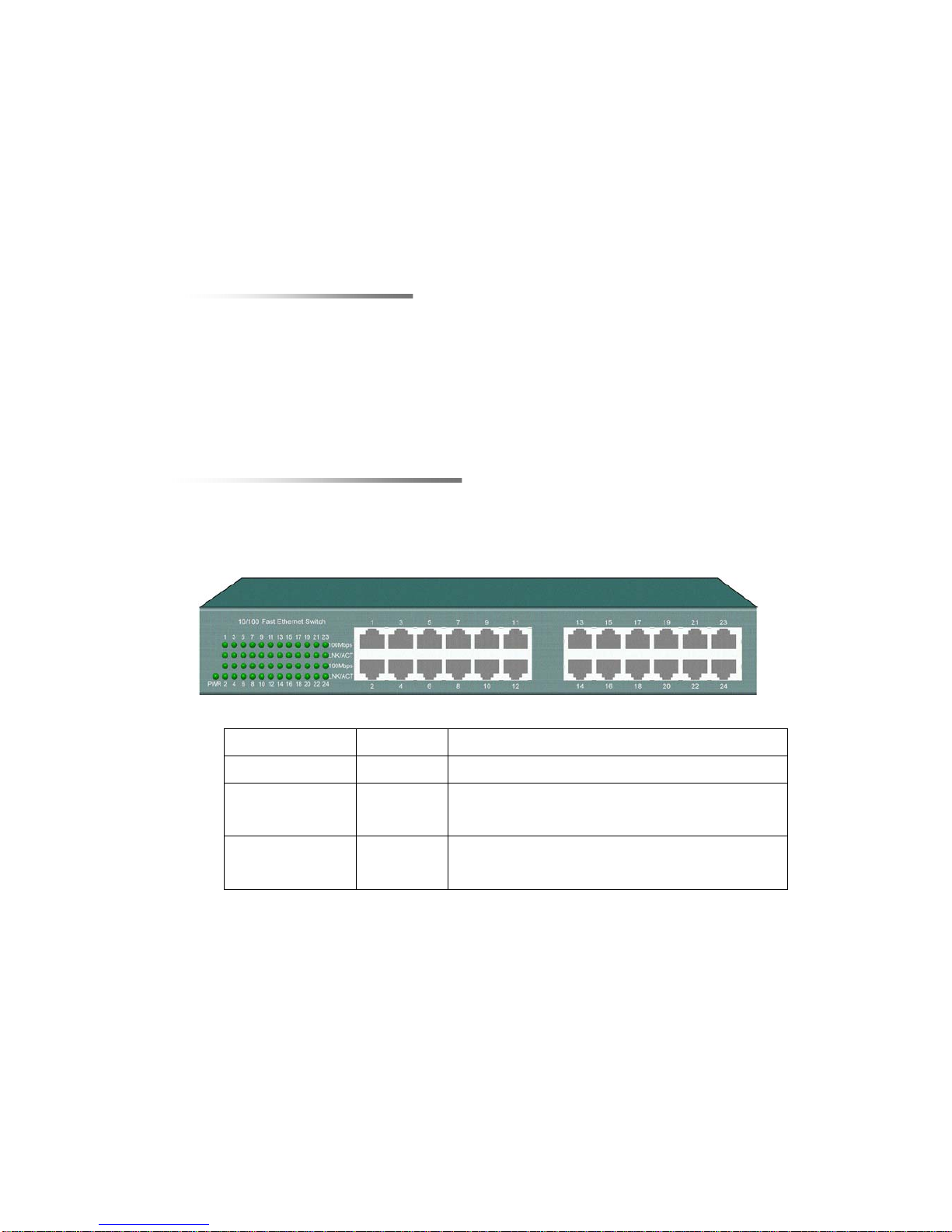

4.1 Front Panel

The unit front panel provides a simple interface monitoring the Switch.

See the chart in section 4.2 for the status of each LED denotes.

4.2 LED Displays

LED Function Color Description

PWR Green Lit: Power on

LNK/ACT Green Lit: Indicates there is a link

Flash: indicates there is an activity

10/100 Green Lit: 100Mbps

Unlit: 10Mbps

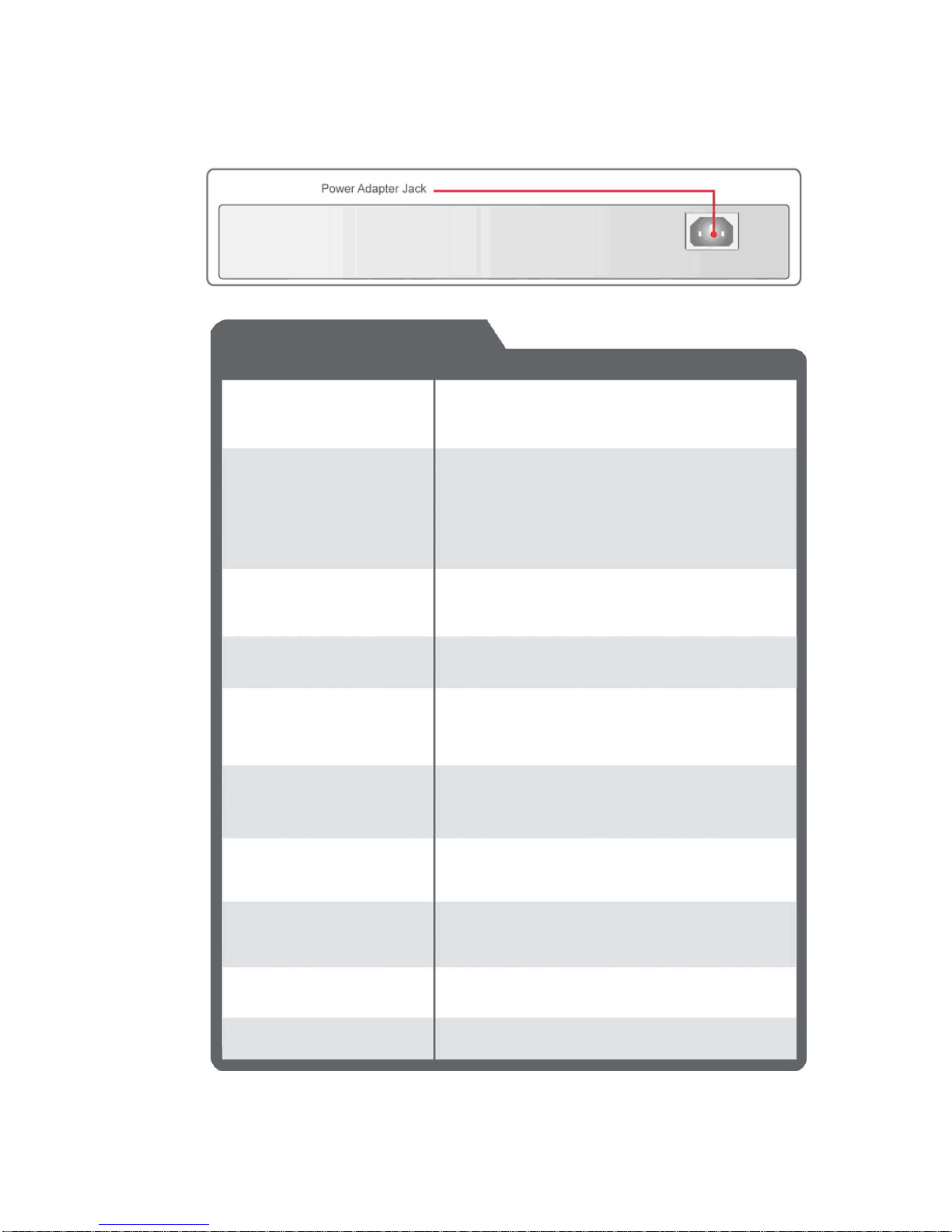

4.3 Rear Panel

The rear panel of the 24-port Fast Ethernet Switch indicates anAC inlet,

which accepts 100-240VAC 50-60Hz power input.

Specifications

Standard IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

Data Transfer Rate

- Ethernet : 10Mbps (half-duplex)

20Mbps (full-duplex)

- Fast Ethernet : 100Mbps (half-duplex)

200Mbps (full-duplex)

Network cable -100Base-TX UTP/STP category 5 cable

-10Base-T UTP/STP category 3 or 5 cable

Ports 24 10/100MbpsAuto-MDI / MDI-X Ports

LED indicators System – Power LED

Individual port – link/activity and speed LEDs

Dimension 283mm(W) x 178mm(D) x 44mm(H)

Temperature Operating 0°C to 50°C (32°to 122°F)

Storage -20°C to 70°C (-4°to 158°F)

Humidity Operating 10% to 90% RH, Non-condensing

Storage 5% to 90% RH, Non-condensing

Power Input 100 – 240VAC, 50 / 60Hz, Auto-sensing

Registrations FCC Part 15 Class B, CE

5. FCC Warning

This equipment has been tested and found to comply with the regulations

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with this

user’s guide, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference, in which case the user will be required to correct the

interference at his own expense.

zReorient the receiving antenna.

zIncrease the separation between the equipment and receiver.

zConnect the equipment into an outlet on a circuit in a different room

that to which the receiver is connected.

zConsult the dealer or an experienced radio/TV technician for help.

6. CE Mark Warning

This is a Class B product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to take

adequate measures.
