Kramer YARDEN 6-OD User manual

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

Yarden 6-OD (SPK-W641-KI)

On-Wall Stereo Speaker

P/N: 2900-300354 Rev 1

This page is intentionally left blank

Yarden 6-OD –Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Recycling Kramer Products 3

3Overview 4

3.1 Defining the Yarden 6-OD 4

4Installing the Yarden 6-OD 6

4.1 Choosing the Best Location 6

4.2 Installing the Speaker Wires 6

4.3 Installing the Mounting Bracket 8

4.4 Setting up an Array Installation 9

4.5 Connecting the Yarden 6-OD 11

5Technical Specifications 12

Figures

Figure 1: Yarden 6-OD 4

Figure 2: Yarden 6-OD Stereo Setup 5

Figure 3: Adjust Tap Selector 7

Figure 4: Yarden 6-OD with Bracket Connected 8

Figure 5: Square Layout 9

Figure 6: Hexagonal Layout 9

Figure 7: Square Layout Parallel Wiring 10

Figure 8: Yarden 6-OD Installed 11

Yarden 6-OD - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer Yarden 6-OD On-Wall Stereo

Speaker, which is ideal for:

Conference rooms

Boardrooms and classrooms

Multimedia systems

Yarden 6-OD - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer Speaker away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

Do not open the housing of the speaker; doing so may reduce the

quality of the sound.

Yarden 6-OD - Getting Started

2.2 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

Yarden 6-OD - Overview

3 Overview

The Yarden 6-OD is a high performance on-wall speaker that can be mounted on

the wall vertically or horizontally. The mounting bracket is made of painted steel that

can be attached to the speaker, letting you rotate it to the left or right.

The Yarden 6-OD speaker features:

A MONO/STEREO selector switch

Two pivoting titanium tweeters and two transformers, letting you use the

speaker in the mono or stereo mode

A multi-tap power transformer for selecting 8Ω (bypassing the transformer)

or 70V/100V power settings that are suitable for an array installation

3.1 Defining the Yarden 6-OD

This section defines the Yarden 6-OD:

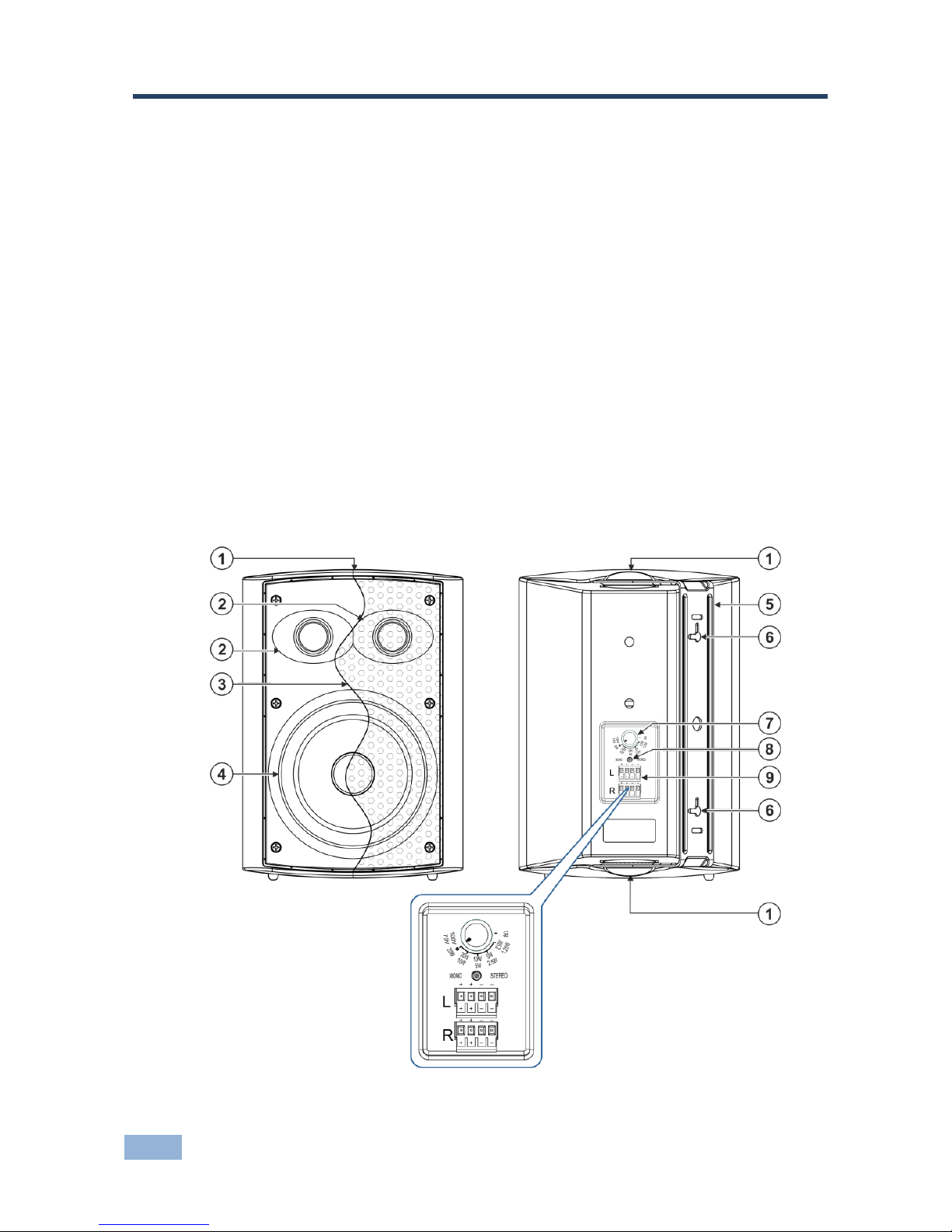

Figure 1: Yarden 6-OD

Yarden 6-OD - Overview

Feature

Function

Bracket Knobs (2)

Use two knobs to fasten the bracket to the speaker

Tweeters

2 pivoting tweeters, reproduce the higher frequency sounds

Speaker Grille

Protects the internal components of the speaker from

foreign objects.

Do not remove from the speakers

Woofer Driver

Reproduces low frequencies

Bracket

Use to mount the speaker onto the wall

Mounting keyhole

opening

For hanging the brackets on the wall

Tap Selector

Adjust each speaker to the appropriate tap setting:

For 70V: 1.25W, 2.5W, 5W, 10W or 20W

For 100V: 2.5W, 5W, 10W or 20W

Or select 8(to bypass the transformer when connecting

directly to an amplifier without using the 70/100V array

option), see Figure 3

MONO/STEREO

Selector Switch

Select the mono or stereo option

Left (L) and Right (R)

Terminal Block

Connectors

Use the left and right terminal blocks to setup a stereo

speaker (see Figure 2)

Note that the Left terminal block connecter is also used for a

“Mono” setup (once the selector switch is set to MONO).

One +, - pair for the input (see Section 4.4)

Figure 2 shows the Yarden 6-OD in a stereo setup:

Figure 2: Yarden 6-OD Stereo Setup

Yarden 6-OD - Installing the Yarden 6-OD

4 Installing the Yarden 6-OD

This section explains how to:

Choose the best location for your speakers (see Section 4.1)

Install the speaker wires (see Section 4.2)

Install the mounting brackets (see Section 4.3)

Setup an array installation (see Section 4.4)

Connect the Yarden 6-OD (see Section 4.5)

4.1 Choosing the Best Location

Before installing the speaker:

Experiment by placing the speakers in different locations before finally

deciding on the most suitable location

Be sure that the wall type is appropriate for the mounting brackets, that is,

either solid wood, bricks, concrete, hollow building blocks, or wood studs

Check that the mounting location is free of obstructions, such as electrical

piping, AC ducts or water lines, and so on

4.2 Installing the Speaker Wires

To install the speaker, do the following:

1. Prepare the wires for the speaker:

Cut the wires to similar lengths

For achieving high quality sound

Measure the length from each speaker to the receiver, and cut the

wires accordingly, adding some access wire length to let you easily

remove the speakers from the bracket without having to disconnect the

input wires

2. Strip the ends of the wires to expose a length of approximately 3/8 inch.
