Konica Minolta PagePro 1380 MF User manual
PagePro™1380 MF
Warranty Exchange
Guide
1760579-001A
Trademarks
KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered
trademarks of KONICA MINOLTA HOLDINGS, INC.
PagePro is a trademark or registered trademark of KONICA MINOLTA BUSINESS
TECHNOLOGIES, INC. All other trademarks are the property of their respective
owners.
Copyright Notice
Copyright © 2006 KONICA MINOLTA PRINTING SOLUTIONS U.S.A., INC., One
Magnum Pass, Mobile, AL 36618, USA. All Rights Reserved. This document may not
be copied, in whole or part, nor transferred to any other media or language, without
written permission of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
Manual Notice
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. reserves the right to make
changes to this manual and to the equipment described herein without notice.
Considerable effort has been made to ensure that this manual is free of inaccuracies
and omissions. However, KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
makes no warranty of any kind including, but not limited to, any implied warranties of
merchantability and fitness for a particular purpose with regard to this manual.
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. assumes no responsibility for,
or liability for, errors contained in this manual or for incidental, special, or
consequential damages arising out of the furnishing of this manual, or the use of this
manual in operating the equipment, or in connection with the performance of the
equipment when so operated.
Introduction 1
Introduction
Thank you for contacting a technical support representative to obtain
information about returning your PagePro 1380 MF for warranty exchange.
Follow these instructions very carefully.
If you need additional assistance, refer to the General Information Guide
(included with the original all-in-one) or printer.konicaminolta.com for world-
wide sources of service and support.
Attention
Failure to follow these instructions could result in voiding your
warranty.
Exchange Procedure
Each of these steps is explained in detail in this guide.
1Unpack the exchange all-in-one, and unlock the scan-
ning unit.
See page 2.
2Prepare the original all-in-one—Turn it off, unplug the
power cord and USB cable, remove the output tray, and
remove the media and media tray.
See page 3.
3If you have installed an optional automatic document
feeder on the original all-in-one, move it to the
exchange all-in-one.
See page 5.
4Move the imaging cartridge from the original all-in-one
to the exchange all-in-one.
See page 7.

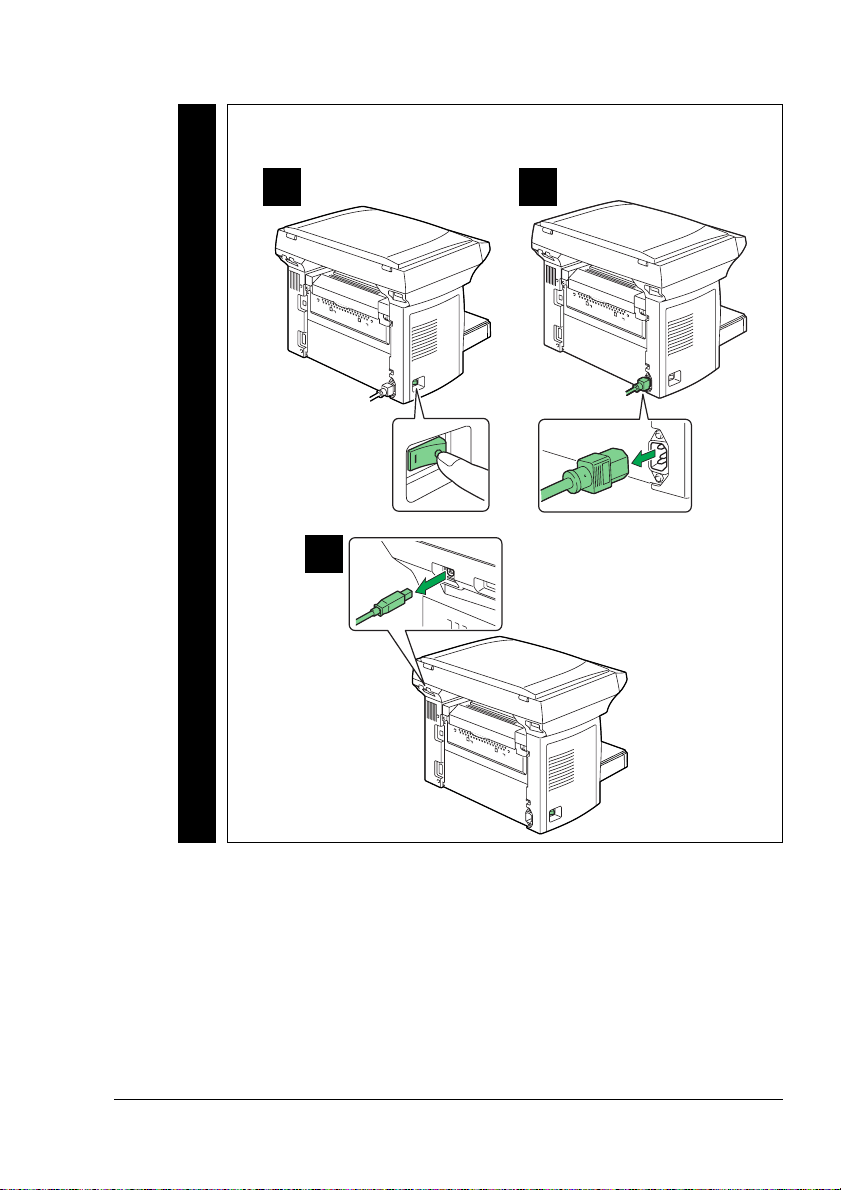

5Finish setting up the exchange all-in-one—attach the
the media tray and fill it with paper, attach the output
tray, plug it the power cord and USB cable, and turn on
the all-in-one.
See page 8.
6Lock the scanning unit on the original all-in-one, repack
it, and then call the shipper for pickup.
See page 10.
Unpack the Exchange All-in-One2
Unpack the Exchange All-in-One
Attention
Use caution when unpacking the exchange all-in-one, so the packaging
(including the tape) can be used to repack the all-in-one to be returned.
Exchange

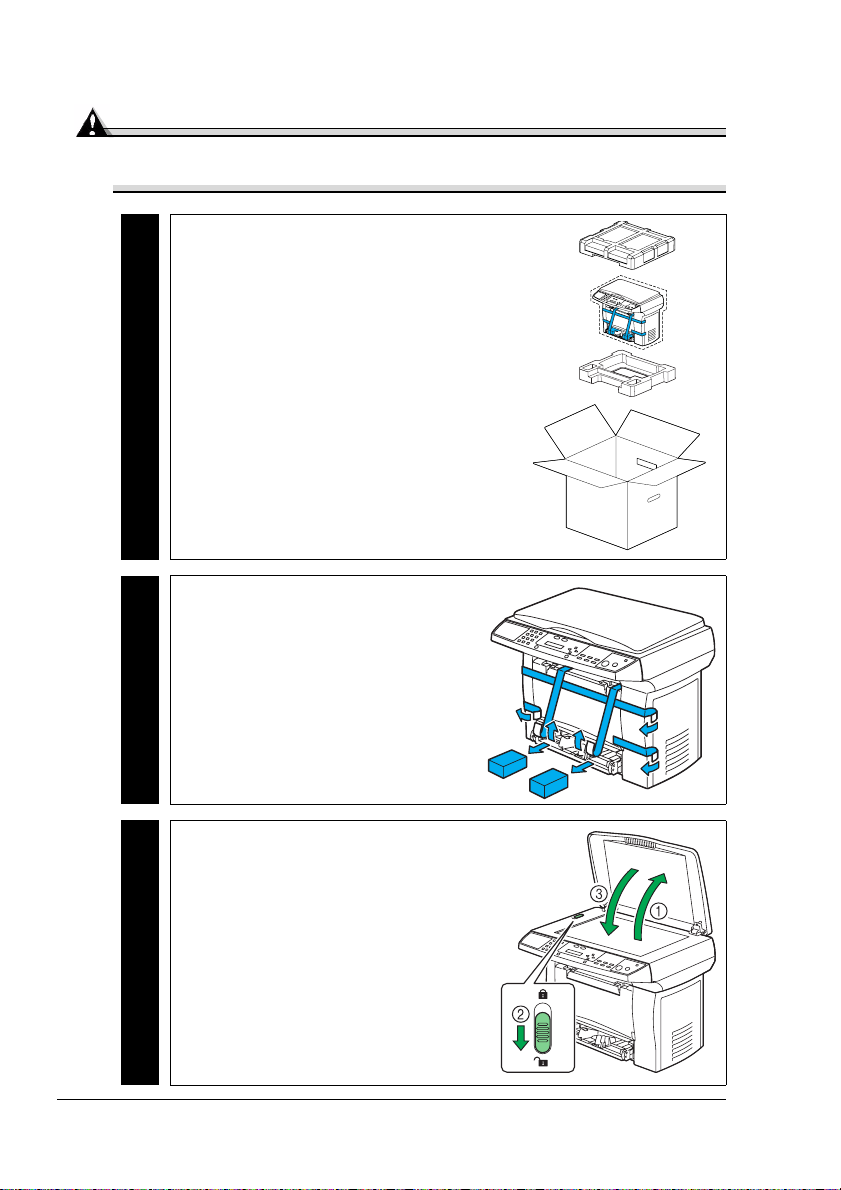

1Unpack the exchange all-in-one.
Exchange
2Remove the tape and packing
materials from the exchange
all-in-one.
Exchange
3Unlock the scanning unit on the
exchange all-in-one.
Prepare the Original All-in-One 3
Prepare the Original All-in-One
Original
1Turn off the original all-in-one, unplug the power cord, and
remove the USB cable.
A B
C
Prepare the Original All-in-One4
Original

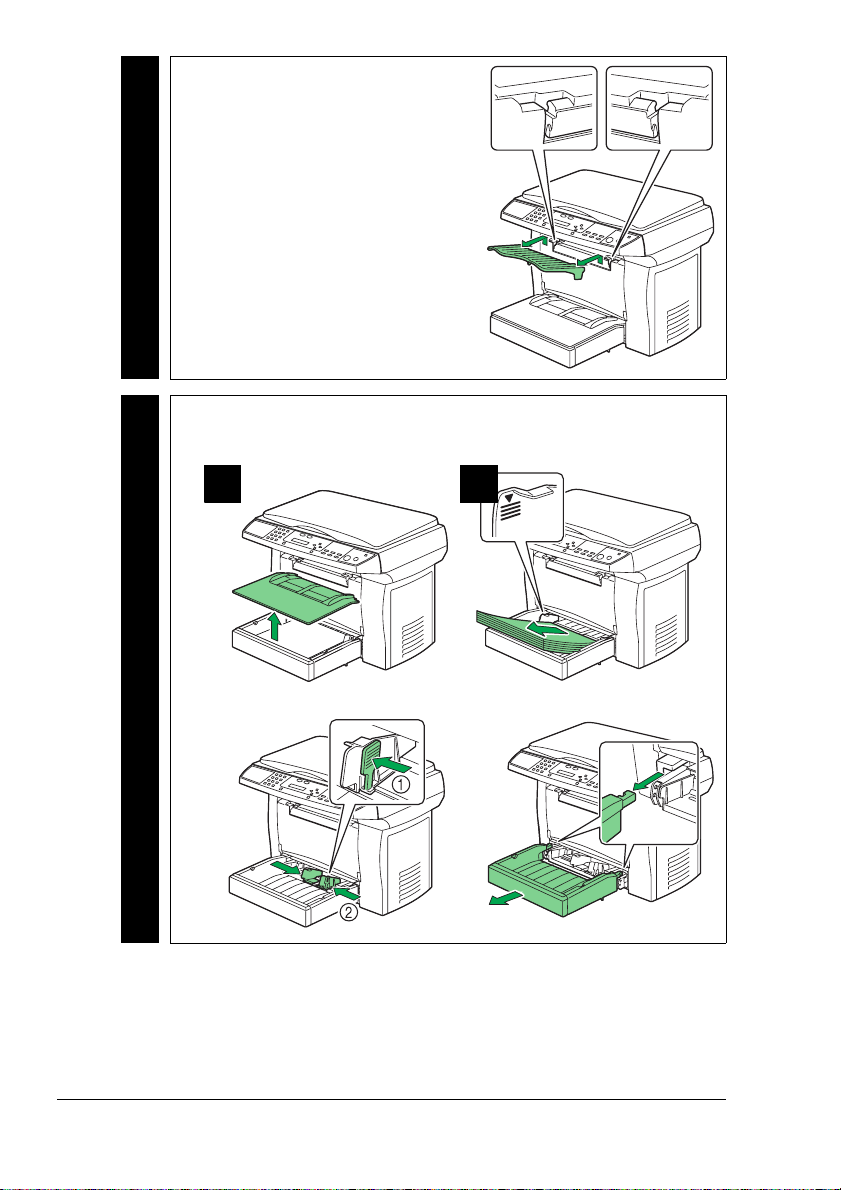

2Remove the output tray from the
original all-in-one.
Original
3Remove the media from the original all-in-one, and then remove
the media tray.
A B
Move the Automatic Document Feeder (If Applicable) 5
Move the Automatic Document Feeder
(If Applicable)
If you have installed an optional automatic document feeder on the original
all-in-one, use these instructions to move it to the exchange all-in-one.
Otherwise, skip to the next section, “Move the Imaging Cartridge.”
Exchange

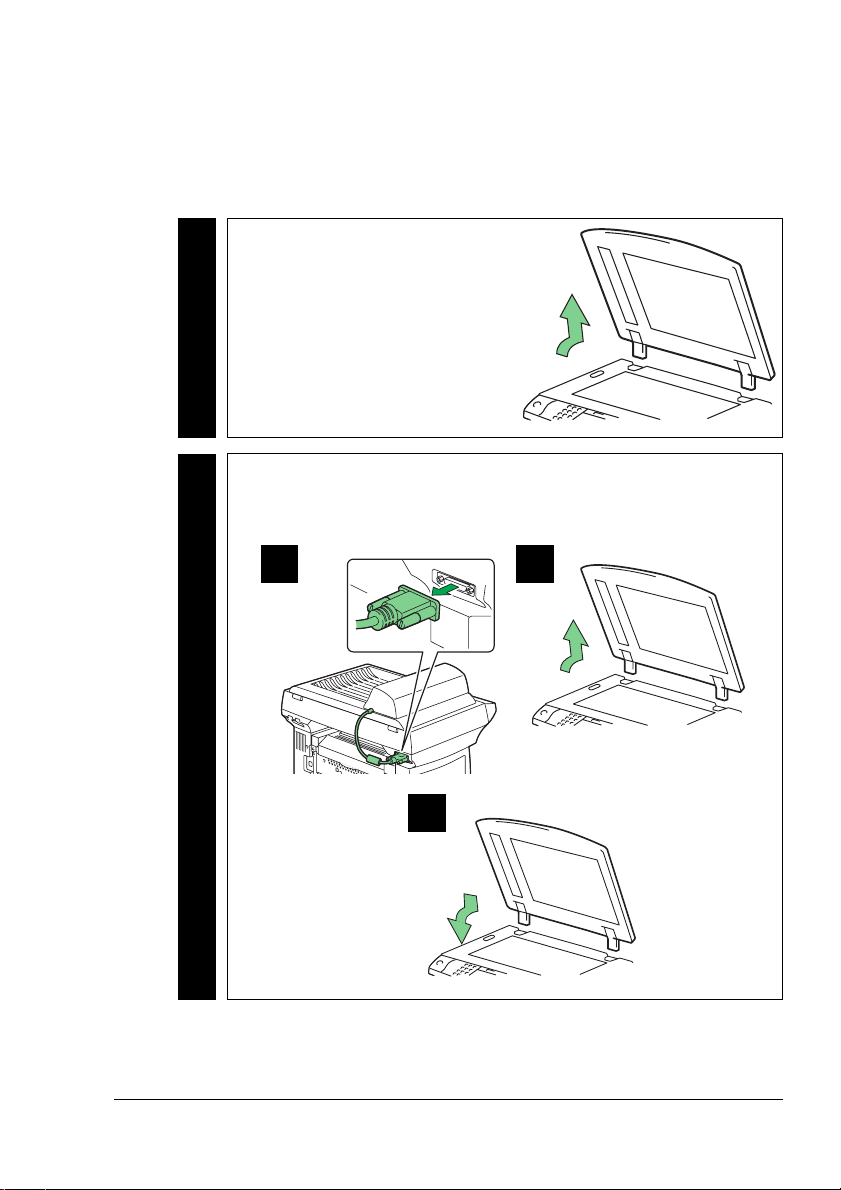

1Remove the document cover
from the exchange all-in-one.
Original
2Remove the automatic document feeder from the original
all-in-one, and then install the document cover you removed ear-
lier from the exchange all-in-one.
Document
Cover
A B
ADF
Document
Cover
C
Move the Automatic Document Feeder (If Applicable)6
Exchange
3Install the automatic document feeder on the exchange all-in-one.
A B
ADF
Move the Imaging Cartridge 7
Move the Imaging Cartridge

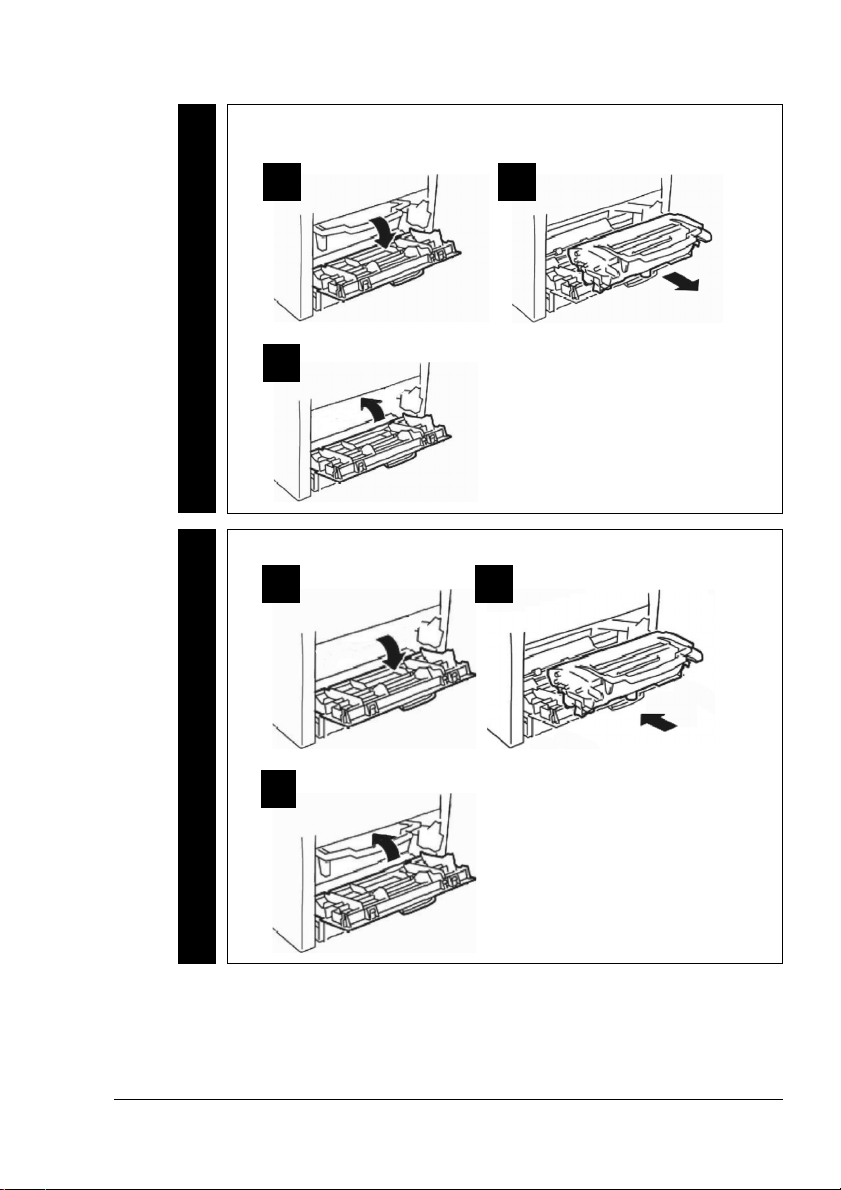

Original
1Remove the imaging cartridge (which includes both the toner
cartridge and the drum cartridge) from the original all-in-one.
Exchange
2Insert the imaging cartridge in the exchange all-in-one.
A B
C
A B
C
Finish Setting Up the Exchange All-in-One8
Finish Setting Up the Exchange All-in-One
Exchange

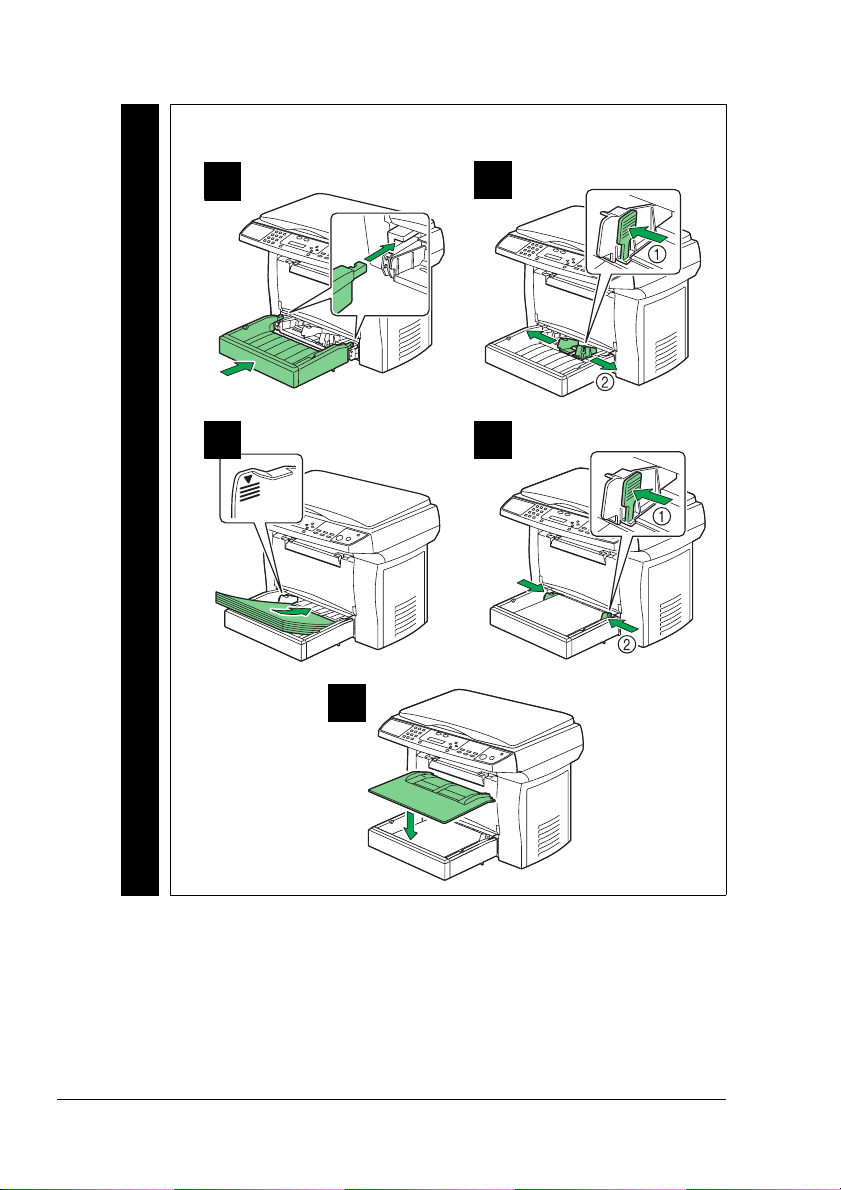

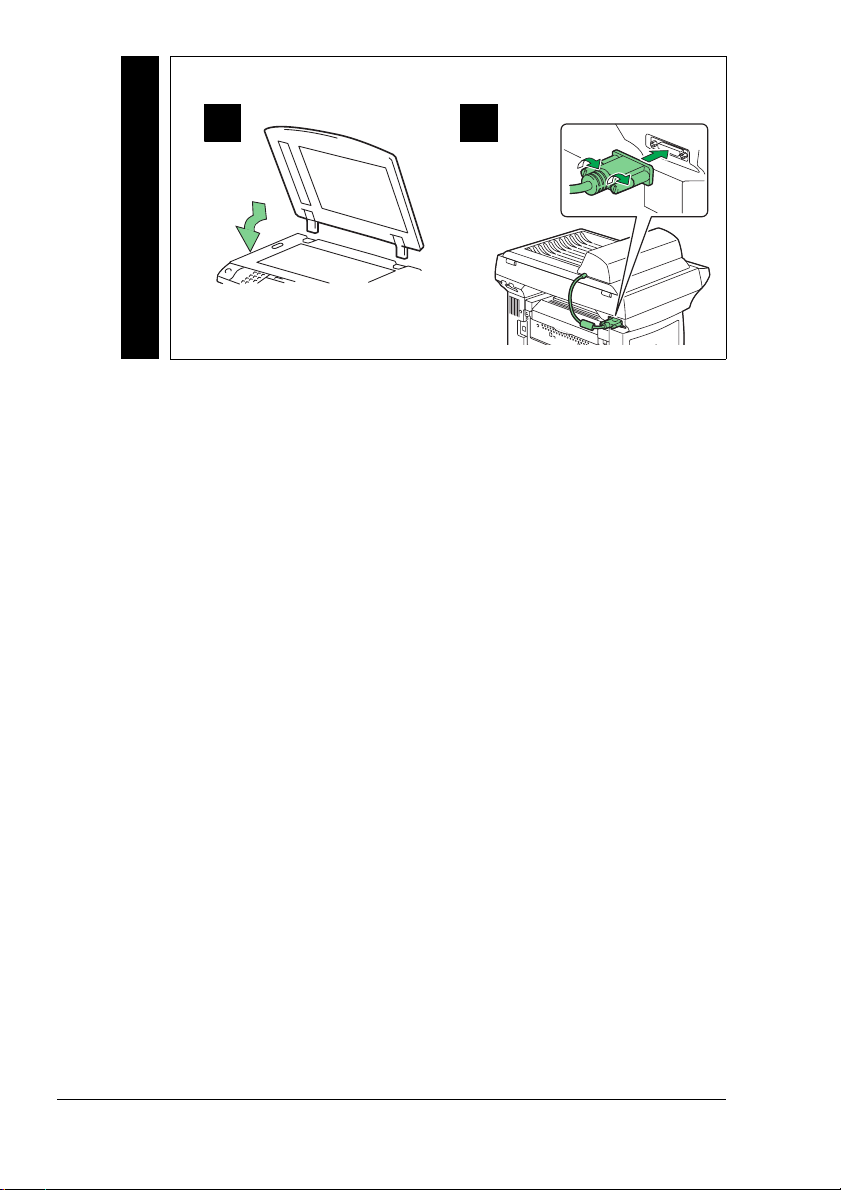

1Attach the media tray to the exchange all-in-one, and then fill it
with paper.
AB
C D
E
