Konica Minolta AD-504 User manual

SERVICE MANUAL

2005.04

Ver. 1.0

AD-504

THEORY OF OPERATION

bizhub_162_210_TO.book 1 ページ２００５年４月１８日　月曜日　午後１時２７分

bizhub_162_210_TO.book 2 ページ２００５年４月１８日　月曜日　午後１時２７分

After publication of this service manual, the parts and mechanism may be subject to change for

improvement of their performance.

Therefore, the descriptions given in this service manual may not coincide with the actual machine.

When any change has been made to the descriptions in the service manual, a revised version will be

issued with a revision mark added as required.

Revision mark:

• To indicate clearly a section revised, show to the left of the revised section.

A number within represents the number of times the revision has been made.

• To indicate clearly a section revised, show in the lower outside section of the correspond-

ing page.

A number within represents the number of times the revision has been made.

NOTE

Revision marks shown in a page are restricted only to the latest ones with the old ones deleted.

• When a page revised in Ver. 2.0 has been changed in Ver. 3.0:

The revision marks for Ver. 3.0 only are shown with those for Ver. 2.0 deleted.

• When a page revised in Ver. 2.0 has not been changed in Ver. 3.0:

The revision marks for Ver. 2.0 are left as they are.

2005/04 1.0 — Issue of the first edition

Date Service manual Ver. Revision mark Descriptions of revision

bizhub_162_210_TO.book 1 ページ２００５年４月１８日　月曜日　午後１時２７分

bizhub_162_210_TO.book 2 ページ２００５年４月１８日　月曜日　午後１時２７分

AD-504OutlineComposition/Operation

Theory of Operation Ver. 1.0 Apr. 2005

CONTENTS

Outline

1. Product specification ............................................................................................... 1

Composition/Operation

2. Duplex Unit (AD-504) .............................................................................................. 3

2.1 Construction ......................................................................................................... 3

2.2 Operation .............................................................................................................. 4

2.3 Electric Parts Layout............................................................................................. 4

2.4 Switchback Operation........................................................................................... 5

2.5 2-sided Copying with a Single Sheet of Paper Resident in the Unit ..................... 6

2.5.1 Operation ...................................................................................................... 6

2.6 2-sided Copying with Two Sheets of Paper Resident in the Unit .......................... 7

2.6.1 Operation ...................................................................................................... 7

bizhub_162_210_TO.book i ページ２００５年４月１８日　月曜日　午後１時２７分

AD-504

OutlineComposition/Operation

Theory of Operation Ver. 1.0 Apr. 2005

Blank page

bizhub_162_210_TO.book ii ページ２００５年４月１８日　月曜日　午後１時２７分

Theory of Operation Ver. 1.0 Apr. 2005 1. Product specification

AD-504Outline

Outline

1. Product specification

Name Duplex Unit

Type Sheet duplex paper take-up section

Installation Installed to the right side door

Paper Size A3, A4 R, A4, A5 R, A5, B4, B5 R, B5, FLS, Ledger, Legal, Letter,

Invoice R, Invoice

Paper Type Plain paper (60 to 90 g/m2), recycled paper (60 to 90 g/m2)

Document Alignment Center

Power Requirements DC24 V (supplied from the copier)

DC5 V

Max. Power Consumption 9 W or less

Dimensions Width = 412 mm

Depth = 215 mm

Height = 88 mm

Mass 2.5 kg (Duplex Unit + Manual Bypass Assy

Operating Environment Conforms to that of the copier

bizhub_162_210_TO.book 1 ページ２００５年４月１８日　月曜日　午後１時２７分

1. Product specification Theory of Operation Ver. 1.0 Apr. 2005

AD-504

Outline

Blank page

bizhub_162_210_TO.book 2 ページ２００５年４月１８日　月曜日　午後１時２７分

Theory of Operation Ver. 1.0 Apr. 2005 2. Duplex Unit (AD-504)

AD-504Composition/Operation

Composition/Operation

2. Duplex Unit (AD-504)

2.1 Construction

[1] Duplex Unit Transport Roller 1 [3] Duplex Unit Transport Roller 2

[2] Duplex Unit Transport Roll 1 [4] Duplex Unit Transport Roll 2

4532M503AA

bizhub_162_210_TO.book 3 ページ２００５年４月１８日　月曜日　午後１時２７分

2. Duplex Unit (AD-504) Theory of Operation Ver. 1.0 Apr. 2005

AD-504

Composition/Operation

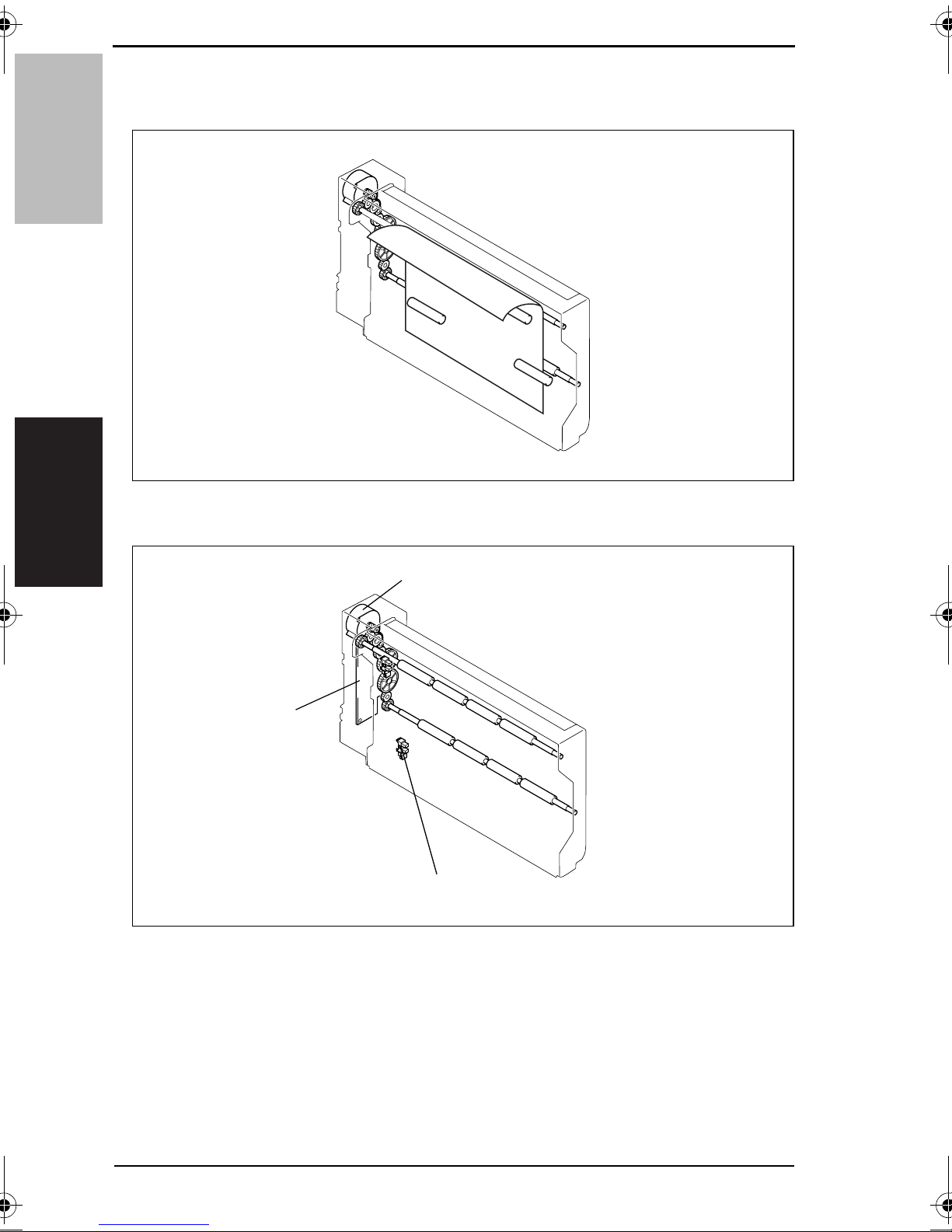

2.2 Operation

• The Duplex Unit Transport Motor provides the drive for the Duplex Unit.

2.3 Electric Parts Layout

4532M501AA

[1] Duplex Unit Transport Motor (M2/AD) [3] Control Board (PWB-A/AD)

[2] Duplex Unit Transport Sensor (PC2/AD)

4532M001AA

bizhub_162_210_TO.book 4 ページ２００５年４月１８日　月曜日　午後１時２７分
