Kohler OVE Operation manual

1102602-A2-D

Installation&UserGuide

Dual-FlushToilet

OPIAZ

ESCALEPERSUADE

PANACHE

OVE

PARLIAMENT

1102602-A2-D 2 KohlerCo.

Thank You For Choosing Kohler Company

Before You Begin

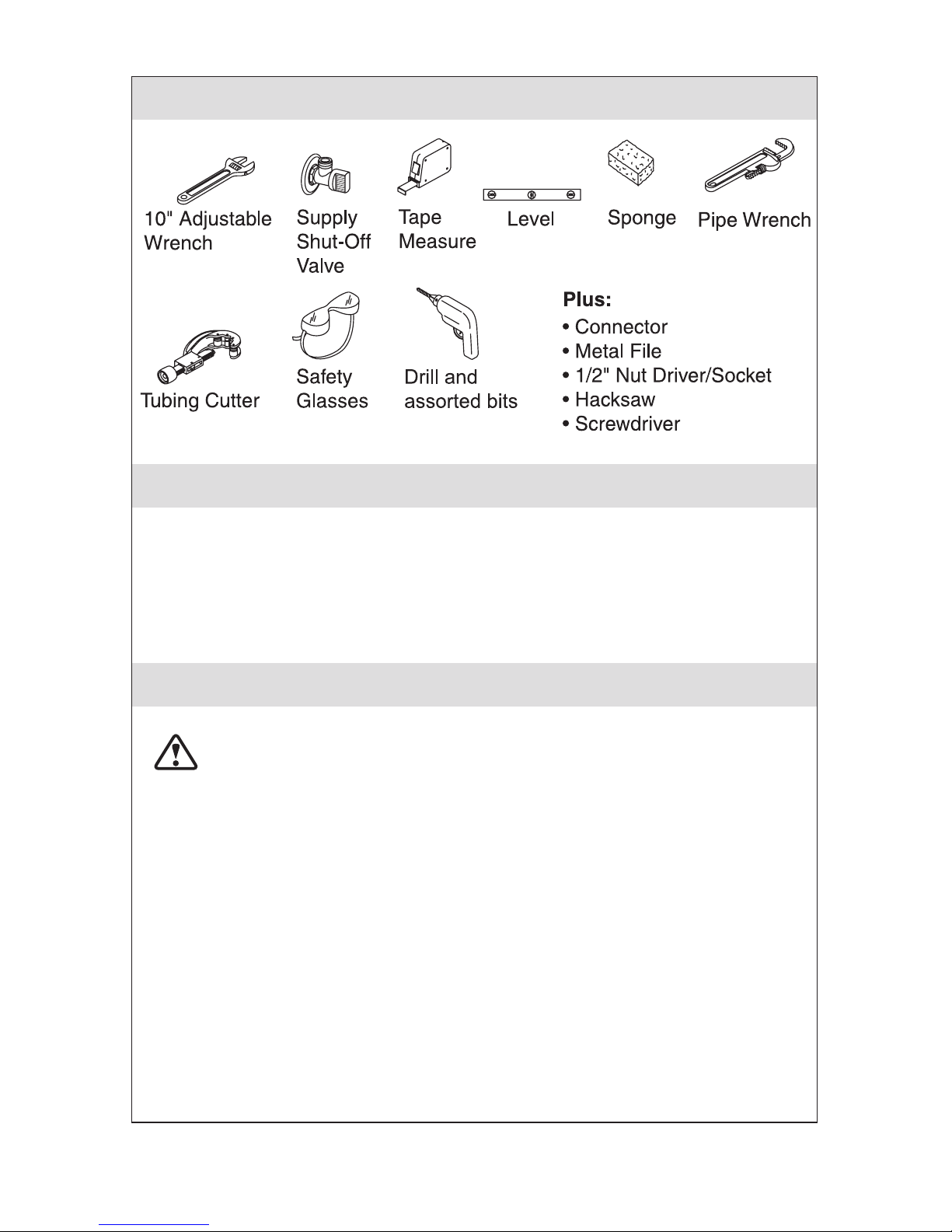

Tools and Materials

CAUTION: Risk of personal injury or product damage. Handle

with care. Vitreous china can break or chip if the product is handled

carelessly.

Observe all local plumbing and building codes.

 Carefully inspect the new toilet for damage.

 If the existing toilet does not have a supply shut-o valve below the

cistern, install one before installing the new toilet.

Install sucient backing behind the nished wall to provide a secure

material for the anchoring devices.

We appreciate your commitment to Kohler quality. Please take a few

minutes to review this manual before you start installation. If you

encounter any installation or performance problems, please don’t hesitate to

for choosing Kohler Company.

KohlerCo. 3 1102602-A2-D

Installation

2 Dene the position of connector: Place the connector onto the pan, position

between outlet and waste pipe.

1 Remove the existing toilet: Turn o the water supply and ush the toilet, then

sponge out all remaining water from the cistern. Disconnect the supply shut-o

valve (if present), and remove the old pan and cistern.

CAUTION: Risk of hazardous gases. If the new toilet is not installed immediately,

temporarity stu a rag in the closet ange.

3 Position the template on the oor. Mark the positions of the oor xing kit holes.

Waste Pipe

Connector to Wall Connector to Wall

Wall

Case 1 Case 2

Finished

Wall

Finished

Wall

Pan

Connector

Waste Pipe

Connector

Waste Pipe

Connector

Pan

Case 3 Finished

Wall

Connector

Waste Pipe

Connector

Pan

Offset Pan Collar

X = Set out as per spec sheet

1102602-A2-D 4 KohlerCo.

4 Bracket

Drill 3/8” (10 mm) xing holes at the marked locations on the oor and insert

the anchor. Install the washer and insert the hexagon screw into the bracket

then tighten the screw. Position the toilet in the installed position. Install the

sleeves, tighten the screw and aach the caps.

Floor xing option

5 Screw

Drill 5/16” (8 mm) mounting holes at the marked locations. Insert anchors into

the holes. Place the toilet and align with anchoring holes position. Tighten screws

and aach the bolt caps.

Anchor

Screw

Sleeve

Hole

Cap

Hexagon

Lag Screw

Bracket

Washer

Anchor

Fixing Holes Screw Cap

Screw

Anchor

Sleeve

Drill

KohlerCo. 5 1102602-A2-D

Installation

6 In cistern.

Optional Bottom Water Inlet Kit

148794A-NA for use on

OPIAZ

PARLIAMENT

PERSUADE

ESCALE

Stop Valve

Tank Hose

OVE PANACHE

OPIAZ

PARLIAMENT

PERSUADE

ESCALE

1102602-A2-D 6 KohlerCo.

Tank xing option

8 Connect the supply shut-o valve to the supply hose and connect supply hose

to toilet supply shank.

7 Position the cistern on the pan by centering the gasket on the pan inlet.

Assemble the retaining washing and sealing washer to the screw. Securely tighten

the screw so the cistern is level.

Gasket

Screw

Retaining Washer

Plan Washer

Fiber Washer

Sealing Washer

Screw

Washer

Screw

Nut

Plastic*

Brass*

* Optional for different product

Water

Supply

Hose

Water Supply Hose

(Not supplied)

Rear Inlet TypeBottom Inlet Type

KohlerCo. 7 1102602-A2-D

Install the Push Buttons

1 Disassemble the push rods. 2 Using the push rod, measure the

distance between the ush valve and

the top of the tank lid. Mark this

lengh and cut the push rod to length.

Cut the push rod to length.

3 Reassemble the push rods. 4 Fit the lid and test the buons. Adjust

the rods as required.

1102602-A2-D 8 KohlerCo.

Install Flush Valve

2 Assembly ush valve by pushing

straight down into the canister and

turning le.

Flush Valve B

1 Release ush valve by squeezing

the tabs on both side of the canister

and pulling straight up out of the

ush valve.

2 Assembly ush valve by pressing it

into the ush valve so it snaps into

place.

Flush Valve A

1 Release ush valve by turning righ

and pull straight up on the canister.

KohlerCo. 9 1102602-A2-D

1102602-A2-D 10 KohlerCo.
