Kohler K-9677 Assembly instructions

Homeowners Guide

Personal Handshower

K-9677

Los números de productos seguidos de Mcorresponden a México (Ej.

K-12345M)

Français, page“ Français-1”

Español, página“ Español-1”

113747-5-A

Thank You For Choosing Kohler Company

Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship

offers you a rare combination of proven performance and graceful

sophistication that will satisfy you for years to come. The

dependability and beauty of your Kohler faucet will surpass your

highest expectations. We’re very proud of our products here at Kohler

and we know you will be too.

Please take a few minutes to study this Homeowners Guide. Pay

special attention to the Care and Cleaning instructions.

All information in this manual is based upon the latest product

information available at the time of publication. At Kohler, we

constantly strive to improve the quality of our products. We reserve

the right to make changes in product characteristics, packaging or

availability at any time without notice.

Care and Cleaning

Like anything of lasting quality, Kohler faucets and ﬁttings require a

certain amount of periodic care to preserve their lustrous ﬁnish. Clean

your new Kohler faucet and ﬁttings with a mild soap, rinse thoroughly

with warm water and dry with a clean, soft cloth. The ideal cleaning

technique is to always blot dry any water from metal surfaces.

Allowing water to evaporate on metal will form water deposits. It is

important to use a dabbing action to dry metal, not an abrasive or

rubbing action.

Never use cleaners containing abrasive cleansers, ammonia, bleach,

acids, or chemicals that can damage the ﬁnish. By taking the time to

dry your faucet often, soap and water deposits can be prevented.

If your chrome or Vibrant

color/ﬁnish faucet gets excessively dirty,

consider using the following cleaners: Windex

Original, Fantastik

All Purpose, Spic and Span Pine Liquid, or Mr. Clean

Springtime

Fresh Scent. For solid color faucets and ﬁttings, consider using these

cleaners: Fantastik

All Purpose, Spic and Span Pine Liquid, or Mr.

Clean

Springtime Fresh Scent.

Failure to comply with these cleaning instructions may void Kohler’s

warranty obligations.

113747-5-A 2 Kohler Co.

Inlet Screen and Flow Control

NOTE: If the cause of the problem is unknown, see the

troubleshooting chart ﬁrst.

Use an open-end or adjustable wrench to remove the handshower

from the hose.

Gently pry up the edge of the inlet screen using a thin-blade

screwdriver.

Remove and clean the screen/washer. While the screen/washer is

removed, inspect the three oriﬁce holes in the ﬂow control. If the

holes in the ﬂow control require cleaning, use a toothpick or

similar thin, pointed tool to clean the three holes.

NOTE: The ﬂow control is press ﬁt into place and cannot be

removed.

Handshower

Inlet

Screen/

Washer Flow

Control

Orifice

Holes

Kohler Co. 3 113747-5-A

Aerator Housing (3-Way Models)

Using the special tool provided, insert the prongs into the aerator

housing holes located on the face of the showerhead.

Remove the rubber gasket and the aerator plate. Turn the housing

over into your hand and let the aerator fall out. Clean both sides

of the aerator.

Replace the aerator into the housing, aligning the notch in the

aerator with the keyway in the housing.

Replace the aerator plate with the small diameter ring facing out.

Replace the gasket. Unless proceeding to service the front housing

assembly, replace the assembly into the showerhead.

Showerhead

Tool

Aerator

Plate

Aerator

Housing

Handshower

Gasket

Aerator

113747-5-A 4 Kohler Co.

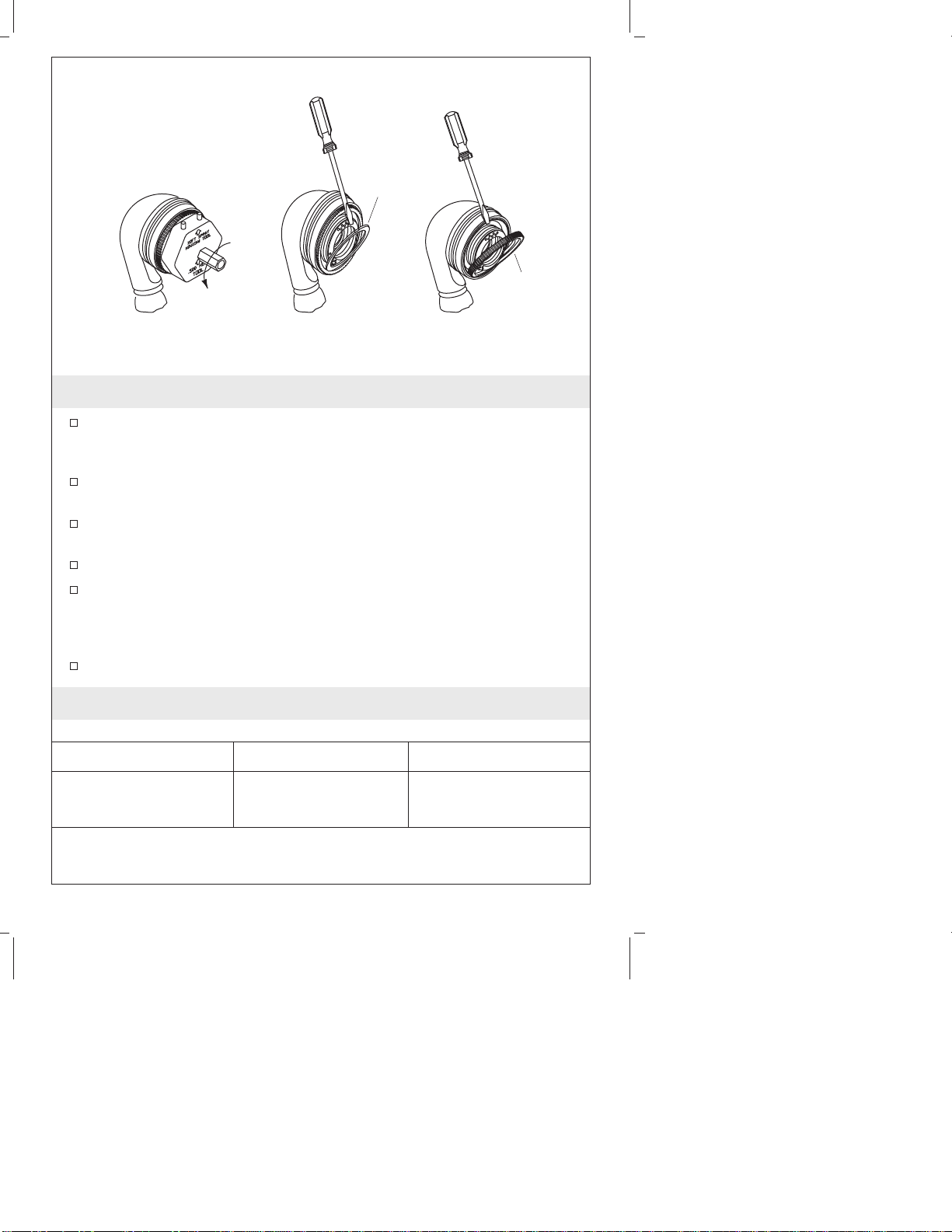

Front Housing Assembly

Align the large hex end of the showerhead tool with the ﬂats of

the hex nut on the showerhead assembly. Turn the tool

counterclockwise to remove the hex nut from the showerhead.

Using a thin-blade screwdriver, remove the plastic thrust washer

from the front housing assembly.

Using a thin-blade screwdriver, remove the diffuser from the front

housing assembly.

Clean the diffuser by ﬂexing it to break loose mineral deposits.

Place the diffuser, with the small end of the groove facing out,

into the front housing assembly. Reinstall the thrust washer and

hex nut. Reinstall the aerator assembly. Reinstall the handshower

on the shower hose.

Test the showerhead for proper function and smooth operation.

Troubleshooting

Troubleshooting Table

Symptom Probable Cause Corrective Action

Low ﬂow or poor

performance. Clogged inlet screen. Inspect and clean or

replace screen in

handle assembly.

Diffuser

Thrust

Washer

Kohler Co. 5 113747-5-A

Troubleshooting (cont.)

Symptom Probable Cause Corrective Action

Clogged ﬂow control. Inspect and clean

oriﬁce holes in ﬂow

control.

Poor spray pattern on

regular spray. Clogged spray ring. Disassemble spray

ring/thrust washer

from front housing

assembly; inspect and

clean spray

ring/thrust washer.

Soft spray not aerating

(3-way models only). Clogged screens in

aerator. Disassemble screens

from aerator housing

and clean or replace

screens.

Pulsating spray not

pulsing (3-way models

only).

Worn parts or debris

in assembly. Replace front housing

assembly. (Service

technicians: consult

service manual.)

One-Year Limited Warranty

For the U.S.A. and Canada Only

KOHLER

plumbing ﬁxtures, faucets and ﬁttings are warranted to be

free of defects in material and workmanship for one year from date of

installation.

Kohler Co. will, at its election, repair, replace or make appropriate

adjustment where Kohler Co. inspection discloses any such defects

occurring in normal usage within one year after installation. Kohler

Co. is not responsible for removal or installation costs.

To obtain warranty service, contact Kohler Co. either through your

Dealer, Plumbing Contractor, Home Center or E-tailer, or by writing

Kohler Co., Attn.: Customer Service Department, 444 Highland Drive,

Kohler, WI 53044, USA, or by calling 1-800-4-KOHLER from within the

USA, 1-800-964-5590 from within Canada and 001-877-680-1310 from

within Mexico.

Implied warranties including that of merchantability and ﬁtness for

a particular purpose are expressly limited in duration to the duration

of this warranty, Kohler Co. disclaims any liability for special,

incidental or consequential damages. Some states/provinces do not

allow limitations on how long an implied warranty lasts, or the

exclusion or limitation of special, incidental or consequential damages

so these limitations and exclusions may not apply to you. This

113747-5-A 6 Kohler Co.

One-Year Limited Warranty (cont.)

warranty gives you speciﬁc legal rights. You may also have other

rights which vary from state/province to state/province.

This is our exclusive written warranty.

Notes:

1. There may be variation in color ﬁdelity between catalog images and

actual plumbing ﬁxtures.

2. Kohler Co. reserves the right to make changes in product

characteristics, packaging or availability at any time with out notice.

One-Year Warranty — Mexico

For Mexico Only

KOHLER CO.

It is recommended that at the time of purchase, you verify that all

accessories and components are complete in this package.

This Kohler product is warranted to be free of defects in material and

workmanship for one (1) year from the date of purchase as shown on

the invoice or receipt.

1. Kohler Co. will only service its commercialized products through its

authorized distributors.

2. To obtain warranty service, please present the invoice and

corresponding warranty.

3. Through its authorized distributors, Kohler Co. promises to repair

the defective product or provide a new replacement or an equivalent

model (in those cases that the model has been discontinued) when the

product is beyond repair, without any charge to the consumer.

4. The time of repair will not exceed six (6) weeks commencing on the

date the product is received.

5. It is recommended that the consumer save the invoice or receipt as

additional protection, as it may substitute the warranty in the case that

there is a discrepancy in the validity of the warranty.

EXCEPTIONS AND RESTRICTIONS

The Warranty will not be valid in the following cases:

1. When the product is not operated in accordance with the

instructions concerning use and operation set forth in the owner’s

Kohler Co. 7 113747-5-A

One-Year Warranty — Mexico (cont.)

manual or installation instructions, and when the recommendations

and warnings included are not observed.

2. When the product has been modiﬁed or dismantled partially or

totally; or has been used in a negligent fashion and as a consequence

has suffered damages attributable to the consumer, individual, or

hardware not authorized by Kohler Co.

3. This warranty does not cover the damages as a result of disaster

such as ﬁre or acts of God, including ﬂooding, earthquake, or electric

storms, etc. To obtain a list of distributors in your area where you can

exercise your rights under this warranty, please call 001-877-680-1310.

KOHLER CO., KOHLER, WI 53044 U.S.A.

IMPORTER:

INTERNACIONAL DE CERÁMICA, S.A. DE C.V.

AV. CARLOS PACHECO NO. 7200

CHIHUAHUA, CHIH., MEXICO C.P. 31060

TEL: 52 (14) 29-11-11

113747-5-A 8 Kohler Co.

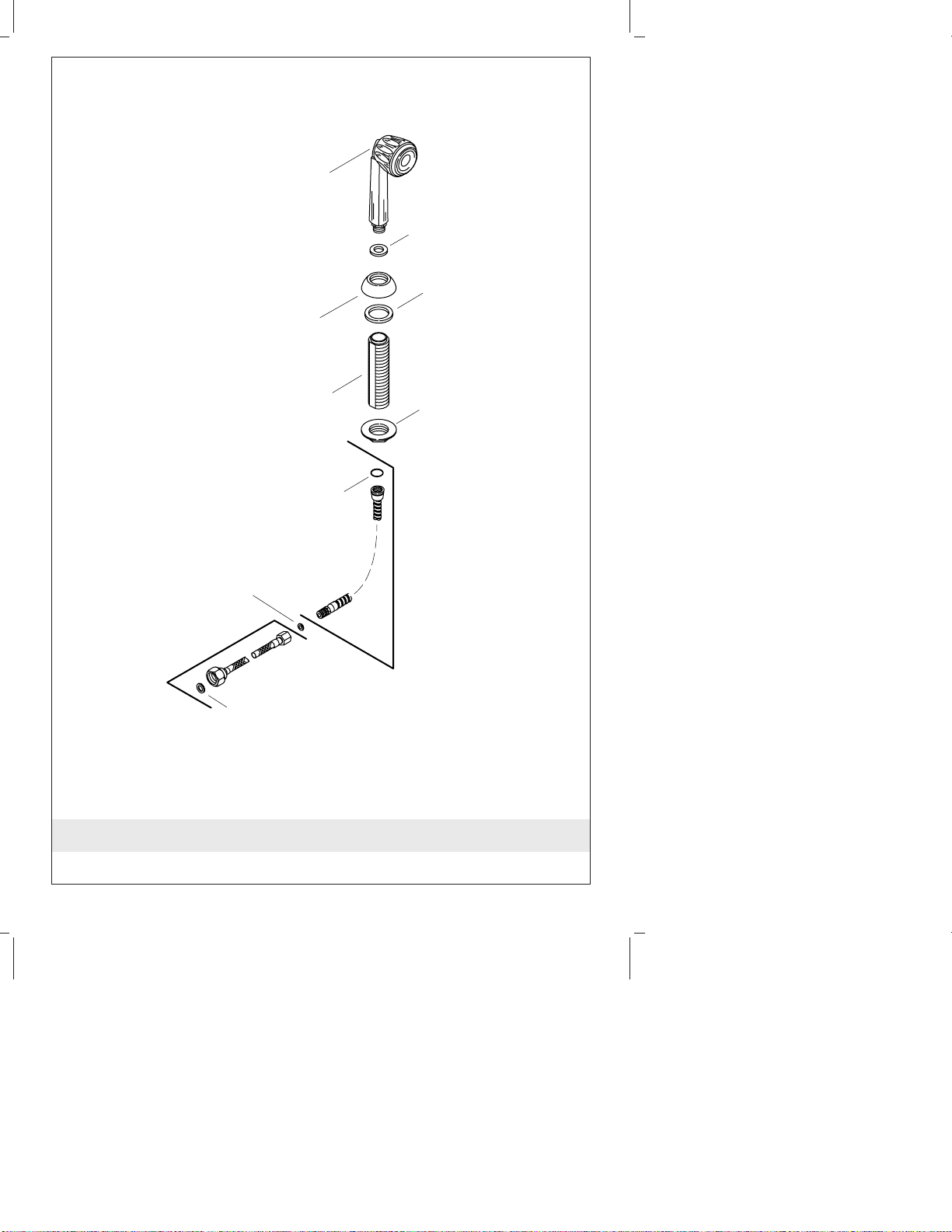

Service Parts

57998**

Handshower

58458**

Escutcheon

75100**

Shank

34353

O-Ring

78338

Washer

76684

Washer

58959

Hose

77321-A**

Hose

50903

Nut

39924

Gasket

75494

Washer

**Finish/colorcodemustbespecifiedwhenordering.**Finish/colorcodemustbespecifiedwhenordering.

Kohler Co. 9 113747-5-A

Guide du propriétaire

Douchette personnelle

Merci d’avoir choisi la compagnie Kohler

Merci d’avoir choisi la ligne The Bold Look of Kohler. Le travail soigné

des artisans de Kohler vous fera apprécier une rare combinaison de

performances prouvées et une sophistication gracieuse, qui vous

satisferont pour les années à venir. La ﬁabilité et la beauté de votre

robinet Kohler surpasseront vos plus grandes espérances. Chez Kohler,

nous sommes ﬁers du rendement de nos produits et nous savons que

vous le serez aussi.

Veuillez prendre s’il vous plait quelques minutes pour consulter ce

guide du propriétaire. Prêter une attention toute particulière aux

instructions d’entretien et de nettoyage.

Tous les renseignements contenus dans ce manuel ont été revus et

corrigés avant sa publication. Chez Kohler, nous veillons constamment

à améliorer la qualité de nos produits. Nous nous réservons le droit

d’apporter des modiﬁcations aux caractéristiques, conditionnements et

disponibilités des produits à tout moment, et ce sans préavis.

Entretien et nettoyage

Comme tout appareil de qualité durable, les robinets et raccords

Kohler exigent un certain entretien périodique pour conserver leur

lustrage. Nettoyer le nouveau robinet et les raccordements Kohler avec

un savon doux, bien rincer avec de l’eau tiède et essuyer avec un

chiffon doux et propre. La technique idéale de nettoyage est de

toujours assécher toute eau des surfaces métalliques. Laisser l’eau

s’évaporer sur le métal formera des dépôts visibles. Il est important

d’essuyer le métal par petites touches et non pas de manière abrasive

ou par frottement.

Ne jamais utiliser de nettoyants abrasifs contenant de l’ammoniac, de

l’eau javellisée, des acides ou des produits chimiques qui pourraient

endommager la ﬁnition. En prenant le temps de souvent sécher le

robinet, on peut empêcher la formation de dépôts de savon et d’eau.

Si la couleur/ﬁnition chrome ou Vibrant

du robinet devient

excessivement sale, considérer d’utiliser les détergents suivants:

Windex

Original, Fantastik

Tout Usage, Spic et Span Pin Liquide, or

Mr. Propre

Senteur Fraîche Printemps. Pour les robinets et les

raccords de couleur solide, considérer d’utiliser ces détergents:

Kohler Co. Français-1 113747-5-A

Table of contents

Languages:

Other Kohler Plumbing Product manuals

Kohler

Kohler K-72218 Assembly instructions

Kohler

Kohler K-77681 Series User manual

Kohler

Kohler K-8508 Assembly instructions

Kohler

Kohler K-1896 Assembly instructions

Kohler

Kohler K-10282 Assembly instructions

Kohler

Kohler K-1243 User manual

Kohler

Kohler K-8855 User manual

Kohler

Kohler BRAZN K-702242T User manual

Kohler

Kohler K-5024-T User manual

Kohler

Kohler k-2815 User manual

Kohler

Kohler K-7659 User manual

Kohler

Kohler Cabriole K-T14641 Assembly instructions

Kohler

Kohler K-T387 User manual

Kohler

Kohler 8524T User manual

Kohler

Kohler K-7114 User manual

Kohler

Kohler K-6811 Assembly instructions

Kohler

Kohler K-T12014 Assembly instructions

Kohler

Kohler 10586-4-SN Assembly instructions

Kohler

Kohler ESCALE K-19611T User manual

Kohler

Kohler Sunstruck K-24009-GH User manual

Kohler

Kohler K-6354 User manual

Kohler

Kohler K-596D User manual

Kohler

Kohler K-24804-4N-CP User manual

Kohler

Kohler K-T314 User manual

Popular Plumbing Product manuals by other brands

Weka

Weka 506.2020.00E ASSEMBLY, USER AND MAINTENANCE INSTRUCTIONS

UBERHAUS DESIGN

UBERHAUS DESIGN 75175017 Operator's manual

American Standard

American Standard DetectLink 6072121 manual

Uponor

Uponor Contec TS Mounting instructions

Pfister

Pfister Selia 49-SL Quick installation guide

Fortis

Fortis VITRINA 6068700 quick start guide

Fortis

Fortis MILANO 78211JS installation instructions

Maxxus

Maxxus MX-M206-01 instruction manual

Moen

Moen 5922 Series installation instructions

Viega

Viega Prevista Pure 8512 Instructions for use

Viega

Viega Prevista Dry 8522.33 Instructions for use

Sanela

Sanela Lema SLP 59RB Instructions for use

Elkay

Elkay EDF15AC Installation, care & use manual

Hans Grohe

Hans Grohe AXOR Citterio E 36702000 Instructions for use/assembly instructions

baliv

baliv WT-140 manual

BELLOSTA

BELLOSTA romina 0308/CC Installation instruction

Bristan

Bristan PS2 BAS C D2 Installation instructions & user guide

Crosswater

Crosswater Heir 18-31 installation instructions
