Kohler K-18486 Assembly instructions
Installation and Care Guide
Bath Filler with Handshower
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page ″Français-1″
Español, página ″Español-1″
K-18486 K-18492
1219580-2-A
Tools and Materials
Before You Begin
NOTE: This product may be installed as freestanding (installed
onto riser tubes) or deck-mount (installed onto the bath deck).
Follow the sections that pertain to your installation.
For Freestanding Installations
NOTICE: Discard the following hardware provided with the bath
filler: support plate (1), threaded brass tubes (2), nuts (4), fiber
washers (4), and screws (8).
NOTICE: Do not remove the protective wrap from the riser tubes
until instructed to do so.
For All Installations
Observe all local plumbing and building codes.
Shut off the water supply.
IMPORTANT! For proper drainage of the spout, install the bath
filler to a level surface.
3 mm,
5/16", 1/4"
Solder
Plus:
• Two 1/2" NPT Male
Copper Connectors
• Two 12" (305 mm) Long,
1/2" Copper Tubes (Deck-Mount)
• Two 30" (762 mm) Long,
1/2" Copper Tubes (Freestanding)
Drill and
Hole Saw
Thermometer
Sealant Tape
Strap
Wrench
Hacksaw or
Tubing Cutter
1219580-2-A 2 Kohler Co.
Roughing-In – Freestanding
No change in measurements if connected with the drain
illustrated (K-11344).
To properly plan for the installation, use the cut-out template
provided with your bath along with the roughing-in dimensions
above.
2-15/16" (75 mm)
5-9/16" (141 mm)
Ø 2-5/8"
(67 mm)
11-1/4"
(286 mm)
14-1/16"
(357 mm)
5-3/4"
(146 mm)
8" (203 mm)
22" (559 mm)
22-1/4"
(565 mm)
Kohler Co. 3 1219580-2-A
Roughing-In – Deck-Mount
NOTE: If the bath filler is installed with the K-11343 drop-in bath,
ensure the distance between the centerline of each marked hole and
the flange contacting the bath deck is a maximum of 4″(102 mm).
To ensure that water will not drip outside of the bath, properly
position the faucet on the deck so the outlet will be located inside
the bath.
To properly plan for the installation, use the cut-out template
provided with your bath along with the roughing-in dimensions
above.
2-15/16"
(75 mm)
5-9/16"
(141 mm)
Ø 2-5/8"
(67 mm)
11-1/4"
(286 mm)
14-1/16"
(357 mm)
8"
(203 mm)
5-3/4"
(146 mm)
1219580-2-A 4 Kohler Co.
1. Assemble the Bath Filler
NOTE: The bath filler arms are NOT identical. The setscrew holes
on the long end of the arms should face each other.
Determine the left and right side arms.
Apply lubricant (provided) to the O-rings on the bath filler body.
Attach the short end of the arms to the bath filler body.
Usinga3mmhexwrench, secure each arm with a large setscrew.
Orient the handshower bracket with the large side of the taper
facing up.
NOTE: The handshower bracket should be assembled
perpendicular to the arm so the handshower hangs over the bath.
Slide the handshower bracket onto the arm for the hot water
supply.
Using a 5/16″hex wrench, tighten the small setscrews to secure
the bracket at the desired height.
Arm
Arm
Large
Setscrew
Small
Setscrews
Handshower Bracket
(Large Side Up)
Bath Filler
Body
O-Ring
Kohler Co. 5 1219580-2-A

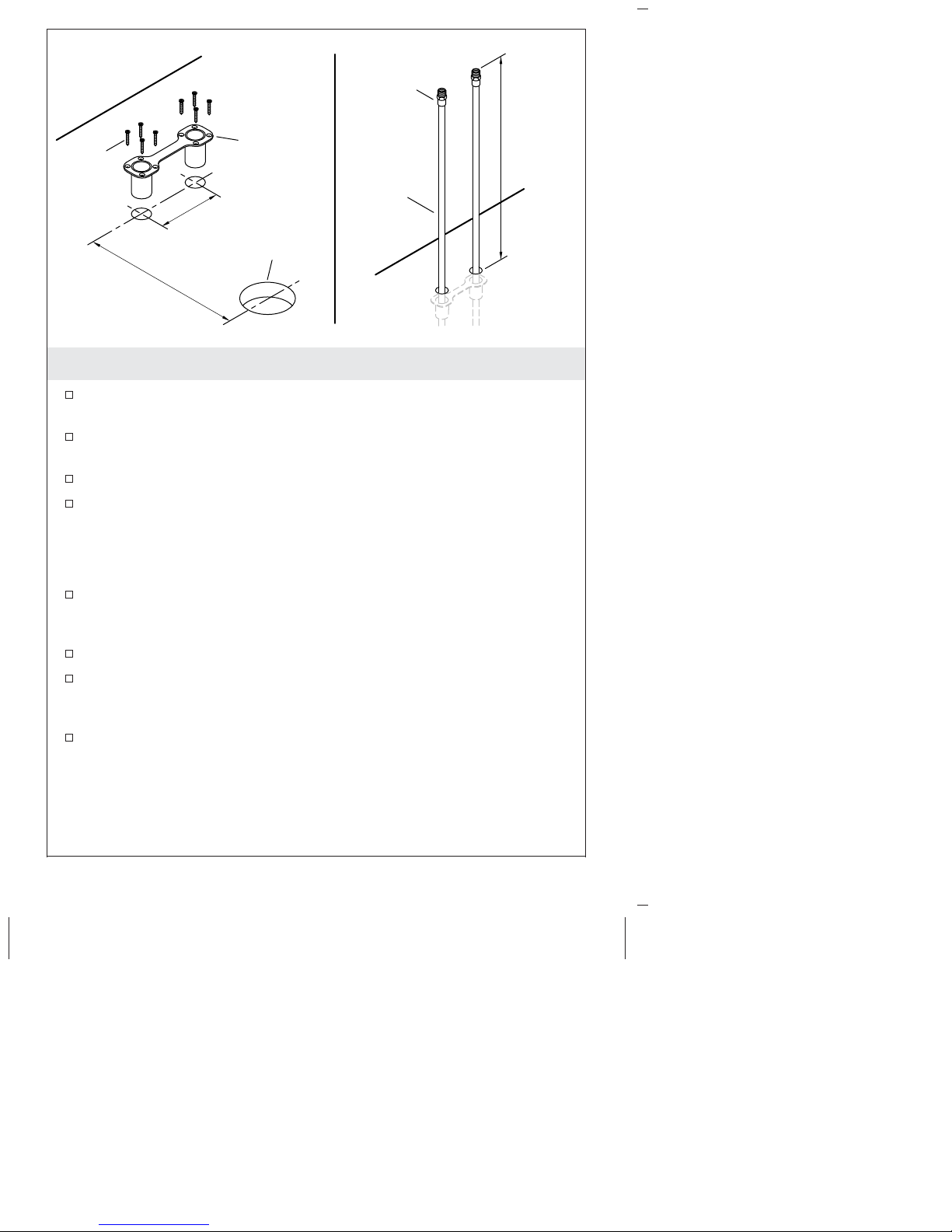

2. Prepare the Site – Freestanding
Use the template provided with the riser tubes to mark the
location of the water supply lines from the bath drain.
Verify the distances between the centerlines of the holes according
to the dimensions above.
Drill the supply holes using a 1-5/8” drill bit or hole saw.
Insert the riser support through the holes. Secure to the subfloor
with eight wood screws (provided).
NOTE: To protect the riser support from debris when installing the
finished floor, position the thread protectors (provided) in the holes.
Install 1/2″water supply tubing. The total tubing height from the
finished floor with a 1/2″NPT male connector should be
21-9/16″(548 mm).
Install the finished floor.
Solder 1/2″NPT male copper connections to the water supply
lines. Verify the height to the top of these connections is 21-9/16″
(548 mm) from the finished floor.
Apply thread sealant to the male connection on each water
supply tube.
Subfloor
Wood
Screw
5-15/16"
(151 mm)
22"
(559 mm)
Drain
Hole
Riser
Support Supply
Tube
1/2" NPT Male
Connection
21-9/16"
(548 mm)
Finished
Floor
1219580-2-A 6 Kohler Co.

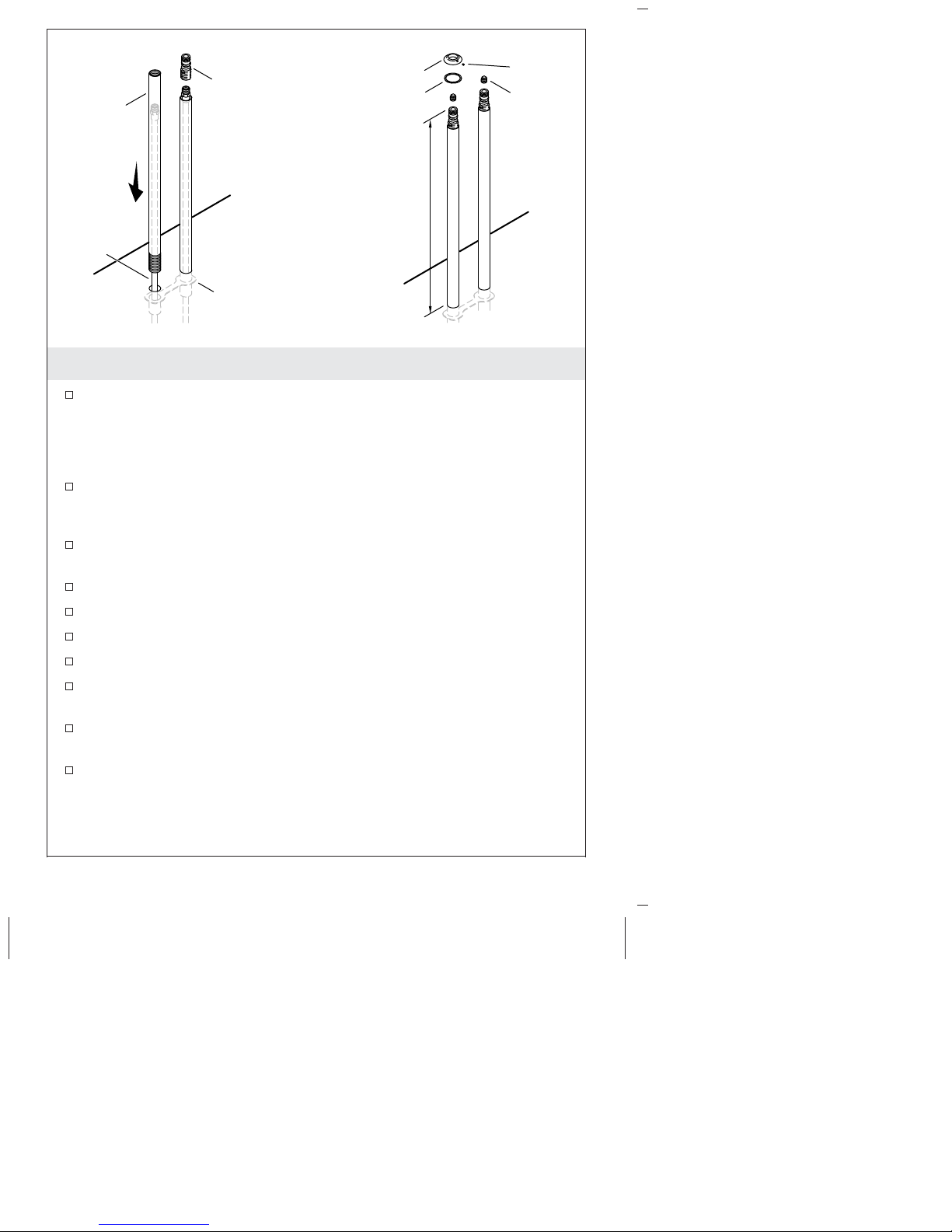

3. Install the Riser Tubes – Freestanding
Thread the riser tubes fully into the riser support but do not
completely tighten the tubes.
NOTE: The distance from the finished floor to the top of the
installed coupling assemblies should be 24-7/16″(621 mm).
Thread a coupling assembly onto each water supply connection,
then tighten with a wrench. Verify the height to the top of the
coupling assemblies is 24-7/16″(621 mm) from the finished floor.
Install the plastic pipe plugs (provided) into the coupling
assemblies.
Turn on the water supply.
Check for leaks. Adjust as needed.
Turn off the water supply.
Remove and discard the pipe plugs.
Unthread the riser tubes out of the riser support and onto the
coupling assemblies until hand-tight.
Slide a gasket and escutcheon over each riser tube down to the
finished floor. Position the setscrew holes toward the bath.
Using a 5/16″hex wrench, secure each escutcheon with a small
setscrew.
Supply
Tube
Riser
Tube
Coupling
Assembly
Riser
Support
24-7/16"
(621 mm)
Finished
Floor
Escutcheon
Plug
Gasket
Setscrew
Kohler Co. 7 1219580-2-A

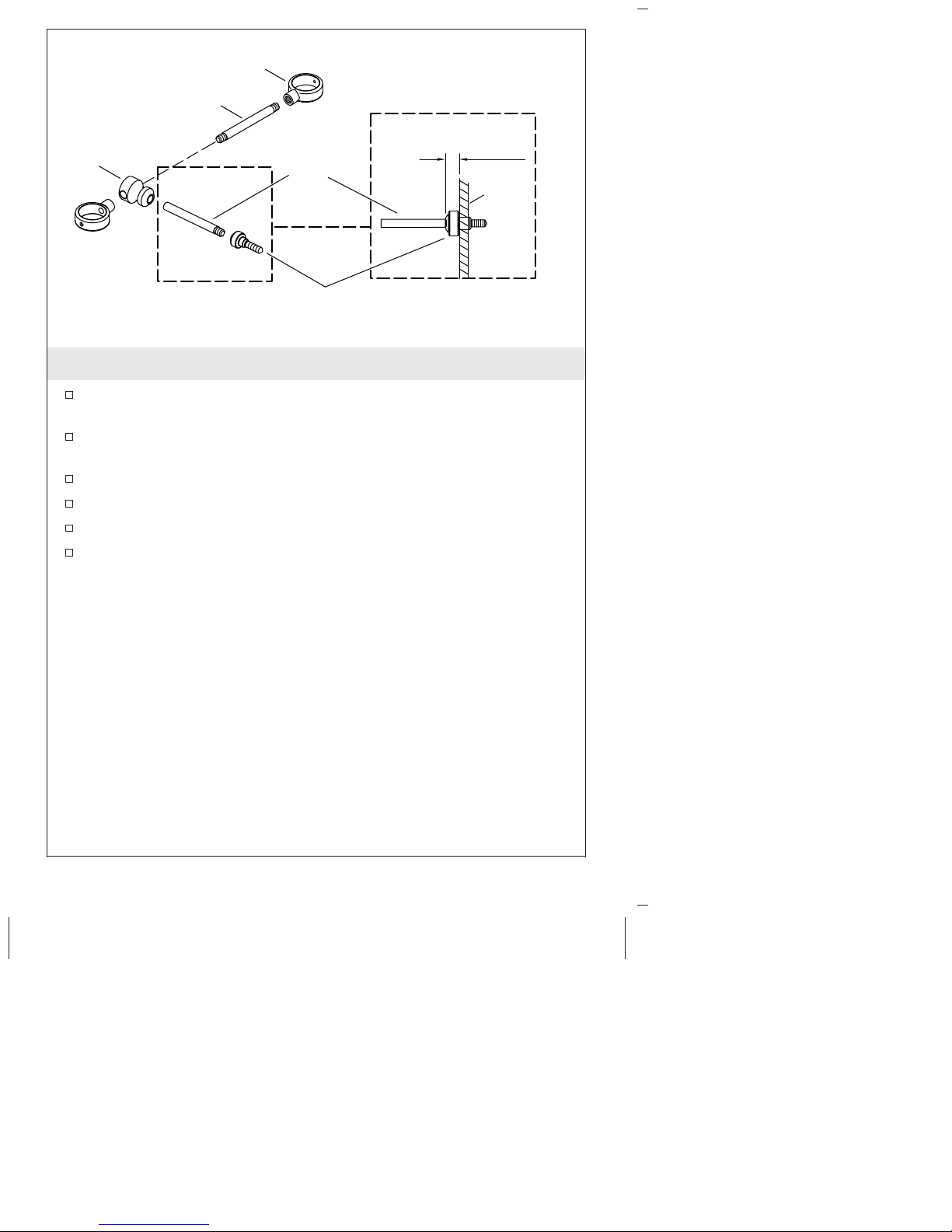

4. Construct the Tee Assembly – Freestanding
Thread the fastener support into the side of the bath with a 1/4″
hex wrench. Do not overtighten.
Ensure the distance from the head of the fastener support to the
bath surface is approximately 1/2″(13 mm).
Thread the fastener rod into the fastener support.
Thread a bracket onto one end of the tee rod until hand tight.
Slide the tee rod through the tee.
Handtighten the remaining bracket onto the other end of the tee
rod.
Tee
Tee Rod
Bath
Bracket
Fastener
Rod
Fastener
Support
1/2"
(13 mm)
1219580-2-A 8 Kohler Co.
5. Complete the Installation – Freestanding
Remove the protective wrap from the riser tubes.
Slide the tee assembly onto the riser tubes with the setscrew holes
facing down. Do not secure the tee assembly at this time.
Apply lubricant (supplied) to the O-rings on the coupling
assemblies.
Insert the bath filler arms onto the coupling assemblies. Ensure
the arms are flush against the top of the riser tubes.
Secure the arms to the coupling assemblies with the large
setscrews.
Slide the tee assembly up to cover the seam between the arms
and the riser tubes.
Insert the fastener rod to the center of the tee assembly.
Secure the tee assembly with two small setscrews on the
underside of the tee.
Secure the brackets with small setscrews.
Proceed to the ″Install the Handshower″section.
Bracket
Arm
Riser Tube
Fastener Rod
O-Rings
Small Setscrews
Large Setscrews
Kohler Co. 9 1219580-2-A
6. Prepare the Site – Deck-Mount
NOTE: Provide an access panel under the bath deck for water
supply connections.
NOTE: Reference the ″Rough-In – Deck-Mount″section of this
guide before proceeding.
Position the support plate on the bath deck where the water
supply tubing will be located. Trace the holes.
Verify that the location of the plate will allow the bath filler spout
to reach into the bath.
Verify the distance between the centerline of the marked holes is
5-15/16” (151 mm).
NOTE: If a hole saw will be used, drill outside the line of the
marked holes.
Drill the holes using a 1-9/16” drill bit or 1-1/2″hole saw.
Remove any debris after drilling.
Verify the drilled holes will accommodate the riser tubes. Adjust
the hole diameter slightly, if needed.
Secure the support plate to the unfinished bath deck with the
eight (provided) wood screws.
Bath Deck
Screw
5-15/16"
(151 mm)
Support Plate
Check the reach.
