Kohler C3-050 Assembly instructions

科勒（中国）投资有限公司

中国上海市静安区江场三路158号邮编：200436

制造商：上海科勒电子科技有限公司

中国上海市宝山区丰翔路1955号邮编：200444

Smart Seat

清舒宝智能便盖

English page 2-18

中文页码 19-35

1305685-MY01-C

C3-050

K-18751MY-0

Table of Contents

CAUTIONS AND WARNINGS................................................................. 3

Specifications.......................................................................................... 5

Thank You For Choosing Kohler Company.............................................

Control Panel........................................................................................... 6

Operation ...............................................................................................

Preparation Before Initial Operation ....................................................... 9

Test the Functions...............................................................................................

Care and Clean....................................................................................... 11

Clean the Spray Wangs .......................................................................... 12

Remove the Seat .................................................................................... 13

Clean the Filter ....................................................................................... 14

Maintanance in Case of Long-term Idle Status....................................... 15

Troubleshooting...................................................................................... 16

Description of Content of Hazardous Substances in Product ................. 18

1305685-MY01-C

Kohler Co.

CAUTIONS AND WARNINGS

Children, elders or those with disabilities from their body, sensitivity or mental

disabilities or lacking of common sense should not use or get close to this

product unless under close tutelage. Children are not allowed to use or touch

this product. Do not leave children alone in a room with such product.

:DUQLQJ Risk of electric shock, fire or personal injury. This product

must be installed safely. Connect only to dedicated 220V~, 50 Hz , 10A

circuit protected by Ground-Fault Circuit-Interrupters (GFCI’s) or

Earth-Leakage Circuit-Breakers (ELCB’s).

:DUQLQJ Risk of electric shock or product damage. Do not immerse

the product into water.

,PSRUWDQWRisk of product damage. Do not install at a place where it may be

splashed by water.

,PSRUWDQWRisk of product damage. Do not install the product at a place

with excessive humidity, where moisture may condense at the surface of the

product. Please maintain that the usage envi-ronment is under adequate

ventilation, so as to prevent damage to electronic components. 

,PSRUWDQWRisk of product damage or property loss. Water leakage may

happen if the water pipe connector is pulled or pushed with excessive force.

,PSRUWDQWRisk of product damage. The product may be damaged if the

nozzle is applied with excessive force.

,PSRUWDQWRisk of product damage. The part of the pipe where water may be

frozen should be protected by thermal insulation. Any water left in the product

may be frozen during the winter season. Please keep the product in room

temperature before reinstallation or usage. 

,PSRUWDQWRisk of product damage. The power shall not be connected before

the work is finished. Otherwise it may lead to product failure. 

$WWHQWLRQThe thermal protector may be out of order during storage or

transportation in warm climate which can lead to product failure. Please

ensure the product cools to room temperature before reinstallation or usage.

When an

electrical product is used, especially when children are near, the

following basic safety precautions shall be abided by:

'DQJHU5HGXFHULVNRIHOHFWULFVKRFN

□Do not place or store this appliance where it can fall or be pulled into a bath

or sink.

Do not place in or drop into water or other liquid.

Do not reach for a product that has fallen into water. Unplug immediately.

:$51,1*7RUHGXFHWKHULVNRIORZJUDGHEXUQVHOHFWULFVKRFNILUHRU

LQMXU\WRSHUVRQV

□

Kohler Co.

1305685-MY01-C

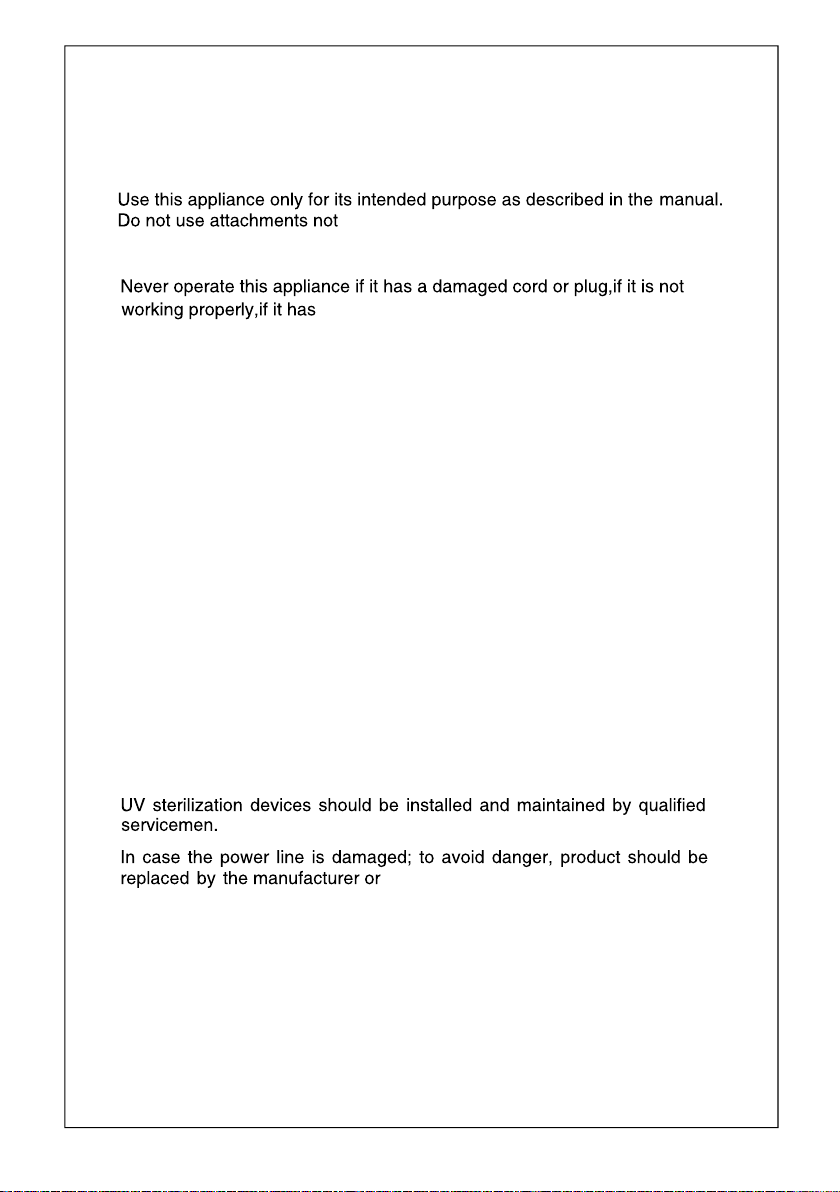

WARNING - To reduce the risk of low grade burns, electric shock, fire or injury to persons:

Do not place or store this appliance where it can fall or be pulled into a bath or sink.

Do not place in or drop into water or other liquid.

Do not reach for a product that has fallen into water. Unplug immediately.

CAUTIONS AND WARNINGS (cont.)

□

recommended by Kohler Co.

Do not lean on cover when use this appliance to prevent product from damage.

□

For those children and the elderly who are unable to adjust the

temperature, they should ask for help to adjust seat temp, water temp and

wind temp of toilet cover to proper gears.

□

been dropped into water.

Install this product properly by following the installation procedure.

This product shall be repaired by professionals only. The warranty will

become invalid if you try to repair this product by yourself.

When install the product in the room, a stop valve shall be installed in a close

proximity. For emergency circumstances, the water inlet valve shall be stopped

without using any tools; otherwise unexpected failure may cause the loss to

the customer.

Keep power line far from heated surface.

Do not drop or insert any substance to pipeline or the opening.

Do not use this product outdoor or in a place where a particle mist spray

device is used,neither at a place of provisions.

The installation should be subject to the instructions before the power is

connected.

Water should not be poured into the power plug.

Exposed skin should not make contact with heating seat for too long a time

to prevent low temperature burning.

□

the professionals from its maintenance

department or similar departments, to avoid the occurrence of danger.

Please use the water supply hose accompanying with new machine. The old

hose assembly shall not be used again.

When customer cut power supply off, if reactivation of power supply is

required, please wait until the end of “beep……” indication, and then turn on

power supply again.

1305685-MY01-C

Kohler Co.

Min water pressure 0.07Mpa (dynamic pressure)

Max water pressure 0.74Mpa

Water pressure

Rated voltage 220V~, 50Hz

About 1.5m

Rated power 1060W

Product outline dimension About 530mm × 430mm × 120mm

Weight of product About 4.25kg

Inlet water temp 1-35°C

Operation Environment 1-40°C

Rear wash YES, adjustable

Front wash YES, adjustable

Water flow

(water pressure 0.2Mpa) Max rear wash shall be no less than 500mL/min

OFF, adjustable 3 dials (ambient temp,

about 31-39°C)

About 300s

Thermal fuse

UV sanitize

Other safety devices Circuit-Breakers

Situated at the Side of the Body

Seat-on

*Power value testing condition: dynamic pressure 0.2Mpa, inlet water temp 15°C.

Kohler Co.

1305685-MY01-C

Cover (antibacterial)

Seat (antibacterial)

1305685-MY01-C

Kohler Co.

When WASH function is ON, press button to terminate WASH

function.

Press female wash when user seat on, activate female wash

(female only) and display current wash strength.

Continue press female wash to exchange spray strength when

female wash function is ON. The strength shall circulate per “min

dial, mid dial, max dial, mid dial” sequence.

Auto stop after continuous washing for 5min.

Press rear wash when user seat on. Activate rear wash and

display current wash strength.

Continue press rear wash to exchange spray strength when rear

wash function is ON. The strength shall circulate per "min dial,

mid dial, max dial, mid dial" sequence.

Default rear wash is oscillate mode, if you need to deactivate

oscillate or reactivate again, press and hold rear wash and

STOP button about 2s.

Auto stop after continuous washing for 5min.

The Bidet is equipped with wide oscillate function. If you want to

use wide oscillate function, please hold REAR + STOP button

both for 2s after REAR wash is activated.

Press WATER TEMP button to set spray water temperature per

OFF, low, mid, high, mid circulation when press button each time.

Set water temp and switch water temp parameter indicator ON. If it

is under OFF status, LED indicator is OFF.

Standby mode:

1. After deactivate water temp (water temp LED OFF), enter standby

mode. Meanwhile, minimize the product energy consumption.

2. After activate water temp (water temp LED ON), exit standby

mode, water temp heating function recovered.

Kohler Co.

1305685-MY01-C

UV radiation range Bidet nozzle

F - Sanitize

Auto UV sterilization function will be activated and start sterilizing nozzle

when unseated for a long time. No sterilization function shall be activated

after this process in another 24hrs.

1305685-MY01-C

Kohler Co.

Plug power cord into socket, Bidet seat generate one short beep, wand

extend and retract once, side panel backlight blink until initialization

completion.

Water temp: OFF

Ensure if water inlet valve is OPEN.

Kohler Co.

1305685-MY01-C

(inside)

Wrap toilet seat with plastic sheet to prevent water splash from the

toilet during testing.

The seat is activated by user sitting. To activate the seat controls for

testing purpose, facing the toilet first, then hold seat from right front

edge about ½ position by hand, hear the seat on right side of the

rotating shaft generate one “click” (gravity induction).

The contact might not be activated

Note:

It is difficult to activate contact for light weight children.

There’s clearance between seat bumper to toilet due to moveable

structrure design.

if customer does not sit all way in.

Toilet seat downward

Clearance

Contact

Switch ON

1305685-MY01-C

Kohler Co.
