Kohler 16366 User manual

BEFORE YOU BEGIN

All information is based on the latest product information available at the time of publication. Kohler Co.

reserves the right to make changes in product characteristics, packaging, or availability at any time without

notice.

Please leave these instructions for the consumer. They contain important information.

NOTES:

1. Flush the water supply pipes thoroughly to remove debris before installation.

2. The highest working pressure for handspray & shower head is 0.5MPa(5 bar). If it exceeds 0.5MPa(5 bar),

a pressure reducer is needed. The highest water and environment temperature is 60 ºC. Please keep

handspray, shower head and the shower arm away from heater, or it may become damaged and cause injury

to the user.

1069818-2A-B 1

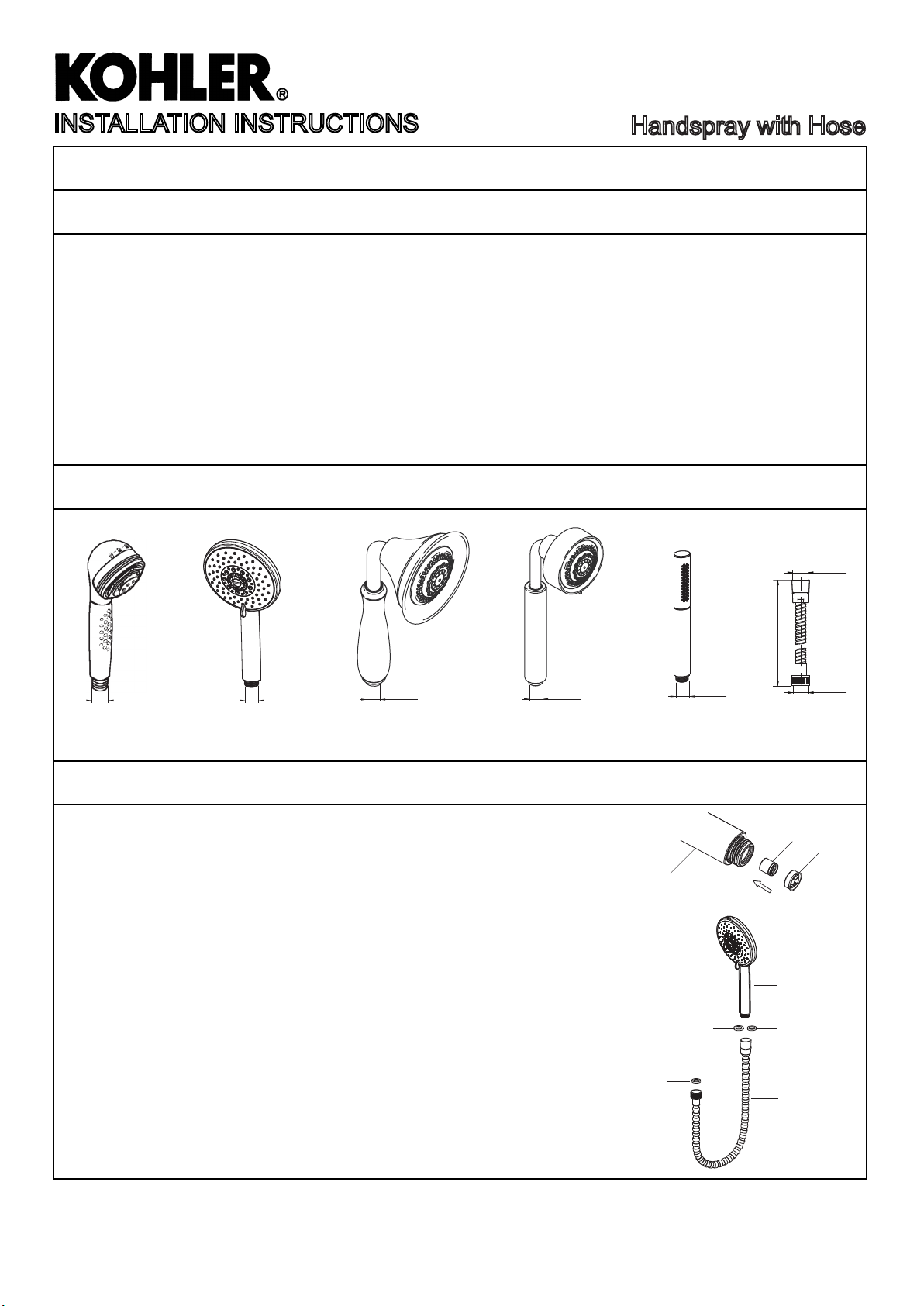

16364 16366 10377 10109 37432 HANDSPRAY WITH HOSE

INSTALLATION INSTRUCTIONS

Handspray with Hose

ROUGH-IN DIMENSIONS

16364 37432 16366 10377 10109

INSTALLATION

Filter washers(1) provided with shower hose(2) must be installed in

each end of hose(2). For 16366/10377, put the washer(4, thickness 5mm)

instead of washer(1) at the end which connect to the handspray.

For 37432, Put the check valve(5) into the handspray(3) inlet. Put the

restrictor(6) into the handspray inlet if needed.

Note: Keep the O-ring of the check valve outward.

Connect shower hose to handspray(3) and the water supply. 3

G1/2˝

1500

G1/2˝ G1/2˝ G1/2˝ G1/2˝ G1/2˝

1069818-2A-B 2

CLEANING INSTRUCTIONS

All Finishes: Clean the finish with mild soap and warm water. Wipe entire surface completely dry with clean

soft cloth. Many cleaners may contain chemicals, such as ammonia, chlorine, toilet cleaner etc. which could

adversely affect the finish and are not recommended for cleaning.

Do not use abrasive cleaners or solvents on Kohler faucets and fittings.

SERVICE PARTS

**Color code must be specified when ordering

How to Clean the Nozzles

The furriness or debris may cause flowstream distorted or reduce the

flowrate. To clean up the furriness or debris, run water through the

handspray, firmly press or rub your finger back and forth across the

rubber spray holes.

1096037**

Handspray

(Only for 10109)

1061670**

Multi-Function Performance

Handspray

(Only for 10377)

1059039**

Multi-Function Performance

Handspray

(Only for 16366)

1240266

Check Valve

1065970**

Handspray

(Only for 37432)

1030624

Restrictor

1111022**

Three-way Handspray

(Only for 16364)

831727**

Hose Assy

880010

Washer
