Kohler K-T467 User manual

Installation Guide

Bath/Deck Mount Faucet

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de

Mcorresponden a México (Ej.

K-12345M)

Français, page“ Français-1”

Español, página“ Español-1”

K–T467 K–T469

1023371-2-B

Tools and Materials

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few

minutes to review this manual before you start installation. If you

encounter any installation or performance problems, please don’t

hesitate to contact us. Our phone numbers and website are listed on

the back cover. Thanks again for choosing Kohler Company.

Before You Begin

The valve is sold separately. Please read the instructions packed

with the valve for installation procedures.

Please read all instructions before you begin.

Shut off the main water supply.

Observe all local plumbing and building codes.

Complete the ﬁnished deck material before installing.

Before installation, unpack the new faucet trim and inspect it for

damage. Return it to the carton until installation.

Kohler Co. reserves the right to make revisions in the design of

faucets without notice, as speciﬁed in the Price Book.

Adjustable

Wrench • Rag

Plus:

Tube Cutter

Tape

Measure

Hex

Wrench Assorted

Screwdrivers

File

Plumbers

Putty

1023371-2-B 2 Kohler Co.

1. Remove the Plug

WARNING: Risk of personal injury. Lines may be pressurized.

Do not lean over the pipe plug when turning or removing the

plug.

Make sure the valves are closed (cold = fully counterclockwise;

hot = fully clockwise).

Turn off the main water supply.

Wrap a rag around the pipe plug to prevent water spray.

IMPORTANT! Water may purge from the supply tube when you

remove the plug.

Carefully remove the pipe plug.

Pipe Plug

Hot

Cold

Kohler Co. 3 1023371-2-B

2. Prepare for Spout Installation

Remove the plaster guard from the spout supply tube.

Cut off the spout supply tube 1-1/4” (3.2 cm) above the rim,

ﬁnished deck, or tile.

Remove all burrs from the spout supply tube to prevent damage

to the O-ring seal on the spout sleeve assembly.

NOTE: The washer is not needed for rim/ﬁnished deck installation.

If the installation includes a tile covered rough deck, slide the

washer, ﬂat side facing forward, onto the spout supply tube.

NOTE: Before installing the spout sleeve assembly, make sure the

O-ring is properly positioned in the groove on the outside of the

sleeve.

Back off the setscrews in the spout sleeve assembly.

With a twisting motion, place the spout sleeve assembly over the

spout supply tube and push down to the deck surface.

Align the sleeve with the setscrews offset from the center (not

facing directly forward or backward) of the spout supply tube.

Tighten the setscrews.

Purge the supply tube of debris.

Rough

Deck

Tile

Finish

1-1/4"

(3.2 cm)

Washer

Spout

Supply

Tube

Rough

Deck

Finished

Deck

1023371-2-B 4 Kohler Co.

3. Install the Spout

CAUTION: Risk of product damage. Use care when installing

the spout assembly to prevent damage to the O-ring seal.

Position the spout on the sleeve, and carefully press down until

the spout contacts the ﬁnished deck.

Rotate the spout until it is aligned to face straight forward.

Tighten the setscrew.

Insert the O-ring onto the plug button.

Insert the plug button over the setscrew, ﬂush with the spout

surface.

Setscrew

O-Ring

Plug

Button

Kohler Co. 5 1023371-2-B

4. Install the Classic Handles

Remove the plaster guards.

Close the valves (hot = clockwise, cold = counterclockwise).

Install a stem extension onto each valve stem spline. Make sure

that the splines are engaged.

Thread a handle assembly onto each valve body. Make sure the

splines in the handle and stem extension are engaged.

NOTE: The stem extension allows ﬁne adjustment of the handle

alignment. To adjust, remove the handle and reposition the stem

extension.

Reinstall the handle and check the alignment. Repeat until the

handle alignment is satisfactory.

Cross

Handle

Assembly

Lever

Handle

Assembly

Valve

Stem

Spline

Stem

Extension

Valve

Body

1023371-2-B 6 Kohler Co.

5. Installing Stately Handles

Apply a bead of plumbers putty or other sealant around the

bottom of the escutcheon according to the putty manufacturer’s

instructions.

Position the escutcheons over the valves.

Install the threaded sleeves to the valves. Securely hand tighten.

Fit the handle assemblies over the valves, and align them so the

setscrews are not easily seen. Orient the lever handles with the

levers pointing away from the spout in the closed position.

Tighten the setscrews.

Press a plug button into each setscrew hole.

Remove any excess plumbers putty.

Valve

Setscrew

Escutcheon

Sleeve

Plug

Button

Lever

Handle

Assembly

Plug

Button

Cross

Handle

Assembly

Kohler Co. 7 1023371-2-B

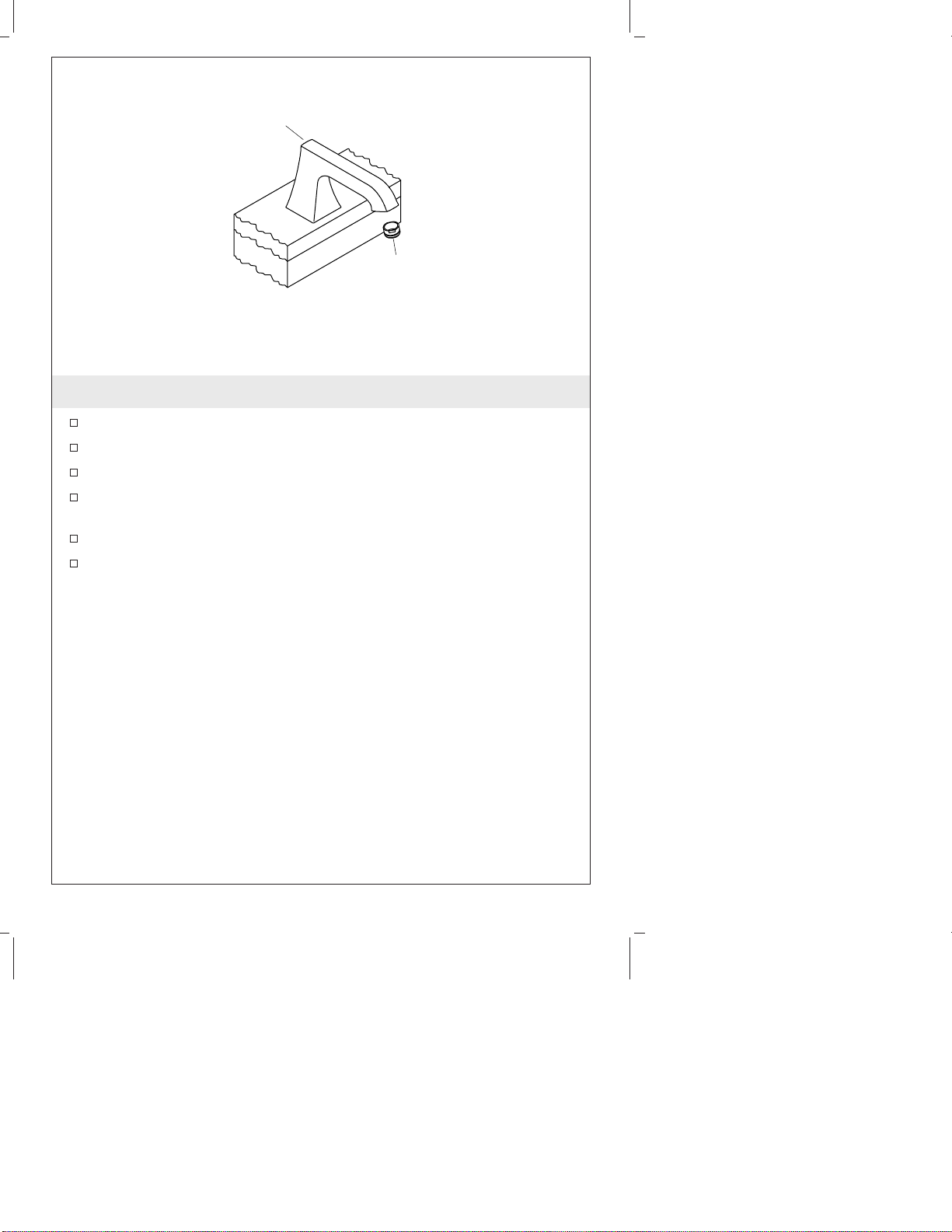

6. Complete the Installation

Turn off the water (hot = clockwise, cold = counterclockwise).

Remove the aerator assembly.

Turn on the main water supply and check for leaks.

Turn on the hot and cold valves and run water through the spout

to remove debris. Check for leaks.

Turn off the hot and cold valves.

Reinstall the aerator assembly.

Spout

Aerator

1023371-2-B 8 Kohler Co.

Guide d’installation

Robinet montage sur baignoire/comptoir

Outils et matériels

Merci d’avoir choisi la compagnie Kohler

Nous apprécions votre engagement envers la qualité Kohler. Veuillez

prendre s’il vous plaît quelques minutes pour lire ce manuel avant de

commencer l’installation. Ne pas hésiter à nous contacter en cas de

problème d’installation ou de fonctionnement. Nos numéros de

téléphone et notre adresse du site internet sont au verso. Merci encore

d’avoir choisi la compagnie Kohler.

Avant de commencer

La valve est vendue séparément. Veuillez s’il vous plaît lire les

instructions d’installation emballées avec la valve.

Veuillez lire toutes les instructions avant de commencer.

Couper l’alimentation d’eau principale.

Respecter tous les codes de plomberie et de bâtiment locaux.

Compléter le matériau du comptoir ﬁni avant d’installer.

Avant l’installation, déballer la garniture du nouveau robinet et

l’examiner pour en déceler tout dommage. Remettre le robinet

dans l’emballage jusqu’à l’installation.

Cléà

molette • Chiffon

Plus:

Coupe-tubes

Mètre

ruban

Clé

hexagonale Tournevis

assortis

Lime

Mastic de

plombier

Kohler Co. Français-1 1023371-2-B

Avant de commencer (cont.)

Kohler Co. se réserve le droit d’apporter toutes modiﬁcations au

design des robinets et ceci sans préavis, comme spéciﬁé dans le

catalogue des prix.

1023371-2-B Français-2 Kohler Co.
