Kohler K-22261T User manual
INSTALLATION INSTRUCTIONS
ELONGATED QC SEAT (PUREFRESH)
()
K-22261T
-1-
KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD,
JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436
( ) 158 200436
©
©
Copyright Kohler China Investment Co., Ltd. 2017
2017
·
·
·
·

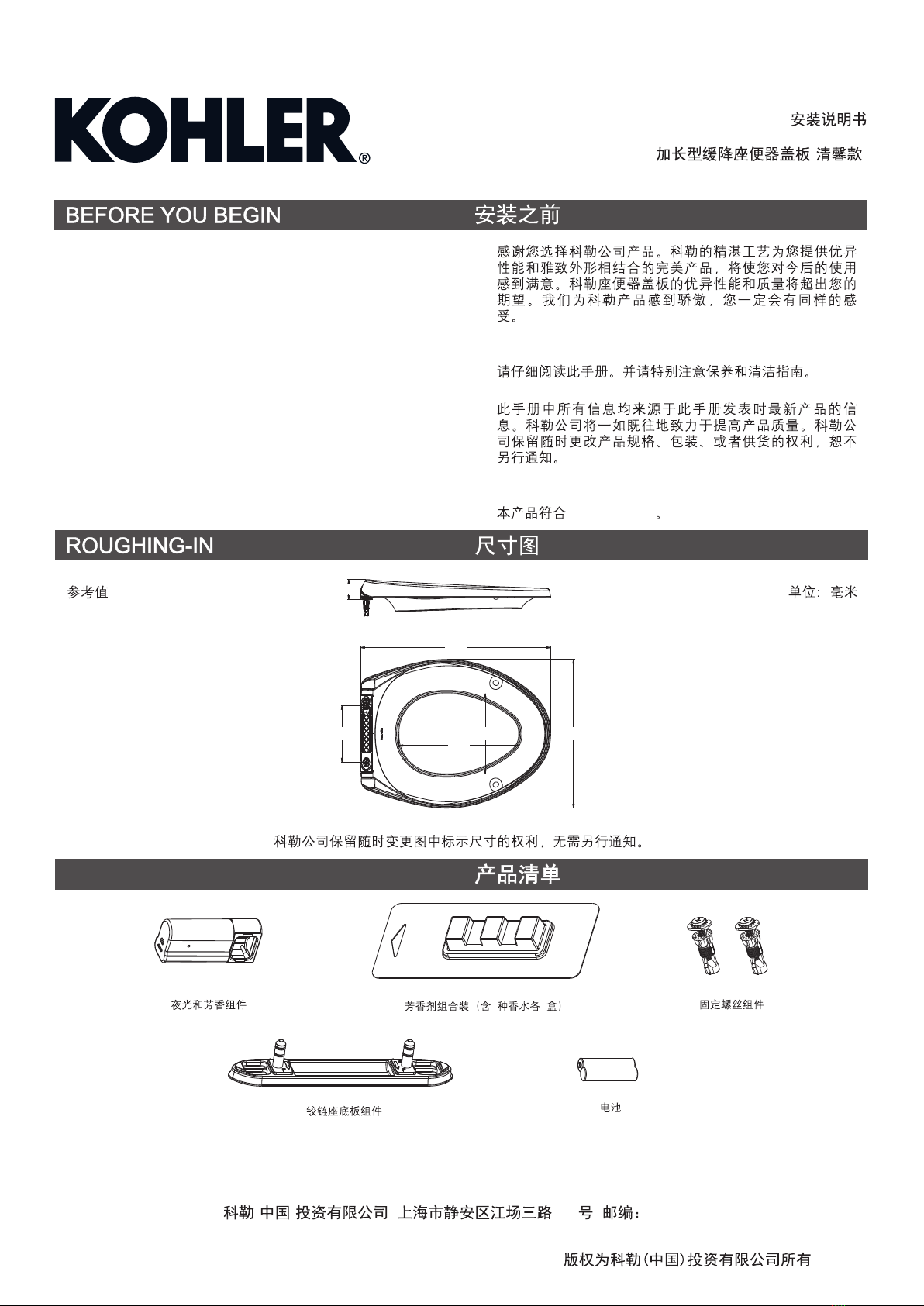

Thank you for choosing the Bold Look of Kohler. Kohler
craftsmanship offers you a rare combination of proven
performance and graceful sophistication that will satisfy
you for years to come. The quality and dependability of
your Kohler toilet seat will surpass your highest
expectations. We're very proud of our products here at
Kohler and we know you will be too.
All information in this manual is based upon the latest
product information available at the time of publication. At
Kohler, we constantly strive to improve the quality of our
products. We reserve the right to make changes in
product characteristics, packaging or availability at any
time without notice.
This product complies with JC/T764-2008.
Please take a few minutes to study this manual. Pay
special attention to the Care and Cleaning instructions.
·
·
·
·JC/T764-2008
Reference Value UNIT: mm
Kohler reserves the right to change marked dimensions without prior notice.
49
469
140
296
198 367
PRODUCT LISTPRODUCT LIST
Night Light & Scent Function Module Scent Pack (3 Scent Assortments)
31
Hardware Pack
Hinge Baseboard Assembly AAA Battery X2
AAA X2
1328758-T01-B
INSTALL SEATINSTALL SEAT

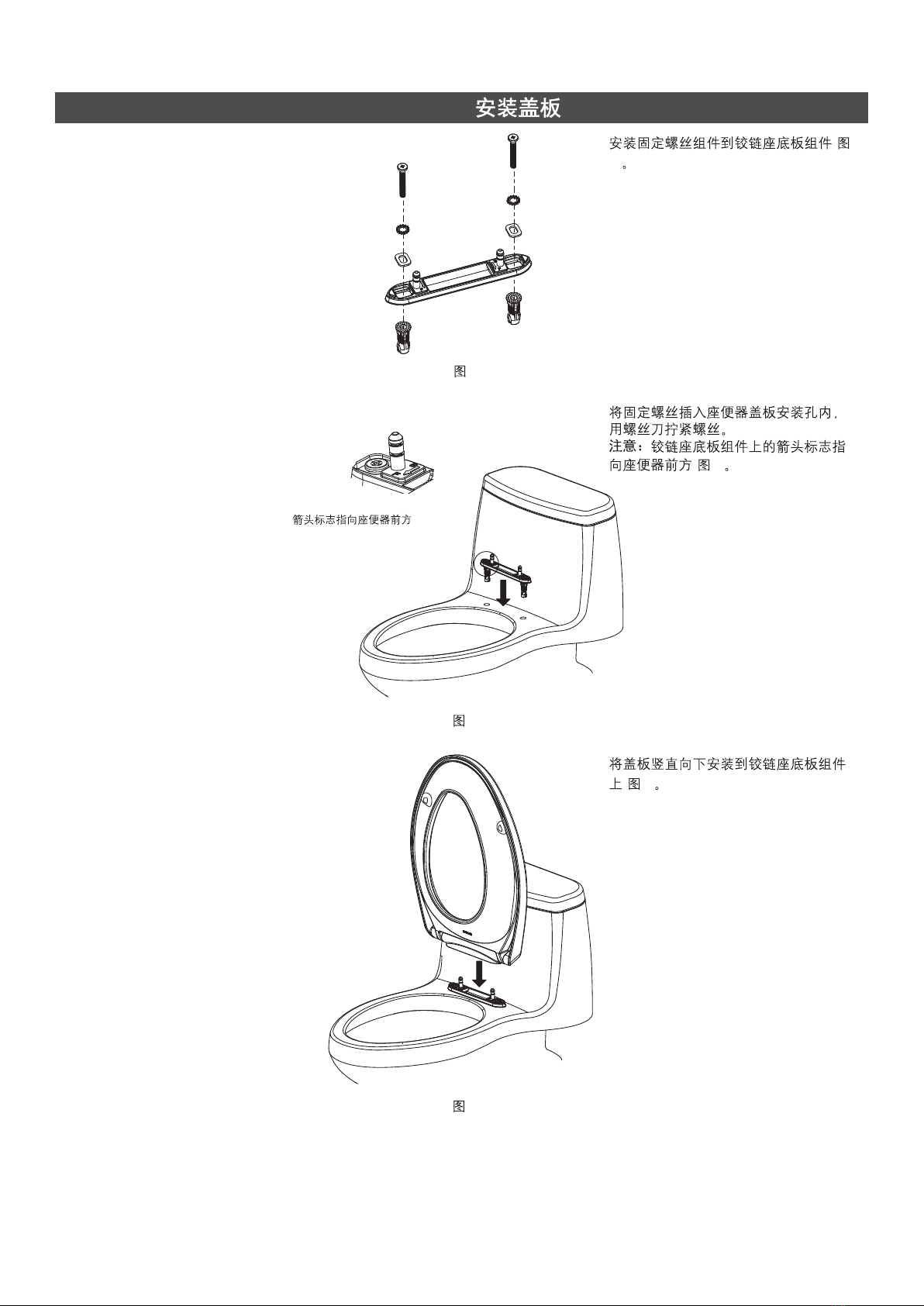

1. Install HARDWARE PACK with HINGE
BASEBOARD ASSEMBLY (Fig.1).
2. Insert screws to seat mounting holes of
toilet, twist screws with screw driver.
the arrow marks of the HINGE
BASEBOARD ASSEMBLY points to the
front of toilet (Fig.2).
Note:
3. Push seat downward to HINGE
BASEBOARD ASSEMBLY (Fig.3).
1. (
1)
2.
(2)
3.
(3)
Fig.1
1
Fig.2
2
Fig.3
3
Arrow marks point to the front of toilet
-2-
1328758-T01-B
INSTALL BATTERY AND SCENT PACKINSTALL BATTERY AND SCENT PACK

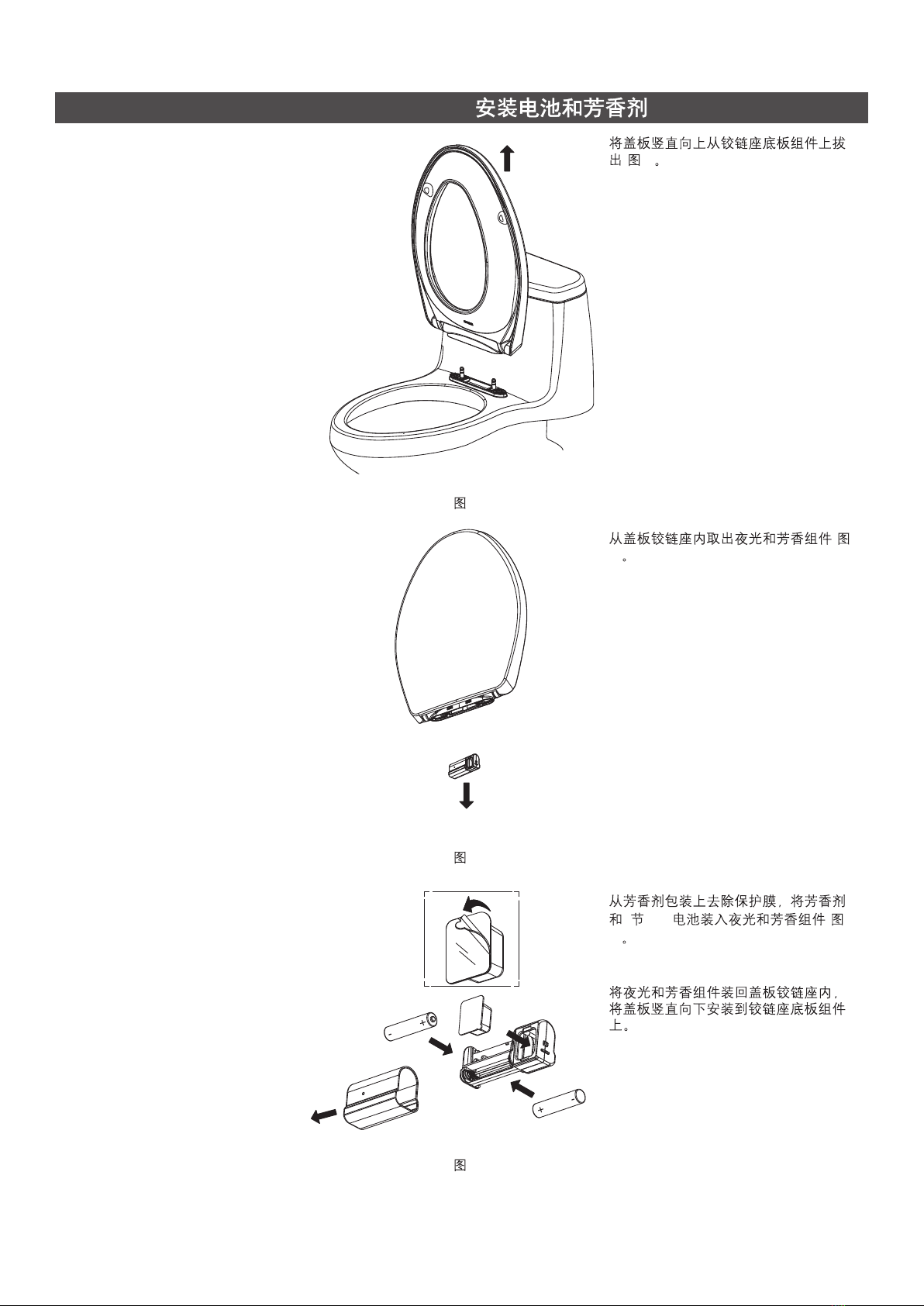

1. Pull seat upward from HINGE
BASEBOARD ASSEMBLY(Fig.4).
2. Take out NIGHT LIGHT & SCENT
FUNCTION MODULE from seat.
3. Remove film from SCENT PACK, install
SCENT PACK and 2 AAA BATTERY
into NIGHT LIGHT & SCENT
FUNCTION MODULE.
4. Install NIGHT LIGHT & SCENT
FUNCTION MODULE back to seat,
push seat downward to HINGE
BASEBOARD ASSEMBLY.
1.
(4)
2. (
5)
3.
2 AAA (
6)
4.
Fig.4
4
Fig.5
5
Fig.6
6
-3-
1328758-T01-B
OPERATION AND MAINTENANCEOPERATION AND MAINTENANCE

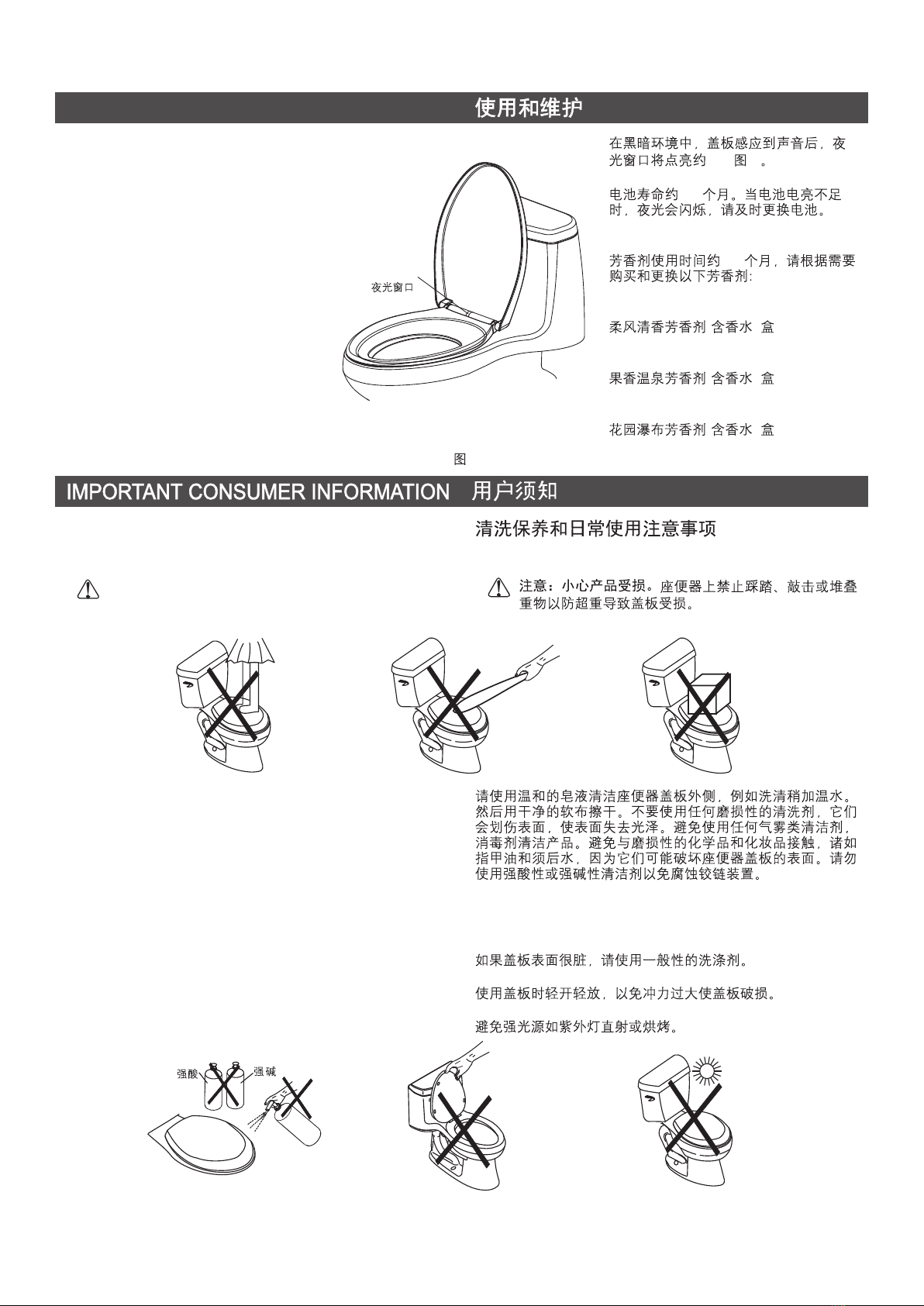

1. Nightlight will turn on 40s when seat is
in dark surrounding and sensing sound
(Fig.7).
2. 2 x AAA Battery will work about 3~6
months. The nightlight will flash when
battery power is low, please replace
batteries in time.
3. SCENT PACK will work about 1~3
months, please order and replace below
SCENT PACK in time.
K-7731T-B-NA
Scent Pack-Soft & Fresh Laundry (3
Scent Holders)
K-7766T-B-NA
Scent Pack-Soft & Avocado Spa (3
Scent Holders)
K-7729T-B-NA
Scent Pack-Garden Waterfall (3 Scent
Holders)
1.
40s( 7)
2. 3~6
3. 1~3
K-7731T-B-NA
(3)
K-7766T-B-NA
(3)
K-7729T-B-NA
(3)
Fig.7
7
Nightlight
-4-
Important Notice for Care, Cleaning and
Daily Use
CAUTION: Risk of product damage. Do not stand,
knock or stack heavy stuffs on the toilet seat. The
weight could damage the toilet seat.
Clean the outside surface of your toilet seat with mild soap,
such as liquid dish soap and warm water. Wipe the entire
surface completely dry with a clean soft cloth. Do not use any
abrasive cleaners, as they will scratch and dull the surface.
Avoid any detergents, disinfectants, or cleaning products in
aerosol cans. Avoid contact with abrasive chemicals and
cosmetics, such as fingernail polish and aftershave, as they
may damage the finish of your toilet seat. Do not use
detergent with strong acidic or strong alkaline property to
prevent possible damage to hinge of seat.
If the surface becomes excessively dirty, please use a
general purpose cleaner.
Take care with seat open and close. Overforce may crush the
seat.
Avoid direct exposure to strong light such as ultraviolet lamp.
Strong Acid
Strong Alkali
