Kohler K-6505 User manual

Installation Guide

Bath-Mount Faucet

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de

Mcorresponden a México (Ej.

K-12345M)

Français, page“ Français-1”

Español, página“ Español-1”

K-6505 K-7981

1011134-2-B

Tools and Materials

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few

minutes to review this manual before you start installation. If you

encounter any installation or performance problems, please don’t

hesitate to contact us. Our phone numbers and website are listed on

the back cover. Thanks again for choosing Kohler Company.

Before You Begin

Please read all instructions before you begin.

Shut off the water supply.

Observe all local plumbing and building codes.

IMPORTANT! For proper drainage of the spout, only install to a

level surface.

Before installation, unpack the new faucet trim and inspect it for

damage. Return it to the carton until installation.

For optimum performance, Kohler Co. recommends installing

3/4″high ﬂow valves connected to the spout with 5/8″Nominal

Tubing (3/4″OD).

If compression ﬁttings are used, type M, K, or L hard drawn

tubing is recommended.

Provide an access panel for all installations.

Rigid connections are recommended for this installation, however

ﬂexible hose is provided. Follow the instructions for your chosen

method of installation.

Adjustable

Wrench Strap

Wrench Hacksaw or

Tubing Cutter Propane

Torch

Plumbers

Putty

Assorted

Screwdrivers Solder

1-1/2" Thin Wall

Socket Wrench

5/32" Hex

Wrench

Drill and

Hole Saw

Small Level

1011134-2-B 2 Kohler Co.

Before You Begin (cont.)

To avoid potential leaks, the connections between the valves and

the spout must not be skewed.

Kohler Co. reserves the right to make revisions in the design of

faucets without notice, as speciﬁed in the Price Book.

Kohler Co. 3 1011134-2-B

1. Preparation

NOTE: The spout comes preassembled to protect the product during

shipping. The spout will need to be partially disassembled prior to

installation.

Remove the four screws that secure the spout to the spout base

and remove the spout, gasket, and hex nut from the base.

Remove the spout base.

Test ﬁt the spout shank to verify it will ﬁt through the hole in the

bath rim.

Thread a mounting nut all the way down the spout shank and

each of the handle valves.

For thin mounting surfaces, provide plywood support under the

bath rim.

O-Ring Spout Base

Screw

Hex Nut

Gasket

Washer

Hex Nut

Rubber Washer

Fiber Washer

Mounting Nut

Spout

Spout Shank

1011134-2-B 4 Kohler Co.

2. Install the Shank and Valves

NOTE: This section applies to installations utilizing rigid

connections only. For installations utilizing ﬂexible connections,

proceed to the ″Install the Spout″section.

Insert the spout shank upside down through the mounting hole

in the bath rim.

Insert each of the valves upside down into the appropriate

mounting hole. Cold should be on the right when facing the

faucet.

Measure the distance between each of the valves and the spout

shank to determine the tubing needed for either compression

ﬁttings or solder connections. Allow for sufficient clearance.

Remove the valves and spout shank from the mounting holes.

Cut the tubing to the appropriate lengths according to your

measurements.

Preassemble the spout shank, valves, and tubing. Do not tighten

or solder any connections at this time.

Verify that the mounting nuts are still installed to the valves and

the spout shank.

Slide a ﬁber washer and then a rubber washer onto each valve

and the spout shank.

NOTE: The following steps require two people.

Measure for

tubing needed.

Bath Rim or

Mounting Surface

Spout Shank

Escutcheon

Gasket

Valve

Mounting Nut

Fiber Washer

Rubber Washer

Kohler Co. 5 1011134-2-B

Install the Shank and Valves (cont.)

Slide the spout/valve assembly up through the mounting holes in

the bath rim.

Slide a gasket onto each valve body.

Loosely secure the assembly to the bath by threading an

escutcheon onto each valve body. Verify ﬁt and make any

adjustments as needed.

NOTE: Do not install the spout or handle trim at this time.

IMPORTANT! Ensure a check valve is not installed to the spout

shank. If one is currently installed, remove it before soldering.

Solder or tighten all connections.

1011134-2-B 6 Kohler Co.

3. Install the Spout

Thread the hex nut down the spout shank.

Slide the O-ring onto the spout shank.

Slip the spout base over the spout shank.

Secure the spout base to the spout shank with the remaining hex

nut.

Set the gasket on the spout base.

Align the spout over the gasket and spout base.

Slide a washer onto each of the four screws.

With the washers in place, secure the spout to the base with the

four screws.

Secure the spout assembly by threading the mounting nut up the

spout shank until snug.

Verify that the spout is level front-to-back and side-to-side. Make

any adjustments as needed.

Rubber

Washer

Spout

Shank

Fiber

Washer

Hex Nut

Mounting Nut

O-Ring

Spout Base

Screw

Spout Base

Washer

Gasket

Spout

Kohler Co. 7 1011134-2-B

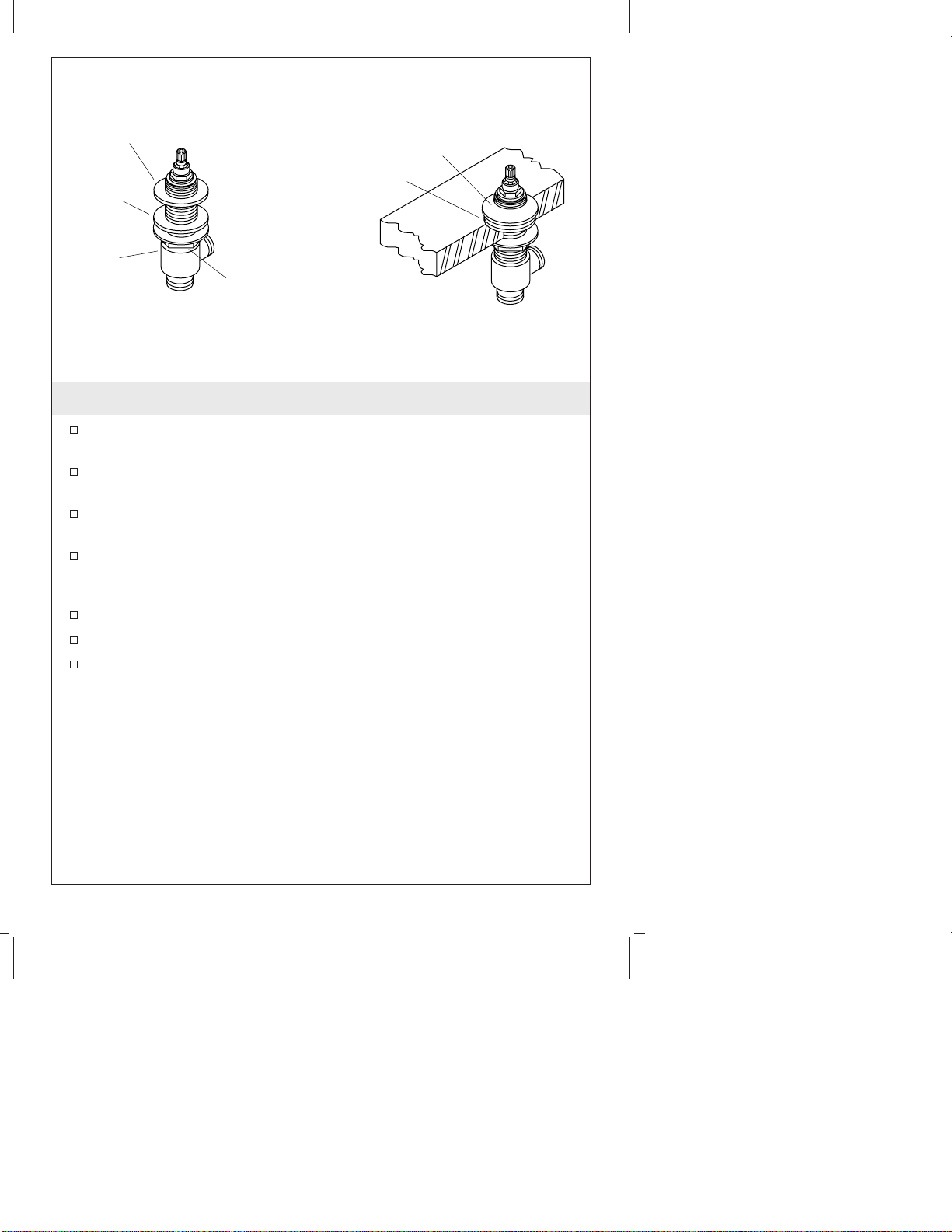

4. Install the Handle Valves

If utilizing rigid connections and the handle valves are already

installed, proceed to the ″Install the Handle Trim″section.

Verify that a mounting nut is threaded all the way down each of

the valve bodies.

Slide a ﬁber washer, followed by a rubber washer, down one of

the valve bodies.

From the underside of the bath rim, insert the valve up through

the mounting hole. The valve marked COLD should be installed

to the right when facing the faucet.

From above the bath, slide the gasket onto the valve body.

Thread the escutcheon onto the valve body to secure.

Repeat for the other valve.

Rubber

Washer

Fiber

Washer

Valve

Body Mounting

Nut

Escutcheon

Gasket

1011134-2-B 8 Kohler Co.

5. Install the Handle Trim

Close the valves (hot = clockwise, cold = counterclockwise).

Install a skirt over one of the valves and onto the escutcheon.

Slide a spline adapter onto the valve stem and secure with the

screw.

Position the handle assembly over the spline adapter.

Thread the skirt into the handle assembly until tight.

Repeat for the other valve.

Screw

Spline Adapter

Skirt

Valve

Stem

Handle

Assembly

Spline

Adapter

Kohler Co. 9 1011134-2-B

6. Complete the Installation

For ﬂexible connections only: Connect the outlets of the handle

valves to the spout inlets.

Connect the hot and cold water supplies to the handle valve

inlets.

For installations utilizing a check valve, place a washer between

the spout shank and the check valve. Otherwise cap the end of

the spout shank.

Turn on the water supplies.

Check all connections for leaks.

1011134-2-B 10 Kohler Co.
