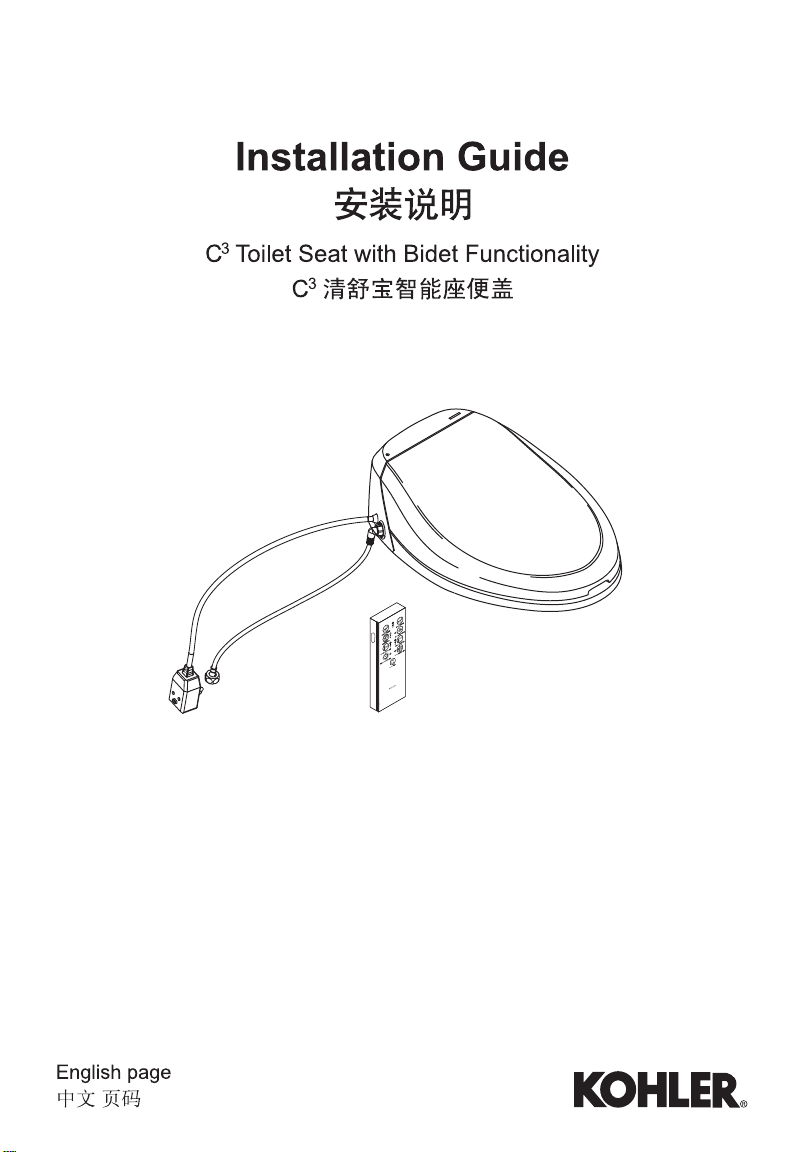

Kohler K-4759T User manual

2-10

K-4759T

11-18

1119274-T01-C

制造商：上海科勒电子科技有限公司

中国上海市宝山区丰翔路1955号邮编：200444

科勒（中国）投资有限公司

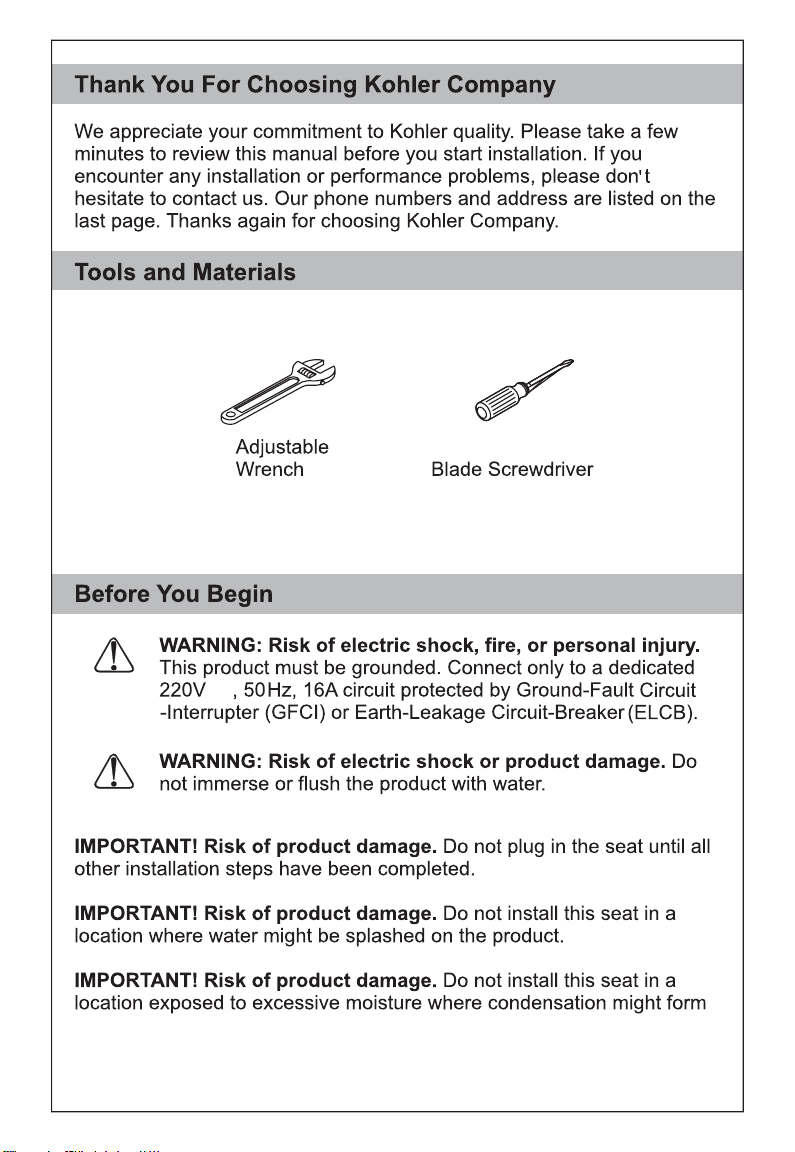

on the product surface. Please ensure sufficient ventilation in your

surroundings to prevent possible damage to electronic components.

1119274-T01-C

Kohler Co.

- -

Kohler Co.

1119274-T01-C

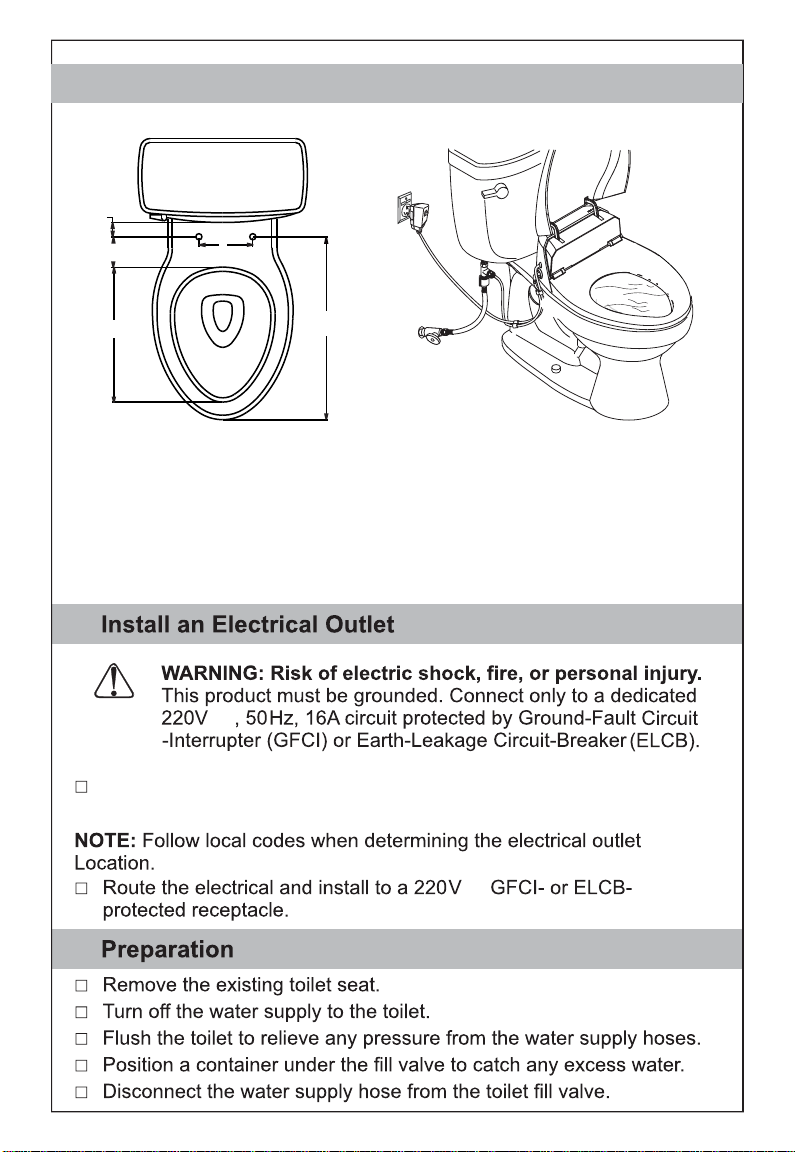

1. Match toilet roughing-in requirement and installation tips

1 Distance between installation holes:136-140mm

2 Distance between instalaltion holes and tank front rim:>20mm

3 Distance between instalaltion holes and bowl inner rim:＜70mm

4 Distance between installation holes and tank top rim:460-490mm

5 Bowl inner diameter:370-390mm

6 Reserve place around 1 meter away from the toilet before installation

It is recommended to use water-resistant socket.Do not use an

extension code with the product.

1119274-T01-C

Kohler Co.

1119274-T01-C

Kohler Co.

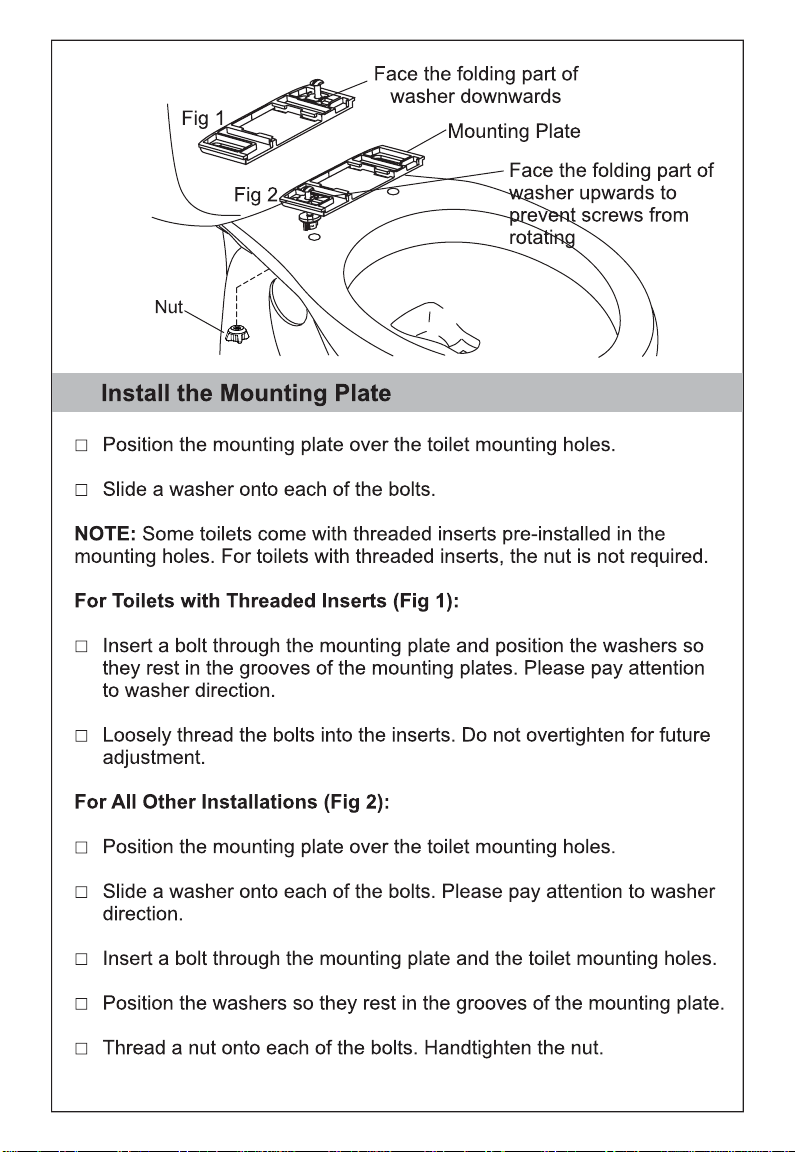

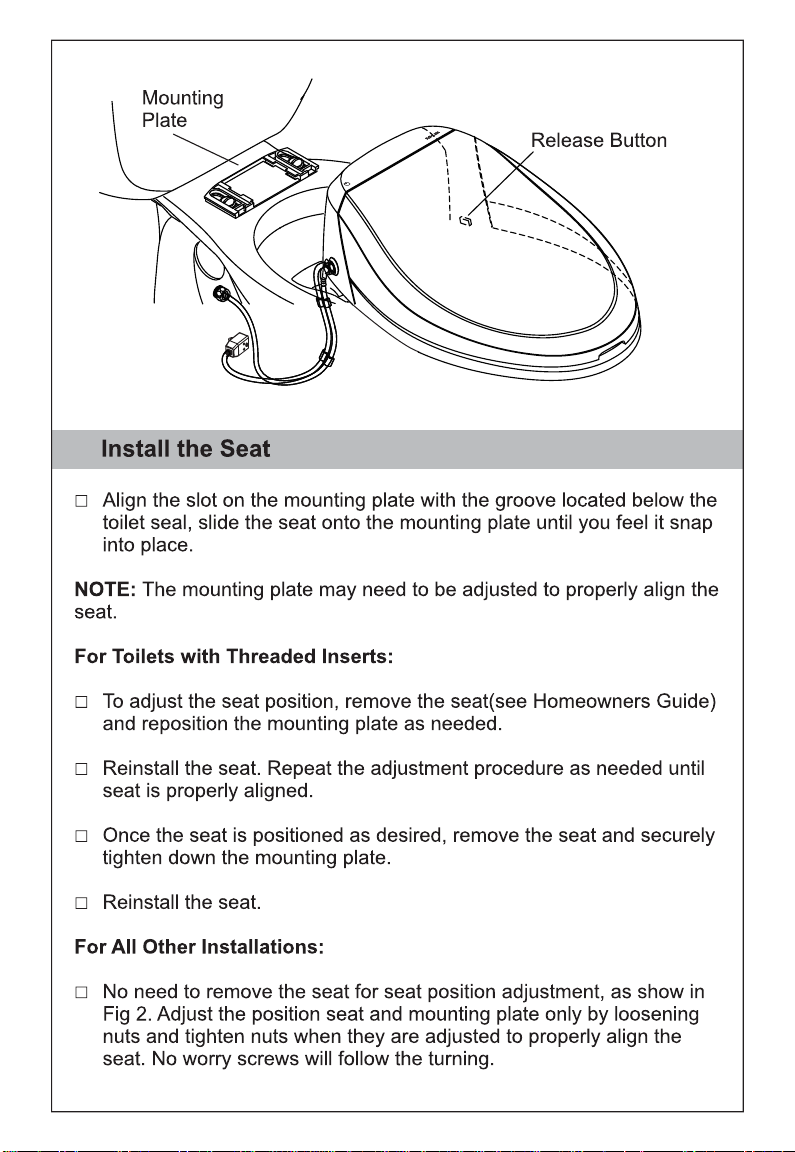

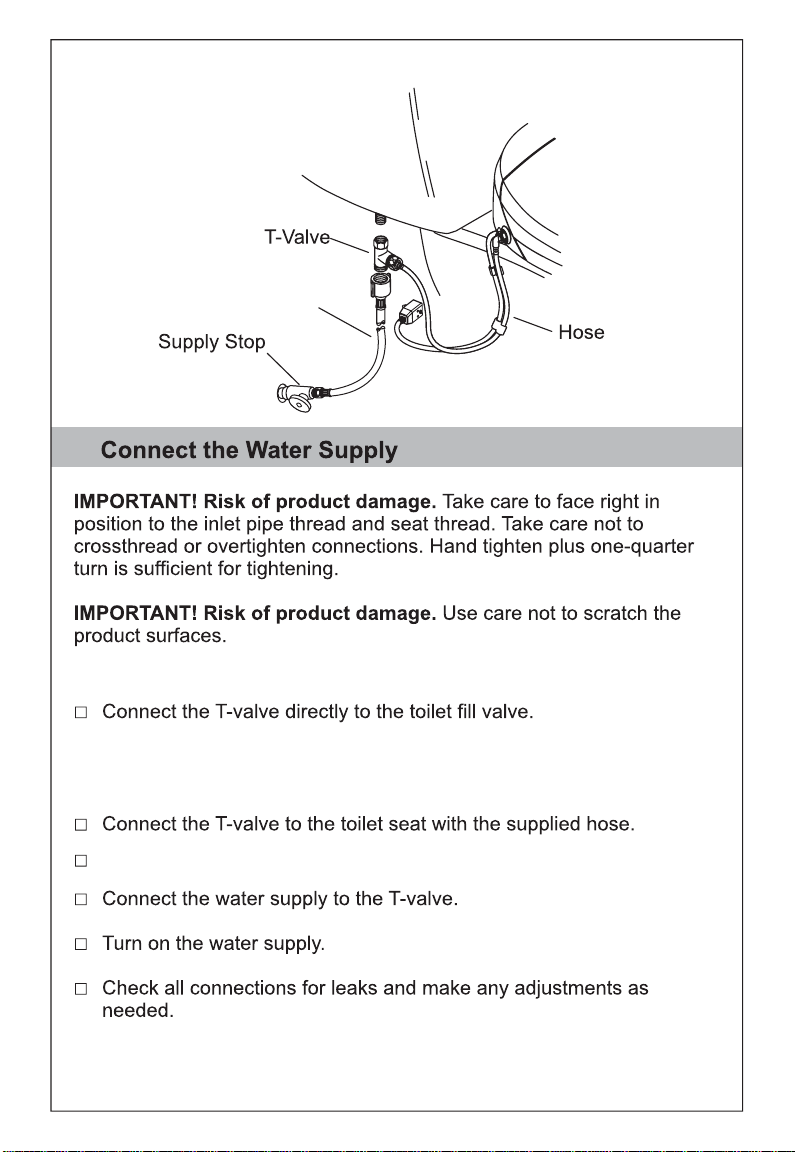

NOTE! For those newly installed plumbing pipes, before the inlet

hose connected to T-valve, must flush for several seconds to clean

the inner side of the pipe, in order to remove the dirt and debris etc.

Inlet Hose

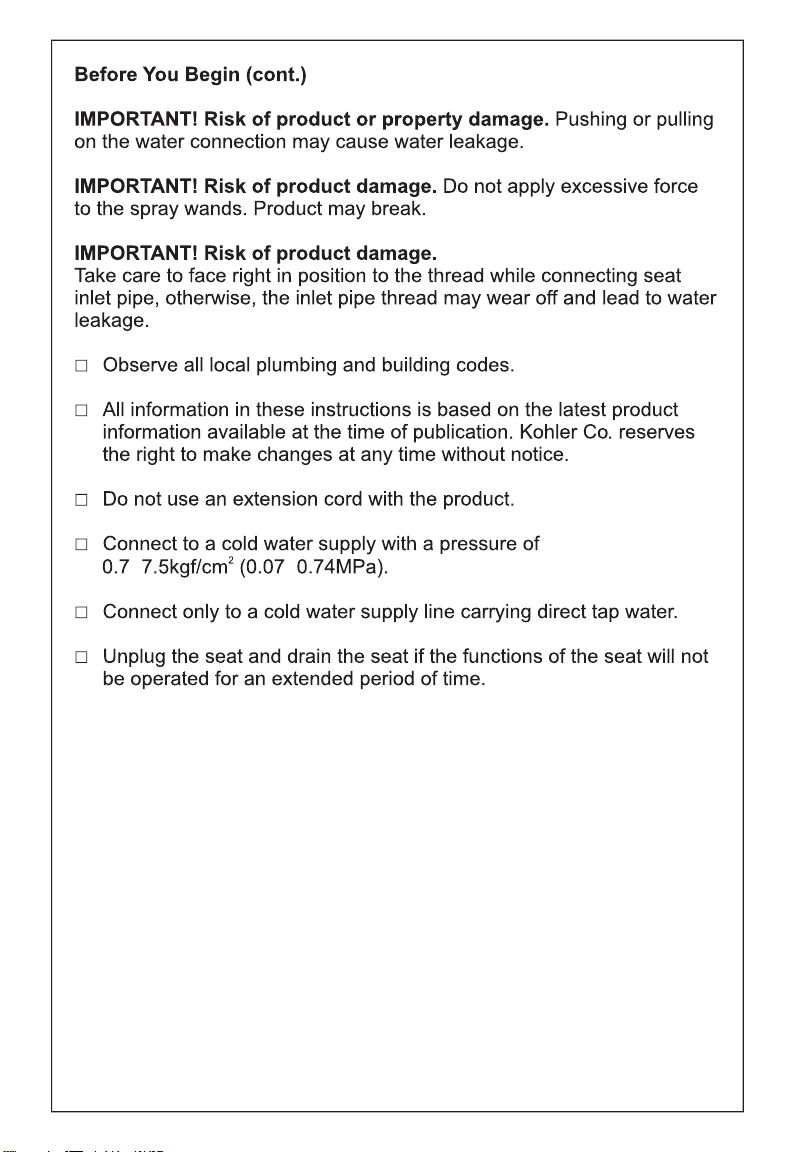

IMPORTANT! Do not plug in the seat untill connect the water supply.

NOTE! Please do not reuse the old hose.

Kohler Co.

1119274-T01-C

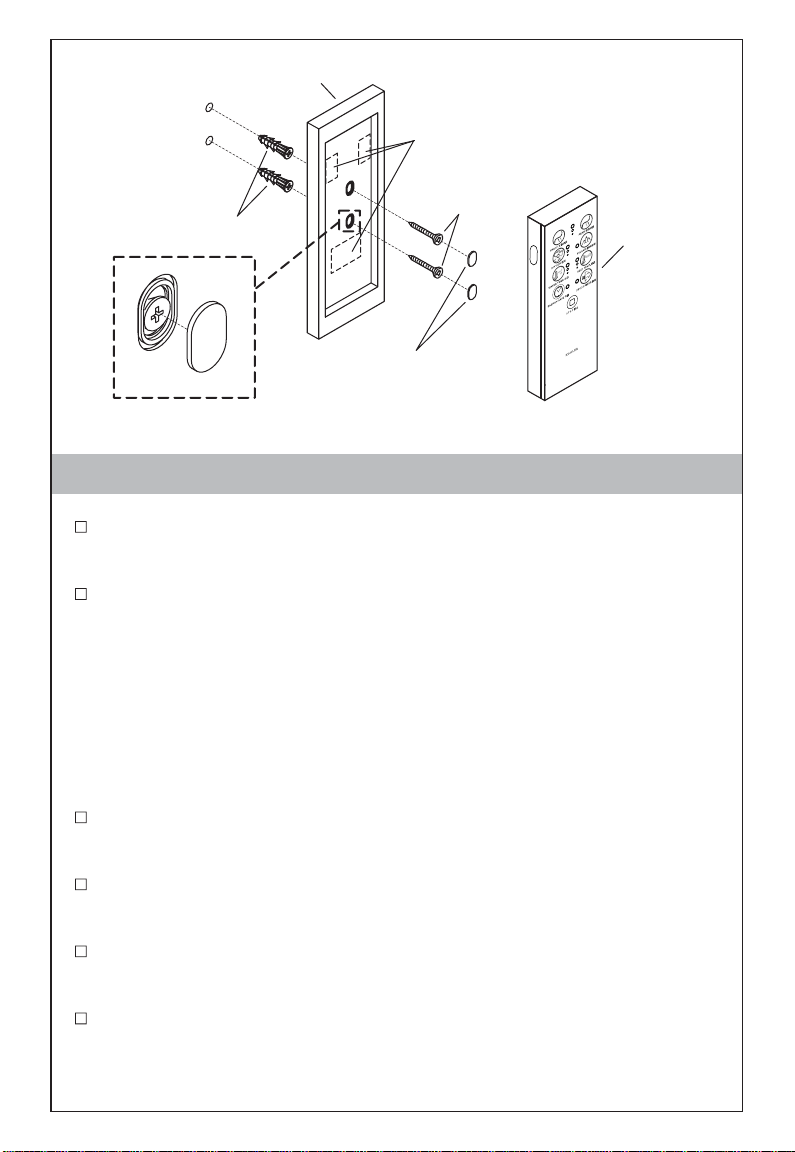

7. Install the Remote Controller

Choose a mounting location for the remote holder that is easily

accessible while sitting on the seat.

The remote holder can be installed using screws or double-sided

tape. Choose your preferred method for securing the remote holder.

Follow only the instructions for your chosen installation method.

Anchors may not be needed for installation to certain materials.

Use the appropriate mounting hardware for your particular installation

surface.

Position the remote holder at the desired mounting location with

the rectangular indent toward the bottom (as shown).

Using a pencil, mark the two mounting hole locations. Set the

holder aside.

Drill a 3.5mm hole

at each of the marked locations.

Drill a 6mm hole at each of

the marked locations. Install the wall anchors into the holes.

Install Using Screws

NOTE:

For installation to stud or other wood surface:

For installation using wall anchors:

Remote Holder

Anchors

Screws

Remote

Controller

Caps

Double-sided Tape

1119274-T01-C

Kohler Co.

Install the Remote Holder (cont.)

Install Using Double-Sided Tape

Position the remote holder over the mounting holes so the

rectangular indent is toward the bottom.

Secure the remote holder with the screws.

Install the caps to cover the screws.

Position the remote into the holder with the user preset icons

facing up.

Remove the paper from the tape squares.

Press the remote holder into place.

Position the remote into the holder with the user preset icons facing

up.

Kohler Co.

1119274-T01-C

Clip

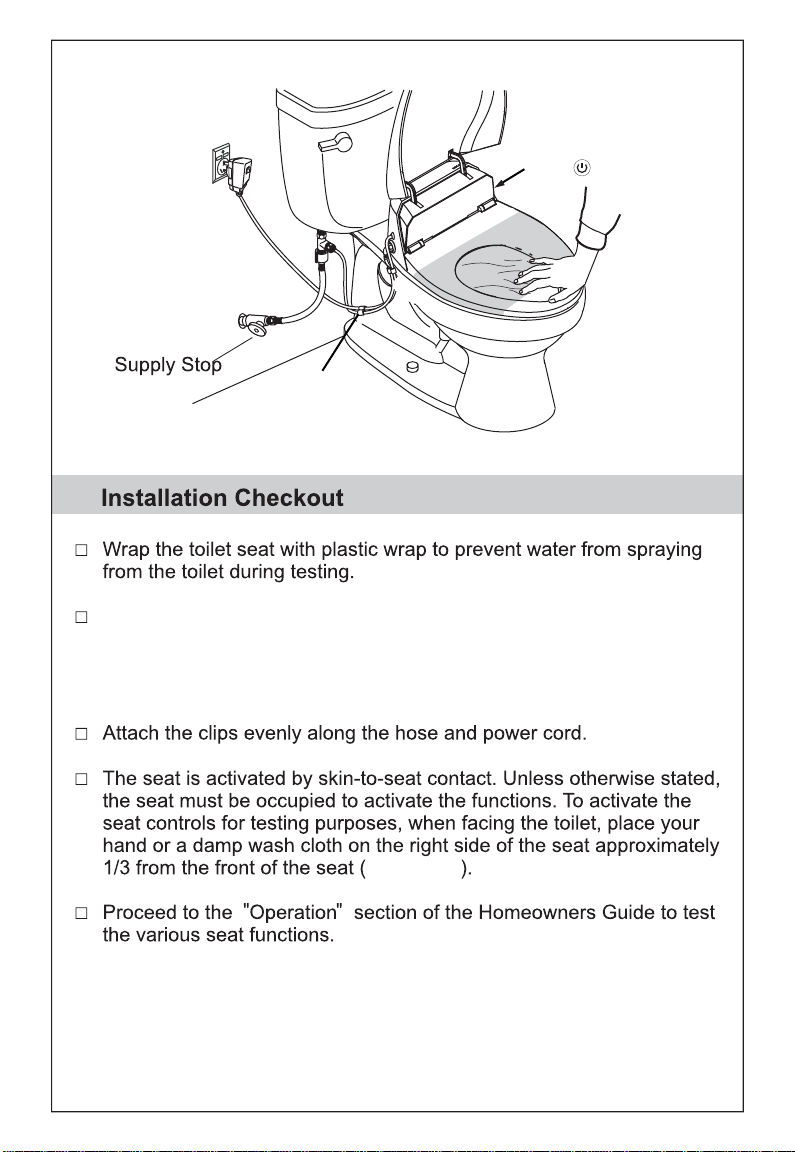

Plug in the power cord and press the power button located at the

right side of the seat while top indicator starts to flash. Then the tank

begins water filling action. The indicator stops flashing to indicate

the water filling action is completed.

senor area

Press “POWER”

icon

1119274-T01-C

Kohler Co.
