Kohler K-22262T User manual

INSTALLATION INSTRUCTIONS

ELONGATED QC SEAT

K-22262T

-1-

2017

Thank you for choosing the Bold Look of Kohler. Kohler

craftsmanship offers you a rare combination of proven

performance and graceful sophistication that will satisfy

you for years to come. The quality and dependability of

your Kohler toilet seat will surpass your highest

expectations. We're very proud of our products here at

Kohler and we know you will be too.

All information in this manual is based upon the latest

product information available at the time of publication. At

Kohler, we constantly strive to improve the quality of our

products. We reserve the right to make changes in

product characteristics, packaging or availability at any

time without notice.

This product complies with JC/T764-2008.

Please take a few minutes to study this manual. Pay

special attention to the Care and Cleaning instructions.

·JC/T764-2008

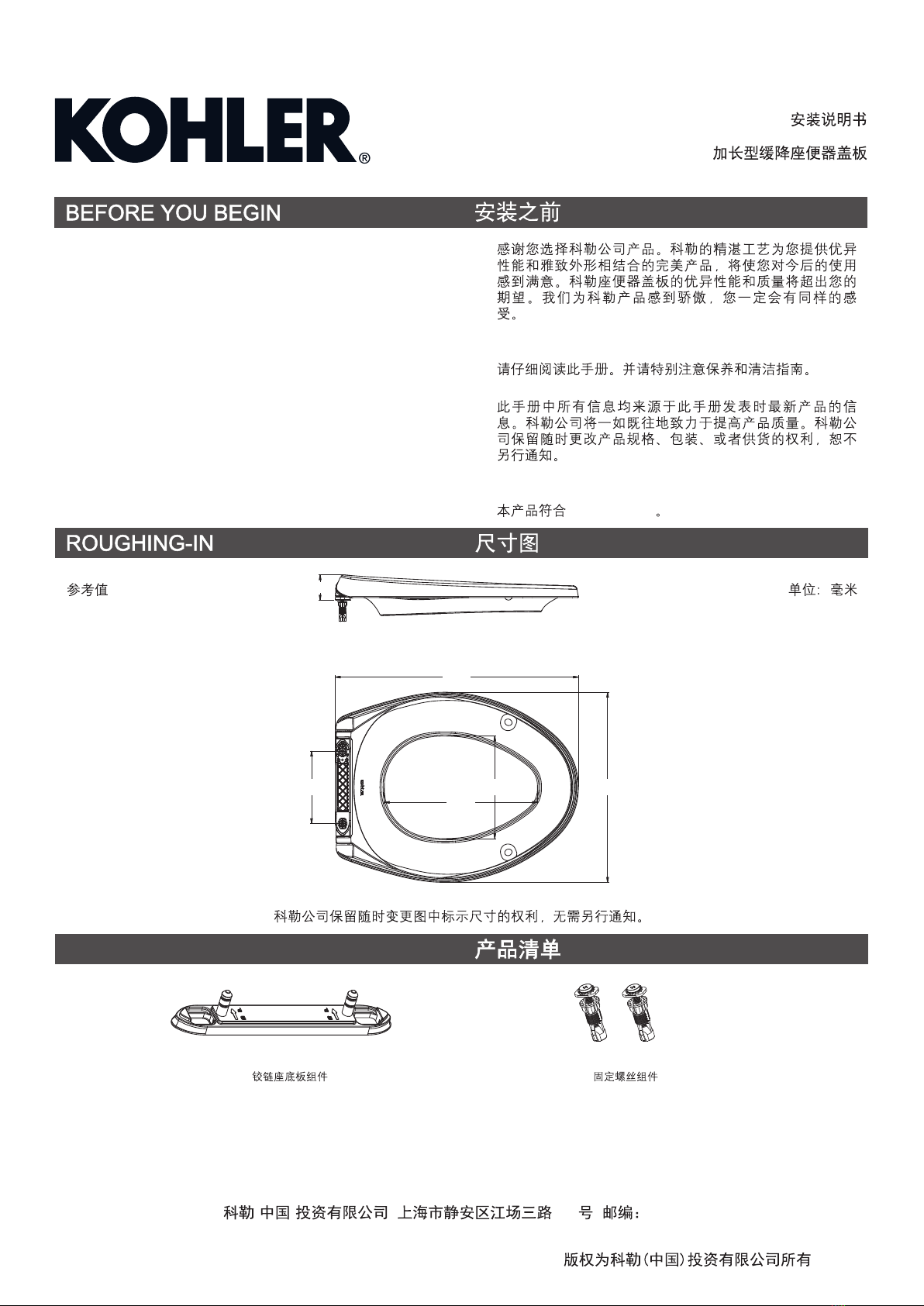

Reference Value UNIT: mm

PRODUCT LISTPRODUCT LIST

Hardware Pack

Hinge Baseboard Assembly

Kohler reserves the right to change marked dimensions without prior notice.

469

140 367198

296

KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD,

JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436

( ) 158 200436

1329035-T01-B

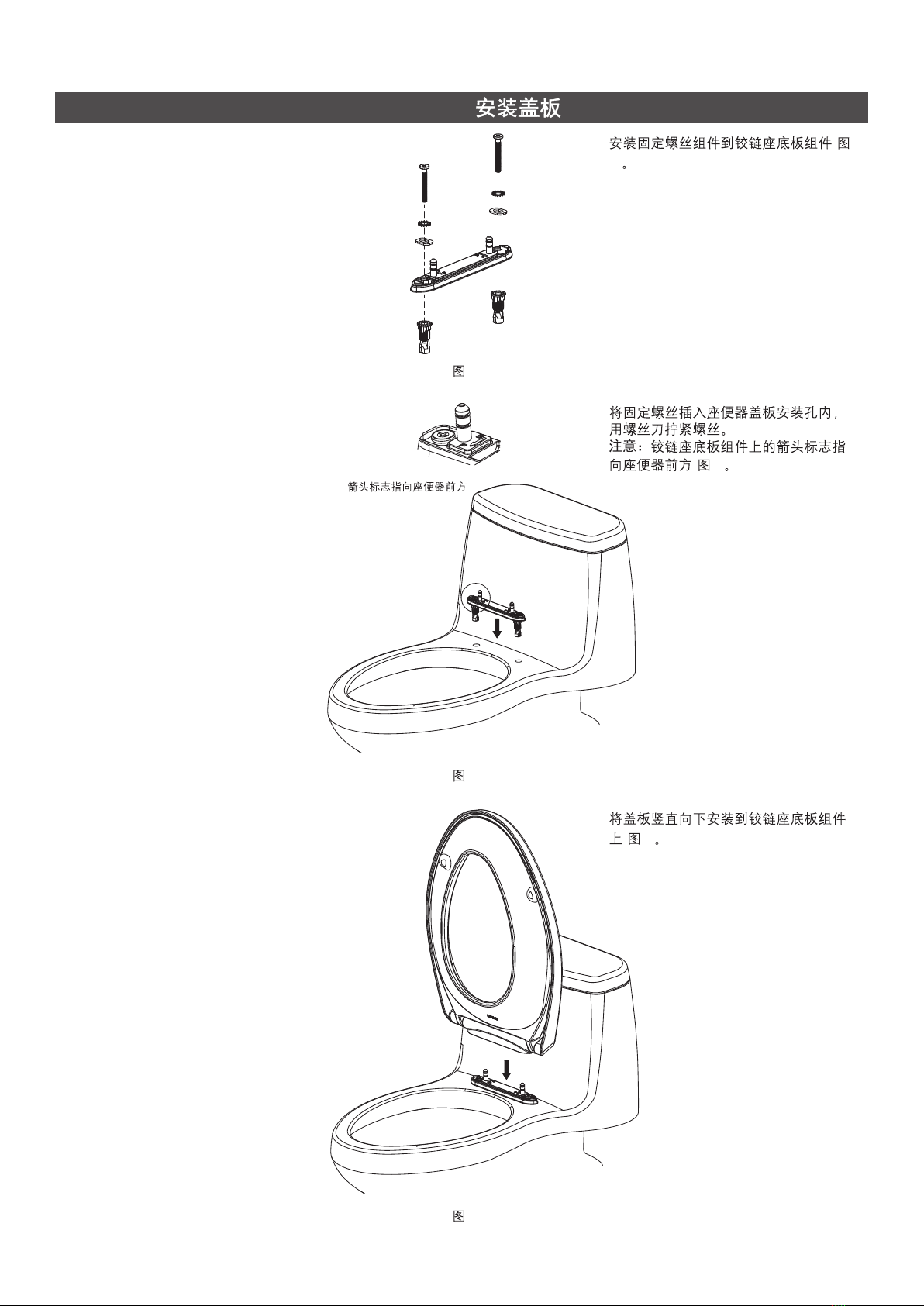

INSTALL SEATINSTALL SEAT

1. Install HARDWARE PACK with HINGE

BASEBOARD ASSEMBLY (Fig.1).

2. Insert screws to seat mounting holes of

toilet, twist screws with screw driver.

the arrow marks of the HINGE

BASEBOARD ASSEMBLY points to the

front of toilet (Fig.2).

Note:

3. Push seat downward to HINGE

BASEBOARD ASSEMBLY (Fig.3).

1. (

(2)

(3)

Fig.1

Fig.2

Fig.3

Arrow marks point to the front of toilet

-2-

1329035-T01-B

-3-

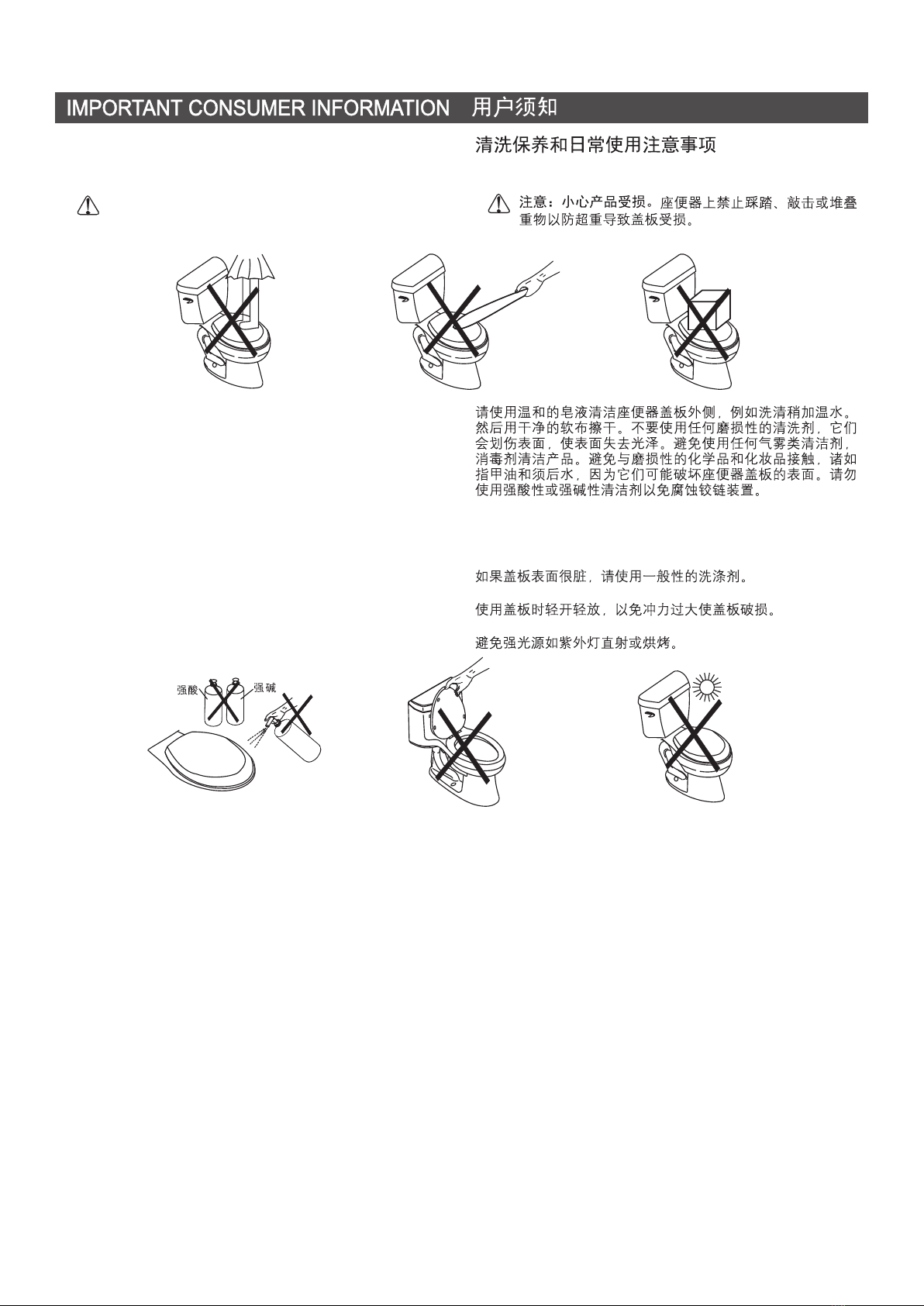

Important Notice for Care, Cleaning and

Daily Use

CAUTION: Risk of product damage. Do not stand,

knock or stack heavy stuffs on the toilet seat. The

weight could damage the toilet seat.

Clean the outside surface of your toilet seat with mild soap,

such as liquid dish soap and warm water. Wipe the entire

surface completely dry with a clean soft cloth. Do not use any

abrasive cleaners, as they will scratch and dull the surface.

Avoid any detergents, disinfectants, or cleaning products in

aerosol cans. Avoid contact with abrasive chemicals and

cosmetics, such as fingernail polish and aftershave, as they

may damage the finish of your toilet seat. Do not use

detergent with strong acidic or strong alkaline property to

prevent possible damage to hinge of seat.

If the surface becomes excessively dirty, please use a

general purpose cleaner.

Take care with seat open and close. Overforce may crush the

seat.

Avoid direct exposure to strong light such as ultraviolet lamp.

Strong Acid

Strong Alkali

1329035-T01-B
