Kohler Escale K-7219 User manual
Installation Guide
Bath Cable Drain
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K–7219
1054247-2-A
Tools and Materials
Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few
minutes to review this manual before you start installation. If you
encounter any installation or performance problems, please don’t
hesitate to contact us. Our phone numbers and website are listed on
the back cover. Thanks again for choosing Kohler Company.
Before You Begin
CAUTION: Risk of product damage. Do not kink or cause
damage to the cable during installation.
IMPORTANT! This product is required for K-11343 drop-in baths
and the K-11344 freestanding bath.
IMPORTANT! The distance from the top of the drain flange to the
top of the finished floor must be 1-1/2″(3.8 cm) for the K-11344
freestanding bath installation.
Observe all local plumbing and building codes.
Turn off the main water supplies.
Refer to the roughing-in dimensions of your bath to properly
install this product.
Carefully inspect the fittings for damage before installing.
If you are installing a new bath, install the drain before installing
the bath.
Kohler Co. reserves the right to make revisions in the design of
drains without notice, as specified in the Price Book.

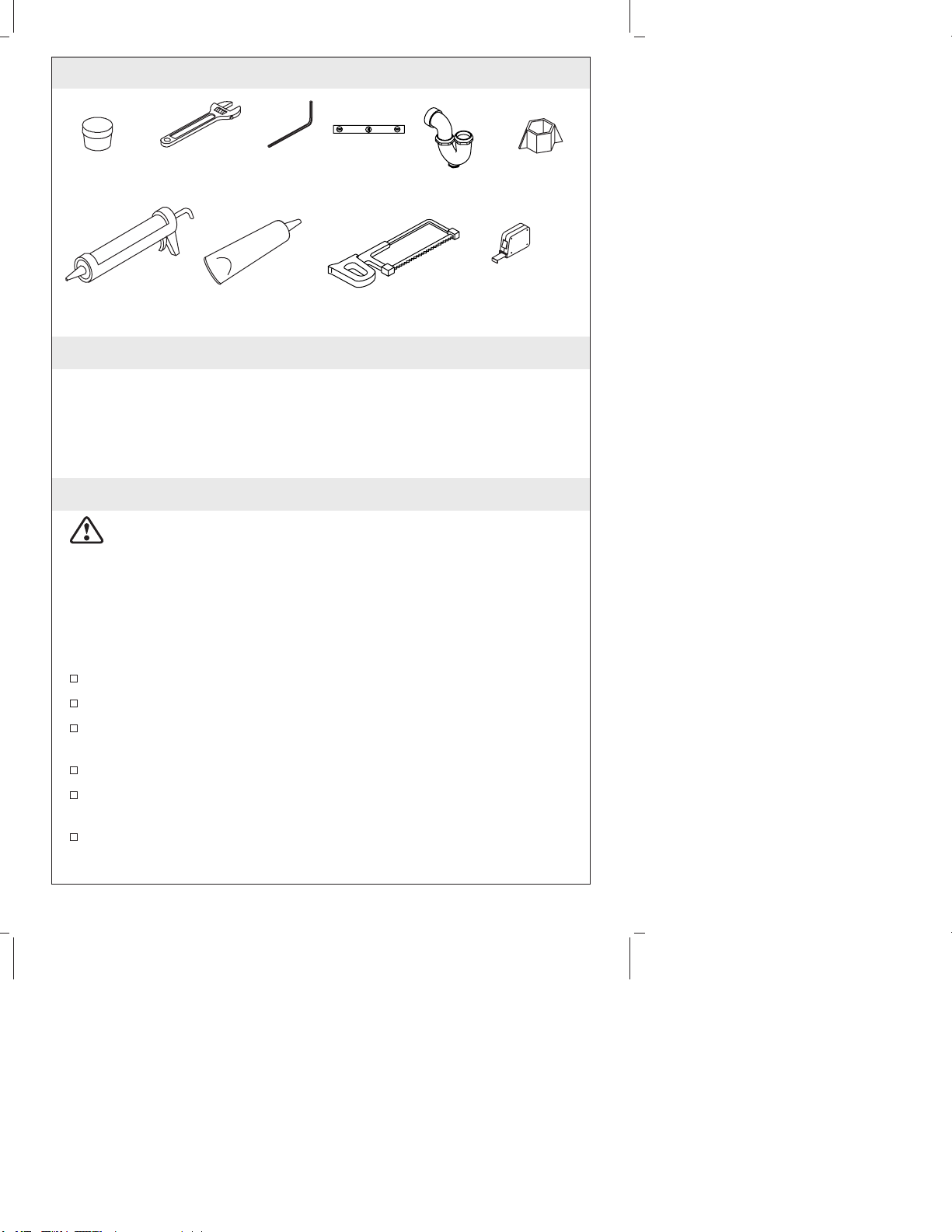

Adjustable
Wrench
Plumbers
Putty Hex Wrench
(supplied) Spanner
(supplied)
Caulk
Gun Tape
Measure
Hacksaw
Level
Silicone
Sealant
P-Trap
1054247-2-A 2 Kohler Co.
1. Assemble the Drain
Disassemble the coupling nuts, compression rings, and
compression seals from the tee.
Slide a coupling nut, compression ring, and compression seal
onto the overflow pipe.
Slide a coupling nut, compression ring, and compression seal
onto the drain pipe.
Slide a coupling nut, compression ring, and compression seal
onto the tailpiece.
Fit the overflow pipe, tailpiece, and drain pipe into the tee.
Hand tighten the coupling nuts to the tee allowing movement for
the overflow body, drain body, and tailpiece. Do not fully tighten
the coupling nuts until instructed to do so.

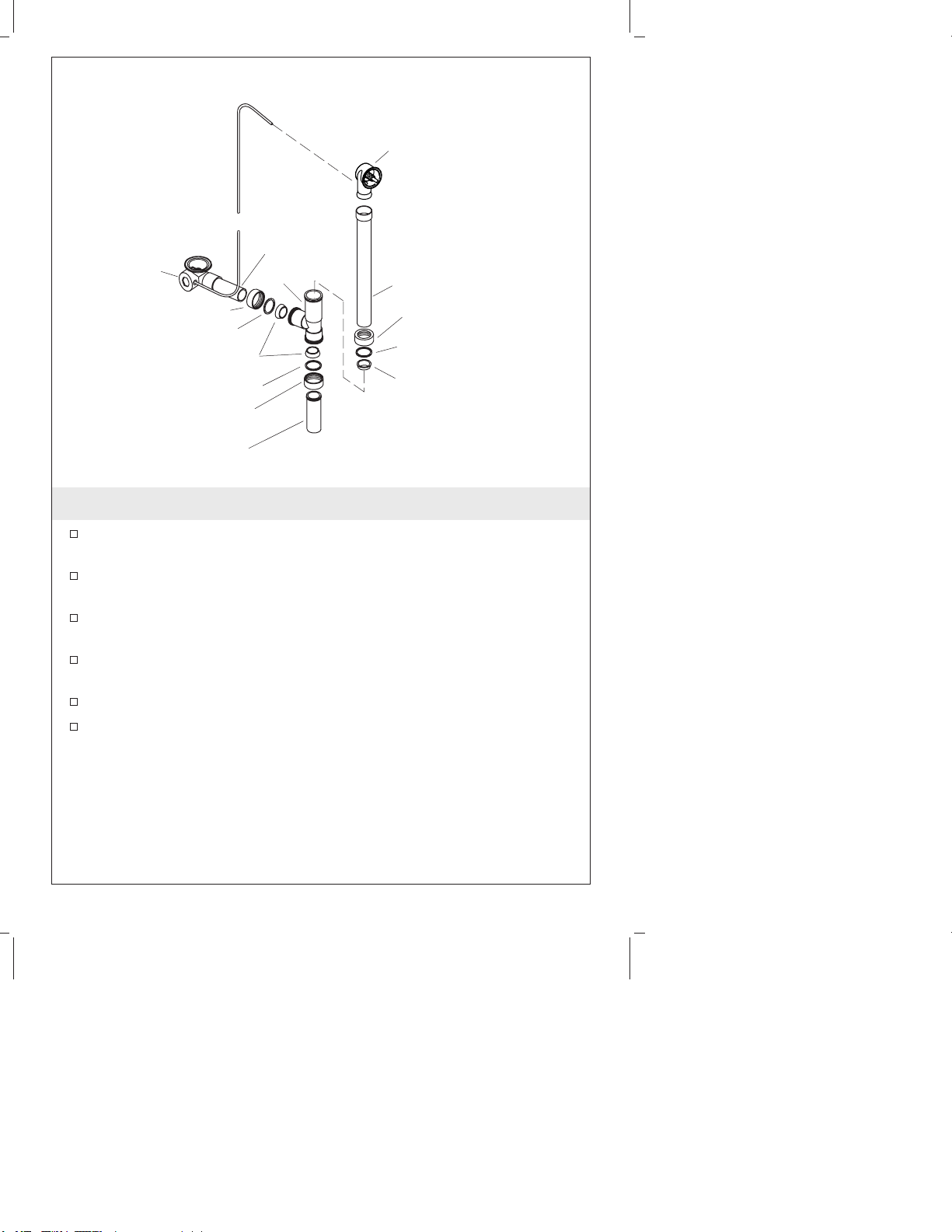

Drain Elbow
Coupling Nut
Compression Ring
Compression Seals
Compression Ring
Coupling Nut
Tee
Coupling Nut
Compression Ring
Compression Seal
Overflow Elbow
Overflow Pipe
Drain Pipe
Tailpiece
Kohler Co. 3 1054247-2-A
2. Prepare the Site
CAUTION: Risk of product damage. Do not kink or cause
damage to the cable during installation.
Mark the drain location on the subfloor. For freestanding bath
installations, use the cut-out template provided with your bath to
assist you. For drop-in bath installations, refer to the roughing-in
dimensions illustrated.
Cut the marked drain location in the subfloor using a hacksaw.
Insert the drain into the P-trap through the cutout in the floor.
Install the finished floor material on the subfloor.
For freestanding bath installations:
Verify the distance from the top of the drain flange to the top of
the floor is 1-1/2” (3.8 cm). Adjust as needed to achieve this
distance.
For drop-in bath installations:
Verify the top of the drain flange is flush against the floor. Adjust
as needed.

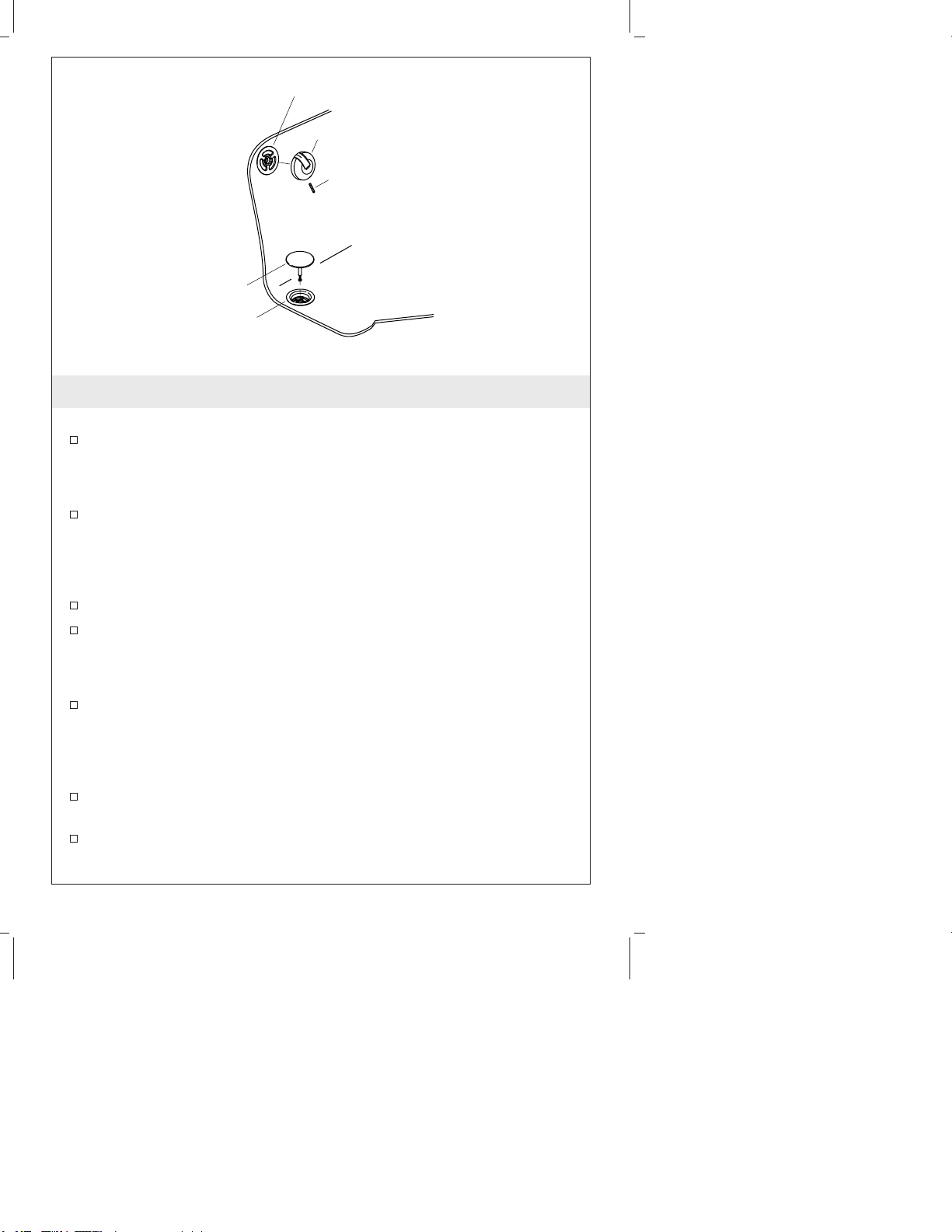

2-1/4" (5.7 cm)
12-1/2" (31.8 cm)
1-5/8" (4.1 cm)
11-1/8"
(28.3 cm)
1-1/2" OD 6-13/16"
(17.3 cm)
1054247-2-A 4 Kohler Co.
Prepare the Site (cont.)
For all installations:
Ensure the drain is on center at the marked locations using a
level. Adjust as needed.
Install the bath shell according to the bath manufacturer’s
instructions. Ensure the bath shell is lined up with the overflow
outlet and drain outlet before securing the bath. Do not install the
bath apron until instructed to do so.
Kohler Co. 5 1054247-2-A
3. Secure the Drain Elbow
CAUTION: Risk of product damage. Do not kink or cause
damage to the cable during installation.
CAUTION: Risk of property damage. Make sure a watertight
seal exists on all bath drain connections.
Apply plumbers putty to the underside of the flange.
Set the flange on top of the drain outlet.
Apply silicone sealant to the underside of the drain gasket, then
place the drain gasket on top of the drain elbow.
Insert the nut through the center of the flange and onto the
threaded cylinder in the drain elbow.
Hand tighten the nut onto the threaded cylinder. Do not wrench
tighten at this time.
Remove any excess putty around the flange.
4. Secure the Overflow Elbow
Align the overflow elbow to the outside of the overflow outlet.
Insert the nut through the recessed side of the backplate.
Insert the nut with backplate onto the threaded cylinder of the
overflow elbow.
Apply
plumbers
putty.
Drain
Gasket
Nut
Flange
Drain
Outlet
Threaded
Cylinder
Drain Elbow
Backplate
Nut
Overflow
Outlet
Overflow
Elbow
Threaded
Cylinder
1054247-2-A 6 Kohler Co.
Secure the Overflow Elbow (cont.)
Turn the nut clockwise until hand-tight to secure the nut with
backplate to the threaded cylinder. Do not wrench tighten at this
time.
Kohler Co. 7 1054247-2-A
5. Complete the Installation
Secure the Connections and Fittings
Wrench tighten all connections and fittings to one quarter turn
past hand-tight.
Install the Trim

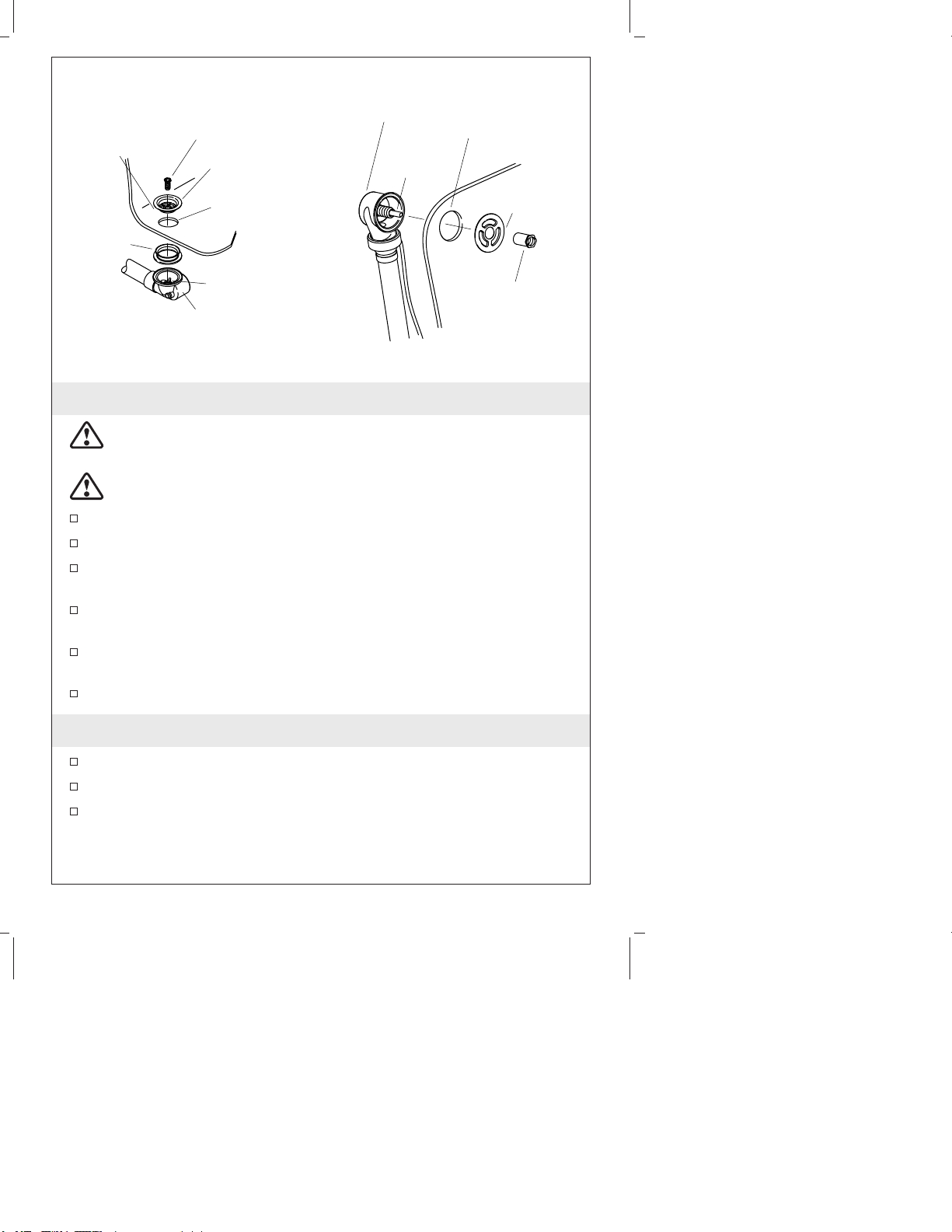

Insert the plug into the drain outlet. Adjust the height of the
plug, if desired.
NOTE: To ensure the setscrew does not inadvertently fall down the
drain outlet, push down on the plug to close the drain hole.
Secure the handle to the overflow outlet with the setscrew.
Turn the handle counterclockwise and clockwise to ensure proper
operation of the plug.
Complete the Freestanding Bath Installation
Install the bath apron, then install the bath faucet to complete the
installation. Refer to the bath and faucet manufacturer’s
installation guide.
Complete the Drop-In Bath Installation
Install the bath faucet according to the bath faucet manufacturer’s
installation guide.
Refer to the bath manufacturer’s installation guide to complete
the finished deck or wall around the bath.
Overflow Outlet
Handle
Setscrew
Plug
Drain
Outlet
1054247-2-A 8 Kohler Co.
Guide d’installation
Drain à câble de baignoire
Outils et matériels
Merci d’avoir choisi la compagnie Kohler
Nous apprécions votre engagement envers la qualité Kohler. Veuillez
prendre s’il vous plaît quelques minutes pour lire ce manuel avant de
commencer l’installation. Ne pas hésiter à nous contacter en cas de
problème d’installation ou de performance. Nos numéros de téléphone
et notre adresse du site internet sont au verso. Merci encore d’avoir
choisi la compagnie Kohler.
Avant de commencer
ATTENTION : Risque d’endommagement du produit. Ne pas
pincer ou causer d’endommagement au câble durant
l’installation.
IMPORTANT ! Ce produit est requis pour des baignoires encastrées
K-11343 et la baignoire autoportante K-11344.
IMPORTANT ! La distance de dessus de la bride du drain et celle
du sol fini doit être de 1-1/2″(3,8 cm) pour une installation de
baignoire autoportante K-11344.
Respecter tous les codes de plomberie et de bâtiment locaux.
Fermer les alimentations d’eau principales.

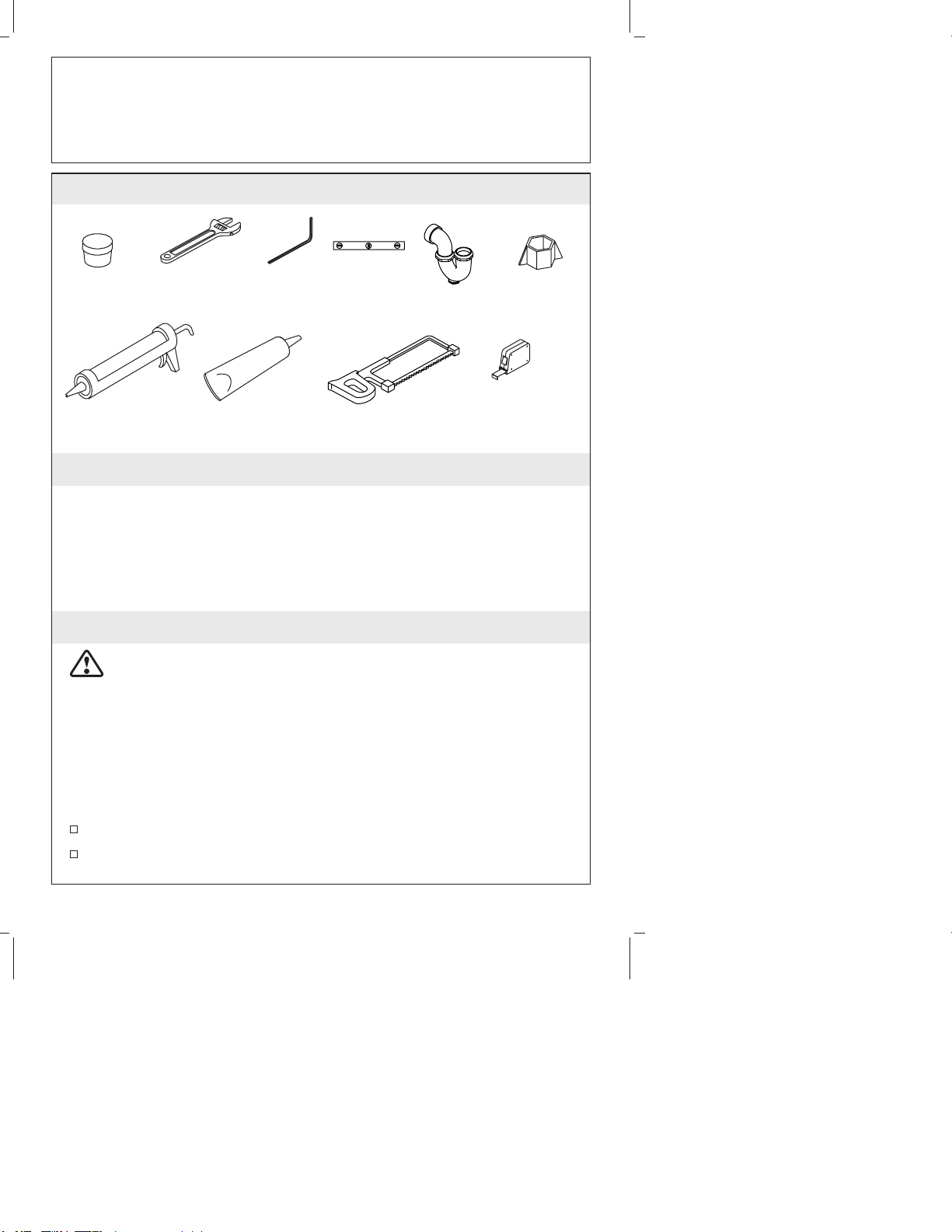

Clé à
molette
Mastic de
plombier Clé
hexagonale
(fournie)
Tourne-
écrou
(fourni)
Pistolet à
mastic Mètre
ruban
Scie à métaux
Niveau
à bulle
Mastic à la
silicone
Siphon
en P
Kohler Co. Français-1 1054247-2-A
Avant de commencer (cont.)
Se référer aux dimensions de raccordement de votre baignoire
pour installer correctement ce produit.
Examiner soigneusement les raccords pour en déceler tout
dommage avant l’installation.
Si une nouvelle baignoire est installée, installer le drain avant
d’installer la baignoire.
Kohler Co. se réserve le droit d’apporter toutes modifications au
design des drains et ceci sans préavis, comme spécifié dans le
catalogue des prix.
1054247-2-A Français-2 Kohler Co.
