KitchenAid KBFS20ETBL01 Troubleshooting guide

CABINET PARTS

For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01

(White) (Black) (Stainless Steel)

5−08 Litho In U.S.A. (CJJ) Part No. W10185725 Rev. B

REFRIGERATOR

CABINET PARTS

2W10185725

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

67006616 Tech Sheet

W10137643

Owners Manual

W10185726

Tag, Energy

2 M0114003 Clip

3 67003405 Plate, Pivot

4 B5759649 Gasket

5 Roller Foot

Assembly

W10130460

W10130459

6 12627302 Clip, Grille

7 A3076901 Plug, Bottom

8 67006611 Bolt, Adjustable

9 67006521 Screw

10 Cover, Right Hinge

12684202W

White

12684202B

Black

11 67006380 Screw

12566604ED

Hinge, Top Right

13 Cover, Left Hinge

12684201W

White

12684201B

Black

14 67006303 Screw

15 Hinge, Center (2)

67006379 White (RT)

67006277 White (LT)

67006443 Black (RT)

67006442 Black (LT)

16 67004092 Block, Filter

17 Cover, Corner

67003484 White

67003485 Black

12566605ED

Hinge, Top Left

19 Cabinet (Not A

Serviceable Part

20 67006564 Screw (8)

21 12579702 Shim, Hinge

22 Grille Assembly

(Includes Clips)

W10131133

White

W10131134

Black

25 67006425 Screw (10)

26 67003331 Cover, Water Line

27 67004098 Cover, Water Valve

28 67006669 Screw

12575101ED

Cover, Unit

W10137519

Elbow, Fill Tube

32 67001067 Clip, Drain Tube

33 67003796 Insulation, Sound

W10141622

Foot Brake

35 M0104106 Clip, Tube

W10164397

Tube, Drain

For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01

(White) (Black) (Stainless Steel)

FREEZER LINER PARTS

W10185725

For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01

(White) (Black) (Stainless Steel)

FREEZER LINER PARTS

4W10185725

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam (2)

3 12002497 Gear (2)

(Includes RT & LT)

4 67003905 Cover, Light

5 67004017 Shaft

Y12570701

Socket, Light

8 67006473 Screw

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw (7)

13 Bracket, Door

W10119064

Left

W10119295

Right

14 67003906 Housing, Lighting

W10167028

Clip, Evap Motor

16 67005653 Switch, Light

18 Bracket, Basket

67004728 Left

67004729 Right

W10180420

Slide, Drawer (2)

20 67002492 Gasket, Bottom

21 Bracket, Slide

67004971 Left

67004972 Right

W10175909

Grille, Fan Shroud

W10167023

Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

W10121318

Grommet

26 67003636 Motor, Evaporator

27 D7753903 Funnel, Drain

(Incl # 28 & 29)

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw

33 67006530 Screw

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01

(White) (Black) (Stainless Steel)

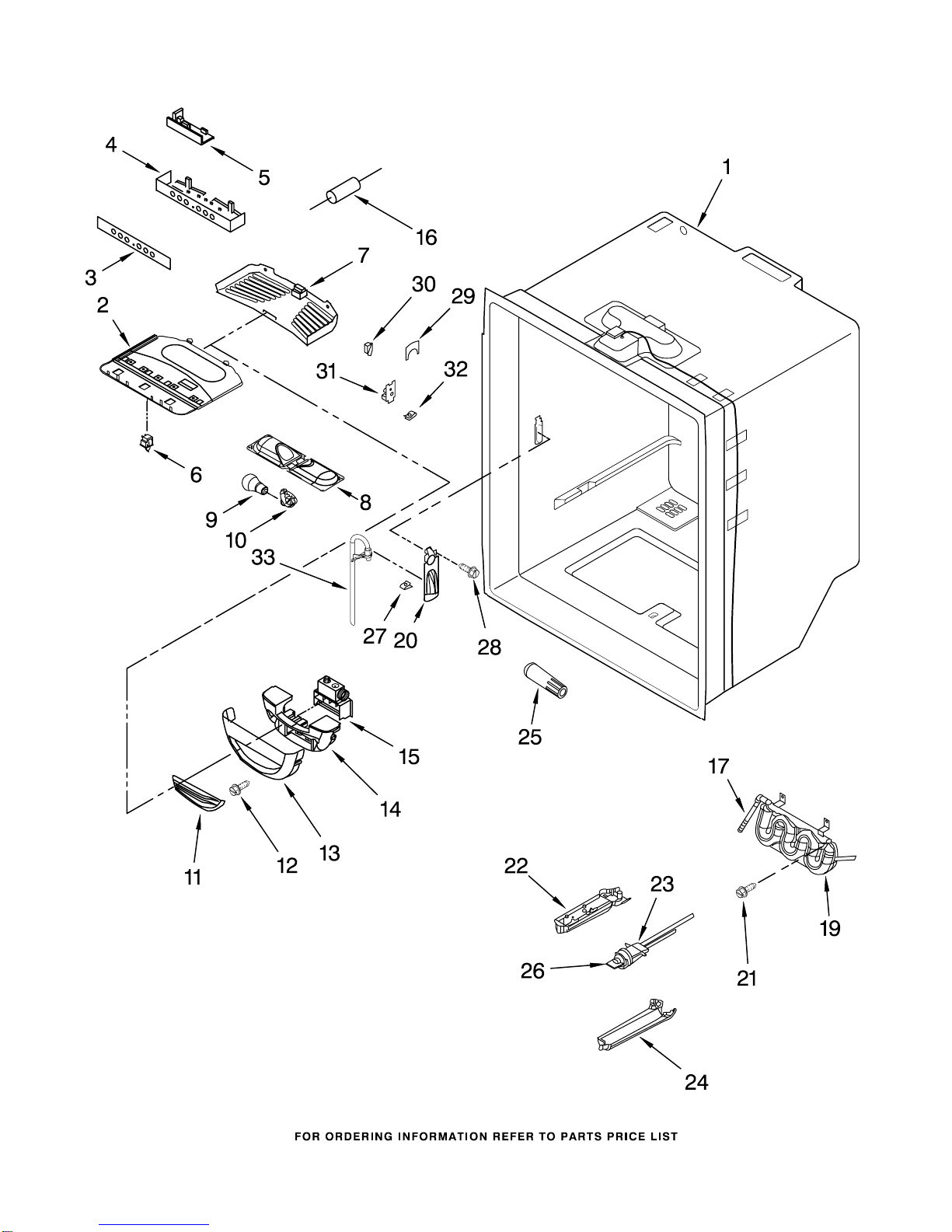

REFRIGERATOR LINER PARTS

W10185725

For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01

(White) (Black) (Stainless Steel)

REFRIGERATOR LINER PARTS

6W10185725

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67004078 Bracket, Control

and Lights

3 67005949 Overlay

W10185585

Housing,

Electronic Control

5 67005397 Electronic Control

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light

Y12570701

Socket, Light

11 67003900 Insert,

Damper Cover

12 67006602 Screw (2)

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 12002355 Thermister

17 61006182 Union, Tube

W10153959

Tank, Water

W10158503

Dispenser

21 67006415 Screw

22 67001668 Plate, Filter

23 67006524 Head, Water

Filter Assembly

24 12568001 Cover, Filter

W10181835

Filter, Water

26 12664501 Plug, Filter

Bypass

27 B8390302 Clip, Waterline

28 67006400 Screw

29 67005674 Facade, Dispenser

30 12575501 Switch, Limit

31 67002742 Plate, Switch

32 67002816 Clip, Water Tube

33 67003728 Guide, Water

Line

Following Parts Not Illustrated

67005417 Harness, Controls

(Refrigerator)

(Includes # 16)

For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01

(White) (Black) (Stainless Steel)

REFRIGERATOR DOOR PARTS

W10185725

For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01

(White) (Black) (Stainless Steel)

REFRIGERATOR DOOR PARTS

8W10185725

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Door, Left

13024006W

White

13024006B

Black

W10185727

Stainless Steel

2 Bushing, Door

(Bottom Left)

67002732 White

67002721 Black

3 67003819 Compartment, Door

(Includes Item 4)

4 67001279 Tray, Dairy

5 67005672 Bucket, Shelf (2)

(Medium)

6 67006786 Screw

7 67002935 Screw

8 Gasket, Door

W10137006

White

12723206B

Black

9 Door Handle

2319727W White

2319727B Black

2319727S Stainless

10 67006113 Mount, Handle

12 67005673 Bucket, Shelf (2)

(Gallon)

14 Mullion, Door

67003434 White

67004131 Black

15 67005626 Caddy, Can

16 Closure, Door

67003638 White

67003639 Black

17 Stop, Door

12968202W

White

67007011 Black

18 Plug, Vent

10712401 White

67004838 Black

19 Bushing, Door

(Upper Left)

67002722 White

12395501B

Black

20 Bushing, Door

(Upper Right)

67004977 White

67004978 Black

21 67006287 Screw

22 Bushing, Door

(Lower Right)

67002732 White

67002731 Black

23 Door, Right

13024005W

White

13024005B

Black

W10185728

Stainless Steel

25 Nameplate

W10046670

White

W10046640

Black

W10046610

Grey

For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01

(White) (Black) (Stainless Steel)

UNIT PARTS

W10185725

For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01

(White) (Black) (Stainless Steel)

UNIT PARTS

10 W10185725

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw (2)

W10162928

Blade, Fan

3 67005889 Basepan

4 67006425 Screw (2)

5 67004954 Screw

6 67005565 Compressor

W10119857

Harness, Evap

Heater

8 67007175 Drain Pan

9 61004743 Grommet (3)

10 67002493 Evaporator Heater

11 67005562 Capacitor

(See Item # 12)

12 67005561 Overload/Relay

(Capacitor Incl.)

13 61003210 Gasket

W10165425

Thermostat

W10137529

Grommet (4)

W10158508

Shroud, Condenser

17 67007052 Clip, Capacitor

18 67006131 Condenser

19 67004700 Tube, Discharge

20 67002490 Tray, Drip

21 10623002 Clip, Evaporator

22 12002041 Evaporator

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060202 Harness, Unit

(Includes Cord)

27 B2150504 Drier (Service)

28 10547003 Clip, Drier

29 67004953 Bracket, Condenser

W10169124

Grommet

31 67006432 Screw (3)

32 67006573 Screw

33 67005421 Cover, HV

W10168780

Board, HV

35 67005719 Spacer, HV

36 67005718 Box, HV

37 67006550 Screw

38 12972902 Harness, HV

39 67006615 Screw (3)

40 67006737 Screw

41 67005680 Grommet (2)

42 67005491 Block, Condenser

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)

For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01

(White) (Black) (Stainless Steel)
