KitchenAid KTRC22KMBL01 User manual

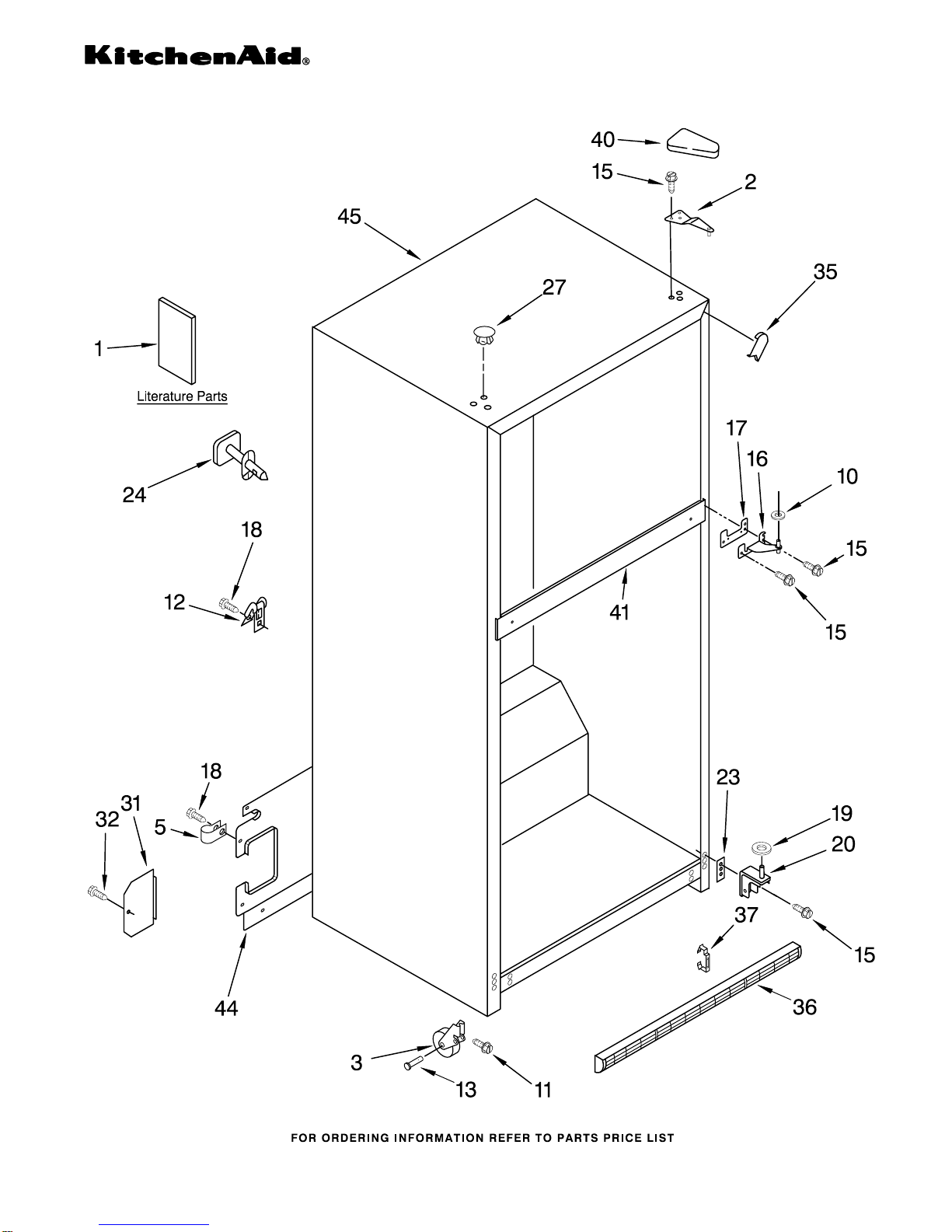

CABINET PARTS

For Models: KTRC22KMWH01, KTRC22KMBT01, KTRC22KMBL01, KTRC22KMSS01

(White) (Biscuit) (Black) (Stainless Steel)

12−03 Litho In U.S.A. (ebk) Part No. 8198895

REFRIGERATOR

CABINET PARTS

For Models: KTRC22KMWH01, KTRC22KMBT01, KTRC22KMBL01, KTRC22KMSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198895

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT2225762

Service &

Wiring Sheet

LIT2301741

Energy Label

LIT2225409

Use & Care Guide

LIT2225415

Customer

Instructions

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

5 489385 Clamp, Tube

(Water Supply Line)

10 489341 Washer

11 3400504 Screw

12 549193 Clamp, Cord

13 2179826 Rivet

15 489497 Screw

16 2183972 Hinge, Center

17 2183854 Shim, Hinge

Center

18 489464 Screw

19 487576 Washer

20 2189194 Hinge Butt

23 2172743 Shim, Bottom Hinge

24 Fitting, Water Tube

(NOT SERVICED)

27 Hole Plug (6)

2201012 White

2200924 Biscuit

2183998 Black

31 2166251 Cover, Valve

32 489442 Screw

35 Corner Filler (2)

2201014 White

2200926 Biscuit

2201017 Black

36 Grille

2254313 White

2254316 Biscuit

2254315 Black

37 2189356 Clip, Grille

40 Cover, Hinge

2213360 White

2213364 Biscuit

2213363 Black

41 Rail, Center

(NOT SERVICED)

44 2253196 Cover, Unit

45 Cabinet (Not a

Serviceable Part)

LINER PARTS

For Models: KTRC22KMWH01, KTRC22KMBT01, KTRC22KMBL01, KTRC22KMSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198895

LINER PARTS

For Models: KTRC22KMWH01, KTRC22KMBT01, KTRC22KMBL01, KTRC22KMSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198895

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254360 Gasket, Evaporator

Cover (2)

4 2213473 Adaptive Defrost

Control

5 Thermostat Tube

Barrier

549512 Refrigerator

Control

2212485 Freezer Control

6 2179834 Seal, Air

Diffuser

7 2187352 Wire Assy.

Control Box

8 2162085 Socket, Light (2)

9 2212413 Damper, Air (Slide)

10 2219689 Fan Motor

11 2163777 Fan Blade

12 2213193 Control Box

13 2204984 Thermostat Assembly

16 2254262 Cover, Evaporator

17 2255743 Light Bulb (2)

18 2200831 Weight, Thermal

19 1118894 Rocker Arm

Switch

20 2187609 Wire Assembly,

Freezer Compartment

21 2176281 Cover, Air

Diffuser

22 2205094 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

25 2225473 Retainer,

Freezer Floor

26 2204690 Air Diffuser, Top

27 2205003 Cover, Hole

28 2184574 Gear Wheel,

Thermostat

29 2218696 Bracket,

Fan Motor

30 2214979 Bracket

Evap. Fan, Front

31 2204639 Shield, Heat

32 2204951 Knob, Damper

33 489478 Screw

35 487996 Cap

36 2205079 Seal, Rear

Thermostat

37 2204991 Control, Freezer

38 2204992 Gear Wheel,

Freezer Control

39 2201153 Housing Base

41 2187601 Wiring Harness,

Freezer Light

42 2193491 Electrical Shield,

Freezer Light

43 2260802 Light Bulb

44 2214976 Bracket

Evap. Fan, Rear

45 941839 Hole Plug

46 2221677 Defrost, BI−Metal

47 940014 Hole Plug,

Control Box

48 2166284 Gasket, Rear

49 2225476 Pullout, Freezer

Floor

50 2198768 Rear Fence, Pull−

Out Freezer Floor

58 2210509 Valve

60 98129 Screw

SHELF PARTS

For Models: KTRC22KMWH01, KTRC22KMBT01, KTRC22KMBL01, KTRC22KMSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198895

SHELF PARTS

For Models: KTRC22KMWH01, KTRC22KMBT01, KTRC22KMBL01, KTRC22KMSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198895

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2202821 Shelf, Ladder

Center

4 2216624 Egg Bin

5 489478 Screw

6 2174014 Frame Assembly,

Cantilever

8 2188212 Roller & Tread

Assembly

9 2210583 Crisper Cover

(Includes Items

8,10,13,18,21,23

32 & 36)

10 2174478 Eyelet, Roller

11 2210571 Glass, Crisper

Cover

13 2179213 Gasket, Crisper

Cover (Front) (2)

15 2163832 Crisper, Support

16 2174012 Shelf Assembly,

Spillguard (3)

(Includes Items

8 & 30)

17 2184667 Shelf, Freezer

18 489211 Screw

19 2188816 Pan, Crisper

(Includes Items

8,10,27 & 29)

20 2188818 Pan, Meat

(Includes Items

8,10 & 29)

21 2179214 Gasket, Crisper

Cover (Side) (4)

23 2179216 Gasket, Crisper

Cover (Rear) (2)

24 2163762 Cup, Shelf Mtg.

27 Cap, Crisper

2174258 Left Side

2174259 Right Side

29 489261 Screw

30 489439 Screw

31 2212770 Shelf, Ice Tray

32 2174257 Slide, Humidity

35 841180 Ice Tray (2)

36 2174253 Button, Humidity

Control

39 2174396 Gasket, Front

45 2190504 Shelf Assembly,

Spillguard

47 2179404K Wine & Egg Rack

REFRIGERATOR DOOR PARTS

For Models: KTRC22KMWH01, KTRC22KMBT01, KTRC22KMBL01, KTRC22KMSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198895

REFRIGERATOR DOOR PARTS

For Models: KTRC22KMWH01, KTRC22KMBT01, KTRC22KMBL01, KTRC22KMSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198895

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #6 & #8)

2205214 White

2205215 Biscuit

2205217 Black

2212418 Stainless Steel

4 2189202 Bracket, Door

Stop

5 489276 Screw

6 2183003 Thimble

7 Hole Plug

2212648 White

2212649 Biscuit

2212651 Black

8 Door Gasket,

Magnetic

2202875 Mist Beige

2202882 Black

9 Endcap

2213333 White

2213334 Biscuit

2221628 Black

20 2171064 Bin, Door Shelf (2)

21 2195948 Shelf, Trim

22 2218122 Door Compartment

24 Hole Plug, Handle

2204837 White

2204838 Biscuit

2204840 Black

25 2165792 Butter Dish

28 2159124 Gasket, Door

Compartment

29 2171062 Bin, Door Shelf (1)

30 2156006 Plug, Trim

31 2193409 Beverage Holder

UNIT PARTS

For Models: KTRC22KMWH01, KTRC22KMBT01, KTRC22KMBL01, KTRC22KMSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198895

UNIT PARTS

For Models: KTRC22KMWH01, KTRC22KMBT01, KTRC22KMBL01, KTRC22KMSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198895

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2225596 Plate, Unit

Mounting

3 2214960 Condenser

4 2166124 Heater, Defrost

5 2254249 Evaporator Assy.

6 489494 Screw

7 2254295 Drain Pan

8 2176301 Bracket, Heater

10 2163780 Extension, Air

Baffle

11 2255113 Strap

12 4387731 Cover

(Service Only)

13 4390624 Overload

(Service Only)

14 Grommet (4)

1100826 Production

4387558 Service

16 489373 Screw

17 2150304 Roller (2)

18 2221797 Rivet

19 2182338 Clip, Heater

20 2225929 Start−Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

21 3400518 Screw

22 2201185 Support

23 531933 Grommet

24 2183454 Relay

28 2218994 Compressor

(Includes Items

12,13,14,24

29 & 32)

29 Drier

2199167 Production

4387019 Service

30 2155774 Clamp

32 Capacitor

2169373 Production

1118576 Service

37 8281197 Screw

39 2198921 Air Baffle

40 2188729 Motor, Condenser

41 2301979 Plate

42 2187382 Wire Assembly

Unit

43 2225834 Fan Blade

46 2205384 Tube, Discharge

47 2225237 Tube, Suction

48 2154109 Tube, Process

56 488500 Screw

58 2225517 Evaporator Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.0 Ozs.

(R134A)
