KitchenAid KSCS25FSBL00 User manual

CABINET PARTS

For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00

(White) (Biscuit) (Black) (Monochromatic Stainless)

05−06 Printed In U.S.A. (kdr) Part No. 8214933

REFRIGERATOR

CABINET PARTS

For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00

(White) (Biscuit) (Black) (Monochromatic Stainless)

8214933

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2318583 Use & Care Guide

2223419 Service & Wiring

Sheet

2223996 Installation

Instructions

2318828 Energy Guide

2220407 Modular Icemaker

Service Sheet

2 Front Roller Asm

2306950 Left Side

2306951 Right Side

3 2223263 Strap, Roller

4 2306949 Roller, Rear (2)

5 2223388 Clip, Retainer (4)

6 2155013 Clip, Grille

7 489478 Screw

8 2223545 Shim

9 Hinge Top, RC

2307008W White

2307008T Biscuit

2307008B Black

2307008AP

Apollo Gray

10 3400113 Screw

11 3400243 Screw

12 2223520 Hinge Assembly,

Bottom−RC

13 Filler, Wrapper

2223893W White

2223893T Biscuit

2223893B Black

2223893AP

Apollo Gray

14 Grille

2322206W White

2322206T Biscuit

2322206B Black

2322206AP

Apollo Gray

15 3400108 Screw

16 Hinge, Top FC

2307007W White

2307007T Biscuit

2307007B Black

2307007AP

Apollo Gray

17 489464 Screw

18 940139 Drain Fitting

19 2199954 Tube, Extension

20 1108439 Clip, Drain Tube

21 2223409 Cover, Unit

22 2223387 Pin, Roller (4)

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2223460 Hinge Assembly,

Bottom−FC

26 Button, Water

Filter

2260503W White

2260503T Biscuit

2260503B Black

2260503AP

Apollo Gray

27 2260526 Housing, Water

Filter

28 4396841 Water Filter

30 Cap, Water

Filter

2260518W White

2260518T Biscuit

2260518B Black

2260518AP

Apollo Gray

31 Cabinet (Not A

Serviceable Part)

35 3400858 Screw

36 2224020 Tube, Filter

Outlet

37 2305536 Tube, Filter

Inlet

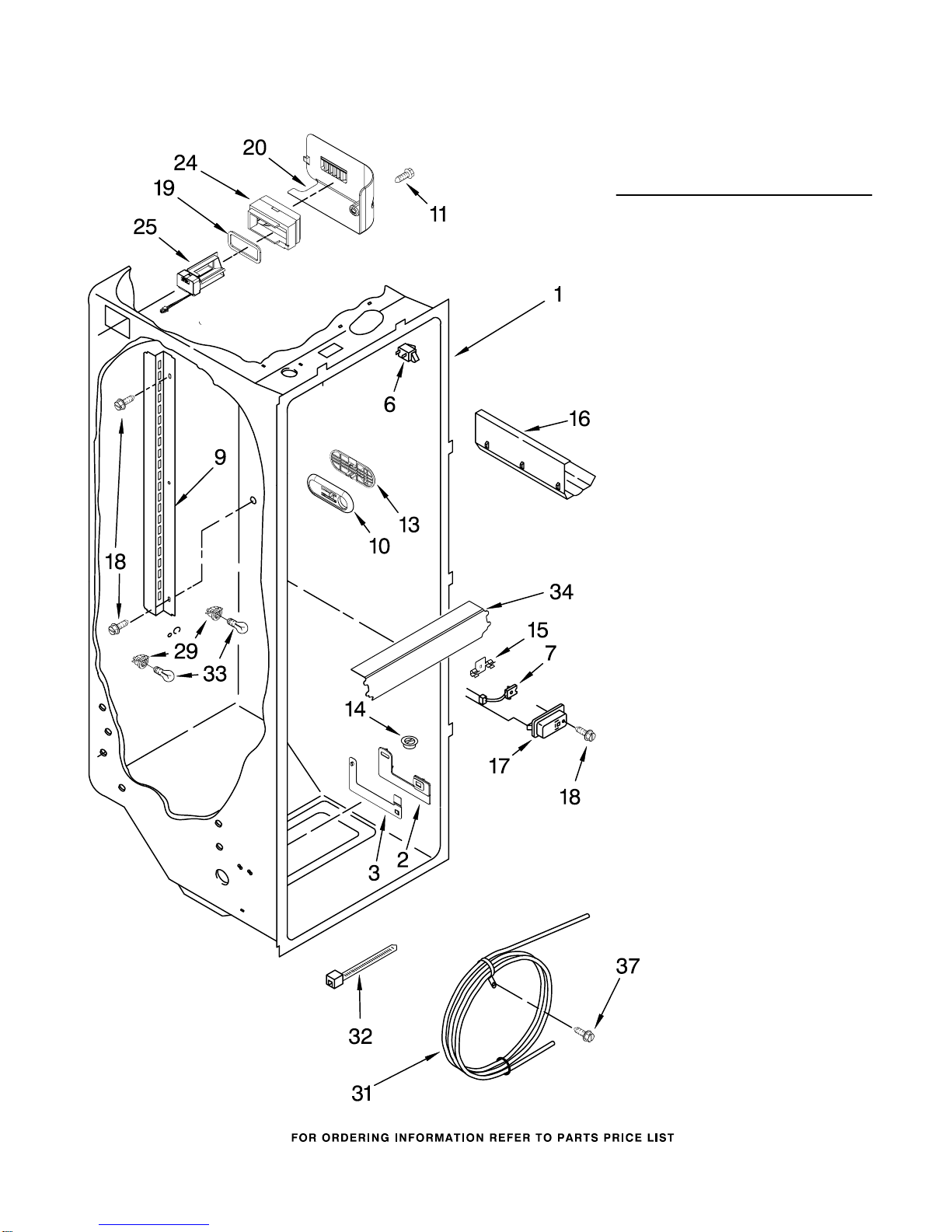

REFRIGERATOR LINER PARTS

For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00

(White) (Biscuit) (Black) (Monochromatic Stainless)

8214933

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2224121 Escutcheon, Meat

Pan Control

3 2224123 Slide, Meat

Pan Control

6 1118894 Switch, Rocker

Arm

7 2188820 Thermistor

9 2223456 Ladder, Shelf (2)

10 2301234 Housing, Door

Control

11 489084 Screw

13 2301235 Slide, Door

Control

14 2171846 Release Valve

15 2209204 Clip, Thermistor

16 2179404K Rack, Wine & Egg

17 1116793 Cover, Thermistor

18 489478 Screw

19 2304597 Gasket,

Air Baffle

20 2223403 Cover,

Air Baffle

24 2224076 Air Diffuser

Assembly

25 2220377 Air Baffle

29 2162085 Socket

31 2223876 Reservoir

32 2205813 Strap

33 2255743 Light Bulb

34 2223663 Light Lens

37 488280 Screw

REFRIGERATOR SHELF PARTS

For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00

(White) (Biscuit) (Black) (Monochromatic Stainless)

8214933

Illus. Part

No. No. DESCRIPTION

1 2224061 Shelf Assembly,

Cantilever (2)

2 2301025 Button, Humidity

3 2301026 Slide, Humidity

4 2301117 Gasket, Side (2)

5 2203027 Cover, Meat Pan

(Includes Items

13, 14, 15 & 20)

6 2301023 Snack Pan

(Includes 30 & 31)

7 Glide Assembly,

Crisper Pan

2301548 Right Side

2301549 Left Side

8 2301001 Window,

Crisper Pan

9 2301567 Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14 & 19)

10 2301027 Glass, Cover

11 2301116 Gasket (Front)

12 2301115 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2301031 Crisper Pan

(Includes 8, 13

14, 19 & 31)

17 2223790 Meat Pan

(Includes 13,

14, 19 & 22)

18 Glide Assembly,

Snack Pan

2301550 Right Side

2301551 Left Side

19 489261 Screw

20 2223487 Deflector

21 Support Assembly

2301569 Right Side

2301570 Left Side

22 2203031 Handle

25 2196485 Stud Assembly

26 2301566 Shelf, Snack Pan

27 3400894 Screw

28 2196483 Stud Assembly

29 8281158 Screw

30 2301006 Window, Snack Pan

31 Cap, Snack Pan

2301016 Right Side

2301017 Left Side

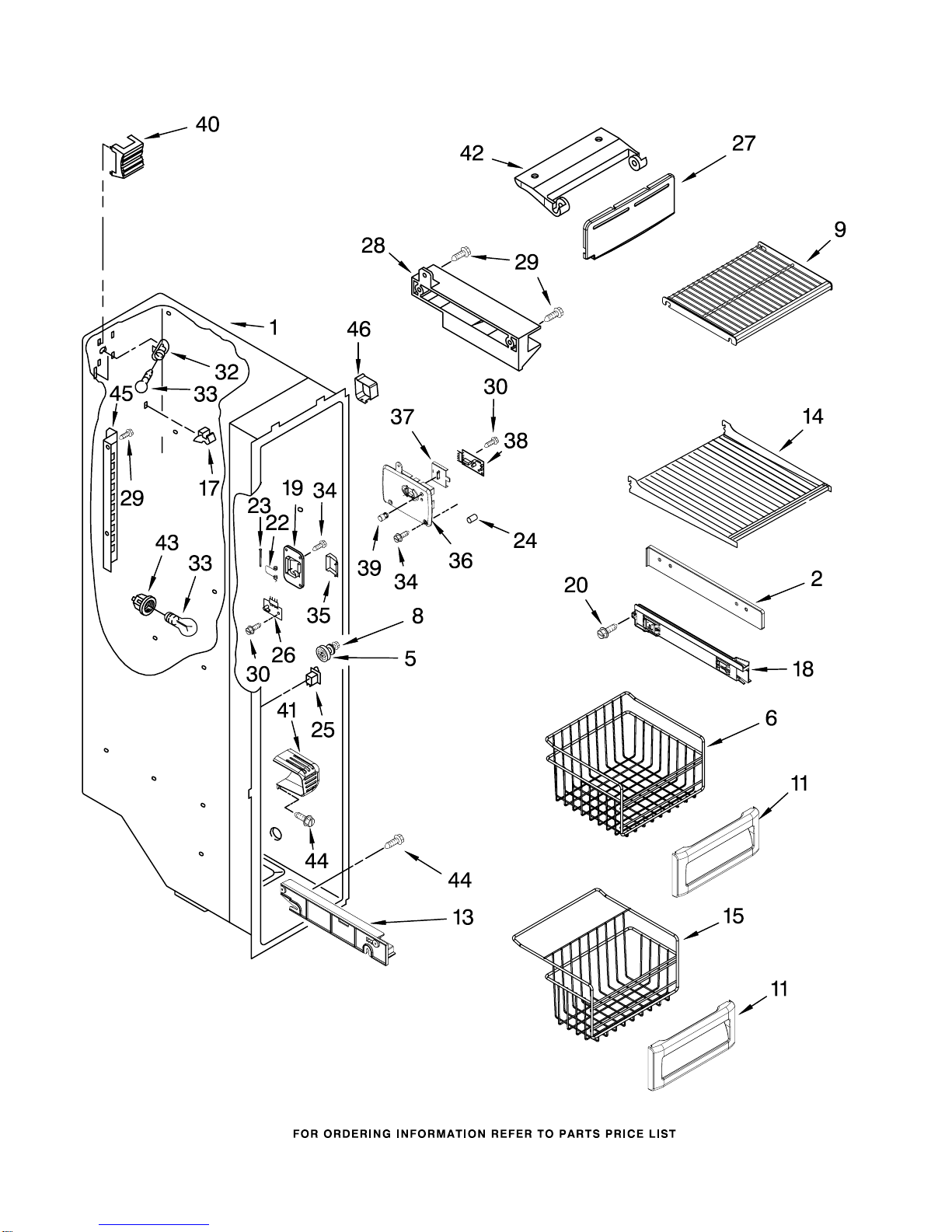

FREEZER LINER PARTS

For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00

(White) (Biscuit) (Black) (Monochromatic Stainless)

8214933

FREEZER LINER PARTS

For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00

(White) (Biscuit) (Black) (Monochromatic Stainless)

8214933

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2223777 Spacer, Slide (2)

5 2196483 Stud Assembly

6 2223811 Basket, Deep (2)

(Includes #11)

8 8281158 Screw

9 2223500 Shelf Assembly,

Cantilever (2)

11 2224053 Front, Basket

13 Shelf Track

2223787 Right Side

2223788 Left Side

14 2223681 Shelf, Fixed

15 2223812 Basket, Lower

(Includes #11)

17 842534 Clip, Air Duct

18 Glide Assembly,

Basket (2)

2301544 Right Side

2301545 Left Side

19 2259487 Cover, Emitter

20 8534064 Screw

22 2198635 Spring

23 2198634 Pin

24 2198665 Tube, P.C. Board

25 1115373 Switch, Rocker Arm

26 2220398 P.C. Board

Emitter

27 2224125 Cover, Ice Maker

28 Slide, Ice Maker

Mounting

2212321 Right Side

2306900 Left Side

29 489478 Screw

30 489214 Screw

32 2162085 Light Socket

33 2255743 Light Bulb

34 8281185 Screw

35 2198633 Flipper

36 2255561 Cover, Receiver

37 2301340 Slide, Ice Maker

Shut Off

38 2255114 P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2212340 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

44 3400893 Screw

45 Ladder

2223414 Left Side

2223415 Right Side

46 2303378 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00

(White) (Biscuit) (Black) (Monochromatic Stainless)

8214933

MOTOR AND ICE CONTAINER PARTS

For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00

(White) (Biscuit) (Black) (Monochromatic Stainless)

8214933

Illus. Part

No. No. DESCRIPTION

1 2223317 Ice Bin

2 2255580 Crusher Bin

3 2258222 Auger

4 2258220 Washer

5 1119007 Spacer, Flat (4)

6 2255460 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2198602 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2301345 Button, Bin

20 2212371 Latch, Bin

21 2198608 Spring, Latch

22 2198671 Screw

23 8281163 Screw

24 2212369 Holder

25 2220458 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

29 2198607 Spring

30 999536 Drive Shaft

31 2256154 Enclosure, Motor

32 2252130 Dispenser, Motor

33 2212305 Cover

36 2212365 Sleeve, Coupling

37 2187725 Wire Harness,

IDI Motor

100 2258250 Ice Container

(Complete)

REFRIGERATOR DOOR PARTS

For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00

(White) (Biscuit) (Black) (Monochromatic Stainless)

8214933

REFRIGERATOR DOOR PARTS

For Models: KSCS25FSWH00, KSCS25FSBT00, KSCS25FSBL00, KSCS25FSMS00

(White) (Biscuit) (Black) (Monochromatic Stainless)

8214933

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

2223917W White

2223917T Biscuit

2223917B Black

2223917SA

Stainless Steel

2 2203087K Trim, Shelf

3 2255421 Dairy Door

4 2223883 Caddy, Can

5 2165792K Butter Dish

6 2219698 Stud, Handle

7 Door Gasket,

Magnetic

2223326 Mist Beige

2223909 Black

8 Handle

(Includes #9)

2319727W White

2319727T Biscuit

2319727B Black

2319727S Stainless Steel

9 Screw

W10010140

Chrome

W10010150

Black

10 2223879 Dairy Compartment

11 488208 Screw

12 2182178 Door Closer,

Upper Cam

13 2308050 Thimble, Top

14 489420 Screw

15 Bracket, Door Stop

2306940 Chrome

2306940B Black

16 2223860 Door Bin (3)

17 3400012 Screw

18 2224173 Door Bin,

Shallow

19 Nameplate

W10046670

White

W10046700

Biscuit

W10046640

Black

W10046610

Gray

20 2156006K Plug, Trim
