KitchenAid KSSS36QTB02 User manual

CABINET PARTS 36" BUILT IN

REFRIGERATOR

For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02

(White) (Black) (Etched Aluminum)

12−07 Litho In U.S.A. (mat) Part No. W10175718 Rev. A

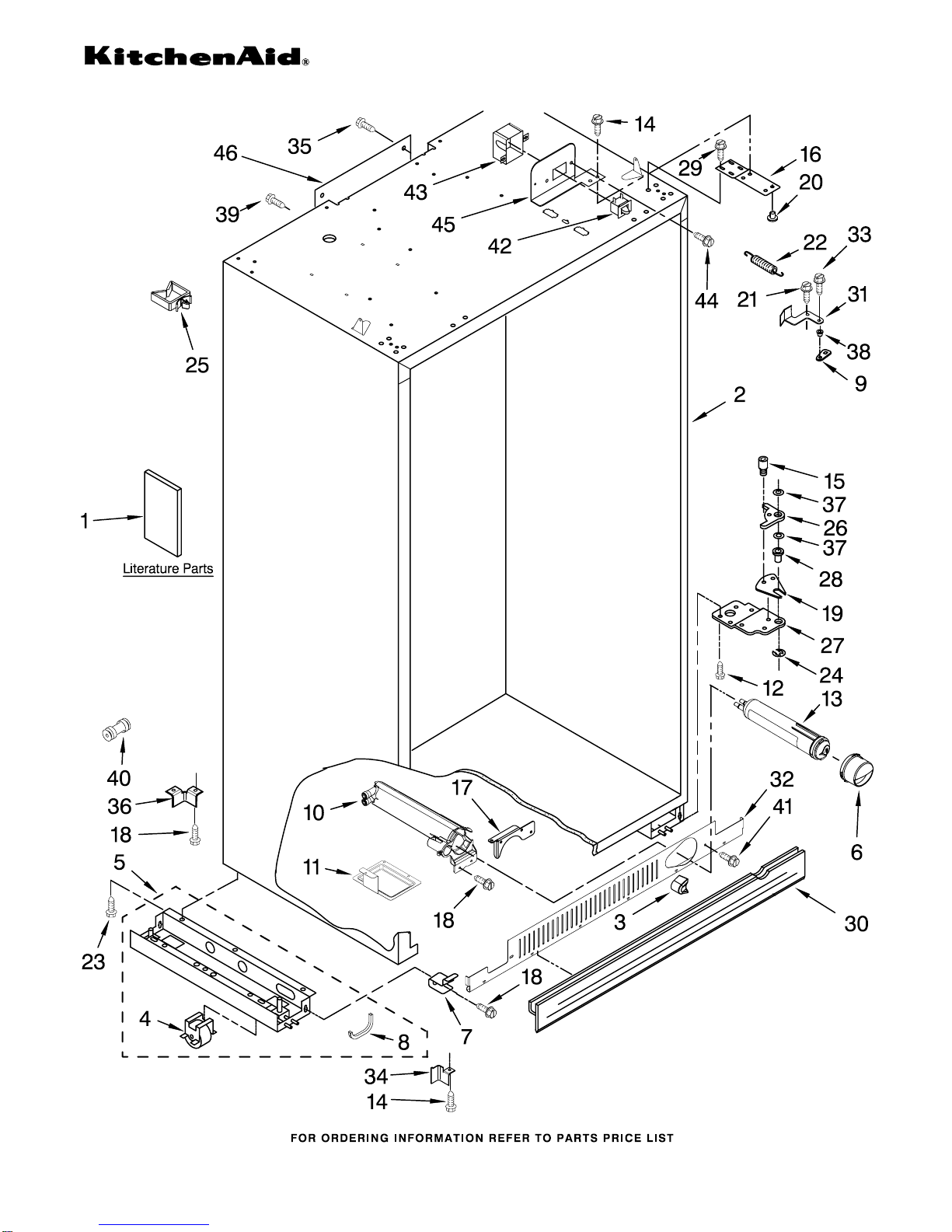

CABINET PARTS

For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02

(White) (Black) (Etched Aluminum)

W10175718

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10161714

Use & Care Guide

W10164071

Energy Guide

W10159832

Service & Wiring

Sheet

2306424 Icemaker and

Ingredient Care

Center Service

Sheet

2318069 Main Control

Service Sheet

2316565 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2260503B Button, Filter

W10138054

Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2318194 Refrigerator Side

2318193 Freezer Side

6 Cap, Water Filter

2260518B Black

7 2307640 Mounting Stud,

Grille

8 2307584 Grommet, Crossover

Tube

9 2005783 Cam, Door Closer

10 2260526 Housing, Water

Filter

11 2318189 Tray, Drip Filter

12 3400525 Screw

13 4396841 Filter, Water

14 489399 Screw

15 3400230 Screw, Door Stop

16 2257644 Hinge (Top)

17 2318190 Bracket, Mtg

(Water Filter)

18 489464 Screw

19 2004994 Lock, Adjustable

Bushing

20 2300082 Bushing

21 487522 Screw

22 Spring, Door

Closure

2221242 Right Side

2004517 Left Side

23 486194 Screw

24 2005008 Retaining Ring,

Adjustable Bushing

W10129069

Wire Clip (5)

26 2006342 Gap, Cover

Assembly (Bottom)

27 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

28 2302876 Bushing,

Adjustable

29 8533913 Screw 1/4−20 x 5/8

30 Skirt−Grille,

Bottom

2209024W White

2209024B Black

31 Extension Arm,

Door Closer

2307857 Right

2302765 Left

32 Grille Bottom,

Front

2325184W White

2325184B Black

33 2005921 Screw

34 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

35 1157158 Screw

36 2006617 Bracket, Support

Base (Rear) (2)

37 2006346 Washer

38 2266880 Bushing,

Extension Arm

39 1163283 Screw

40 Connector, Water

Tube

2209709 5/16−1/4"

2300868 1/4"

41 8281163 Screw

42 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

43 2215938 Cover, Switch (2)

44 487415 Screw (2)

45 Bracket, Switch

2221097 Right

2221096 Left

46 2215612 Cover, Rear

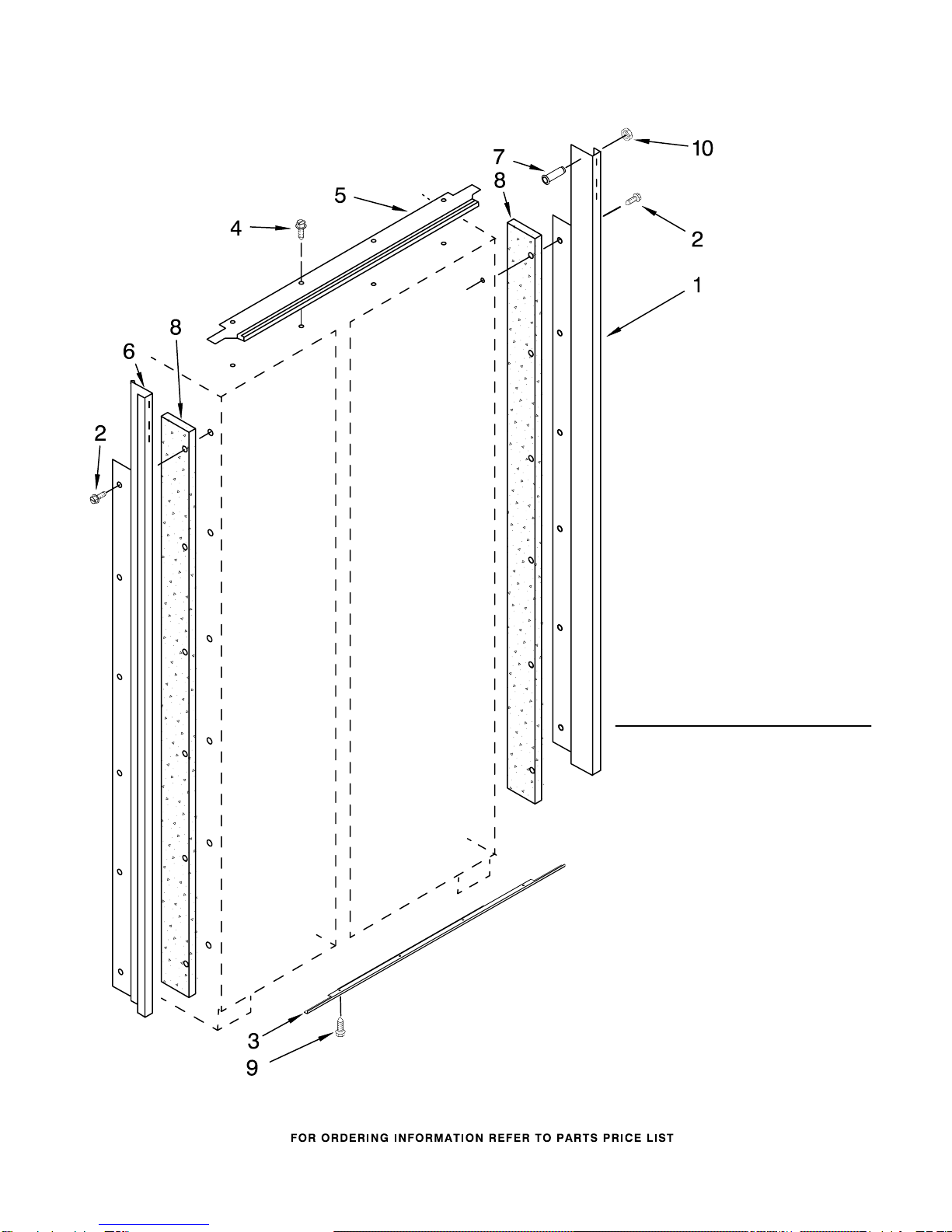

CABINET TRIM PARTS

For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02

(White) (Black) (Etched Aluminum)

W10175718

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

(Right Side)

W10132470

White

W10132471

Black

W10132472

Stainless Steel

2 Screw

1163283 Stainless Steel

3 2316686 Cabinet, Trim

(Bottom)

4 486194 Screw

5 Cabinet, Trim Top

2314016W White

2314016B Black

2314016 Brushed Aluminum

6 Cabinet Trim

(Left Side)

W10132537

White

W10132540

Black

W10132541

Stainless Steel

W10121451

Nut Cert (4)

8 2005925 Seal−Trim, Side

9 489464 Screw

10 2207415 Nut, Hex (4)

FREEZER SHELF PARTS

For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02

(White) (Black) (Etched Aluminum)

W10175718

Illus. Part

No. No. DESCRIPTION

1 2302867 Wire, Shelf (4)

2 2302882 Shelf, Fixed (2)

3 2259081 Basket

4 2256269 Front, Basket

5 Slide, Basket

2259317 Right Side

2259318 Left Side

6 8533928 Screw

REFRIGERATOR LINER PARTS

For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02

(White) (Black) (Etched Aluminum)

W10175718

REFRIGERATOR LINER PARTS

For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02

(White) (Black) (Etched Aluminum)

W10175718

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

4 2003577 Guard, Air Return

5 2259077 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 2006475 Screw

8 487539 Screw

9 2302937 Thermistor

10 2302986 Lid, Meat Pan

Baffle

W10169528

Baffle Control

Assembly

12 2171846 Release Valve

13 2310205 Jumper, Air Baffle

14 488357 Screw

15 486194 Screw

17 2221296 Air Baffle

Assembly

18 2327509 Reservoir

19 488280 Screw

20 2309222 Diffuser Assembly

21 2317105 Cover, Thermistor

22 2188820 Thermistor

23 2302992 Spacer, Air−

Baffle

24 2309087 Cover, Diffuser

25 2259412 Seal, Air Duct

(Round Hole)

26 2259398 Seal, Air Duct

(Square Hole)

CONTROL PANEL PARTS

For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02

(White) (Black) (Etched Aluminum)

W10175718

Illus. Part

No. No. DESCRIPTION

1 2316544 Control Box

2 2317000 Clip, Box

3 2310390 Wire, Jumper

4 2324971 Bracket,

Control Box

5 2307594 Shield,

Control Box

6 487539 Screw (2)

7 2306086 Display,

Ingredient Care

Center

8 2223857 Socket, Light

9 2326255 Light Bulb (2)

10 8281185 Screw

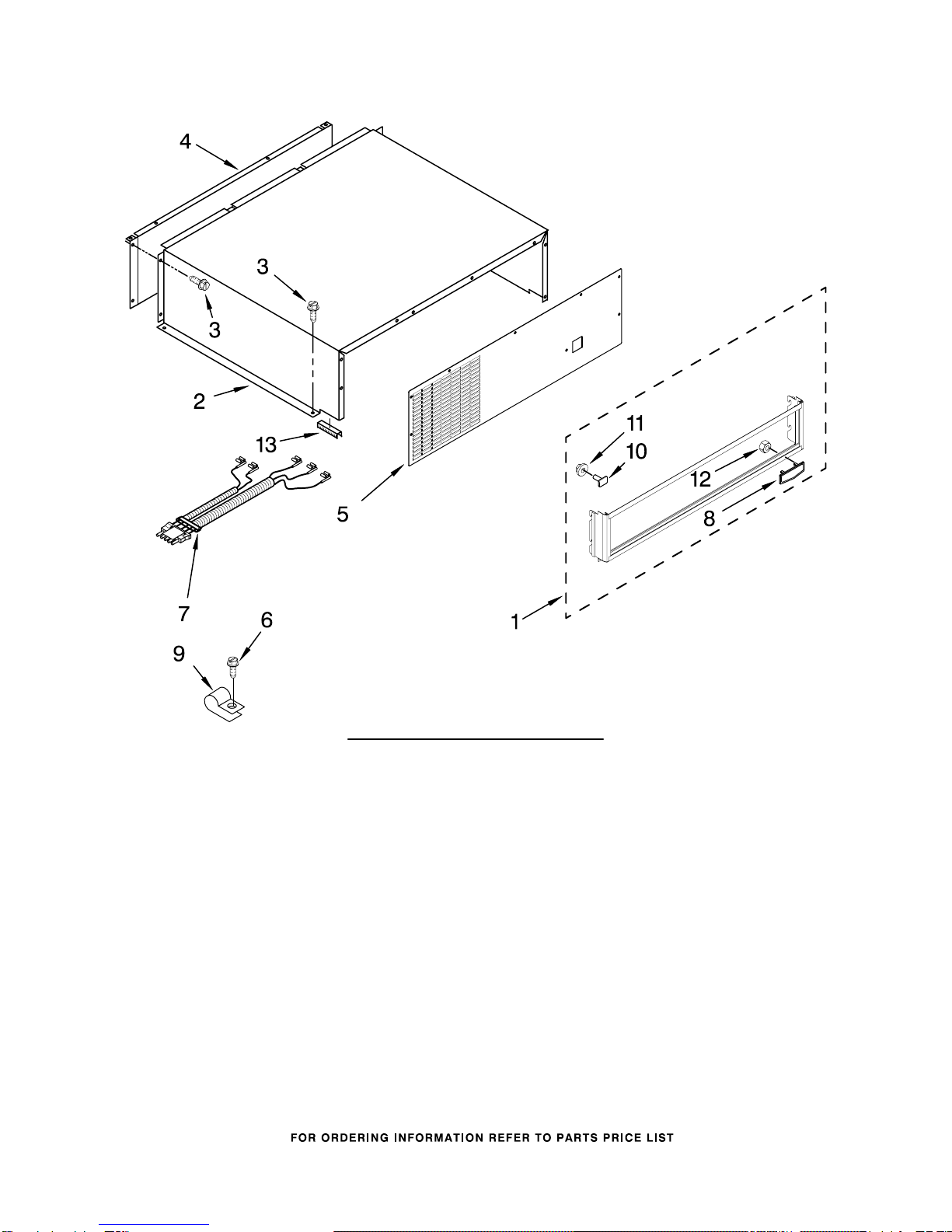

TOP GRILLE AND UNIT COVER PARTS

For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02

(White) (Black) (Etched Aluminum)

W10175718

Illus. Part

No. No. DESCRIPTION

1 Top Grille Assy

2316824W White

2316824B Black

2316824S Stainless Steel

W10161693

Cover, Unit

3 486194 Screw

4 2256466 Back Panel

W10121229

Cover, Unit Front

6 487415 Screw

7 2310194 Wire Assembly

RC/FC Light Switch

8 Badge, Kitchen Aid

2317923W White

2317923B Black

2317923S Stainless Steel

9 489348 Clamp

10 2003347 Tee Bolt (4)

11 1161548 Nut (4)

12 2004333 Nut (2)

13 2215910 Grommet

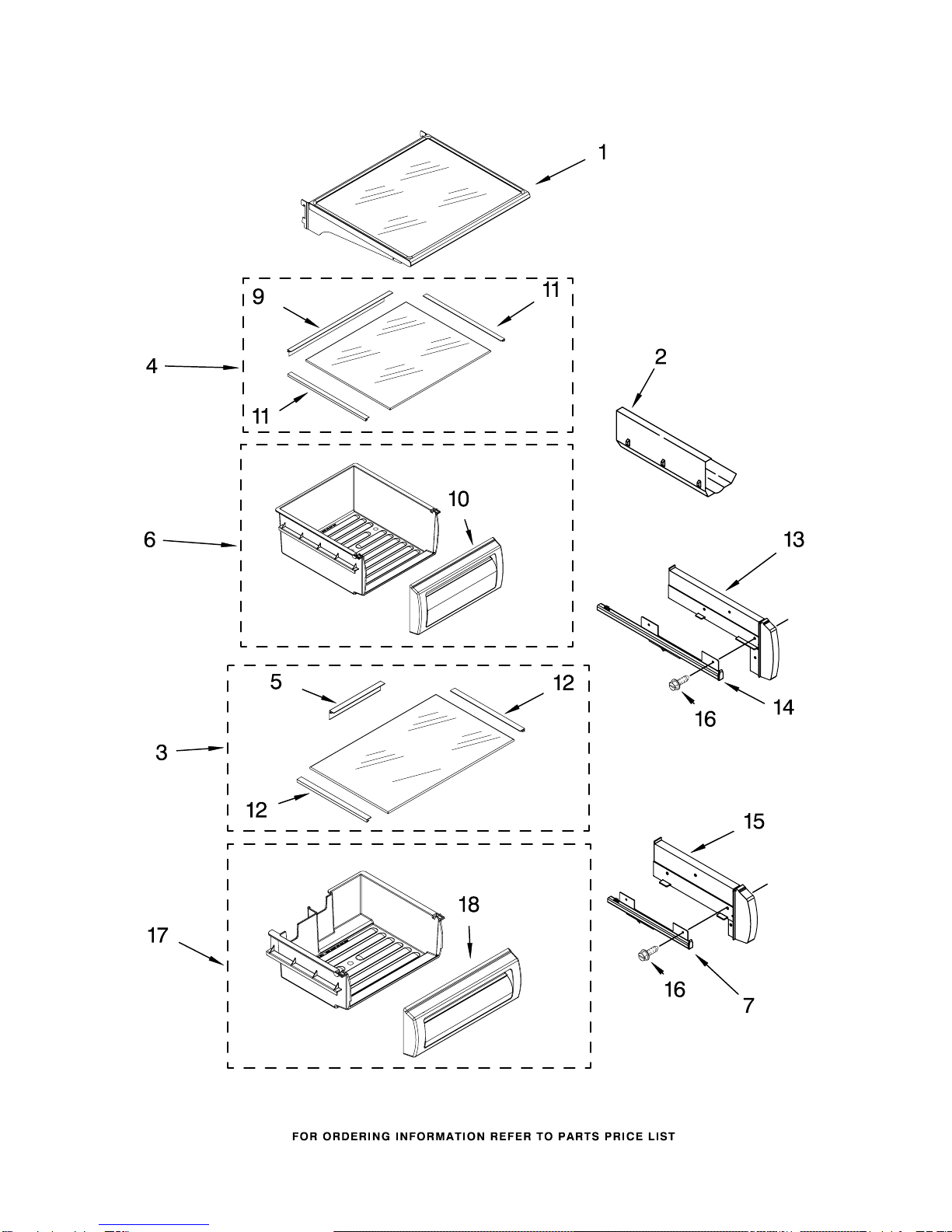

REFRIGERATOR SHELF PARTS

For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02

(White) (Black) (Etched Aluminum)

W10175718

REFRIGERATOR SHELF PARTS

For Models: KSSS36QTW02, KSSS36QTB02, KSSS36QTX02

(White) (Black) (Etched Aluminum)

W10175718

Illus. Part

No. No. DESCRIPTION

1 2222591 Shelf Assy (4)

2 2179404 Rack, Wine

3 2302841 Assembly, Meat Pan

Cover

4 2302834 Assembly, Crisper

Cover

5 2257581 Trim, Glass Rear

6 2252411 Crisper Pan (2)

7 Slide, Meat Pan

2302954 Left Side

2302955 Right Side

9 2256253 Trim, Glass Rear

10 2256247 Front, Crisper

Pan

11 2252255 Trim, Glass Side

Crisper Pan

12 2256250 Trim, Glass Side

Meat Pan

13 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

14 Slide, Crisper

2302956 Right Side

2302957 Left Side

15 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

16 Screw

8533929 Right Side−

(8−18 x 1.375)

8533928 Left Side−

(8−18 x .750)

17 2256368 Pan Assembly

Meat

18 2256365 Front, Meat Pan
