KitchenAid KSRS25FGAL00 User manual
1
CABINET PARTS
For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00
(White) (Almond) (Black) (Biscuit)
04−07 Printed In U.S.A. (mdg) Part No. 4398077
REFRIGERATOR
CABINET PARTS
2
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00
(White) (Almond) (Black) (Biscuit)
4398077
Illus. Part
No. No. DESCRIPTION
1 Cabinet (Not A
Serviceable Part)
2 2174748 Front Roller (2)
3 489456 Screw
4 981122 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2196048 Shim, Hinge Top
10 489284 Screw
11 Hinge Cover
1129262 White
2150343 Almond
2151694 Black
2186858 Biscuit
12 2171851 Hinge Bottom (2)
13 Filler, Wrapper
1110708 White
1110709 Almond
1127272 Black
2186846 Biscuit
14 Grille
2198468W White
2198468N Almond
2198468B Black
2198468T Biscuit
15 489497 Screw
16 2196046 Hinge, Top (2)
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Tube, Extension
20 1108439 Clip, Drain Tube
21 2176140 Cover, Unit
22 Hinge Cover
1119787 White
1119789 Almond
2155938 Black
2186857 Biscuit
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2155311 Door Closer,
Lower Cam (2)
26 489483 Screw
27 2186443 Housing, Water
Filter
28 2200203 Water Filter
29 489500 Screw
30 Cap, Water
Filter
2186884W White
2186884N Almond
2186884B Black
2186884T Biscuit

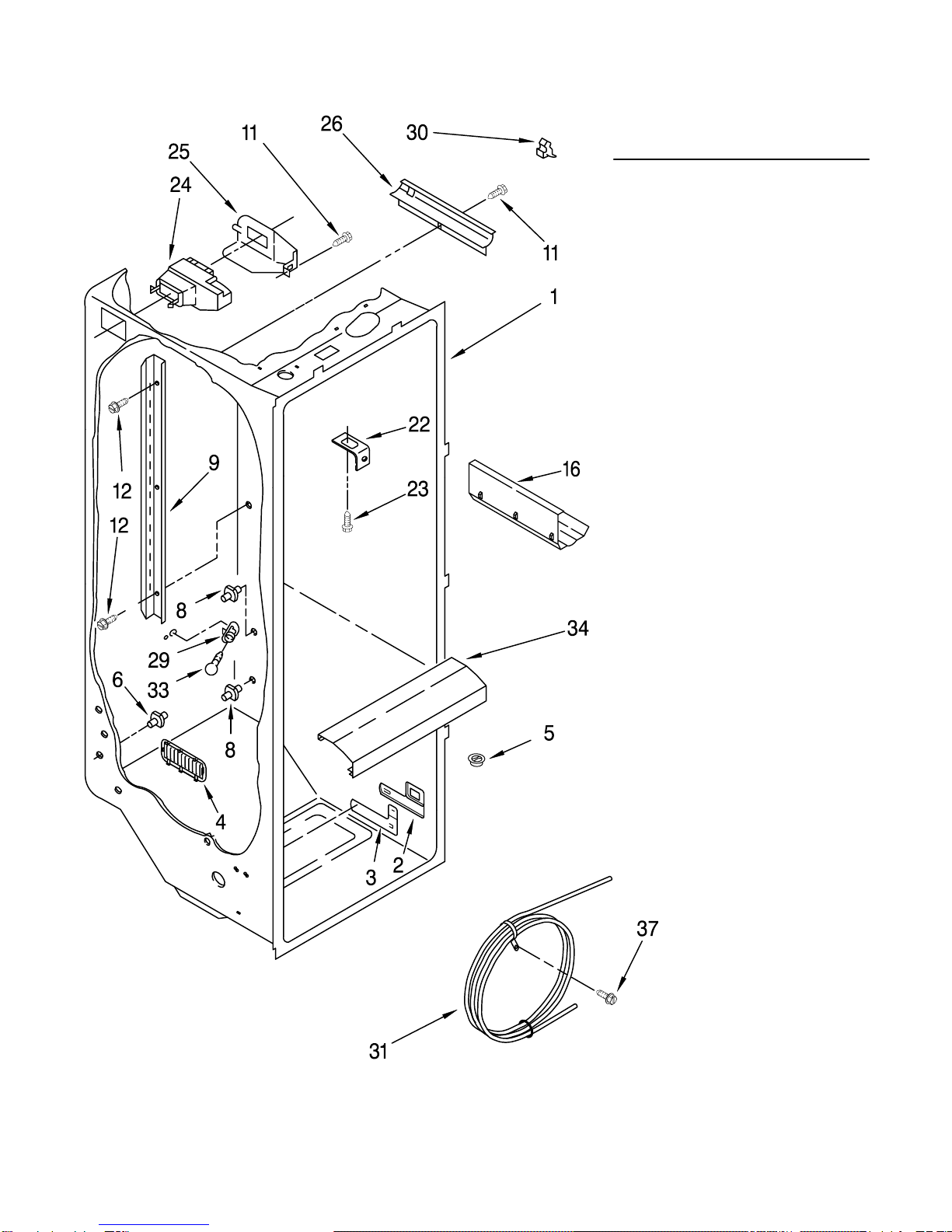

REFRIGERATOR LINER PARTS
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
3
For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00
(White) (Almond) (Black) (Biscuit)
4398077
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2182147 Louver
5 2171846 Release Valve
6 2172943 Stud (2)
8 1110718 Stud (10)
9 2181796 Ladder, Shelf (2)
11 486298 Screw (2)
12 487539 Screw
16 2179404 Rack, Wine & Egg
22 1123919 Bracket Retainer
23 489290 Screw (2)
24 2161467 Air Diffuser
Assembly
25 2161470 Air Diffuser
Cover
26 2150331 Cover, Conduit
29 2162085 Socket
30 842534 Clip, Air Duct
31 2196171 Reservoir
33 527949 Light Bulb
34 2174436 Light Lens
37 488280 Screw
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
REFRIGERATOR SHELF PARTS
4
For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00
(White) (Almond) (Black) (Biscuit)
4398077
Illus. Part
No. No. DESCRIPTION
1 2195978 Shelf Assembly,
Cantilever (3)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2161491 Cover, Meat Pan
(Includes Items
13, 14 & 15)
6 2198446 Snack Pan
7 2179243 Trim, Handle
8 2189526 Glass, Cover
9 2174250 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2174148 Glass, Cover
11 2174272 Gasket (Front)
12 2174274 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2174388 Roller
15 489211 Screw
16 2179227 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 2179231 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2174259 Right Side
2174258 Left Side
22 2174362 Window, Meat Pan
23 2182730 Egg Bin
24 2174021 Shelf & Roller
Assembly
25 489439 Screw
26 2198277 Shelf, Snack Pan
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST

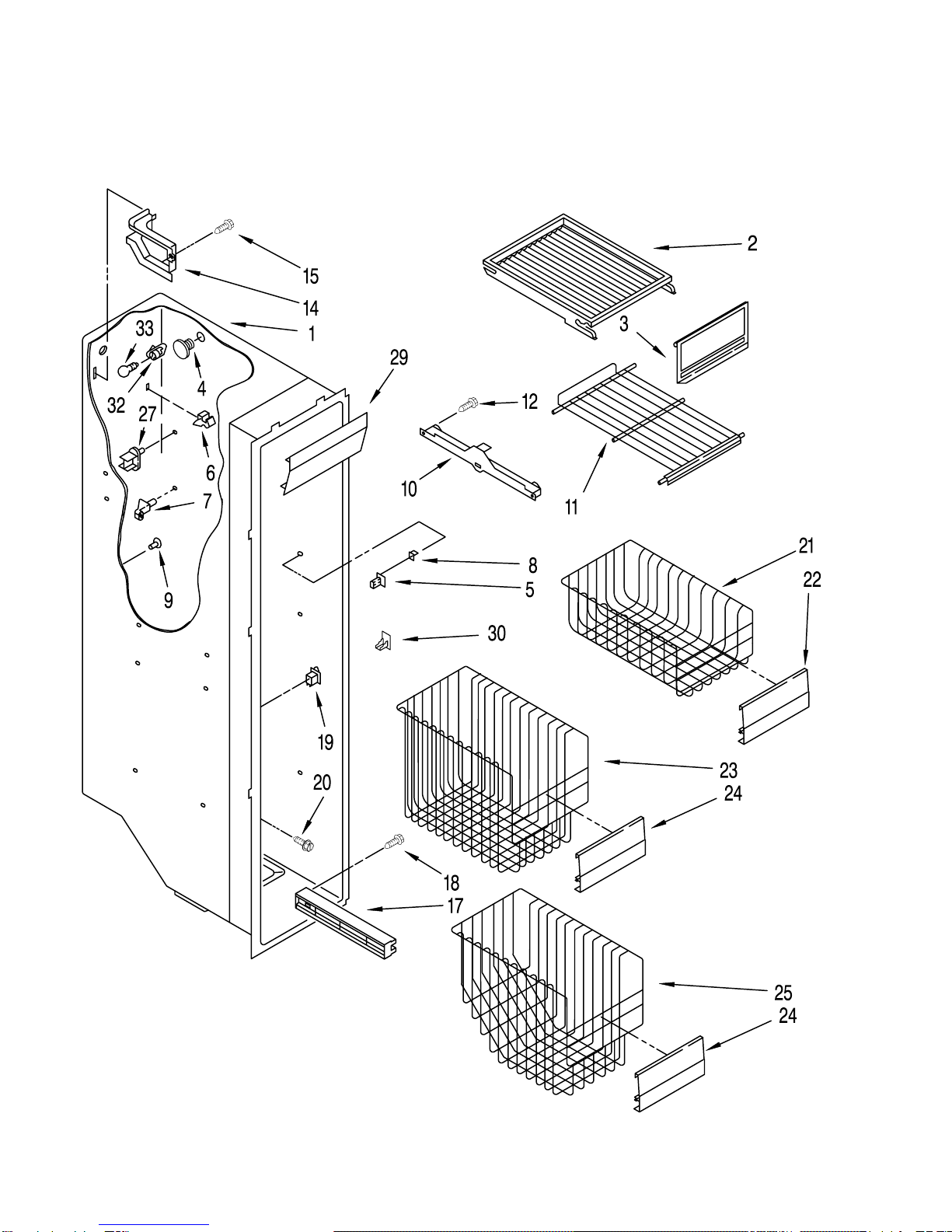

FREEZER LINER PARTS
5
For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00
(White) (Almond) (Black) (Biscuit)
4398077
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
FREEZER LINER PARTS
6
For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00
(White) (Almond) (Black) (Biscuit)
4398077
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2174493 Shelf, Top
Compartment
3 2171713 Door, Ice
Compartment
4 940014 Hole Plug
5 946356 Stud, R.S. Front
6 842534 Clip, Air Duct (2)
7 1115317 Support, Stud (4)
8 946355 Support, Stud (2)
9 2176134 Grommet (2)
10 Slide, Container
1119237 Left Side
1119293 Right Side
11 2174267 Shelf
12 489100 Screw (4)
14 2155572 Cover, Wiring
15 489355 Screw
17 Shelf Track
2181760 Right Side (3)
2181759 Left Side (3)
18 487042 Screw
19 1115373 Switch, Rocker Arm
20 489478 Screw
21 2181763 Basket, Shallow
22 2171767 Front, Basket
23 2181765 Basket, Square
24 2171766 Front, Basket
25 2181764 Basket, Sloped
27 1115386 Stud, Shelf (4)
29 2171705 Light Lens
30 1106982 Stud, R.S. Rear
32 2162085 Socket, Light
33 527949 Bulb, Light

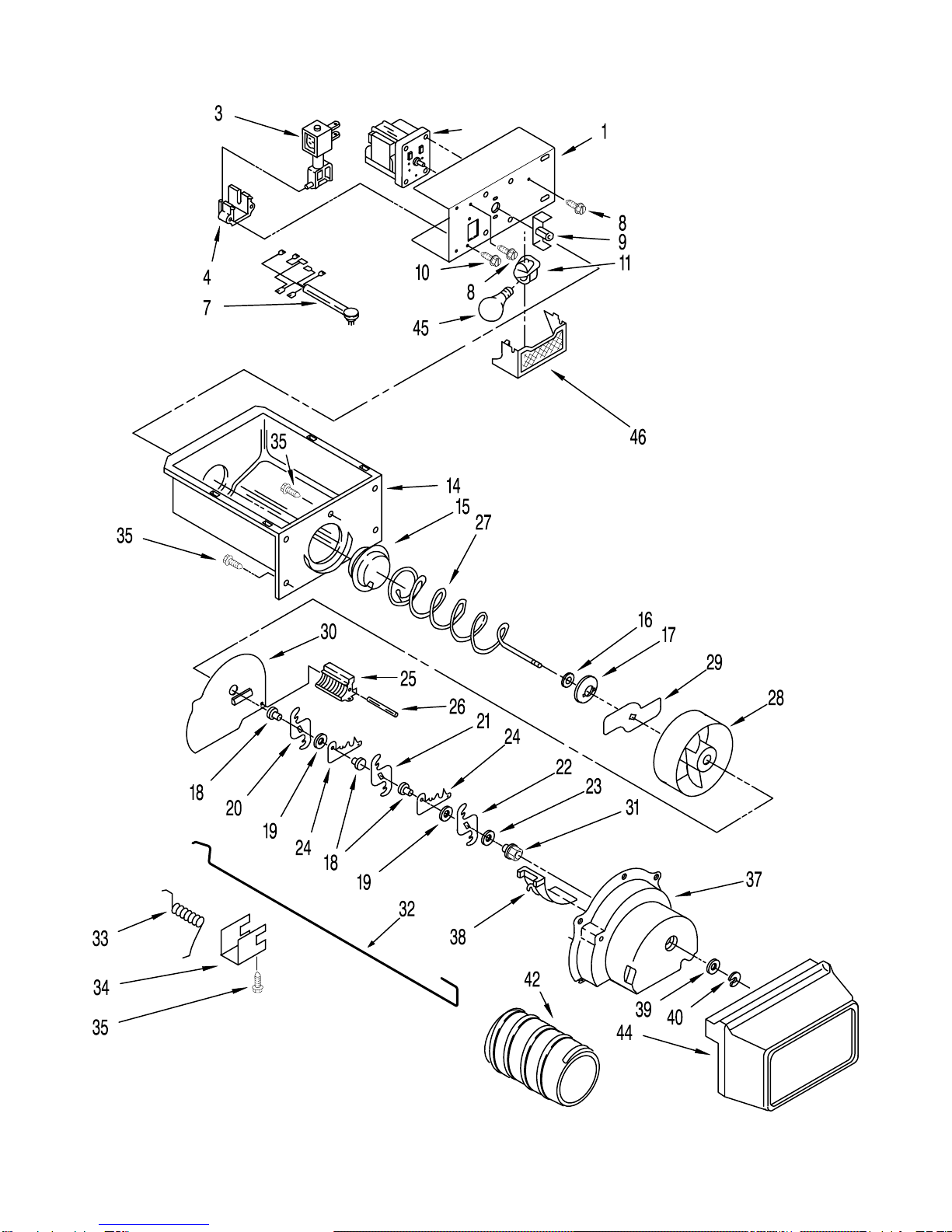

MOTOR AND ICE CONTAINER PARTS
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
2
7
For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00
(White) (Almond) (Black) (Biscuit)
4398077
MOTOR AND ICE CONTAINER PARTS
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
8
For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00
(White) (Almond) (Black) (Biscuit)
4398077
Illus. Part
No. No. DESCRIPTION
1 2183726 Bracket, Motor
2 2155263 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
7 2169490 Wiring Assembly,
Ice Dispenser
8 489399 Screw
9 983663 Coupling, Motor
10 489478 Screw
11 2162085 Socket, Light
14 2196091 Ice Container
15 983668 Coupling, Conveyor
16 1118480 Stop, Cone
17 1119074 Feeder Cone
18 1119005 Spacer, Step (3)
19 1119007 Spacer, Flat (2)
20 1119006 Blade, Rotary
21 1119012 Blade, Rotary
22 1119013 Blade, Rotary
23 489235 Washer, Plain
24 1119009 Blade, Fixed (2)
25 2157405 Block, Blade
26 489229 Roll Pin
27 2181955 Conveyor
28 2171681 Drum
29 1118470 Drive Bar
30 2171682 Floating Baffle
31 1119018 Nut, Bearing
32 2155231 Control Arm
33 1119020 Spring, Return
34 1119021 Retainer Clip, Rod
35 488886 Screw
37 2180348 Housing, Crusher
38 1119017 Deflector, Ice
39 489234 Washer, Plain
40 489236 Retainer Ring
42 2152021 Sleeve−Auger
44 2171708 Front Cover,
Ice Container
45 527949 Light Bulb
46 2171706 Light Lens,
Dispenser

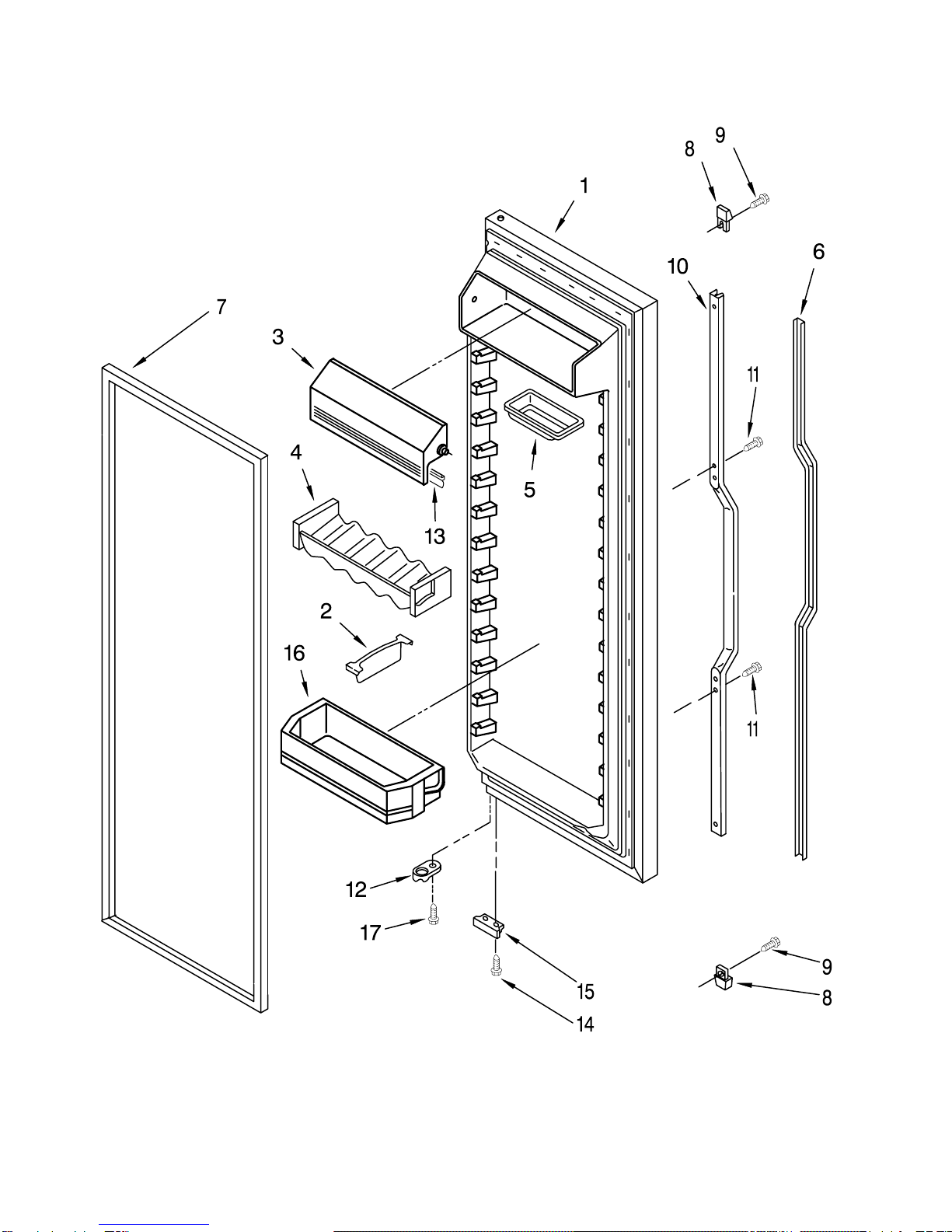

REFRIGERATOR DOOR PARTS
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
9
For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00
(White) (Almond) (Black) (Biscuit)
4398077
REFRIGERATOR DOOR PARTS
FOR ORDERING INFORMATION REFER TO PARTS PRICE LIST
10
For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00
(White) (Almond) (Black) (Biscuit)
4398077
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2194233W White
2194233N Almond
2194233B Black
2194233T Biscuit
2 2195497 Load, Lock
3 2182399 Door, Compartment
4 2193409 Holder, Beverage
5 2165792 Butter Dish
6 Insert, Handle
2173825 White
2173828 Almond
2173829 Black
2186863T Biscuit
7 Door Gasket,
Magnetic (Service)
2159075 Mist Beige
2159083 Black
8 End Cap, Handle
2194778W White
2194778N Almond
2194778B Black
2194778T Biscuit
9 3400852 Screw
10 Retainer, Insert
2194777W White
2194777N Almond
2194777B Black
2194777T Biscuit
11 489463 Screw
12 2182132 Door Closer,
Upper Cam
13 2159124 Gasket
14 489420 Screw
15 Bracket, Door Stop
2195950 Chrome
2195952 Black
16 2171063 Shelf Bin (4)
17 3400012 Screw
