KitchenAid KSRS25ILBL00 Troubleshooting guide

CABINET PARTS

For Models: KSRS25ILWH00, KSRS25ILBT00, KSRS25ILBL00, KSRS25ILSS00, KSRS25ILBU00

(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)

REFRIGERATOR

1−03 Printed In U.S.A. (dmz) Part No. 8198054 Rev. A

CABINET PARTS

For Models: KSRS25ILWH00, KSRS25ILBT00, KSRS25ILBL00, KSRS25ILSS00, KSRS25ILBU00

(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)

8198054

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT2220541

Energy Guide

LIT2220276

Owner’s Manual

LIT2216445

Service & Wiring

Sheet

LIT628370

Modular Icemaker

Service Sheet

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT787316

Icemaker

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 Shim

2156056 (1)

2209697 (1)

9 2203771 Hinge Top (RC)

10 8281149 Screw

11 8281227 Screw

12 Hinge Cover

2203407W White

2203407T Biscuit

2203407B Black

2203407BU

Cobalt Blue

13 2217075 Hinge Bottom (2)

14 Filler, Wrapper

2196094 White

2196150 Biscuit

2196097 Black

2205991 Cobalt Blue

15 Grille

2186881W White

2186881T Biscuit

2186881B Black

2186881BU

Cobalt Blue

16 489497 Screw

17 489464 Screw

18 940139 Drain Fitting

19 1108438 Extension Tube

20 1108439 Clip, Drain Tube

21 2204203 Cover, Unit

22 Cabinet (Not A

Serviceable Part)

23 Hinge Cover

2203408W White

2203408T Biscuit

2203408B Black

2203408BU

Cobalt Blue

24 549193 Clamp, Service

Cord

25 489084 Screw

26 2155311 Door Closer,

Lower Cam (2)

27 489483 Screw

28 2186443 Housing, Water

Filter

29 2203220 Water Filter

30 Cap, Water

Filter

2186884W White

2186884T Biscuit

2186884B Black

2186884BU

Cobalt Blue

31 489500 Screw

36 2203770 Hinge Top (FC)

REFRIGERATOR LINER PARTS

For Models: KSRS25ILWH00, KSRS25ILBT00, KSRS25ILBL00, KSRS25ILSS00, KSRS25ILBU00

(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)

8198054

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2194744 Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2182147 Louver

5 2205813 Strap

6 8281158 Screw

7 2216113 Thermistor

8 2196483 Stud Assembly

9 2206273 Shelf Ladder

10 487539 Screw

11 486298 Screw (2)

15 2216112 Air Diffuser

Assembly

16 2212240 Air Diffuser

Cover

17 2150331 Cover, Wiring

18 2162085 Socket

19 2217199 Reservoir

20 527949 Light Bulb

21 2206269 Light Lens

22 488280 Screw

23 2179404 Rack, Wine & Egg

24 2196485 Stud Assembly

25 3400894 Screw

REFRIGERATOR SHELF PARTS

For Models: KSRS25ILWH00, KSRS25ILBT00, KSRS25ILBL00, KSRS25ILSS00, KSRS25ILBU00

(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)

8198054

Illus. Part

No. No. DESCRIPTION

1 2195978 Shelf Assembly,

Cantilever (2)

2 2174253 Button, Humidity

3 2174252 Slide, Humidity

4 2174273 Gasket, Side (2)

5 2161491 Cover, Meat Pan

(Includes Items

13, 14, & 15)

6 2174148 Glass, Cover

8 2189526 Glass, Cover

9 2174250 Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14, & 19)

11 2174272 Gasket, (Front)

12 2174274 Gasket, (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2179227 Crisper Pan

(Includes 13,

14, 18, 19, & 21)

17 2179231 Meat Pan

(Includes 13,

14, 19, & 22)

18 2174076 Window, Crisper

19 489261 Screw

20 2176095 Deflector

21 Cap, Crisper Pan

2174259 Right Side

2174258 Left Side

22 2174362 Window, Meat Pan

23 2216624 Egg Bin

24 2174021 Shelf & Roller

Assembly

25 489439 Screw

32 2209677 Snack, Pan

33 2179243 Trim, Handle

34 2206346 Shelf, Snack Pan

FREEZER LINER PARTS

For Models: KSRS25ILWH00, KSRS25ILBT00, KSRS25ILBL00, KSRS25ILSS00, KSRS25ILBU00

(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)

8198054

FREEZER LINER PARTS

For Models: KSRS25ILWH00, KSRS25ILBT00, KSRS25ILBL00, KSRS25ILSS00, KSRS25ILBU00

(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)

8198054

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2216113 Thermistor

3 3400893 Screw

4 2198697 Gasket

5 2205834 Basket, Top

6 2205833 Basket, Tall

12 2205826 Basket, Front

13 Shelf Track

2181760 Right Side

2181759 Left Side

14 2205837 Shelf

15 2205832 Basket, Sloped

16 486298 Screw (8)

17 842534 Clip, Air Duct (2)

19 2198587 Cover, Emitter

22 2198635 Spring

23 2198634 Pin

25 1115373 Switch, Rocker Arm

26 2198585 P.C. Board

Emitter

27 2198642 Cover, Ice Maker

28 2212321 Slide, Ice Maker

Mounting

29 489478 Screw

30 489214 Screw

31 2198665 Tube, P.C. Board

32 2162085 Light Socket

33 527949 Light Bulb

34 8281185 Screw

35 2198633 Flipper

36 2198588 Cover, Receiver

37 2198637 Slide, Ice Maker

Shut Off

38 2198586 P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2212340 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

44 527949 Light Bulb

45 Ladder

2198609 Left Side

2198610 Right Side

46 2219878 Shield, Wiring

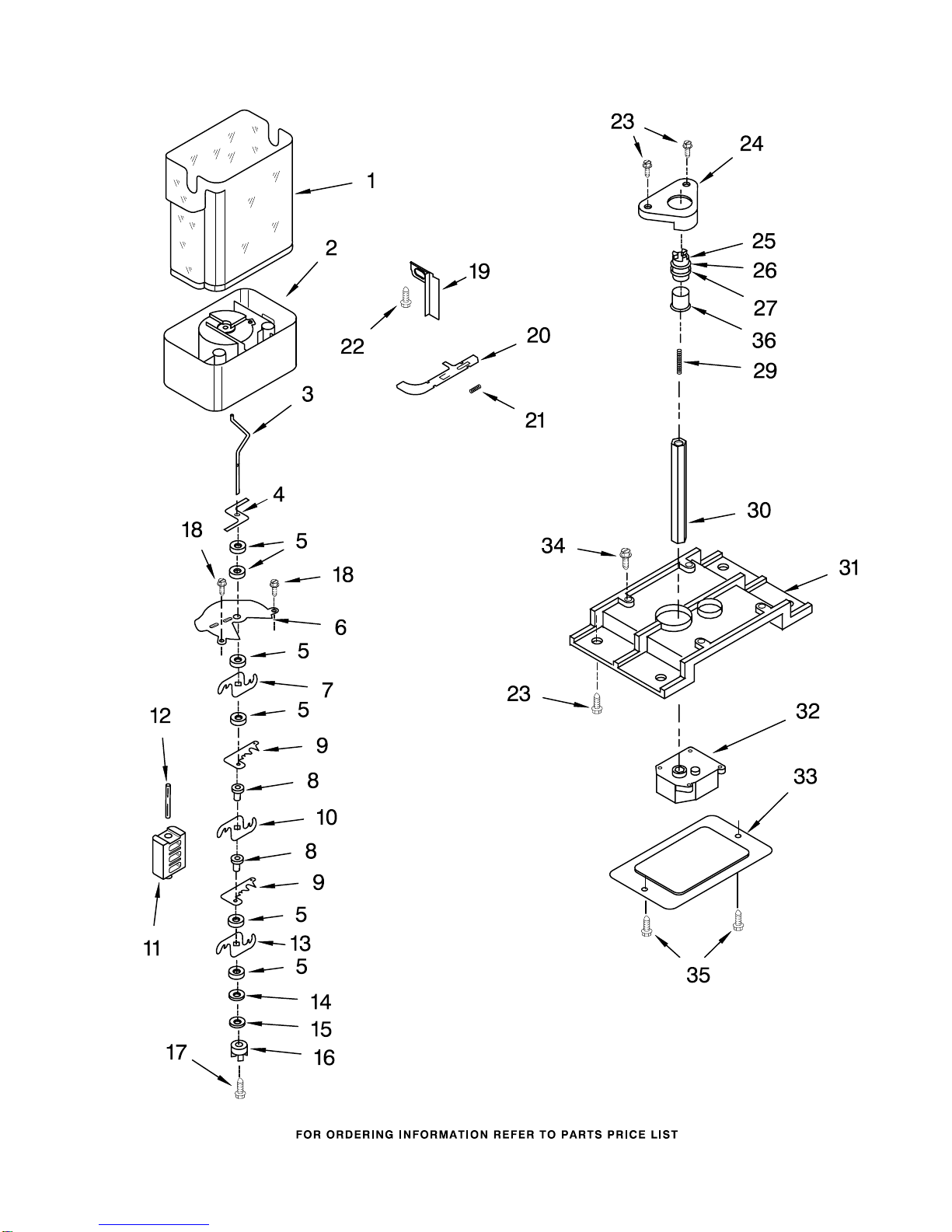

MOTOR AND ICE CONTAINER PARTS

For Models: KSRS25ILWH00, KSRS25ILBT00, KSRS25ILBL00, KSRS25ILSS00, KSRS25ILBU00

(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)

8198054

MOTOR AND ICE CONTAINER PARTS

For Models: KSRS25ILWH00, KSRS25ILBT00, KSRS25ILBL00, KSRS25ILSS00, KSRS25ILBU00

(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)

8198054

Illus. Part

No. No. DESCRIPTION

1 2198573 Ice Bin

2 2212367 Crusher Bin

3 2211590 Auger

4 2198603 Blade, Stirring

5 1119007 Spacer, Flat (6)

6 2198591 Cover, Crusher

7 1119013 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2198601 Blade, Fixed

10 1119012 Blade, Rotary

11 2198602 Block, Blade

12 489229 Roll Pin

13 1119006 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2198605 Button, Bin

20 2212371 Latch, Bin

21 2198608 Spring, Latch

22 2198671 Screw (2)

23 8281163 Screw

24 2212369 Holder

25 2220458 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

29 2198607 Spring

30 999536 Drive Shaft

31 2198655 Bracket, Motor

32 2198594 Dispenser, Motor

33 2198626 Cover

34 8281162 Screw

35 489478 Screw

36 2212365 Sleeve, Coupling

REFRIGERATOR DOOR PARTS

For Models: KSRS25ILWH00, KSRS25ILBT00, KSRS25ILBL00, KSRS25ILSS00, KSRS25ILBU00

(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)

8198054

REFRIGERATOR DOOR PARTS

For Models: KSRS25ILWH00, KSRS25ILBT00, KSRS25ILBL00, KSRS25ILSS00, KSRS25ILBU00

(White) (Biscuit) (Black) (Stainless Steel) (Cobalt Blue)

8198054

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item #6)

2207183W White

2207183T Biscuit

2207183B Black

2207183S Stainless

2207183BU

Cobalt Blue

2 2182399 Compartment Door

3 2205821 Shelf Bin (4)

4 3400012 Screw

6 Door Gasket,

Magnetic

2221302 Mist Beige

2221313 Black

7 2193409 Beverage Holder

8 Handle

2207112W White

2207112T Biscuit

2207112B Black

2207112S Stainless Steel

2207112BU

Cobalt Blue

10 2182178 Door Closer,

Upper Cam

11 489420 Screw

12 Bracket, Door Stop

2200082 Chrome

2200082B Black

13 Screw

3400898 White

8281135 Biscuit

3400899 Black

3400897 Chrome

8281178 Cobalt Blue

18 2165792 Butter, Dish

20 2159124 Gasket

21 Endcap

2207111W White

2207111T Biscuit

2207111B Black

2207111CH

Satin Chrome
