CABINET PARTS

For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03

(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)

04−08 Printed In U.S.A. (jdc)(bay) Part No. W10203951 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03

(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)

W10203951

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10194344

Energy Guide

W10162438

Owner’s Manual

2303925 Service Sheet

W10142183

Wiring Sheet

2220407 Modular Icemaker

Service Sheet

2308395 Instruction Sheet,

Door Removal

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2156056 Shim

9 2203771 Hinge Top (RC)

11 8281227 Screw

12 Hinge Cover (FC)

2203407W White

2203407B Black

2203407T Biscuit

2203407AP

Apollo Grey

W10138965

Bottom Hinge (RC)

14 Filler, Wrapper

2304846 White

2304848 Black

2304849 Biscuit

2315169 Apollo Grey

15 Grille

2303292W White

2303292B Black

2303292T Biscuit

2303292MG

Midnight Grey

16 489497 Screw

17 489464 Screw

18 2304888 Drain Fitting

19 2304937 Extension Tube

21 2188735 Cover, Unit

22 Cabinet (Not A

Serviceable Part)

23 Hinge Cover

2203408W White

2203408B Black

2203408T Biscuit

2203408AP

Apollo Grey

24 549193 Clamp, Service

Cord

25 489084 Screw

26 2155311 Door Closer, RC

27 489483 Screw

28 2260507 Housing, Water Filter

29 4396841 Water Filter

30 Cap, Water Filter

2260502W White

2260502B Black

2260502T Biscuit

2260502MG

Midnight Grey

31 489500 Screw

32 3400113 Screw

33 2303141 Bottom Hinge (FC)

34 2260519 Block, Housing

Support

35 2255012 Tube, Filter

Outlet

36 2203770 Hinge Top (FC)

37 2319867 Tube, FilterInlet

38 Button, Water Filter

2260503W White

2260503B Black

2260503T Biscuit

2260503MG

Midnight Grey

39 2223751 Door Closer, FC

40 2305373 Clamp, Cord

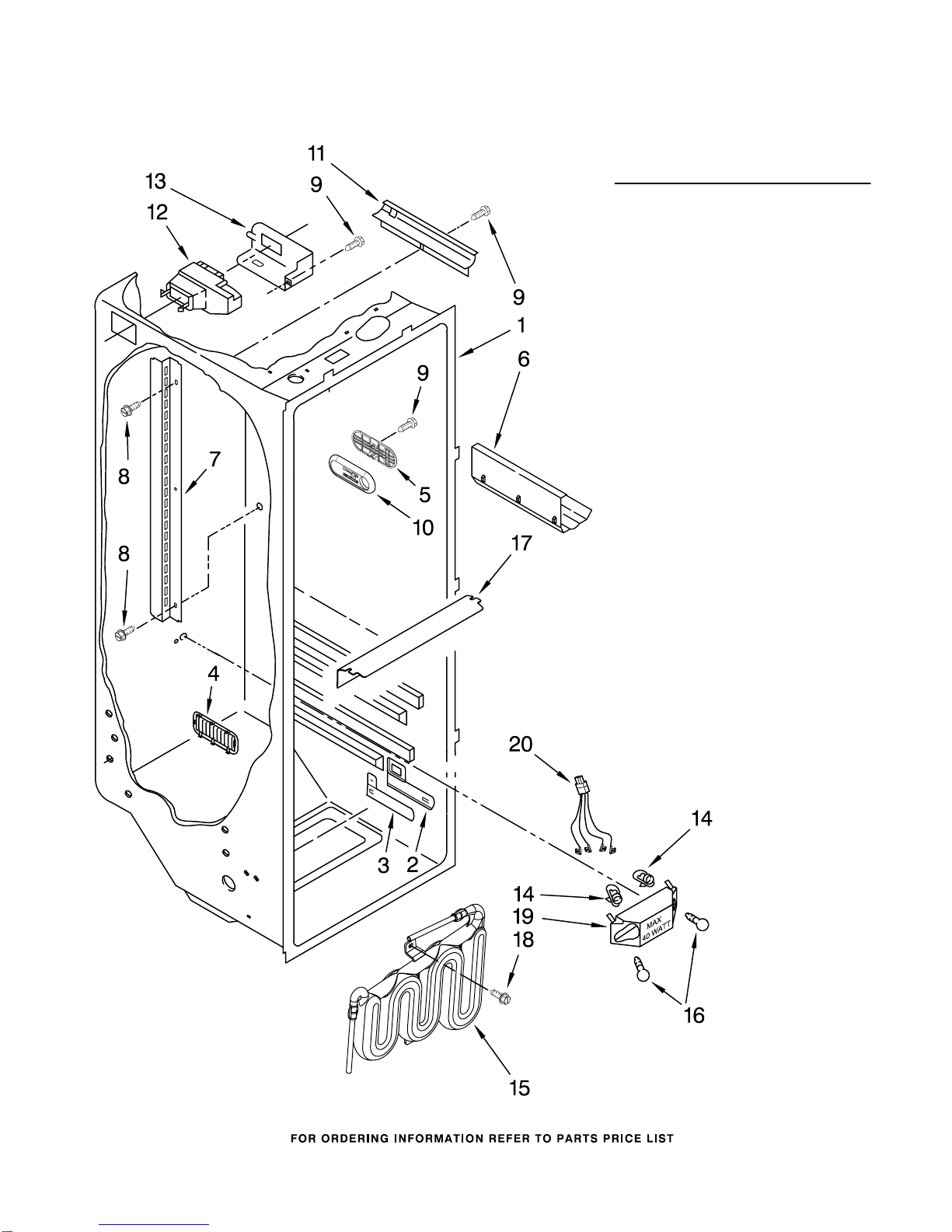

REFRIGERATOR LINER PARTS

For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03

(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)

W10203951

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

W10175967

Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2257741 Louver

5 2301235 Slide, Door

Control

6 2179375 Wine Rack

7 2319866 Shelf Ladder

8 489478 Screw

W10004810

Screw

10 2301234 Housing, Door

Control

11 2150331 Cover, Conduit

W10151376

Air Diffuser

Assembly

13 2212240 Cover, Air

Diffuser

14 2162085 Socket

15 2307107 Reservoir

16 2255743 Light Bulb

17 2209769 Light Lens

18 488280 Screw

19 2256035 Bracket,

Dual Crisper

20 2311637 Wire Harness,

Dual Crisper

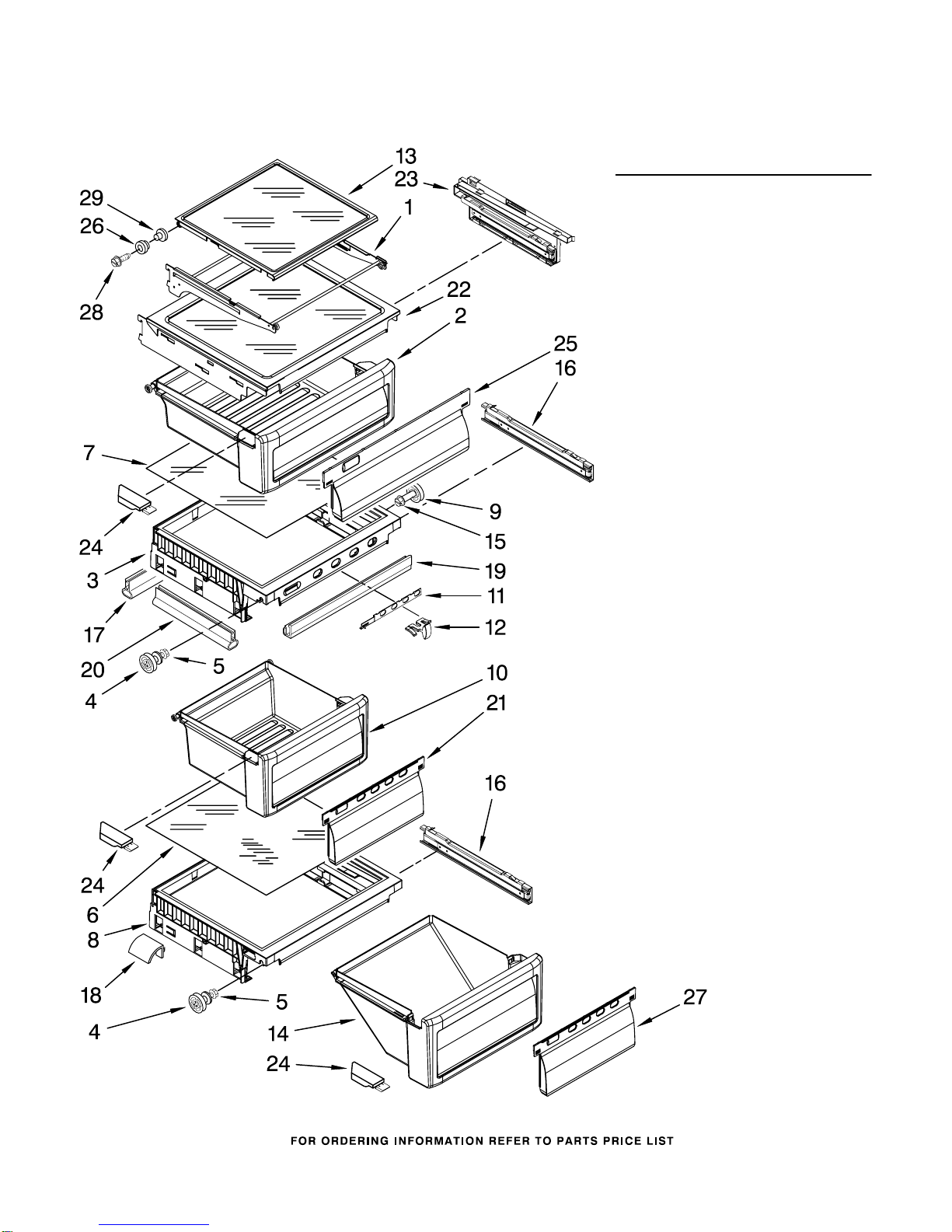

REFRIGERATOR SHELF PARTS

For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03

(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)

W10203951

Illus. Part

No. No. DESCRIPTION

1 2301072 Frame Assembly (2)

2 2301023 Snack Bin Asm

(Includes 24 & 25)

3 2301567 Cover, Crisper

(Includes 11, 12,

16, 17, 19 & 20)

4 2196485 Stud Assembly

5 3400894 Screw

6 2301028 Glass, Meat Cover

W10141754

Glass, Cover

8 2301568 Cover, Meat Pan

(Includes 16 & 18)

9 2196483 Stud Assembly

10 2301031 Crisper Pan Asm

(Includes 21 & 24)

11 2301026 Slide, Humidity

Control

12 2301025 Knob, Humidity

Control

13 2301084 Shelf & Roller

Assembly (2)

14 2301022 Meat Pan Asm

(Includes 24 & 27)

15 8281158 Screw

16 Glide Assembly

2301550 Right Side

2301551 Left Side

17 2301115 Gasket, Rear

18 2301126 Deflector

19 2301116 Gasket, Front

20 2301117 Gasket, Side (2)

21 2301001 Window, Crisper

Pan

22 2301566 Shelf, Snack

Pan

23 Support Assembly

2301569 Right Side

2301570 Left Side

24 Cap, Corner

2301016 Right Side

2301017 Left Side

25 2301006 Window, Snack Pan

26 2188212 Roller (2)

27 2301227 Window, Meat Pan

28 489439 Screw (2)

29 2174478 Eyelet−Roller

FREEZER LINER PARTS

For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03

(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)

W10203951

FREEZER LINER PARTS

For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03

(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)

W10203951

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2301139 Basket, Tall

3 3400893 Screw

4 2301134K Front, Basket

5 2205837K Shelf (2)

6 2301140 Basket, Sloped

7 8534064 Screw (12)

8 842534 Clip, Air Duct

9 2301138 Basket, Top

10 2198587 Cover, Emitter

11 2198697 Gasket, Ladder

12 2198635 Spring

13 2198634 Pin

14 Glide Assembly,

Top Basket

2301540 Right Side

2301541 Left Side

15 1115373 Switch, Rocker Arm

16 2220398 P.C. Board

Emitter

17 2255720 Cover, Ice Maker

18 2315398 Slide, Ice Maker

Mounting

19 489478 Screw

20 489214 Screw

21 Glide Assembly,

Middle/Bottom

Basket

2301542 Right Side

2301543 Left Side

22 2162085 Light Socket

23 2255743 Light Bulb

24 8281185 Screw

25 2198633 Flipper

W10173569

Cover, Receiver

27 2301340 Slide, Ice Maker

Shut Off

28 2255114 P.C. Board,

Receiver

29 2198643 Lens

30 2198589 Light Shield

31 2212340 Light Lens

32 2198641 Bracket, Ice Maker

Cover

33 2155597 Socket, Light

34 Ladder

2198609 Left Side

2198610 Right Side

35 2303234 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03

(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)

W10203951

MOTOR AND ICE CONTAINER PARTS

For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03

(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)

W10203951

Illus. Part

No. No. DESCRIPTION

W10139383

Ice Bin

W10140686

Crusher Bin

W10140642

Auger

4 2258220 Washer

5 1119007 Spacer, Flat (4)

W10139321

Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2305382 Rubber Boot

W10140685

Latch, Bin

21 2198608 Spring, Latch

22 2187813 Wire Assembly,

IDI Motor

23 2317243 Wiper

24 2212369 Holder

25 2220458 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

29 2198607 Spring

30 2305243 Drive Shaft

31 2317250 Divider −

Chamber

32 2252130 Dispenser, Motor

33 2305208 Bracket, Motor

35 8281163 Screw

36 2212365 Sleeve, Coupling

100

W10140692

Ice Container

(Complete)

REFRIGERATOR DOOR PARTS

For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03

(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)

W10203951

REFRIGERATOR DOOR PARTS

For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03

(White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless)

W10203951

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item #6)

2313299W White

2313299B Black

2301089S Stainless Steel

2313299T Biscuit

2301089SAP

Monochromatic

Stainless

2 2301486 Door Compartment

(Includes #14)

3 2223434K Door Bin (4)

4 3400012 Screw

5 2219698 Stud, Handle

6 Door Gasket,

Magnetic

2221302 Mist Beige

2221313 Black

2326338 Apollo Grey

7 Handle

2319727W White

2319727B Black

2319727S Stainless Steel

2319727T Biscuit

8 488208 Screw

9 2182178 Door Closer,

Upper Cam

10 489420 Screw

11 Bracket, Door Stop

2206629 Chrome

2206629B Black

12 Set Screw

W10010140

Chrome

W10010150

Black

13 Thimble, Top

2308091 For White & Black

Models Only

2308050 For Stainless

Steel Model Only

14 2159124 Gasket

15 Nameplate

W10046670

White

W10046700

Biscuit

W10046640

Black

W10046610

Gray

16 2193409K Beverage Holder(2)
