KitchenAid KSRS25FBAL00 User manual
1
CABINET PARTS REFRIGERATOR
3−94 Printed In U.S.A. (RCG) Part No. 4379299
For Models: KSRS25FBWH00, KSRS25FBAL00
(White) (Almond)
CABINET PARTS
Illus. Part
No. No. DESCRIPTION
2
For Models: KSRS25FBWH00, KSRS25FBAL00
(White) (Almond)
4379299
1 Cabinet (Not A
Serviceable Part)
2 2152011 Front Roller (2)
3 489393 Screw
4 981122 Roller (Rear) (2)
5 488454 Screw
6 2155013 Clip, Grille
7 489242 Screw
9 836196 Shim
12 1117937 Hinge Top (R.H.)
13 1123515 Shim, Hinge Top
14 489284 Screw
15 Hinge Cover
1129262 White
2150343 Almond
16 2155321 Hinge Bottom (R.H)
19 2155323 Hinge Bottom (L.H)
20 1129868 Spacer, Hinge
21 Filler, Wrapper
1110708 White
1110709 Almond
22 Grille
2155486 White
2155487 Almond
23 489367 Screw
30 2155449 Hinge, Top (L.H.)
31 2147310 Tap Plate (2)
35 489337 Screw
40 937360 Service Cord
41 940139 Drain Fitting
42 1108438 Tube, Extension
43 1108439 Clip, Drain Tube
47 2171576 Cover, Unit
49 Hinge Cover
1119787 White
1119789 Almond
50 489366 Washer
52 549193 Clamp, Service
Cord
53 489084 Screw
54 2155310 Door Closer,
Lower Cam
55 489420 Screw
Illus. Part
No. No. DESCRIPTION

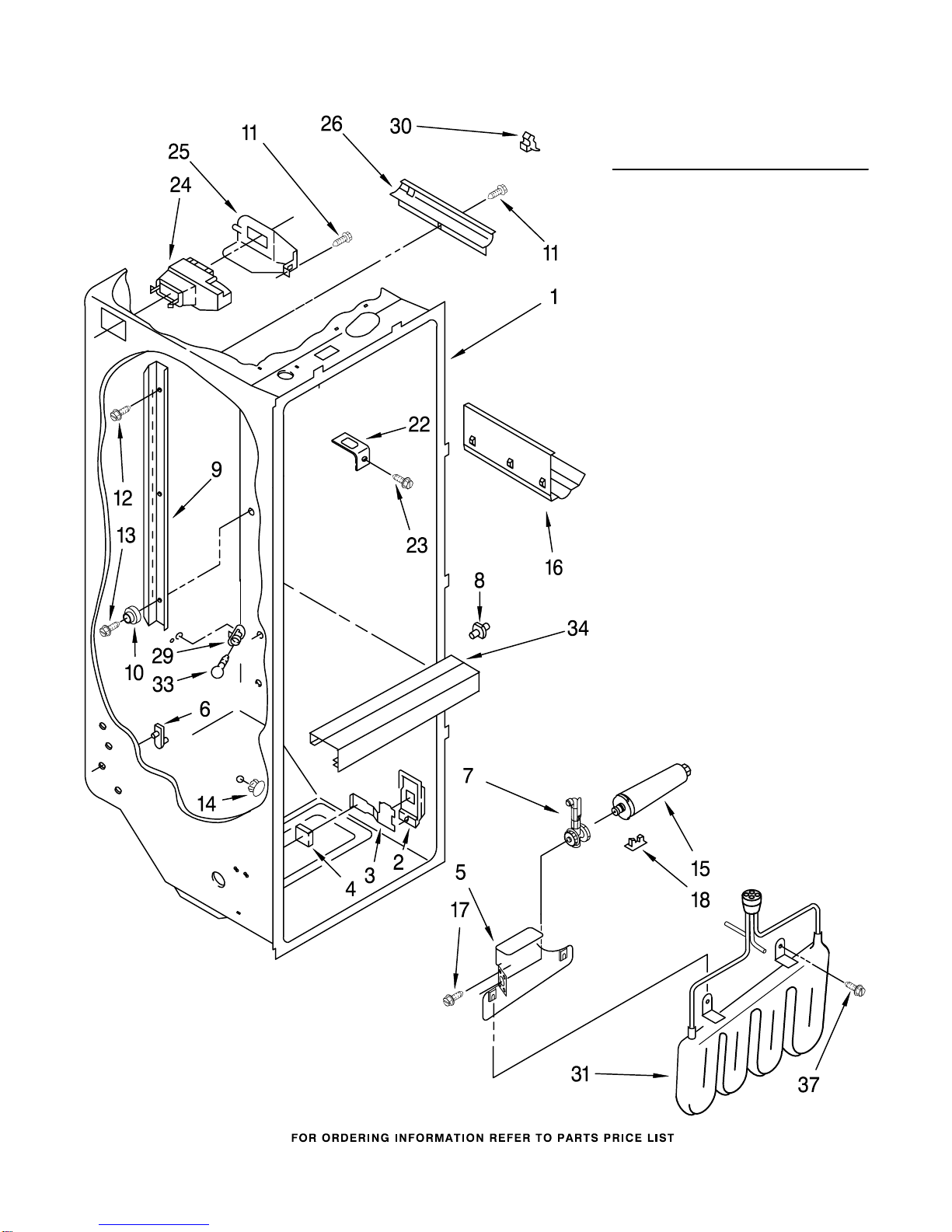

REFRIGERATOR LINER PARTS
3
For Models: KSRS25FBWH00, KSRS25FBAL00
(White) (Almond)
4379299
1 Liner (Not A
Serviceable Part)
2 985468 Escutcheon, Meat
Pan Control
3 984102 Slide Meat
Pan Control
4 992358 Foam Pad
5 2168740 Bracket
6 1125675 Stud, Pan Cover
7 2168939 Head Assembly,
Filter
8 1110718 Stud (9)
9 1116794 Ladder, Shelf (2)
10 658944 Stud, Shelf (2)
11 486298 Screw (2)
12 487539 Screw
13 487559 Screw (2)
14 941839 Plug, Hole
15 2168701 Filter
16 1126137 Rack, Wine & Egg
17 489425 Screw (4)
18 1115374 Clip
22 1123919 Bracket Retainer
23 489290 Screw, (2)
24 2161251 Air Diffuser
Assembly
25 2152019 Air Diffuser
Cover
26 2150331 Cover, Conduit
29 851067 Socket, Light
30 842534 Clip, Air Duct
31 2168798 Reservoir
33 527949 Light Bulb
34 1125586 Light Lens
37 488678 Screw (2)
4
Illus. Part
No. No. DESCRIPTION

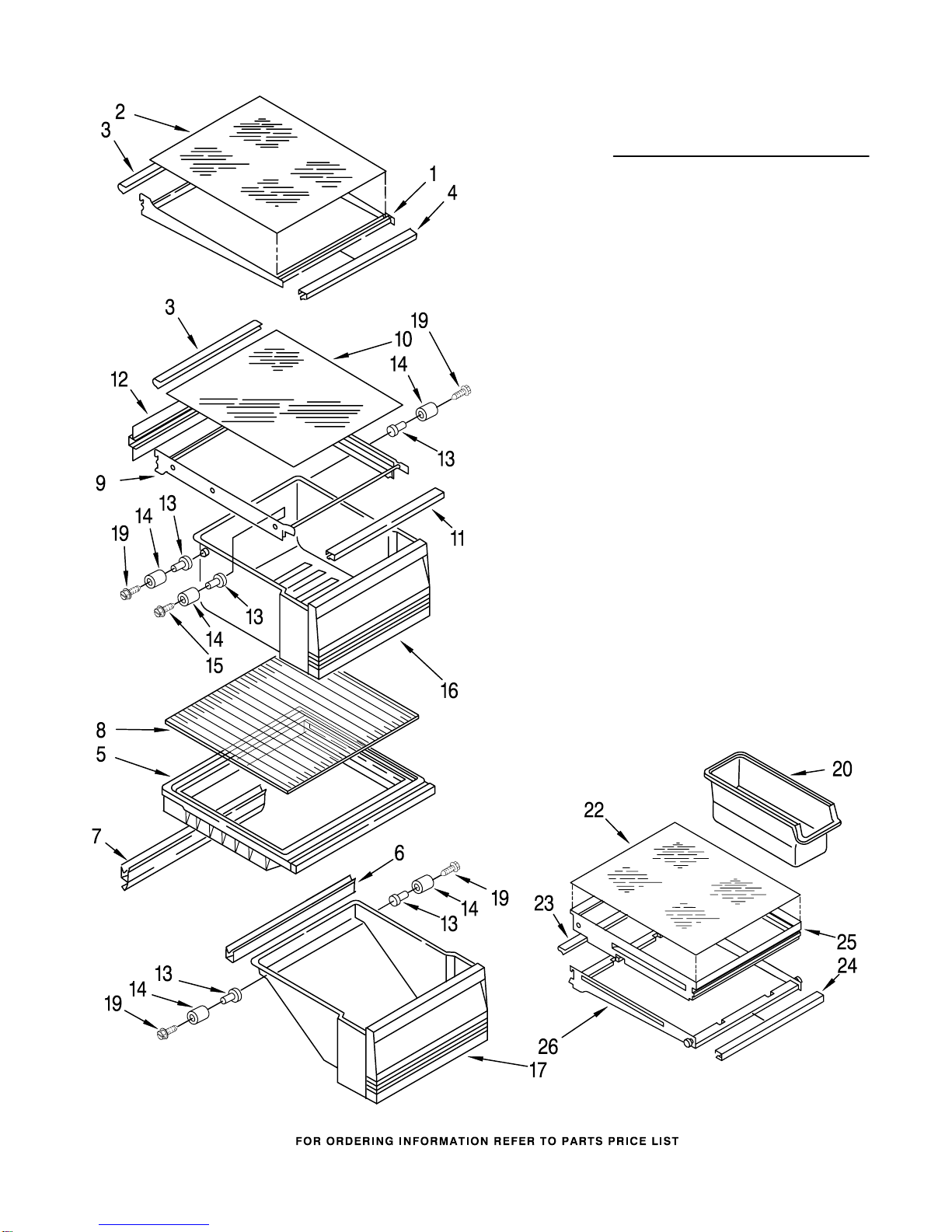

REFRIGERATOR SHELF PARTS
For Models: KSRS25FBWH00, KSRS25FBAL00
(White) (Almond)
4379299
1 1125597 Shelf Assembly,
Cantilever (2)
2 1125593 Glass, Shelf
3 1125594 Retainer, Glass
4 1125786 Gasket, Front
5 2161771 Cover, Pan
Assembly (2)
6 1125705 Gasket, Cover
(Front)
7 1125706 Gasket, Cover
(Rear)
8 1125822 Glass, Cover (2)
9 2161760 Pan Shelf & Slide
Assembly
(Includes 13,
14, & 15)
10 1125595 Glass, Shelf
11 1125814 Gasket (Front)
12 1125817 Gasket (Rear)
13 1112308 Eyelet, Roller
14 2161749 Roller
15 489212 Screw
16 2161893 Crisper Pan (2)
(Includes 13,
14 & 19)
17 2161892 Utility Pan
19 489261 Screw
20 1116917 Container
22 2161683 Glass, Shelf
23 2161809 Reflector
24 2161686 Gasket, Front
25 2161706 Frame And Roller
26 2161806 Frame And Roller
Assembly
(Cantilever)
5

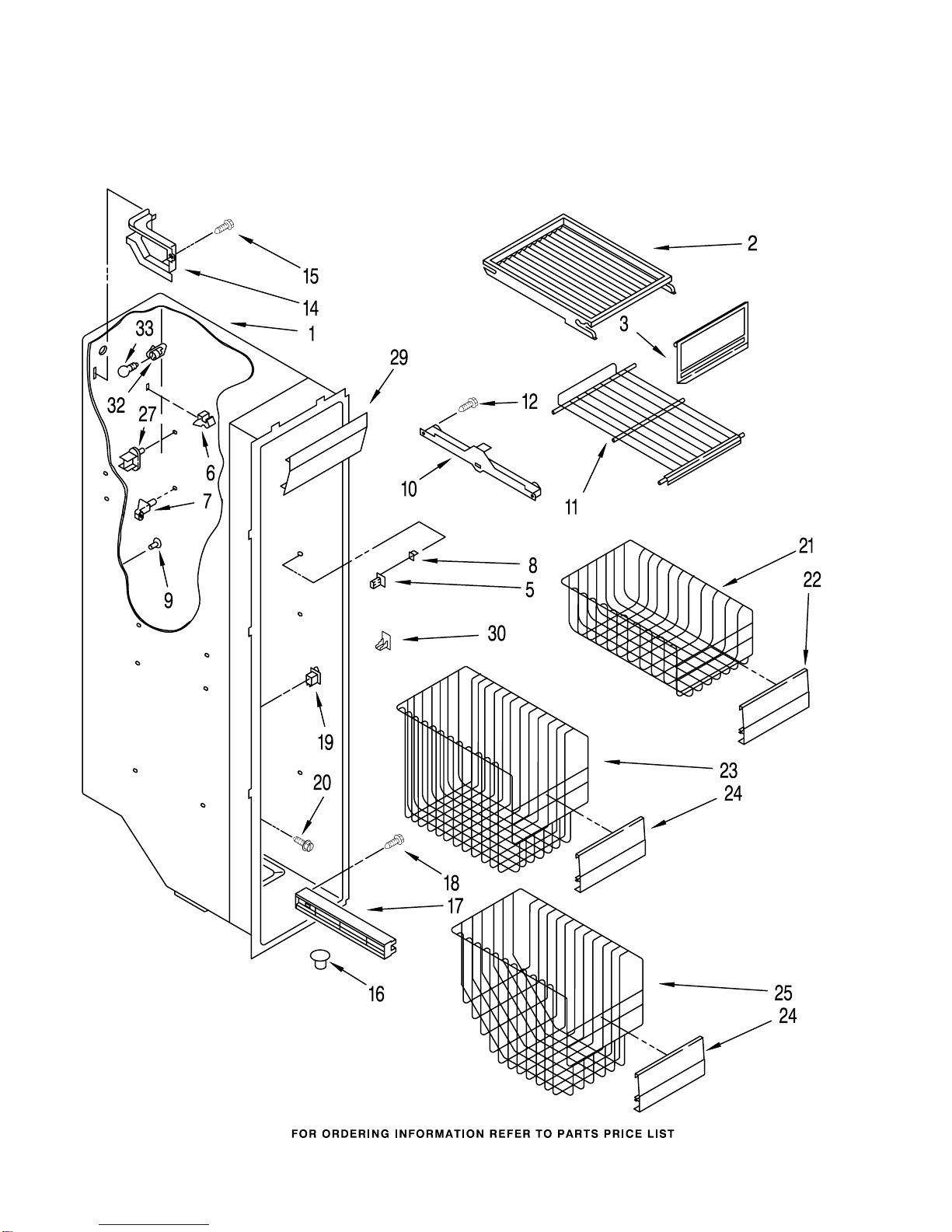

FREEZER LINER PARTS
For Models: KSRS25FBWH00, KSRS25FBAL00
(White) (Almond)
4379299
6
FREEZER LINER PARTS
Illus. Part
No. No. DESCRIPTION
For Models: KSRS25FBWH00, KSRS25FBAL00
(White) (Almond)
4379299
1 Liner (Not A
Seviceable Part)
2 1125824 Shelf, Top
Compartment
3 1125657 Door, Ice
Compartment
5 946356 Stud, R.S. Front
6 842534 Clip, Air Duct (2)
7 1115317 Support, Stud (4)
8 946355 Support, Stud (2)
9 1110779 Grommet (2)
10 Slide, Container
1119237 Left Side
1119293 Right Side
11 2155683 Shelf
12 489100 Screw (4)
14 2155572 Cover, Wiring
15 489176 Screw
16 2155556 Drain Fitting
17 Shelf Track
1126354 Right Side (3)
1126355 Left Side (3)
18 487042 Screw
19 1115373 Switch, Rocker Arm
20 489242 Screw
21 2155685 Basket, Middle
22 1125770 Front, Basket
23 2152093 Basket, Upper
24 1125612 Front, Basket
25 2152102 Basket, Lower
27 1115386 Stud, Shelf (4)
Compartment
29 1115389 Light Lens
30 1106982 Stud, R.S. Rear
32 851067 Socket, Light
33 527949 Bulb, Light

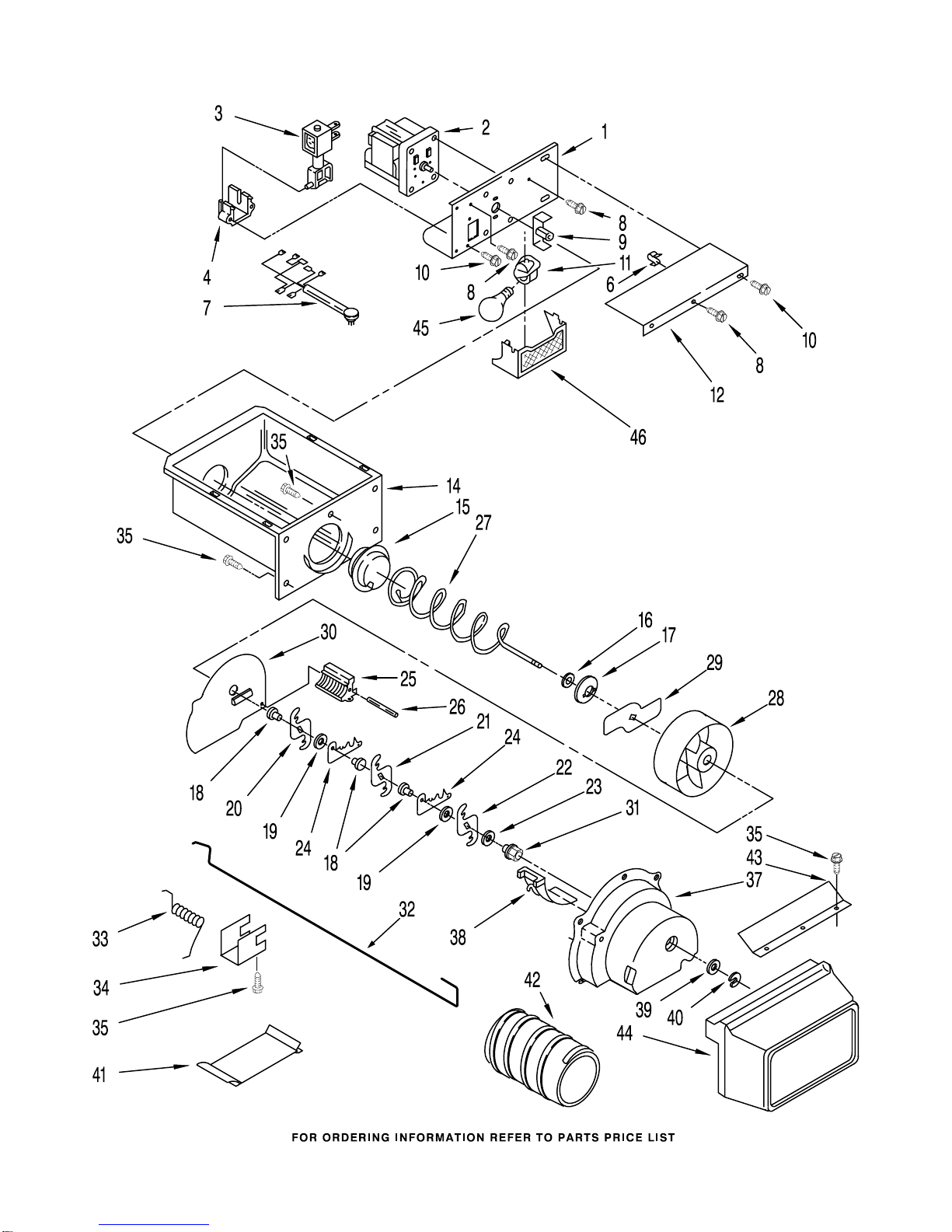

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRS25FBWH00, KSRS25FBAL00
(White) (Almond)
4379299
MOTOR AND ICE CONTAINER PARTS
Illus. Part
No. No. DESCRIPTION
8
For Models: KSRS25FBWH00, KSRS25FBAL00
(White) (Almond)
4379299
1 1118386 Bracket, Motor
2 2155263 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
6 1115374 Clip, Wiring
7 2149192 Wiring Assembly,
Ice Dispenser
8 489399 Screw
9 983663 Coupling, Motor
10 489242 Screw
11 851067 Socket, Light
12 1115339 Cover, Motor
14 2152702 Ice Container
15 983668 Coupling, Conveyor
16 1118480 Stop, Cone
17 1119074 Feeder Cone
18 1119005 Spacer, Step (3)
19 1119007 Spacer, Flat (2)
20 1119006 Blade, Rotary
21 1119012 Blade, Rotary
22 1119013 Blade, Rotary
23 489235 Washer, Plain
24 1119009 Blade, Fixed (2)
25 2157405 Block, Blade
26 489229 Roll Pin
27 1119003 Conveyor
28 2171681 Drum
29 1118470 Drive Bar
30 2171682 Floating Baffle
31 1119018 Nut, Bearing
32 2155231 Control Arm
33 1119020 Spring, Return
34 1119021 Retainer Clip, Rod
35 488886 Screw
37 2157407 Housing, Crusher
38 1119017 Deflector, Ice
39 489234 Washer, Plain
40 489236 Retainer Ring
41 2152700 Housing, Filler
42 2152021 Sleeve−Auger
43 1119043 Ice Deflector
44 1126036 Front Cover,
Ice Container
45 527949 Light Bulb
46 983359 Light Lens,
Dispenser
9
REFRIGERATOR DOOR PARTS
For Models: KSRS25FBWH00, KSRS25FBAL00
(White) (Almond)
4379299
REFRIGERATOR DOOR PARTS
10
Illus. Part
No. No. DESCRIPTION
For Models: KSRS25FBWH00, KSRS25FBAL00
(White) (Almond)
4379299
1 Refrigerator Door
(Includes #7)
2159404 White
2159405 Almond
2 1117999 Load, Lock (4)
3 2159136 Door, Compartment
4 1125981 Holder, Beverage
5 1125936 Butter Dish
6 Insert, Handle
1117948 White
1117949 Almond
7 2159079 Door Gasket,
Magnetic (Service)
8 1107341 End Cap, Handle
9 489075 Screw
10 1107215 Handle Assembly
11 487909 Screw
12 1107651 Spacer, Handle
14 489367 Screw
15 2155332 Bracket, Door Stop
16 1117952 Retainer, Insert
(Bottom)
17 1107243 Retainer, Insert
18 1119062 Trim, Door
19 1125555 Shelf Bin (4)
Following Parts Not Illustrated
(Optional Parts Only)
BLACK GLASS PANEL KIT
(Optional Kit)
4318336 Trim Kit
Acrylic Panel Kit
4210348 Black
4211148 White
4211147 Almond
Handle Inserts
4318339 Black
4318340 Woodgrain
4318417 Black Grille Kit
