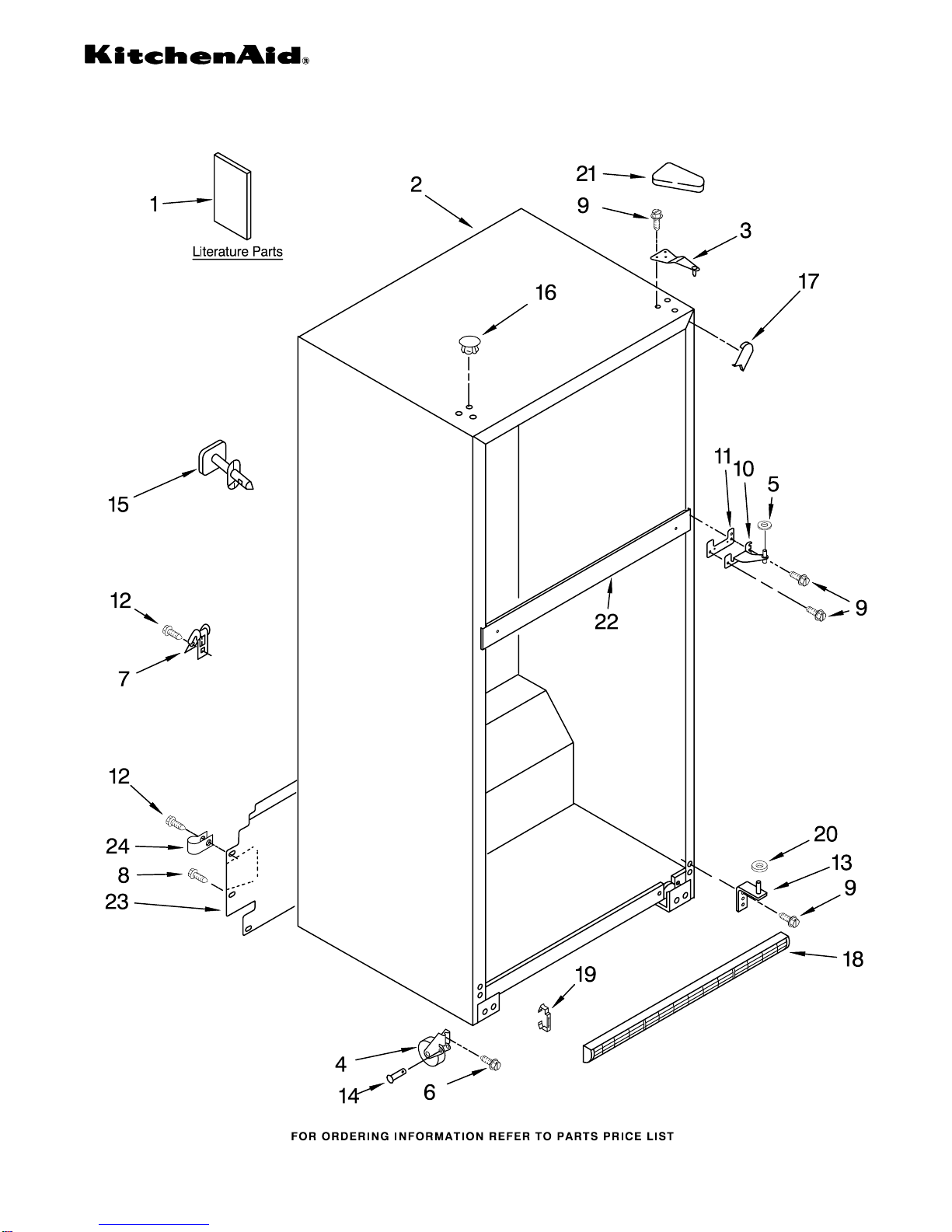

CABINET PARTS

(Appollo Gray)

For Models:K2TLEFFWMS01

10−10 Litho In U.S.A. (mjb)(bay) Part No. W10350590 Rev.A

REFRIGERATOR

CABINET PARTS

(Appollo Gray)

For Models:K2TLEFFWMS01

W10350590

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10312254

Service & Wiring

Sheet

W10279295

Energy Label

W10312247

U & C Guide Bi

W10312248

U & C GuideTri

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

787316 Do−It−Yourself

Manual, Icemaker

2 Cabinet (Not A

Serviceable Part)

3 2261963 Hinge (Top)

4 2166108 Roller, Front (2)

5 489341 Washer

6 3400504 Screw (2)

7 549193 Clamp, Cord

8 489427 Screw

9 489497 Screw

10 2254618 Hinge, Center

11 2183852 Shim, Hinge

Center

12 8281265 Screw

13 2254473 Hinge Butt

14 2221797 Rivet

15 Fitting, Water Tube

(NOT SERVICED)

16 2254506 Hole Plug (6)

W10283961

Corner Filler (2)

18 2254530 Grille

(Includes

Illus. 19)

19 2189356 Clip, Grille (2)

20 487576 Washer

21 2254510 Cover, Hinge

22 Rail, Center

(NOT SERVICED)

23 2254576 Cover, Unit

24 489385 Tube Clamp

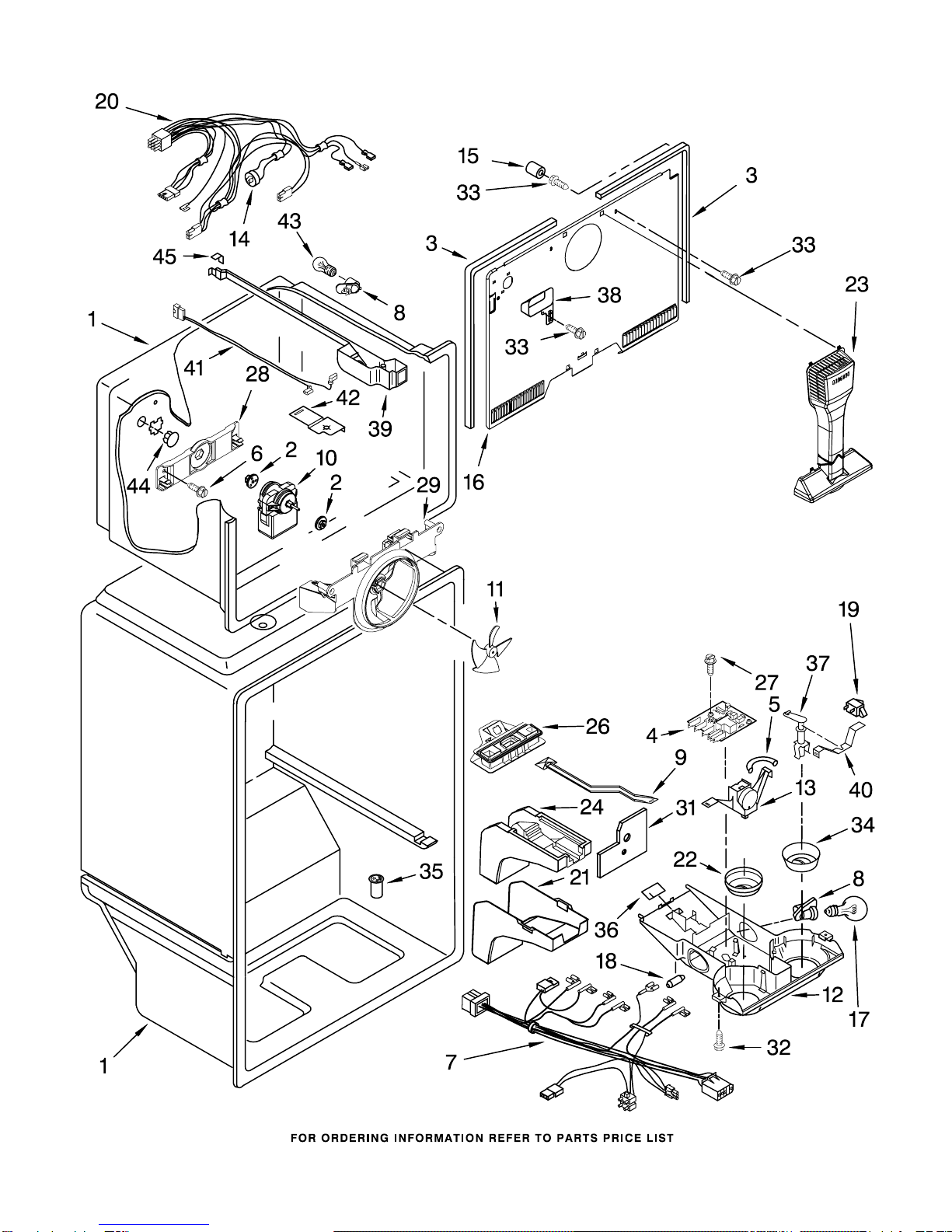

LINER PARTS

(Appollo Gray)

For Models:K2TLEFFWMS01

W10350590

LINER PARTS

(Appollo Gray)

For Models:K2TLEFFWMS01

W10350590

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254360 Gasket, Evaporator

Cover (2)

4 2304099 Adaptive Defrost

Control

5 2212485 Thermostat Tube

Barrier

6 488208 Screw

7 2310057 Wire Assembly

Control Box

8 2162085 Socket, Light

9 2179858 Damper, Air

W10208121

Fan Motor

11 2163777 Fan Blade

12 2212982 Control Box

13 2200859 Thermostat Assembly

(Includes

Illus. 5 & 18)

14 2321800 Defrost, BI−Metal

15 487996 Plastic Closure

16 2320193 Cover, Evaporator

17 527949 Light Bulb (2)

18 2200831 Weight, Thermal

19 1118894 Rocker Arm

Switch

W10129803

Wire Assembly,

Freezer Compartment

(Includes

Illus. 14)

21 2176281 Cover, Air

Diffuser

22 2200863 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

26 2204690 Air Separator

Assembly

27 8534009 Screw

28 2254454 Bracket

Evap. Fan, Rear

29 2254453 Bracket,

Fan Motor

31 2204639 Shield, Heat

32 489442 Screw

33 489478 Screw

34 2302536 Knob, Damper

35 2171931 Release Valve

36 2205079 Seal, Rear

Thermostat

37 2179859 Damper Post

38 2205003 Cover−Inlet Tube

39 2300418 Housing Base

40 2163810 Bracket,

41 2187601 Wiring Harness,

Freezer Light

42 2193491 Electrical Shield,

Freezer Light

43 850166 Light Bulb

44 941839 Hole Plug

45 2166284 Gasket, Rear

Damper Knob

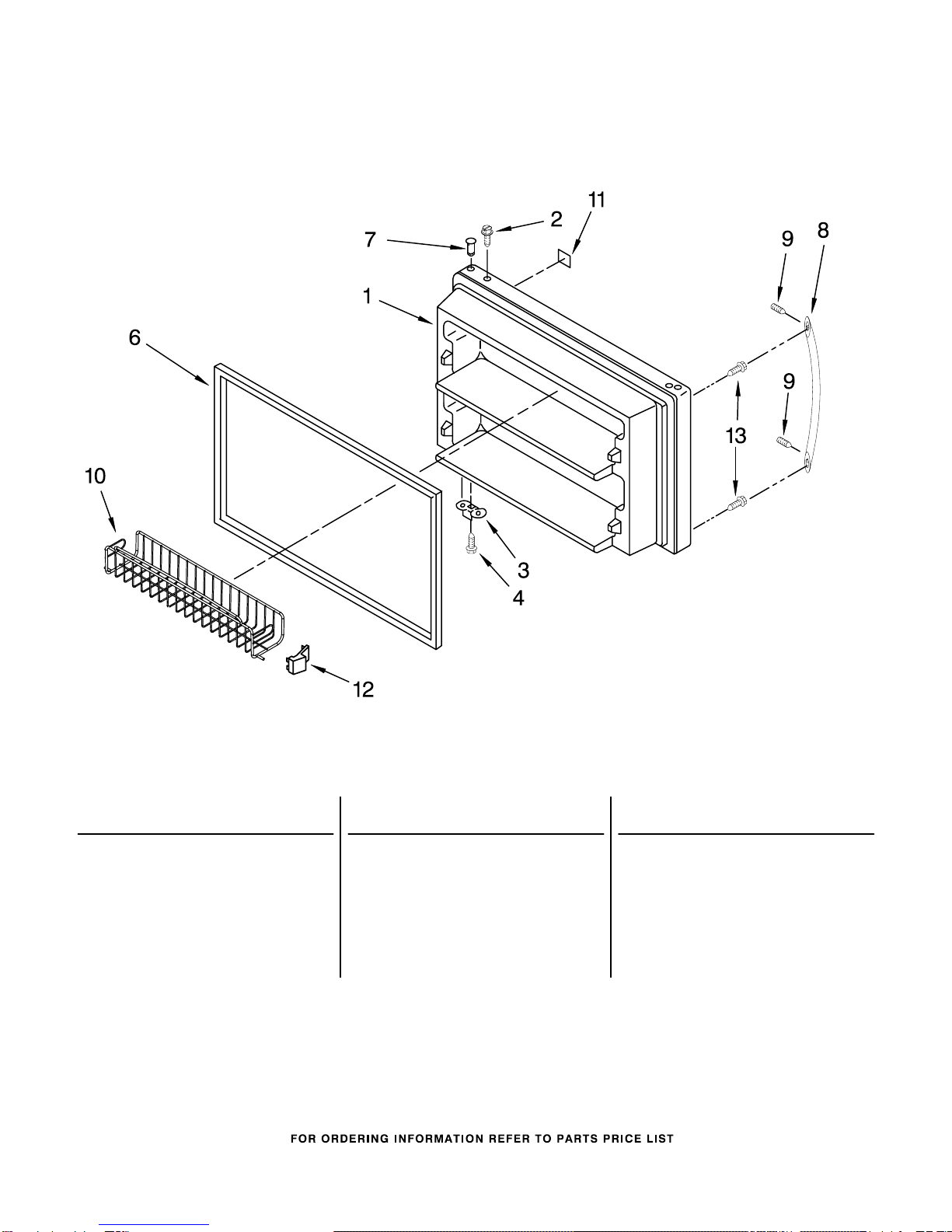

FREEZER DOOR PARTS

(Appollo Gray)

For Models:K2TLEFFWMS01

W10350590

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10280348

Freezer Door

(Includes

Illus. 6 & 7)

2 8281206 Screw

3 2189202 Bracket, Door

Stop

4 488921 Screw

6 Door Gasket,

Magnetic

W10171479

Mist Beige

7 2314293 Thimble

8 Handle, Freezer

(Includes

Illus. 11)

W10274642

Arch

W10010140

Set Screw

10 2300796 Basket, Door (2)

W10046610

Nameplate

12 2300798 EndCap, Bskt.(L)

2300799 Endcap, Bskt.(R)

W10170540

Screw

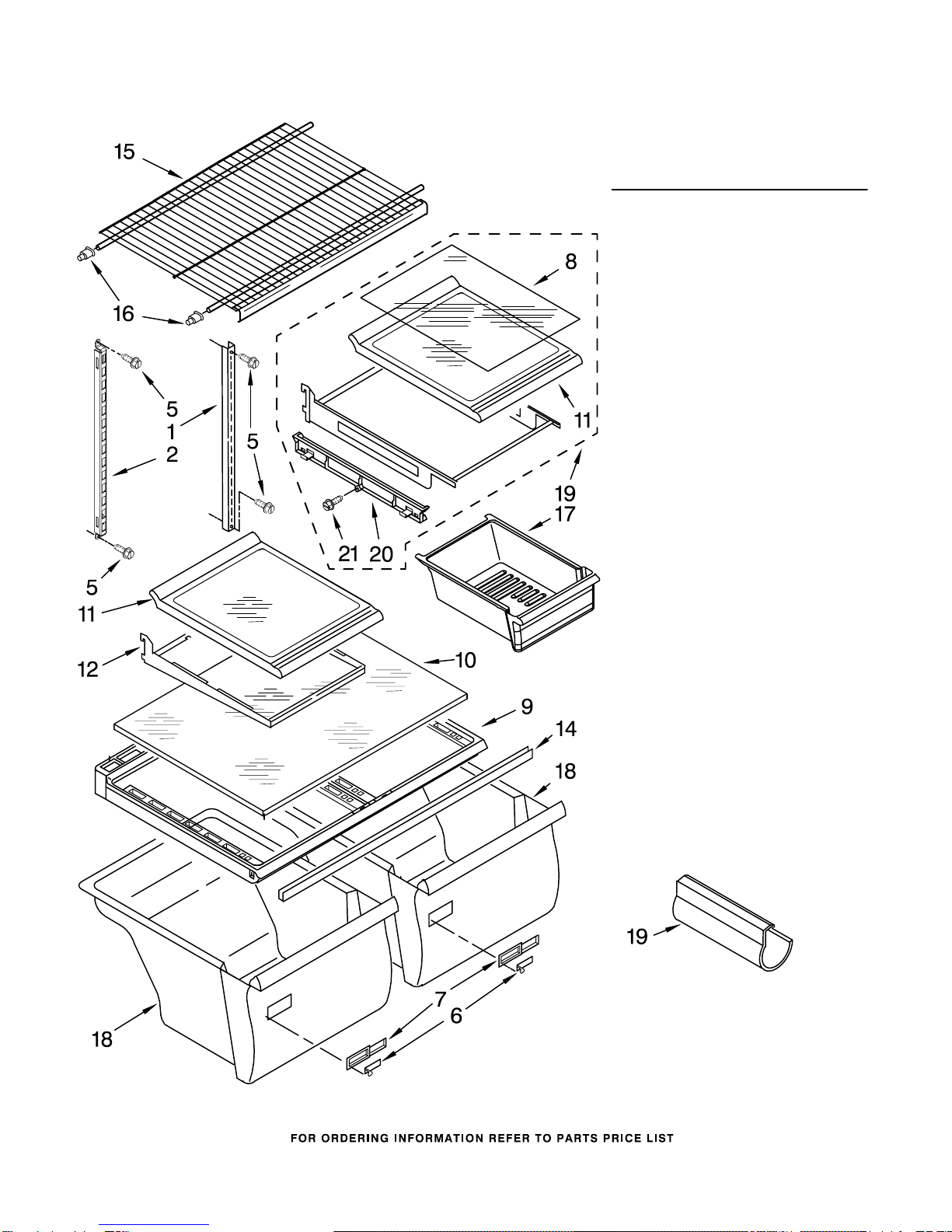

SHELF PARTS

(Appollo Gray)

For Models:K2TLEFFWMS01

W10350590

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2300520 Shelf, Ladder

Center

5 489478 Screw

6 2176222 Slide, Humidity

Control

7 2212446 Body, Humidity

Control

8 2214913 Glass Shelf

9 2314502 Crisper Cover

10 2210573 Glass, Crisper

Cover

11 2225741 Shelf, Spillgaurd

12 2225698 Frame Assembly,

Shelf

14 2314478 Support, Crisper

Cover

15 2189454 Shelf, Freezer

16 2163762 Cup, Shelf Mtg.

17 2218132K Pan, Meat

18 2218130 Crisper Pan

19 2214911 Shelf Assy

20 2214892 Slide, Pan

21 3400065 Screw

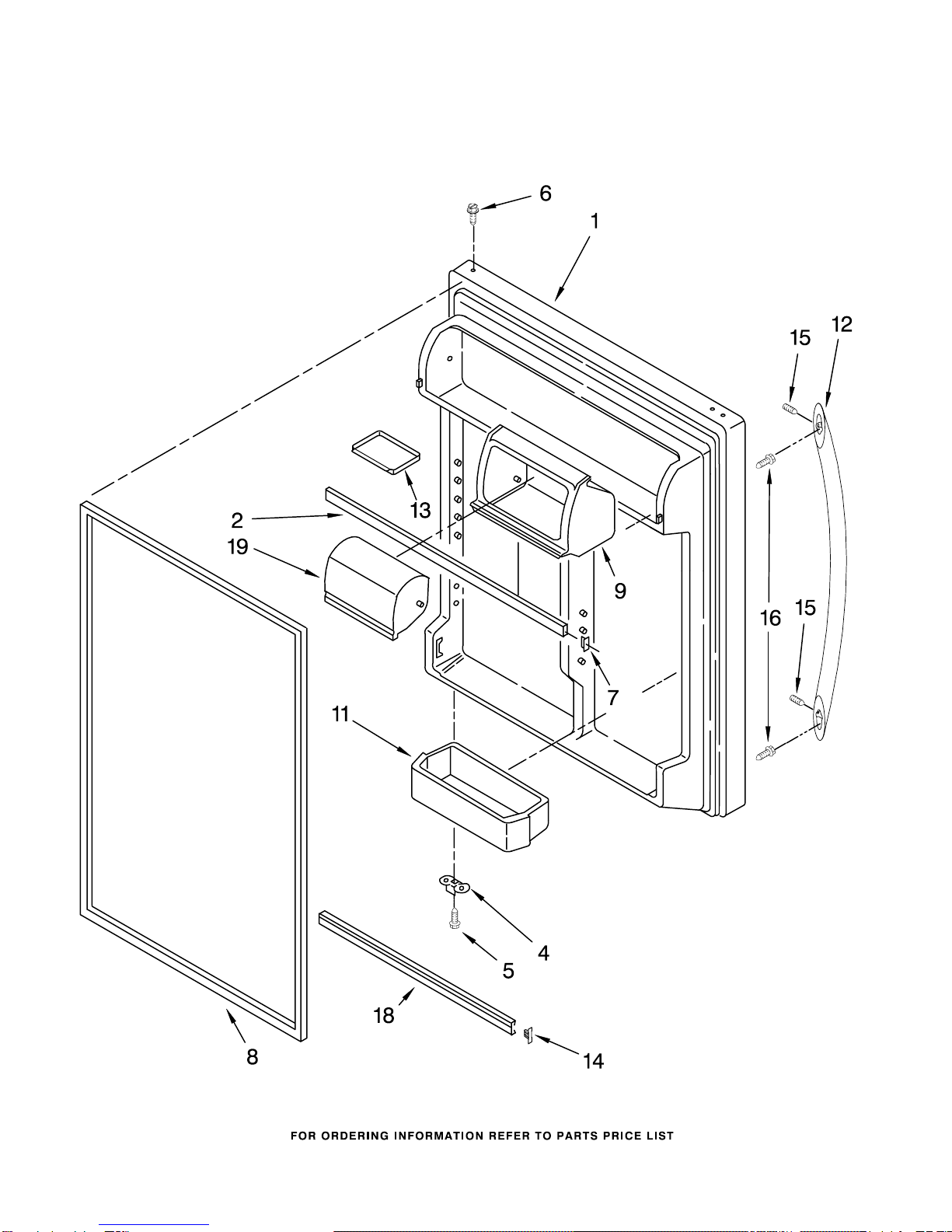

REFRIGERATOR DOOR PARTS

(Appollo Gray)

For Models:K2TLEFFWMS01

W10350590

REFRIGERATOR DOOR PARTS

(Appollo Gray)

For Models:K2TLEFFWMS01

W10350590

Illus. Part

No. No. DESCRIPTION

W10280364

Refrigerator Door

(Includes

Illus. 8 & 10)

2 2159306 Trim, Door Shelf

4 2189202 Bracket, Door

Stop

5 488921 Screw, 8 x 1/2

6 8281206 Screw, Shoulder

7 2177340 Plug, Trim

8 Door Gasket,

Magnetic

W10171475

Mist Beige

9 2210566 Housing,

Compartment

W10333273

Bin, Door Shelf

12 Handle,

Refrigerator

W10274642

Arch

13 2195388 Tray, Door

14 2156006 Plug, Trim

W10010140

Set Screw

W10170540

Screw

18 2195948 Trim, Door

19 2218109 Compartment Door

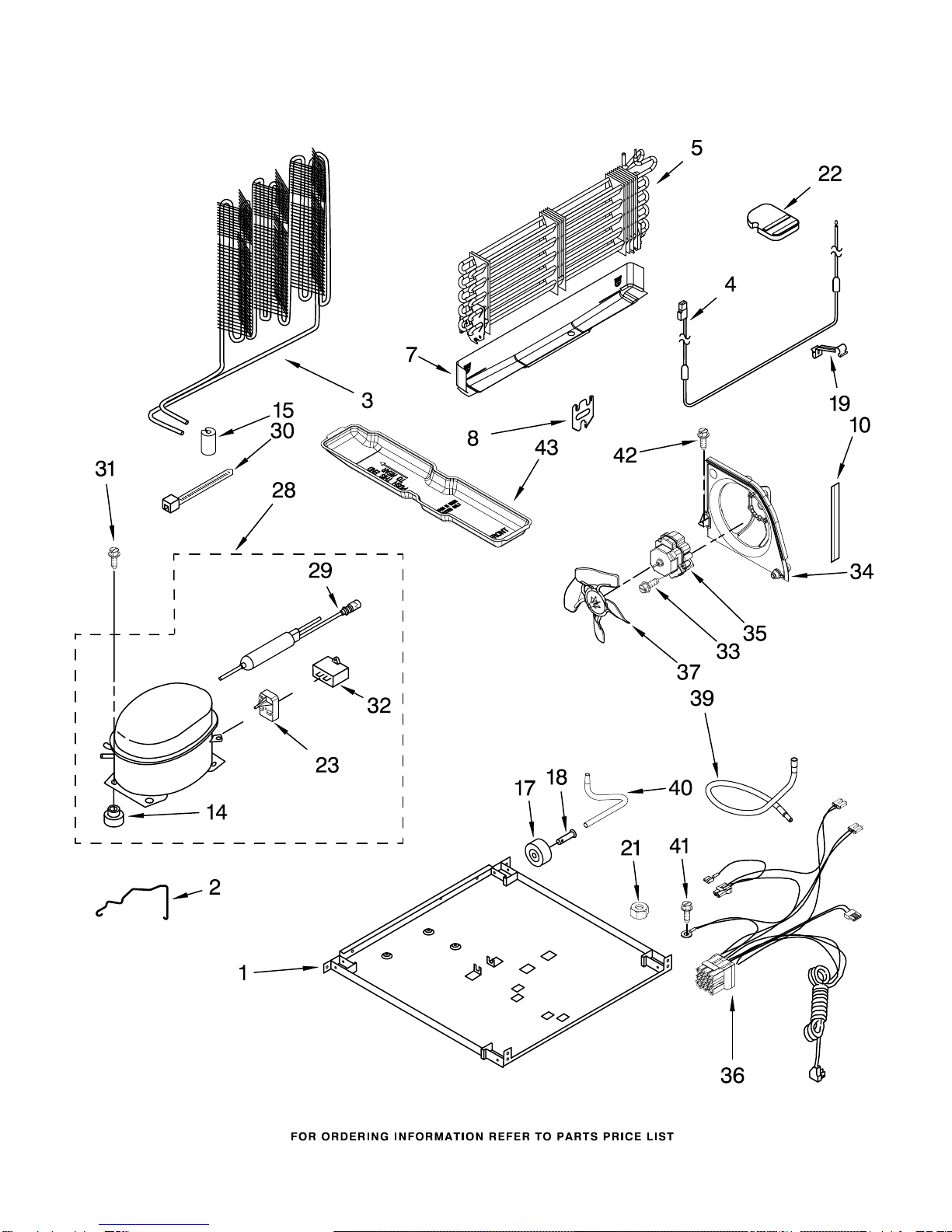

UNIT PARTS

(Appollo Gray)

For Models:K2TLEFFWMS01

W10350590

UNIT PARTS

(Appollo Gray)

For Models:K2TLEFFWMS01

W10350590

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2320187 Plate, Unit

Mounting

W10174384

Retaining Clip

W10159808

Condenser

W10140847

Heater, Defrost

5 2254249 Evaporator Assy.

7 2254295 Drain Pan

8 2176301 Bracket, Heater

10 2300638 Extension, Air

Baffle

14 Grommet (4)

1100826 Production

4387558 Service

15 2319835 Grommet−Cond(4)

17 2150304 Roller (2)

18 2179826 Rivet

19 2182338 Clip, Heater

21 Nut

(Not Serviced)

22 2201185 Support Block

W10194431

Start−Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

W10164016

Compressor

(Includes

Illus.14,29 & 32)

(Also Order

482801

Installation Kit

& 876765

Tube Kit)

29 Drier

W10177049

Service

30 2155774 Clamp

31 489373 Screw

32 Capacitor

2264017 Production

1118576 Service

33 8533961 Screw

34 2315541 Air Baffle

35 2188874 Motor, Condenser

36 2187382 Wire Assembly

Unit

37 2225834 Fan Blade

W10189806

Tube, Suction

W10274306

Tube, Process

41 488500 Screw

42 3400518 Screw

43 2254574 Evaporator Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.0 Ozs.

(R134A)
