KitchenAid KSRG25FKBL03 User manual
CABINET PARTS
1
For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03
(White) (Black) (Biscuit)
5−06 Printed In U.S.A. (mek) Part No. 8198120
REFRIGERATOR
CABINET PARTS
2
For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03
(White) (Black) (Biscuit)
8198120
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
1
LIT2254906
Use & Care Guide
LIT2220109
Service & Wiring
Sheet
LIT2220281
Energy Label
LIT2220407
Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top, RC
11 Hinge Cover, FC
2203407W White
2203407B Black
2203407T Biscuit
12 2217075 Hinge Bottom (2)
13 Filler, Wrapper
2196094 White
2196097 Black
2196150 Biscuit
14 Grille
2186881W White
2186881B Black
2186881T Biscuit
15 489497 Screw
16 2203770 Hinge, Top FC
17 489464 Screw
18 940139 Drain Fitting
19 1108438 Tube, Extension
20 1108439 Clip, Drain Tube
21 2204203 Cover, Unit
22 Hinge Cover, RC
2203408W White
2203408B Black
2203408T Biscuit
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2155311 Door Closer,
Lower Cam (2)
26 489483 Screw
27 2186443 Housing, Water
Filter
28 2203220 Water Filter
29 489500 Screw
30 Cap, Water
Filter
2186884W White
2186884B Black
2186884T Biscuit
31 Cabinet (Not A
Serviceable Part)
32 8281227 Screw
REFRIGERATOR LINER PARTS
3
For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03
(White) (Black) (Biscuit)
8198120
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2182147 Louver
6 2196485 Stud Assembly
7 3400894 Screw
8 2196483 Stud Assembly
9 2206273 Ladder, Shelf (2)
10 8281158 Screw
11 486298 Screw (2)
12 487539 Screw
13 2205813 Strap
16 2179404 Rack, Wine & Egg
22 1123919 Bracket Retainer
23 489290 Screw (2)
24 2209754 Air Diffuser
Assembly
25 2152019 Air Diffuser
Cover
26 2150331 Cover, Conduit
29 2162085 Socket
30 842534 Clip, Air Duct
31 2217199 Reservoir
33 527949 Light Bulb
34 2254920 Light Lens
37 488280 Screw
REFRIGERATOR SHELF PARTS
4
For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03
(White) (Black) (Biscuit)
8198120
Illus. Part
No. No. DESCRIPTION
1 2195975 Shelf Assembly,
Cantilever (3)
2 2174253 Button, Humidity
3 2174252 Slide, Humidity
4 2174273 Gasket, Side (2)
5 2161491 Cover, Meat Pan
(Includes Items
13, 14 & 15)
6 2209677 Snack Pan
7 2179243 Trim, Handle
8 2189526 Glass, Cover
9 2174250 Cover, Crisper
(Includes 2,
3, 4, 11, 12,
13, 14 & 19)
10 2174148 Glass, Cover
11 2174272 Gasket (Front)
12 2174274 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2179227 Crisper Pan
(Includes 13,
14, 18, 19 & 21)
17 2179231 Meat Pan
(Includes 13,
14, 19 & 22)
18 2174076 Window, Crisper
19 489261 Screw
20 2176095 Deflector
21 Cap, Crisper Pan
2174259 Right Side
2174258 Left Side
22 2174362 Window, Meat Pan
23 2216624 Egg Bin
24 2216102 Shelf & Roller
Assembly
26 2206346 Shelf, Snack Pan
FREEZER LINER PARTS
5
For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03
(White) (Black) (Biscuit)
8198120
FREEZER LINER PARTS
6
For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03
(White) (Black) (Biscuit)
8198120
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 941839 Hole Plug
3 3400893 Screw
4 940014 Hole Plug
6 2181765 Basket, Tall
7 Track, Basket−Dual
2216106 Right Side
2216107 Left Side
9 2211746 Shelf, Slide Out
Upper
12 2171766 Basket, Front
13 Shelf Track
2181760 Right Side
2181759 Left Side
14 2205837 Shelf
15 2181764 Basket, Sloped
16 486298 Screw
17 842534 Clip, Air Duct
19 2198587 Cover, Emitter
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2198642 Cover, Ice Maker
28 2212321 Slide, Ice Maker
Mounting
29 489478 Screw
30 489214 Screw
31 2198665 Tube, P.C. Board
32 2162085 Light Socket
33 527949 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2198588 Cover, Receiver
37 2198637 Slide, Ice Maker
Shut Off
38 2220402 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
44 527949 Light Bulb
45 Ladder
2198609 Left Side
2198610 Right Side
46 2219878 Shield, Wiring

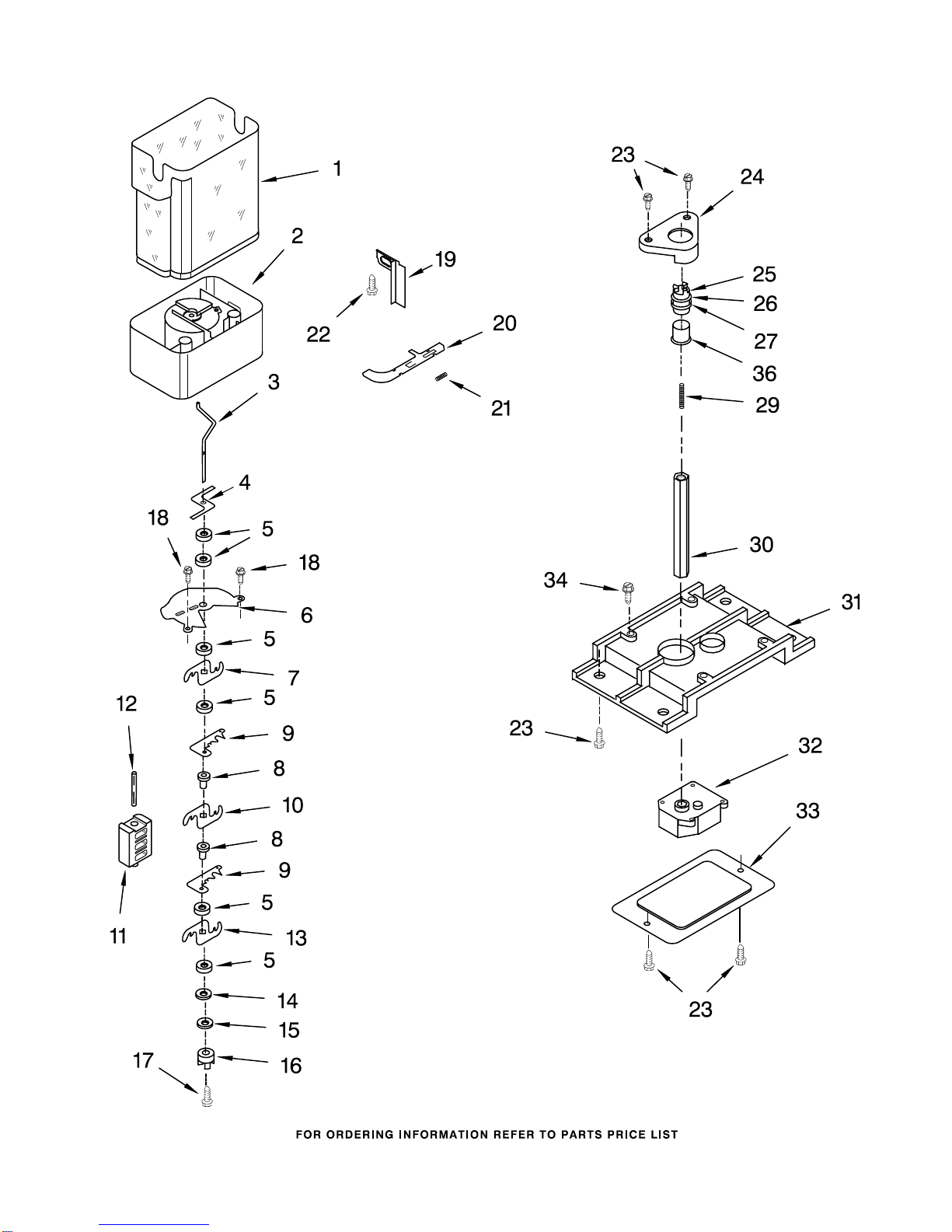

MOTOR AND ICE CONTAINER PARTS
7
For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03
(White) (Black) (Biscuit)
8198120
MOTOR AND ICE CONTAINER PARTS
8
For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03
(White) (Black) (Biscuit)
8198120
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2212367 Crusher Bin
3 2211590 Auger
4 2198603 Blade, Stirring
5 1119007 Spacer, Flat (6)
6 2198591 Cover, Crusher
7 1119013 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2198601 Blade, Fixed
10 1119012 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 1119006 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2198605 Button, Bin
20 2212371 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw
23 8281163 Screw
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
29 2198607 Spring
30 999536 Drive Shaft
31 2198655 Bracket, Motor
32 2198594 Dispenser, Motor
33 2198626 Cover
34 8281162 Screw
36 2212365 Sleeve, Coupling
REFRIGERATOR DOOR PARTS
9
For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03
(White) (Black) (Biscuit)
8198120
REFRIGERATOR DOOR PARTS
10
For Models: KSRG25FKWH03, KSRG25FKBL03, KSRG25FKBT03
(White) (Black) (Biscuit)
8198120
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2207327W White
2207327B Black
2207327T Biscuit
3 2182399 Door, Compartment
4 2193409 Holder, Beverage
5 2165792 Butter Dish
6 Insert, Handle
2173825 White
2173829 Black
2186863T Biscuit
7 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
8 End Cap, Handle
2194778W White
2194778B Black
2194778T Biscuit
9 3400852 Screw
10 Retainer, Insert
2194777W White
2194777B Black
2194777T Biscuit
11 489463 Screw
12 2182178 Door Closer,
Upper Cam
13 2159124 Gasket
14 489420 Screw
15 Bracket, Door Stop
2206629 Chrome
2206629B Black
16 2171063 Shelf Bin (4)
17 3400012 Screw
18 2182180 Thimble−Top
