KitchenAid KBRS22KGAL2 User manual

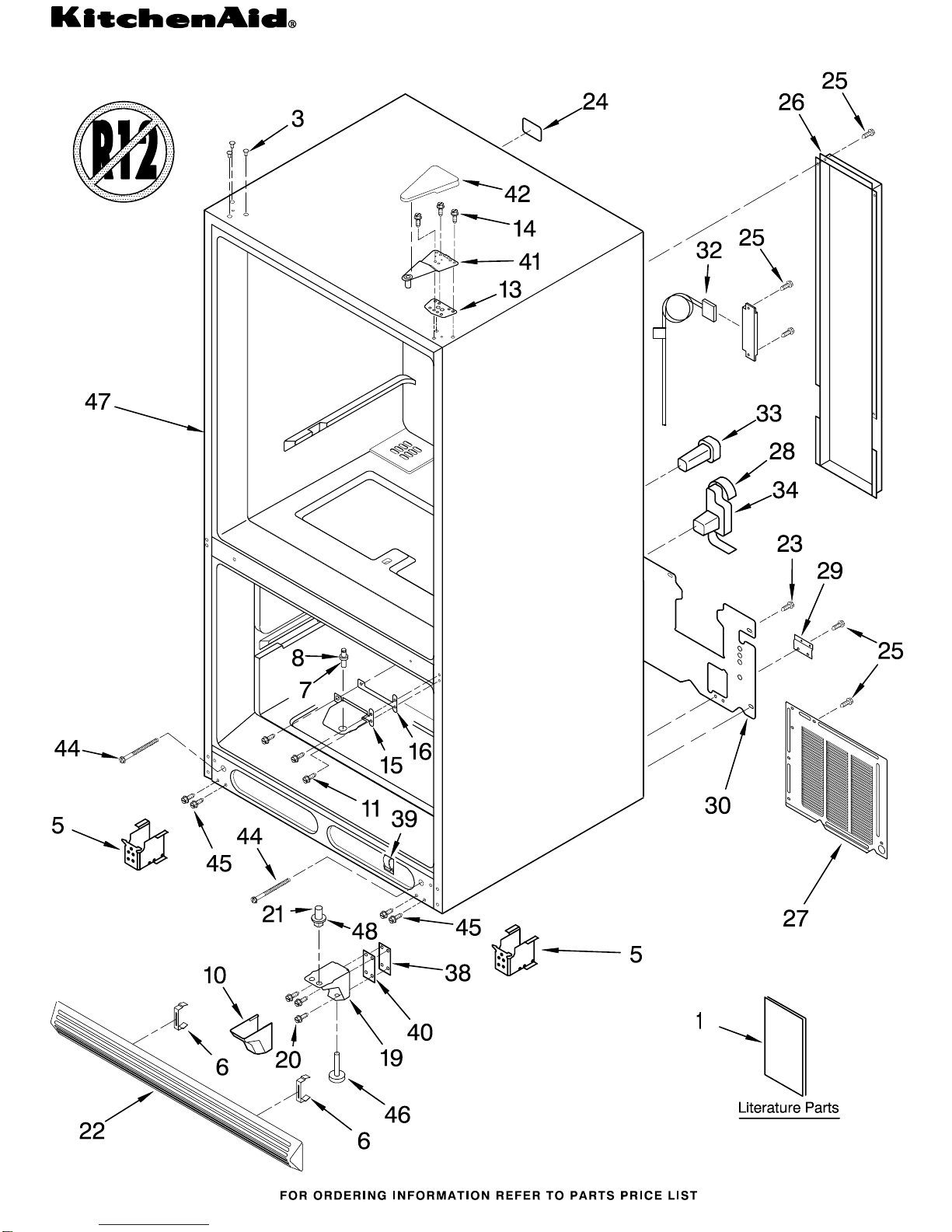

CABINET PARTS

For Models: KBRS22KGWH2, KBRS22KGAL2, KBRS22KGBL2

(White) (Almond) (Black)

2−00 Litho In U.S.A. (RJS) Part No. 4398596

REFRIGERATOR

CABINET PARTS

For Models: KBRS22KGWH2, KBRS22KGAL2, KBRS22KGBL2

(White) (Almond) (Black)

4398596

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8170452

Owner’s Manual

LIT8170372

Tech Sheet

3 Plug, Button (3)

4344209 White

4344207 Almond

4344208 Black

5 8170374 Roller, Front Assy.

6 4344155 Clip, Grille

7 4344177 Pin, Center Hinge

8 Shim

4344187 White

4344188 Black

10 Hinge Cover, Bottom

4344204 White

4344203 Almond

4344202 Black

11 4344186 Screw

13 Shim, Hinge Top

4344194 White

4344193 Almond

4344192 Black

14 4344198 Screw

15 4344431 Hinge, Center

16 Shim, Center Hinge

4344427 White

4344426 Almond

4344425 Black

19 Hinge Bottom

8170454 White

8170453 Black

20 8170455 Screw

21 4344178 Pin, Bottom Hinge

22 Grille

4344154 White

4344153 Almond

4344152 Black

23 4344267 Screw

24 4344264 Plug, I/M

25 4343759 Screw

26 4344257 Wire Cover

27 8170375 Back Cover

28 8170449 Harness, Control

29 4344266 Plate, Water Valve

30 8170377 Cover, Unit

32 4344263 Power Cord

33 4344259 Grommet

34 4344260 PLug

38 4344515 Shim, Hinge

39 4344265 Clip

40 4344286 Shim, Hinge

41 4344172 Hinge Top

42 Hinge Cover

8170379 White

8170378 Almond

4344195 Black

44 8170380 Screw

45 4344293 Screw

46 4344298 Foot Break

47 Cabinet (Not A

Serviceable Part)

48 Shim

4344200 White

4344201 Black

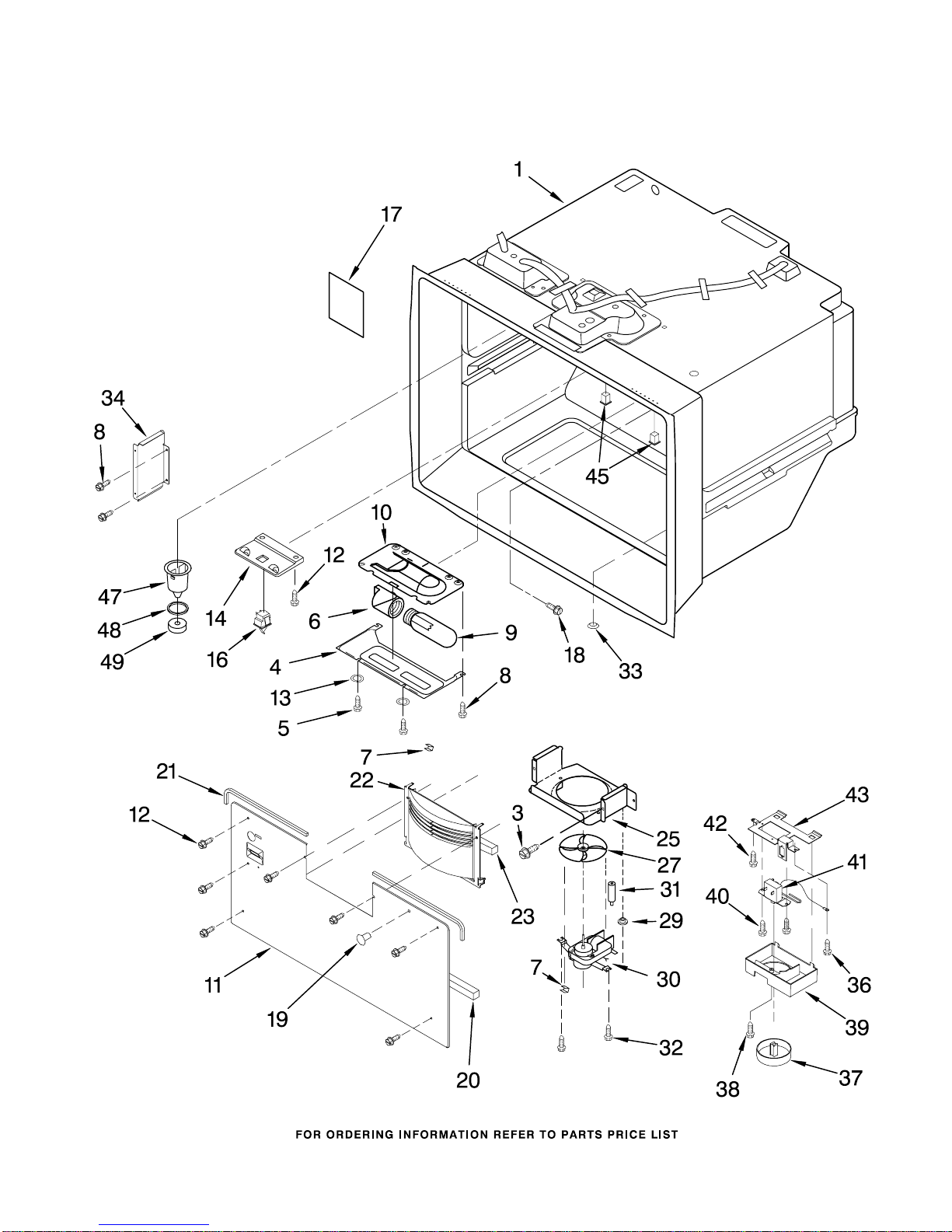

FREEZER LINER PARTS

For Models: KBRS22KGWH2, KBRS22KGAL2, KBRS22KGBL2

(White) (Almond) (Black)

4398596

FREEZER LINER PARTS

For Models: KBRS22KGWH2, KBRS22KGAL2, KBRS22KGBL2

(White) (Almond) (Black)

4398596

Illus. Part

No. No. DESCRIPTION

1 Liner (Not a

Serviceable Part)

3 4343675 Screw

4 4344205 Light Lens

5 4344206 Screw

6 8170384 Light, Socket

7 4343682 Clip, Ground

8 4344396 Screw

9 8170385 Light Bulb

10 8170381 Housing, Frz.Lt.

11 4344387 Cover, Evaporator

12 4344167 Screw

13 4344211 Washer (4)

14 8170341 Cover, Switch

16 4344571 Switch, Light

17 4344166 Cover, Plug

18 8170456 Screw

19 4344228 Plug, Button

20 4344216 Gasket, Bottom

21 4343886 Gasket, Top (2)

22 4344388 Cover, Fan Shroud

23 4344587 Gasket

25 8170387 Evap. Fan Shroud

27 4344391 Fan, Evaporator

29 8170388 Grommet

30 8170389 Motor, Evaporator

31 8170390 Spacer

32 8170391 Screw (2)

33 4344227 Plug, Button

34 4344222 Duct, Return Air

36 4343860 Screw

37 4344214 Knob, Control

38 4344224 Screw

39 8170392 Cover, Frz.Control

40 4343861 Screw

41 4344225 Thermostat

42 4344167 Screw

43 4344578 Bracket, Control

45 4344321 Grommet

47 4344385 Funnel, Drain

48 4344311 Seal

49 4344310 Gasket

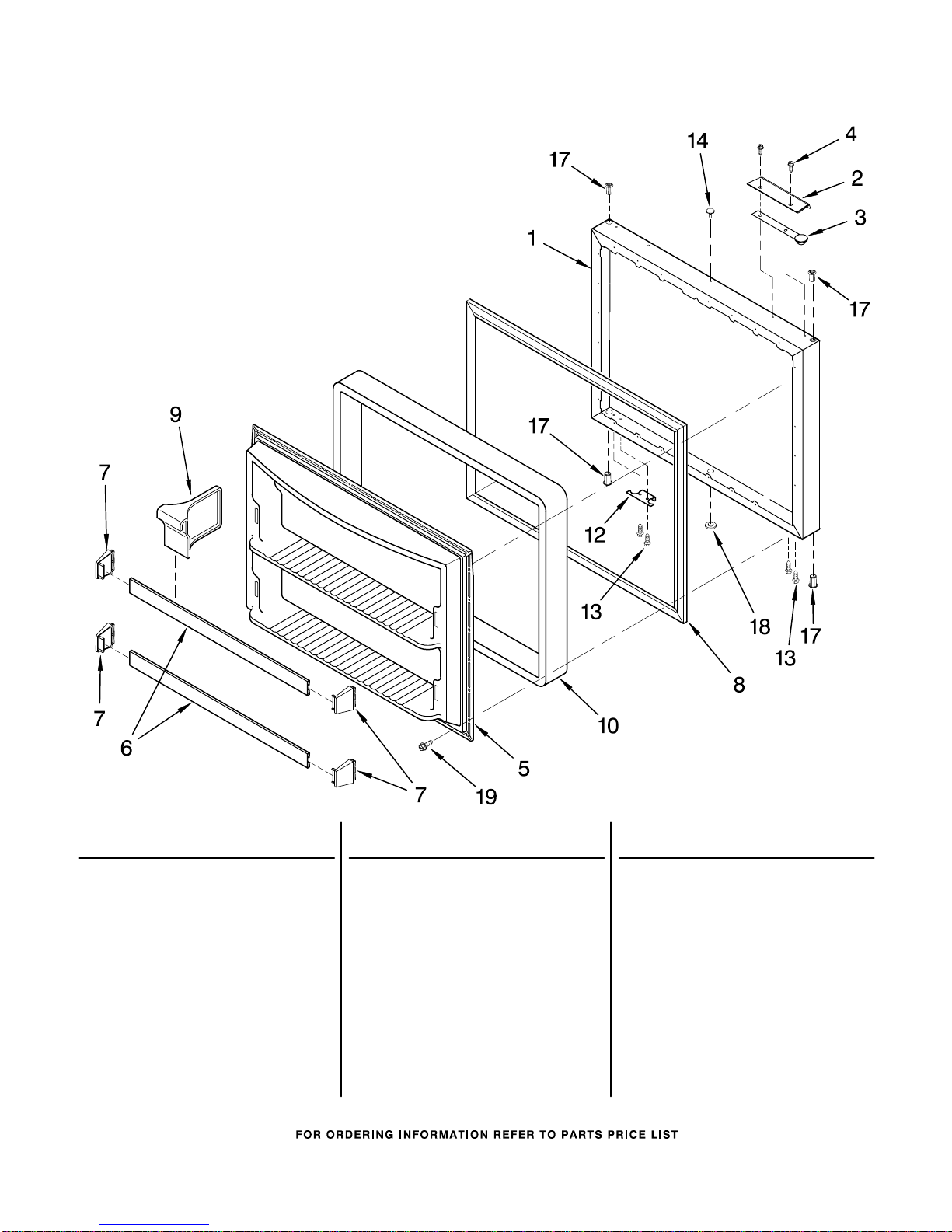

FREEZER DOOR PARTS

For Models: KBRS22KGWH2, KBRS22KGAL2, KBRS22KGBL2

(White) (Almond) (Black)

4398596

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Freezer Door

Panel (Includes

Insulation)

8170459 White

8170458 Almond

8170457 Black

2 Handle

4344596 White

4344597 Almond

4344598 Black

3 Plug, Button

4344159 White

4344158 Almond

4344157 Black

4 8170396 Screw

5 4344355 Interior Panel

6 4344582 Trim, Shelf

7 4344352 End Cap

8 Door Gasket,

Magnetic

8170398 Mist Beige

8170397 Black

9 4344300 Divider, Door Shelf

10 4344350 Insulation

12 Door, Stop

4344463 White

4344456 Almond

4344563 Black

13 4344333 Screw

14 Plug, Button

4344535 White

4344534 Almond

4344533 Black

17 Bushing

4344362 White

4344361 Black

18 Plug, Button

4344227 White

4344364 Black

19 4343811 Screw

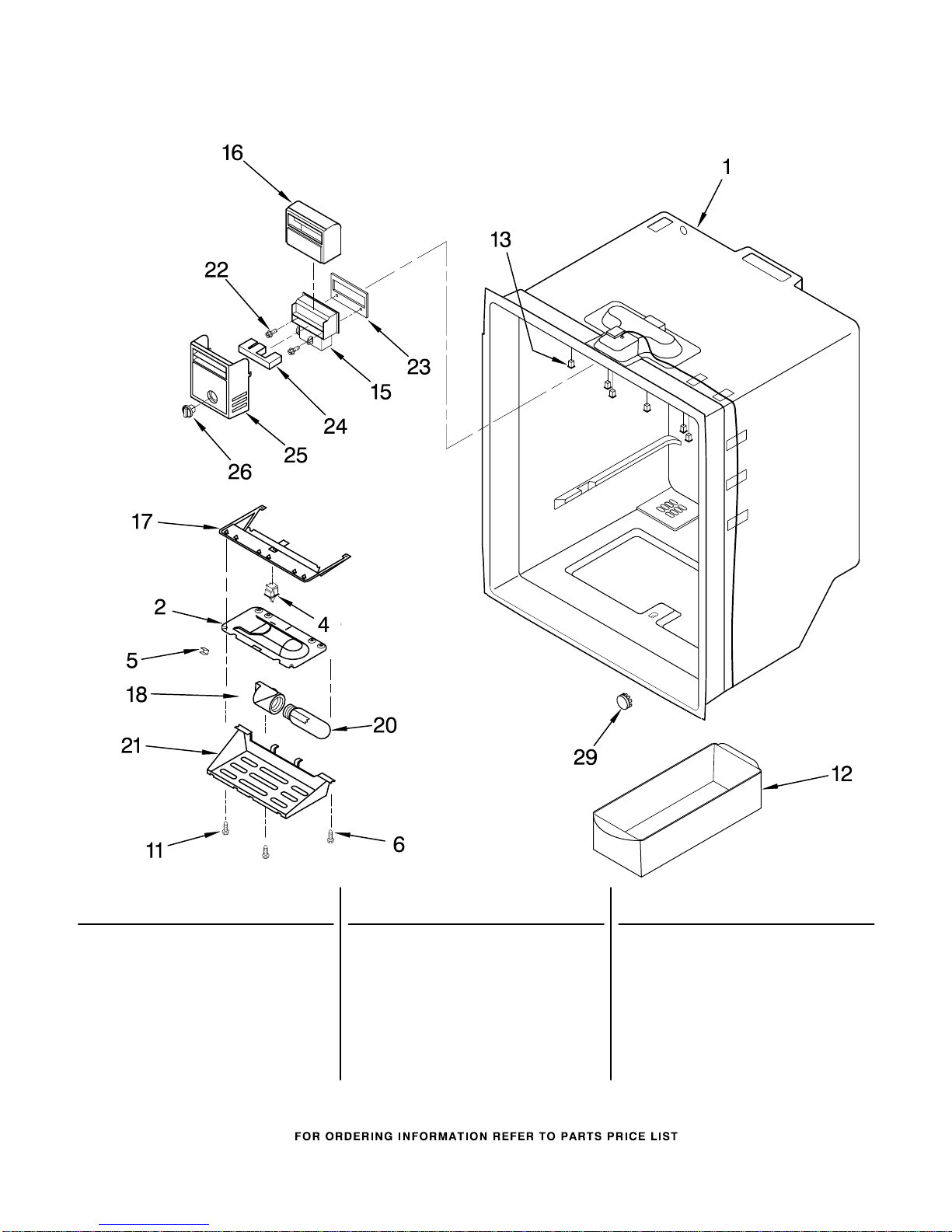

REFRIGERATOR LINER PARTS

For Models: KBRS22KGWH2, KBRS22KGAL2, KBRS22KGBL2

(White) (Almond) (Black)

4398596

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 8170381 Housing, Ref.

Light

4 4344571 Light Switch

5 4343682 Ground Clip

6 4344167 Screw

11 4344396 Screw

12 4344169 Egg Bin

13 4344321 Grommet

15 8170382 Control, Damper

16 4344184 Insulation, Damper

17 8170383 Shield, Light

18 8170384 Socket, Light

20 8170385 Light Bulb

21 8170386 Light Lens, Top

22 4343675 Screw

23 4343681 Gasket, Damper

24 4343650 Insert

25 8170371 Cover, Control

26 4344180 Knob, Control

29 4344241 Plug, Button

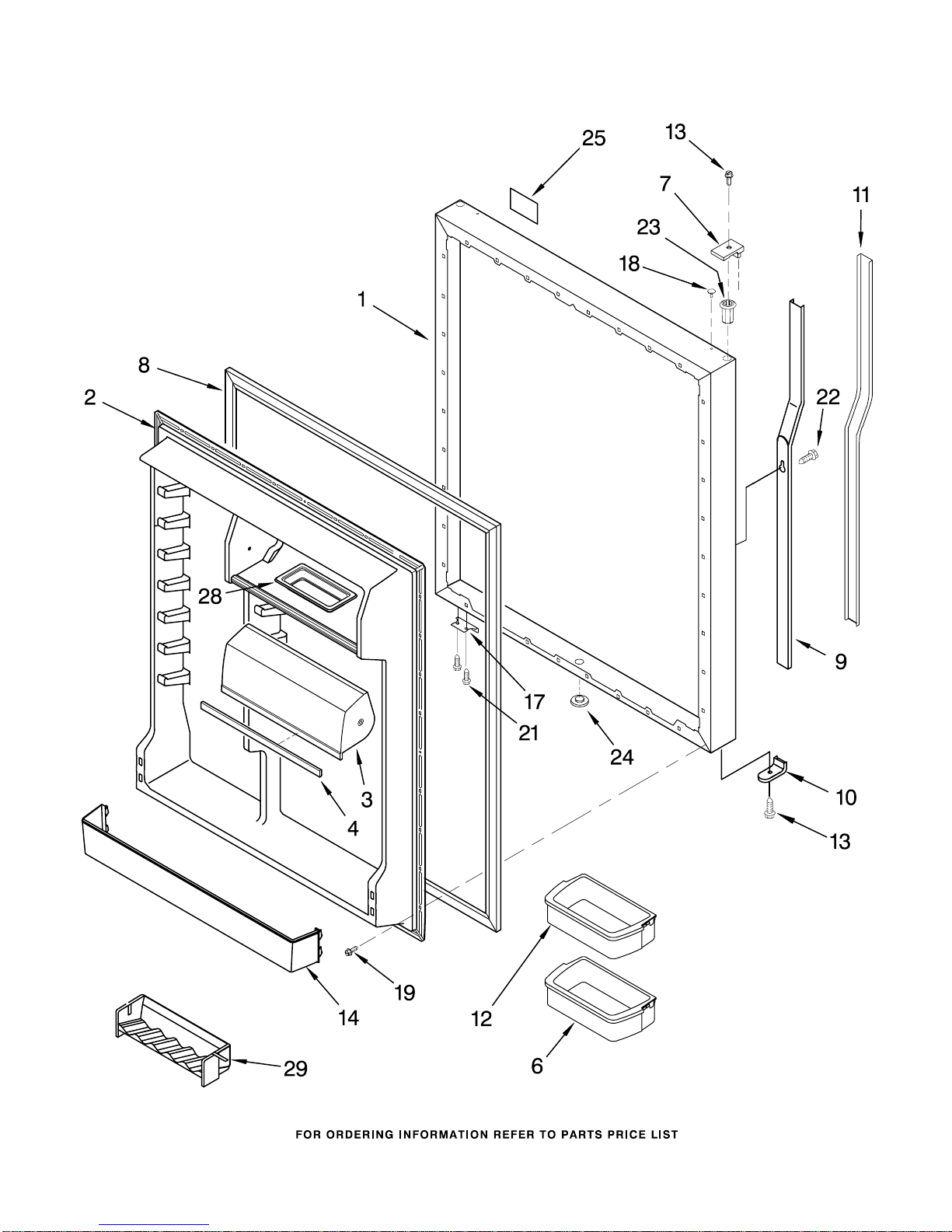

REFRIGERATOR DOOR PARTS

For Models: KBRS22KGWH2, KBRS22KGAL2, KBRS22KGBL2

(White) (Almond) (Black)

4398596

REFRIGERATOR DOOR PARTS

For Models: KBRS22KGWH2, KBRS22KGAL2, KBRS22KGBL2

(White) (Almond) (Black)

4398596

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

Panel (Includes

Insulation)

4344584 White

4344585 Almond

4344586 Black

2 4344371 Interior Panel

3 4344369 Door, Compartment

4 4344370 Trim, Comp. Door

6 4344532 Shelf Bin (1)

7 End Cap

4344589 White

4344590 Almond

4344591 Black

8 Door Gasket,

Magnetic

8170395 Mist Beige

8170394 Black

9 Retainer, Insert

2188182W White

2188182N Almond

2188182B Black

10 End Cap

4344592 White

4344593 Almond

4344594 Black

11 Insert, Handle

2188139 White

2188140 Almond

2188141 Black

12 4344365 Shelf Bin (3)

13 4344588 Screw

14 4344373 Trivet, Door

17 Stop, Door

4344463 White

4344456 Almond

4344563 Black

18 Plug, Button

4344535 White

4344534 Almond

4344533 Black

19 4343811 Screw

21 4344333 Screw

22 8170313 Screw

23 Bushing

4344362 White

4344361 Black

24 Plug, Button

4344227 White

4344363 Almond

4344364 Black

25 Nameplate

4344555 White

4344556 Almond

4344557 Black

28 4344296 Butter Dish

29 4344374 Holder, Beverage

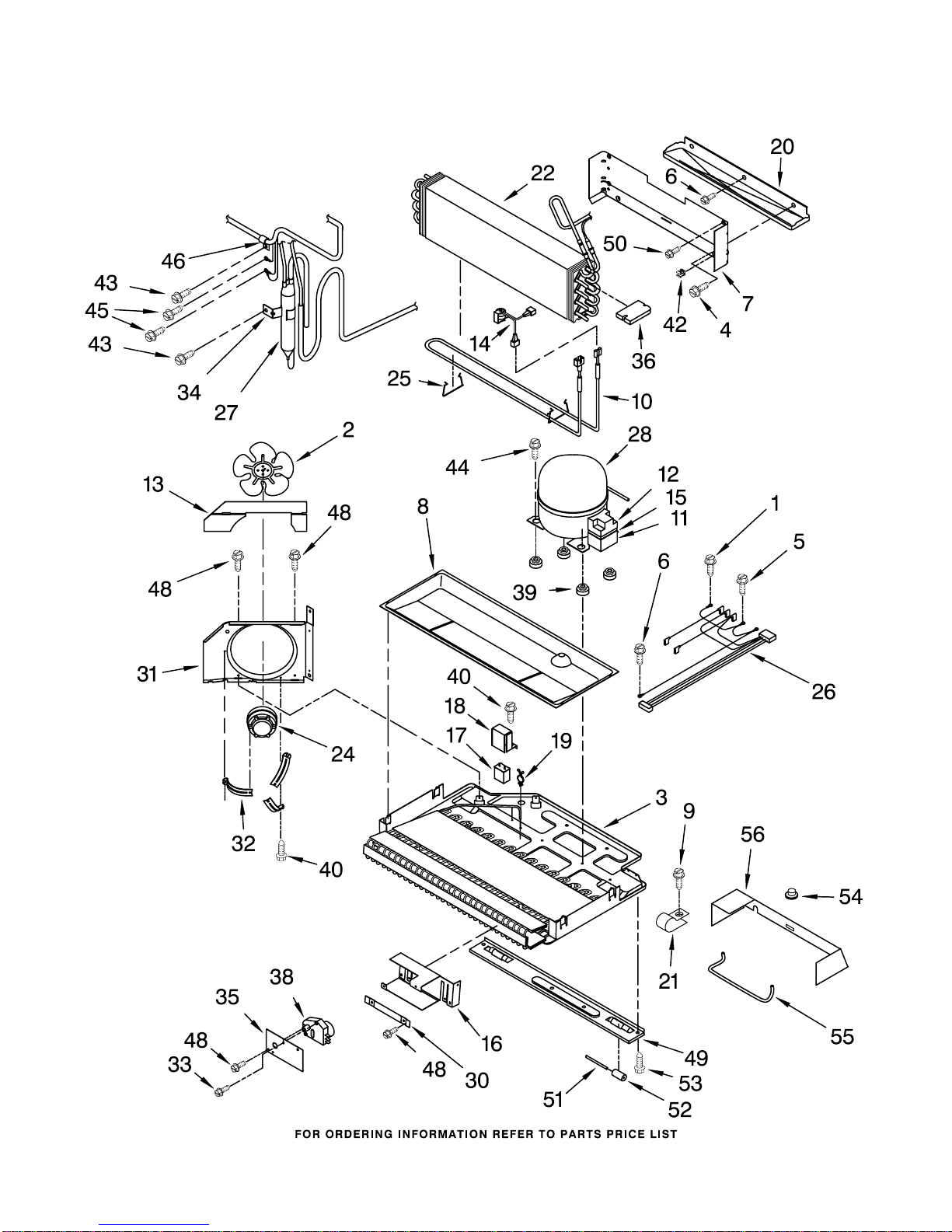

UNIT PARTS

For Models: KBRS22KGWH2, KBRS22KGAL2, KBRS22KGBL2

(White) (Almond) (Black)

4398596

UNIT PARTS

For Models: KBRS22KGWH2, KBRS22KGAL2, KBRS22KGBL2

(White) (Almond) (Black)

4398596

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4343865 Screw

2 4344271 Fan, Blade

3 4344270 Condenser & Pan

Assembly

4 4344599 Screw

5 4343691 Screw

6 4343860 Screw

7 4344217 Heat Shield

8 4344394 Drain Pan

9 4343759 Screw

10 4344232 Evaporator Heater

11 4343852 Cover

12 4343849 Overload

13 4344275 Gasket

14 4344231 Bi−Metal

15 4343850 Relay

16 8170451 Bracket, Timer

17 8170450 Capacitor

18 4344277 Shield, Capacitor

19 4343969 Clip, Wire

20 4344389 Drain Pan

21 4343777 Clamp, Tube

22 8170402 Evaporator

24 4344419 Motor, Fan

25 4343918 Clip, Heater

26 4344569 Harness, Unit

27 4344268 Drier

28 8170403 Compressor

(Includes Items

11, 12, 15,

17 & 27)

30 4344282 Washer

31 4344554 Shroud

32 4344272 Bracket, Fan Motor

33 4343749 Screw

34 4343763 Clip, Drier

35 4344552 Cover, Timer

36 4344234 Block, Evaporator

38 8170404 Timer, Defrost

39 4343845 Grommet (4)

40 4344562 Screw

42 4344219 Clip, Evaporator

43 4343772 Screw

44 4343847 Screw

45 4344545 Screw

46 4343661 Clamp

48 4344395 Screw

49 4344297 Cabinet, Brace

50 4344396 Screw

51 4344289 Axle−Roller

52 4344288 Roller−Rear

53 4344292 Screw

54 4344287 Plug, Button

55 4344283 Drain Tube

56 4344595 Insulation

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.5 Ozs.

(R−134A)
