KitchenAid Classic KSSS48QTB User manual

CABINET PARTS

For Models: KSSS48QTW04, KSSS48QTB04, KSSS48QTX04

(White) (Black) (Etched Aluminum)

7−11 Litho In U.S.A. (wlc) (eeb) Part No. W10422732 Rev. A

48" BUILT IN

REFRIGERATOR

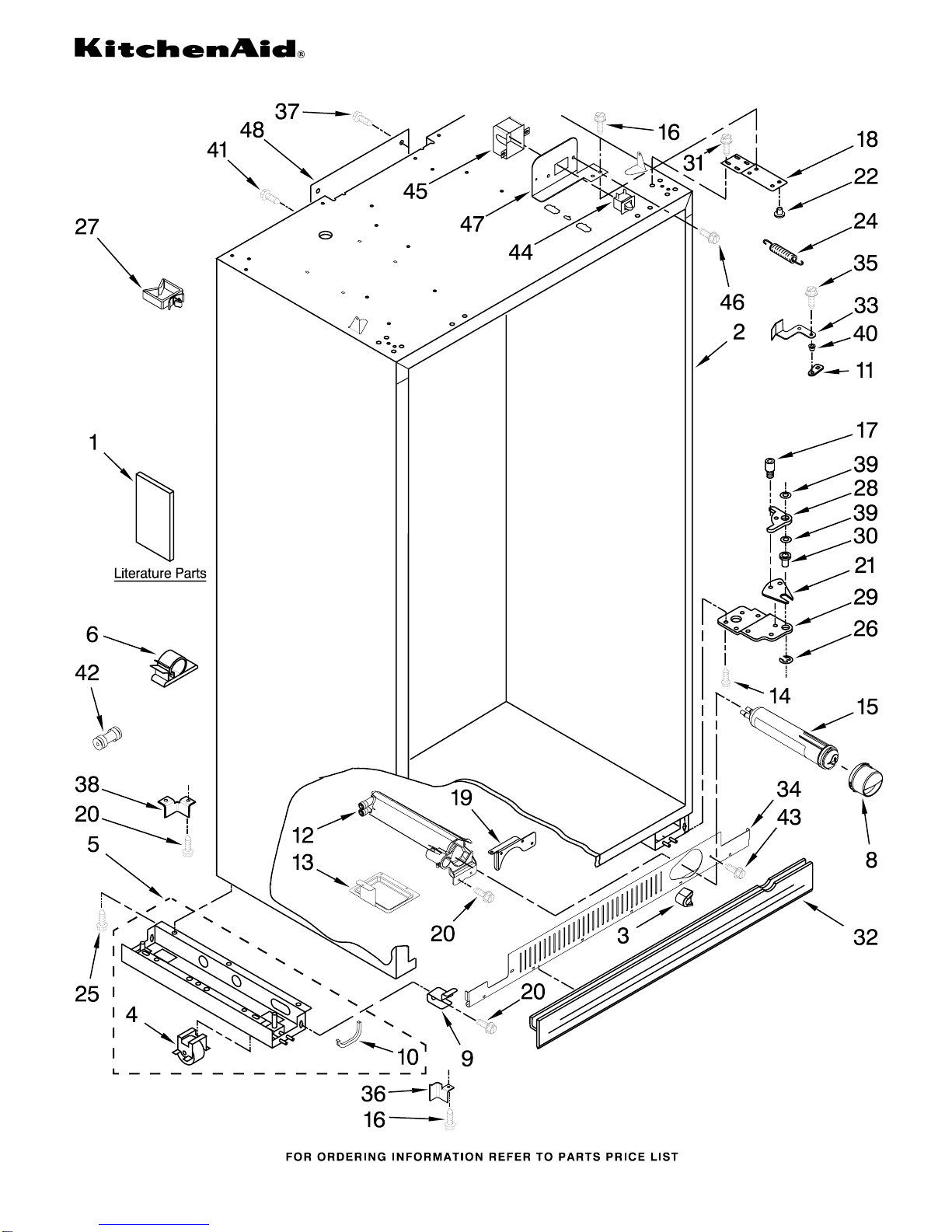

CABINET PARTS

For Models: KSSS48QTW04, KSSS48QTB04, KSSS48QTX04

(White) (Black) (Etched Aluminum)

W10422732

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10161714

Use & Care Guide

W10205635

Energy Guide

W10159832

Service & Wiring

Sheet

2306424 Icemaker and

Ingredient Care

Center Service

Sheet

W10300878

Main Control

Service Sheet

W10291426

Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2260503B Button, Filter

4 836054 Roller, Front &

Rear

W10138423

Support, Leveler

Assembly

6 2004514 Clip−Conduit

8 Cap, Water Filter

2260518B Black

9 2307640 Mounting Stud,

Grille

10 2307584 Grommet, Crossover

Tube

11 2005783 Cam, Door Closer

W10121140

Housing, Water

Filter

13 2318189 Tray, Drip Filter

14 3400525 Screw

W10121146

Filter, Water

W10141604

Screw

17 3400230 Screw, Door Stop

18 2257644 Hinge (Top)

W10223655

Bracket, Mtg

(Water Filter)

W10001250

Screw

21 2004994 Lock, Adjustable

Bushing

22 2300082 Bushing

24 Spring, Door

Closure

2221242 Right Side

2221242 Left Side

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

W10129069

Wire Clip

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

30 2302876 Bushing,

Adjustable

31 8533913 Screw 1/4−20 x 5/8

32 Skirt−Grille,

Bottom

2209026W White

2209026B Black

33 Extension Arm,

Door Closer

2307857 Right

2266881 Left

34 Grille Bottom,

Front

2325186W White

2325186B Black

W10004850

Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear)

39 2006346 Washer

40 2316859 Bushing,

Extension Arm

41 1163283 Screw

42 Connector, Water

Tube

2209709 5/16−1/4"

W10271541

1/4"

43 8281163 Screw

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch

46 487415 Screw

47 Bracket, Switch

2221097 Right

2221096 Left

48 2215612 Cover, Rear

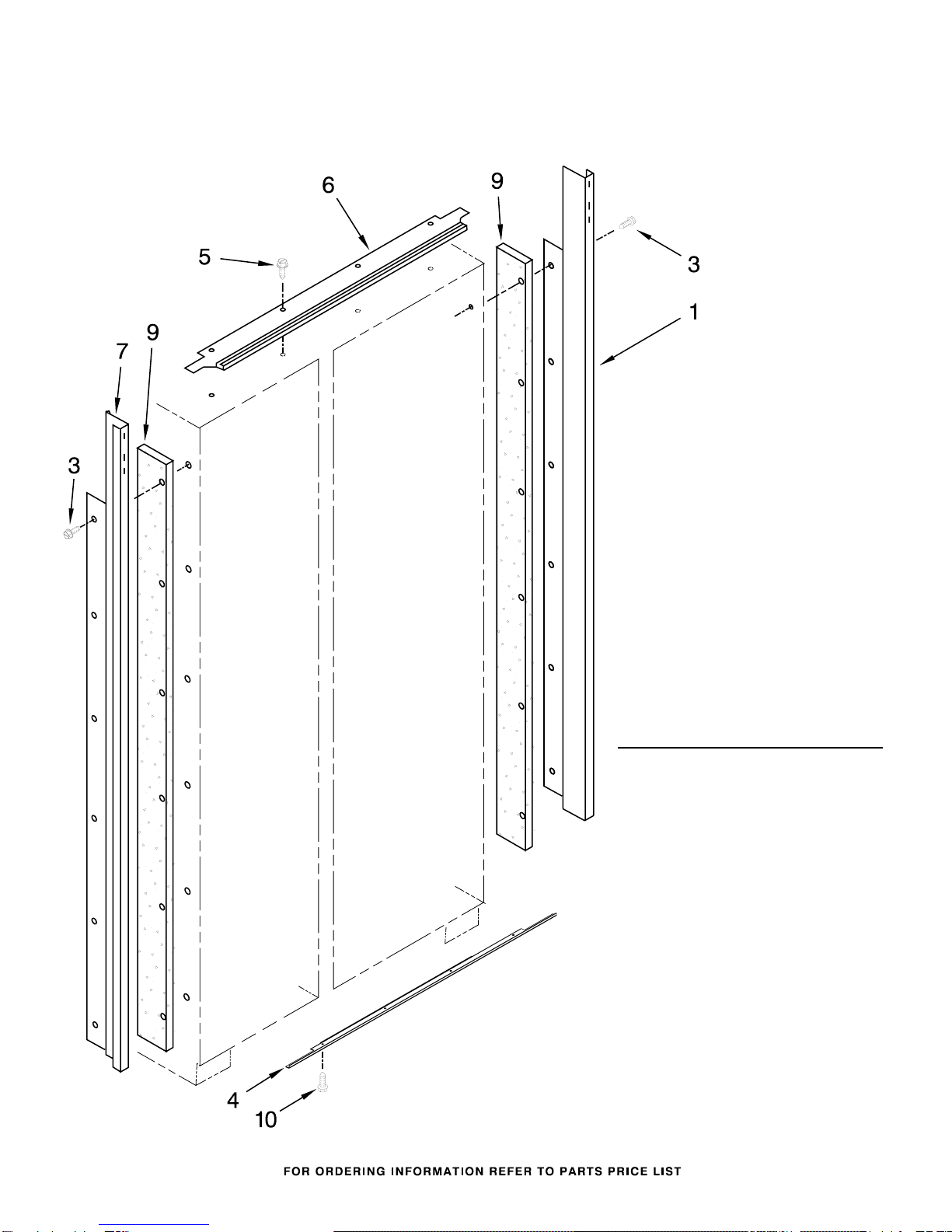

CABINET TRIM PARTS

For Models: KSSS48QTW04, KSSS48QTB04, KSSS48QTX04

(White) (Black) (Etched Aluminum)

W10422732

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

(Right Side)

W10132470

White

W10132471

Black

W10132472

Stainless Steel

3 Screw

1163283 Stainless Steel

4 2316688 Cabinet, Trim

(Bottom)

5 486194 Screw

6 Cabinet, Trim Top

2314018W White

2314018B Black

2314018 Brushed Aluminum

7 Cabinet Trim

(Left Side)

W10132537

White

W10132540

Black

W10132541

Stainless Steel

9 2005925 Seal−Trim, Side

W10121451

Nutsert

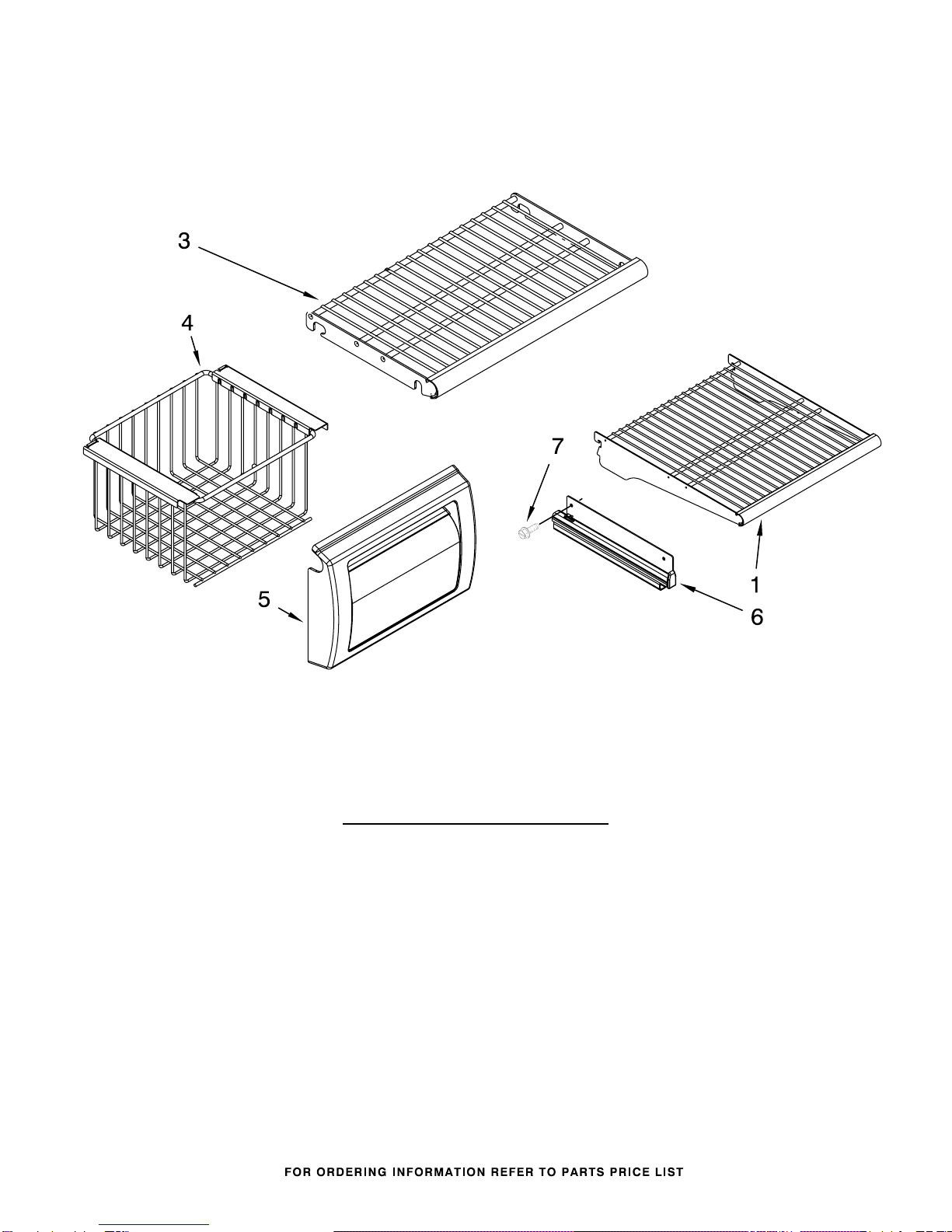

FREEZER SHELF PARTS

For Models: KSSS48QTW04, KSSS48QTB04, KSSS48QTX04

(White) (Black) (Etched Aluminum)

W10422732

Illus. Part

No. No. DESCRIPTION

W10175906

Wire, Shelf

3 2302884 Shelf, Fixed

4 2259083 Basket

5 2256271 Front, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 8533928 Screw

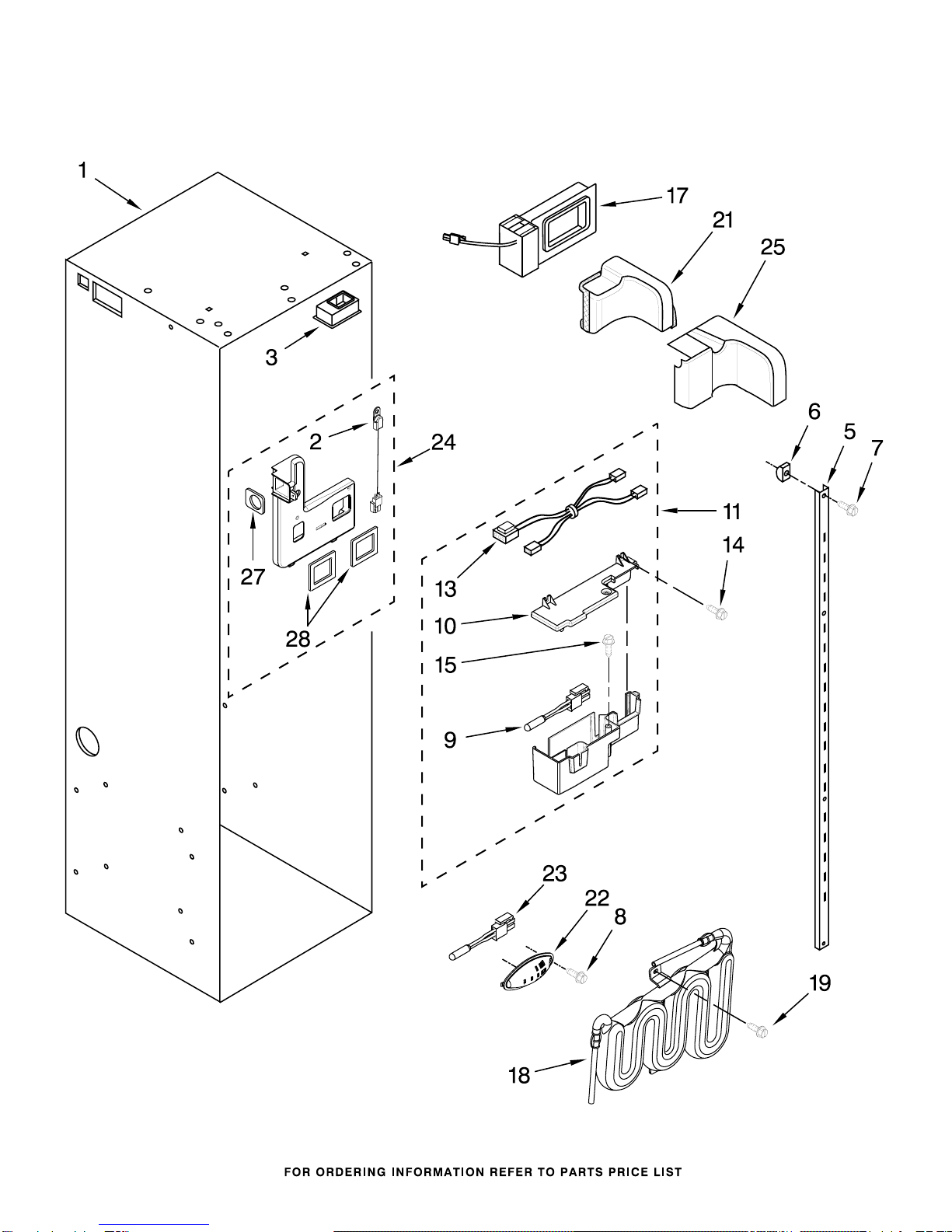

REFRIGERATOR LINER PARTS

For Models: KSSS48QTW04, KSSS48QTB04, KSSS48QTX04

(White) (Black) (Etched Aluminum)

W10422732

REFRIGERATOR LINER PARTS

For Models: KSSS48QTW04, KSSS48QTB04, KSSS48QTX04

(White) (Black) (Etched Aluminum)

W10422732

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

5 2259077 Ladder, Shelf

6 520965 Screw Support,

Ladder

7 2006475 Screw

8 487539 Screw

9 2302937 Thermistor

10 2302986 Lid, Meat Pan

Baffle

W10169528

Baffle Control

Assembly

13 2310205 Jumper, Air Baffle

14 488357 Screw

15 486194 Screw

17 2221296 Air Baffle

Assembly

18 2327509 Reservoir

W10141518

Screw

21 2309222 Diffuser Assembly

22 2317105 Cover, Thermistor

23 2188820 Thermistor

24 2302992 Spacer, Air−

Baffle

25 2309087 Cover, Diffuser

27 2259412 Seal, Air Duct

(Round Hole)

28 2259398 Seal, Air Duct

(Square Hole)

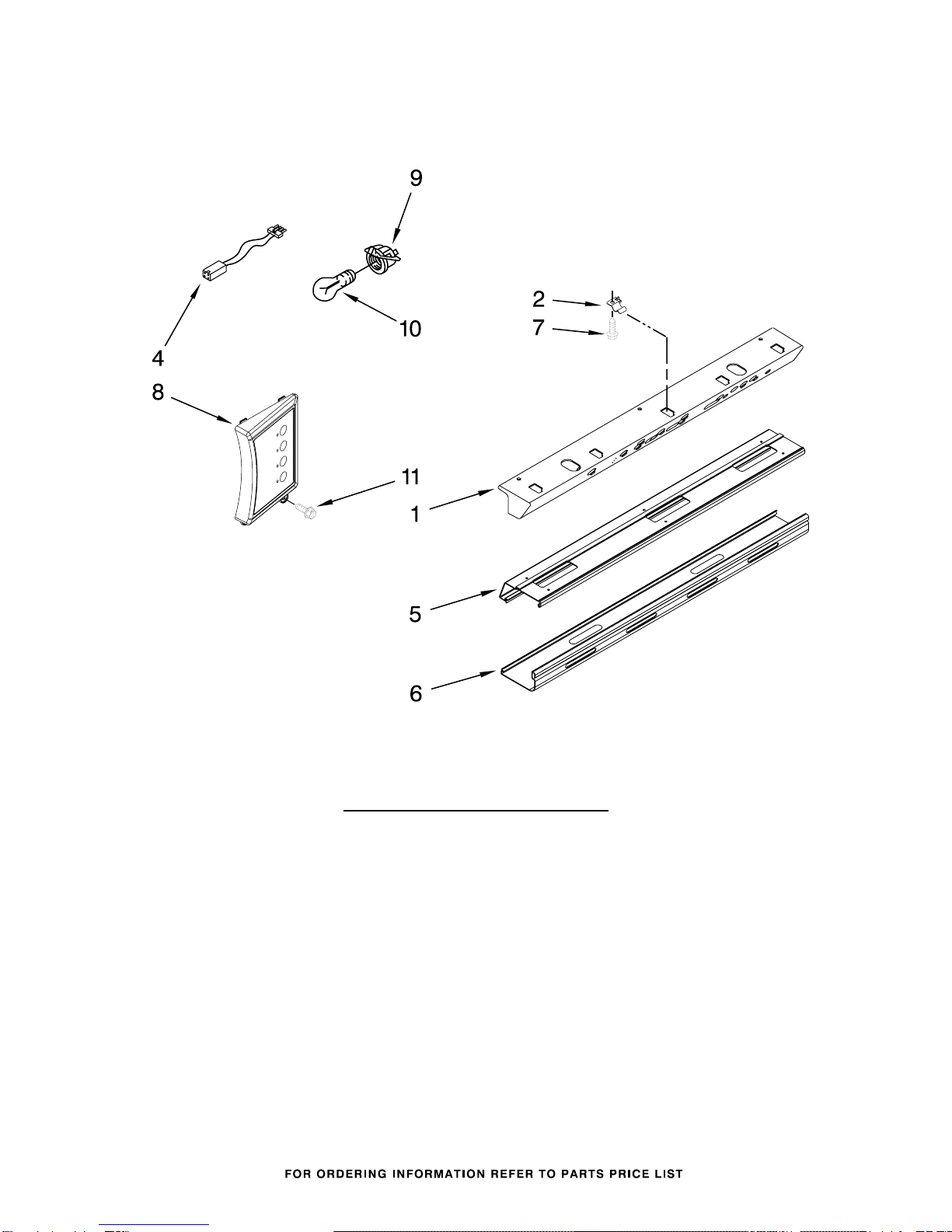

CONTROL PANEL PARTS

For Models: KSSS48QTW04, KSSS48QTB04, KSSS48QTX04

(White) (Black) (Etched Aluminum)

W10422732

Illus. Part

No. No. DESCRIPTION

1 2316546 Control Box

2 2317000 Clip, Box

4 2310390 Wire, Jumper

5 2324973 Bracket,

Control Box

6 2307596 Shield,

Control Box

7 487539 Screw

8 2306086 Display,

Ingredient Care

Center

9 2223857 Socket, Light

10 2326255 Light Bulb

W10142283

Screw

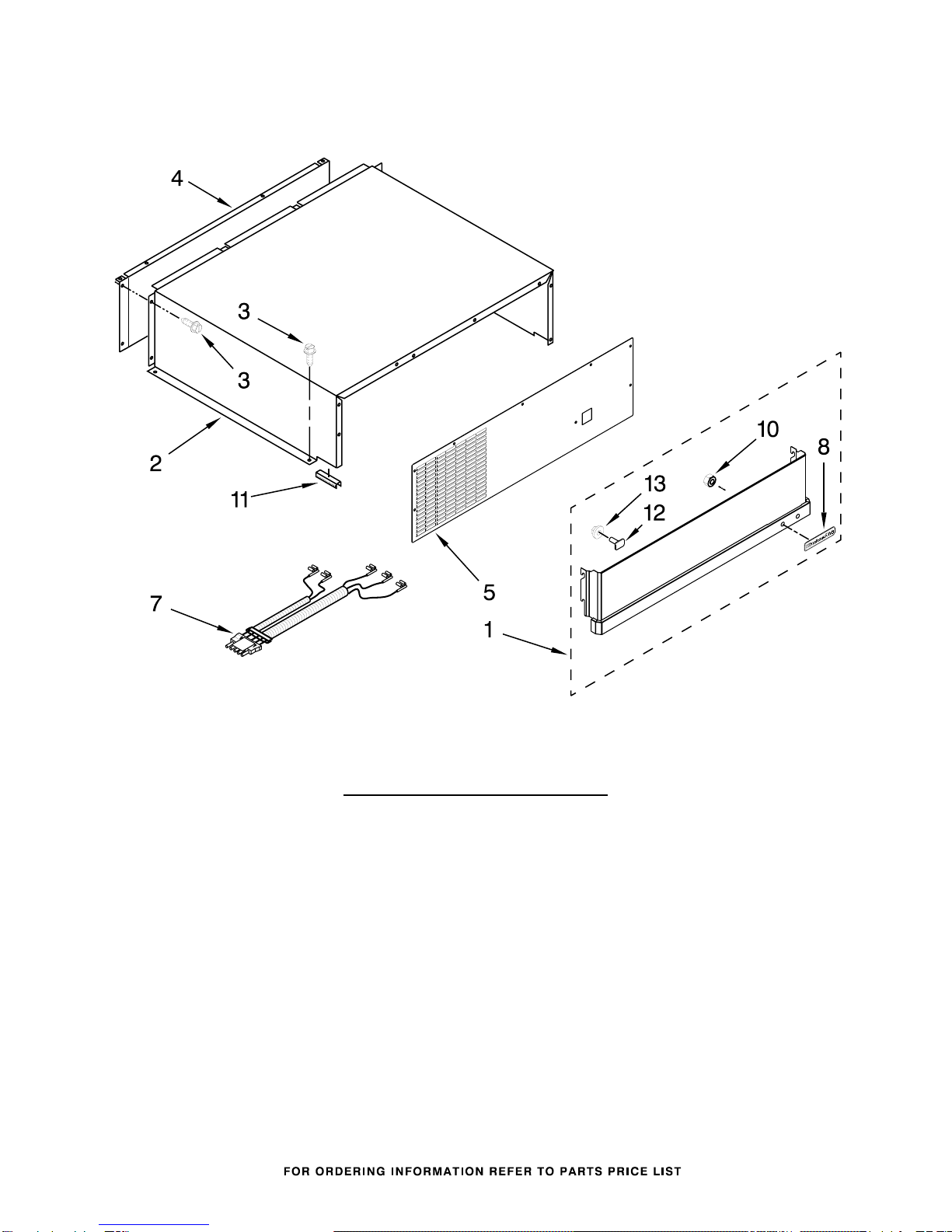

TOP GRILLE AND UNIT COVER PARTS

For Models: KSSS48QTW04, KSSS48QTB04, KSSS48QTX04

(White) (Black) (Etched Aluminum)

W10422732

Illus. Part

No. No. DESCRIPTION

1 Panel, Decorative

Assembly

2316826W White

2316826B Black

2316826S Stainless Steel

W10161693

Cover, Unit

3 486194 Screw

4 2256466 Back Panel

W10185625

Cover, Unit Front

W10167456

Wire Assembly

RC/FC Light Switch

8 Badge, Kitchen Aid

2317923W White

2317923B Black

2317923S Stainless Steel

10 2004333 Nut

11 2215910 Grommet, Flexible

12 2003347 Tee Bolt

13 1161548 Nut

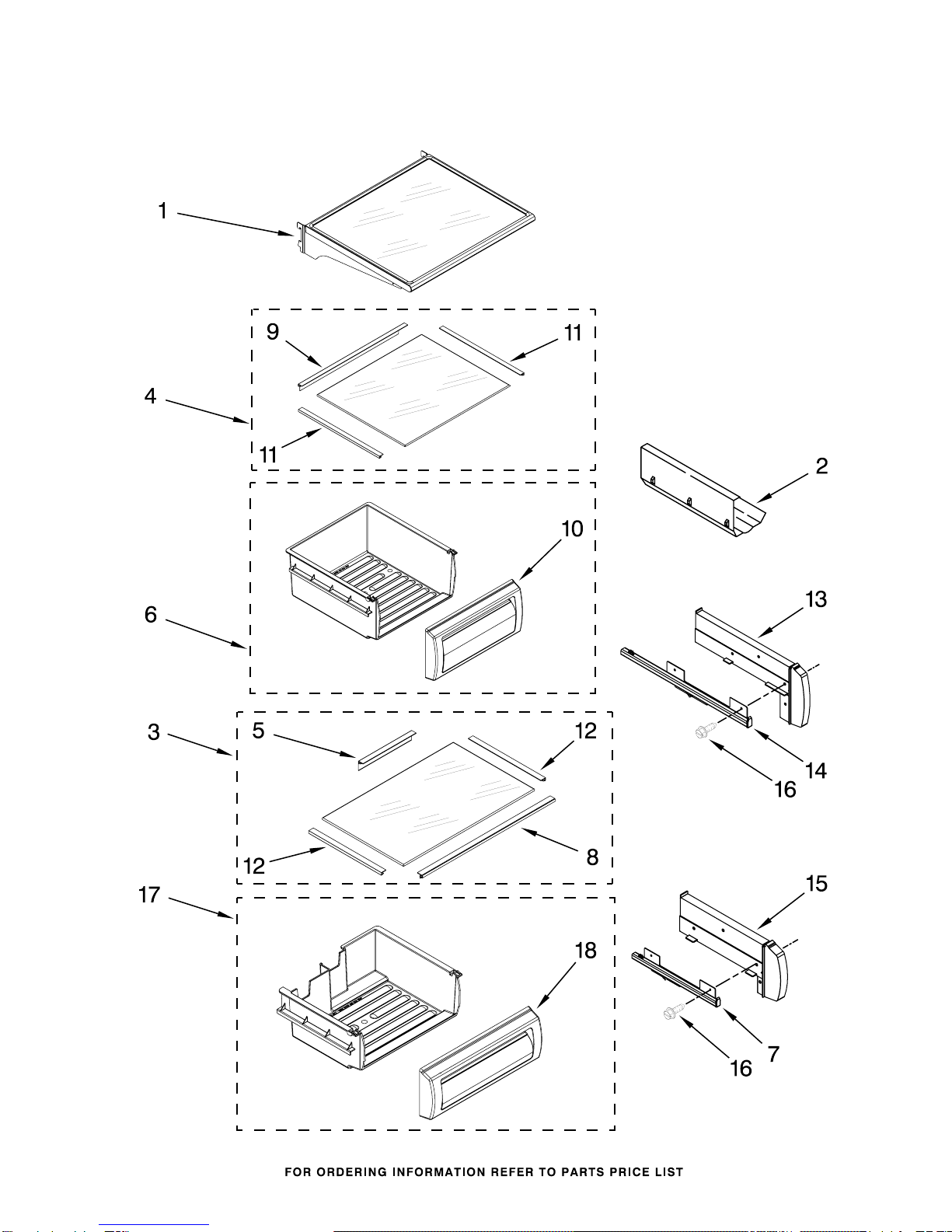

REFRIGERATOR SHELF PARTS

For Models: KSSS48QTW04, KSSS48QTB04, KSSS48QTX04

(White) (Black) (Etched Aluminum)

W10422732

REFRIGERATOR SHELF PARTS

For Models: KSSS48QTW04, KSSS48QTB04, KSSS48QTX04

(White) (Black) (Etched Aluminum)

W10422732

Illus. Part

No. No. DESCRIPTION

1 2222593 Shelf Assembly

2 2179404 Rack, Wine

3 2302843 Assembly, Meat Pan

Cover

4 2302836 Assembly, Crisper

Cover

5 2257583 Trim, Glass Rear

6 2252413 Crisper Pan

7 Slide, Meat Pan

2302954 Left Side

2302955 Right Side

8 2302832 Trim, Front Glass

Meat Pan

9 2256255 Trim, Glass Rear

10 2256249 Front, Crisper

Pan

11 2252255 Trim, Glass Side

Crisper Pan

12 2256250 Trim, Glass Side

Meat Pan

13 Spacer, Crisper

2256222 Right Side

2256223 Left Side

14 Slide, Crisper

2302956 Right Side

2302957 Left Side

15 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

16 Screw

8533929 Right Side−

(8−18 x 1.375)

8533928 Left Side−

(8−18 x .750)

17 2256370 Pan Assembly

Meat

18 2256367 Front, Meat Pan
