CABINET PARTS

For Models: KBRC36MHS00

7-99 Litho In U.S.A. (mek) Part No. 4398293

36" BOTTOM MOUNT

BUILT IN REFRIGERATOR

CABINET PARTS

For Models: KBRC36MHS00

4398293

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

LIT2005193

Use & Care Guide

LIT2005194

Energy Label

LIT2005213

Service & Wiring

Sheet

LIT628370

Modular Icemaker

Service Sheet

LIT2005214

Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2005004 Grommet, Tube

Crossover

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

8 2001297 Screw

9 2006442 Mounting Bracket,

Grill

10 2005921 Screw

11 1112849 Cap, Grommet

12 2005237 Clip, Wire

13 2204516 Tube, Drain

Condensate

14 2005100 Wiring Harness,

Cabinet

16 488946 Tube, Clamp

17 2001295 Screw, Door Stop

18 2005295 Hinge, Door

Refrigerator Top

19 2005783 Cam-Closer,

Door

21 2005919 Closer-Extension,

Door

22 2002903 Bushing

24 2004517 Spring, Door

Closure

25 486194 Screw

27 2005920 Bushing-Arm,

Extension

28 2006388 Gap, Cover

(Bottom)

29 2005101 Hinge, Bottom

Refrigerator

31 3400060 Screw

33 2006346 Washer

34 2004530 Grille Base,

Front

35 489238 Screw

36 2004512 Cover, Rear

37 1113123 Grommet, Wiring

41 1163283 Screw

42 2150347 Union

43 2001415 Screw (4)

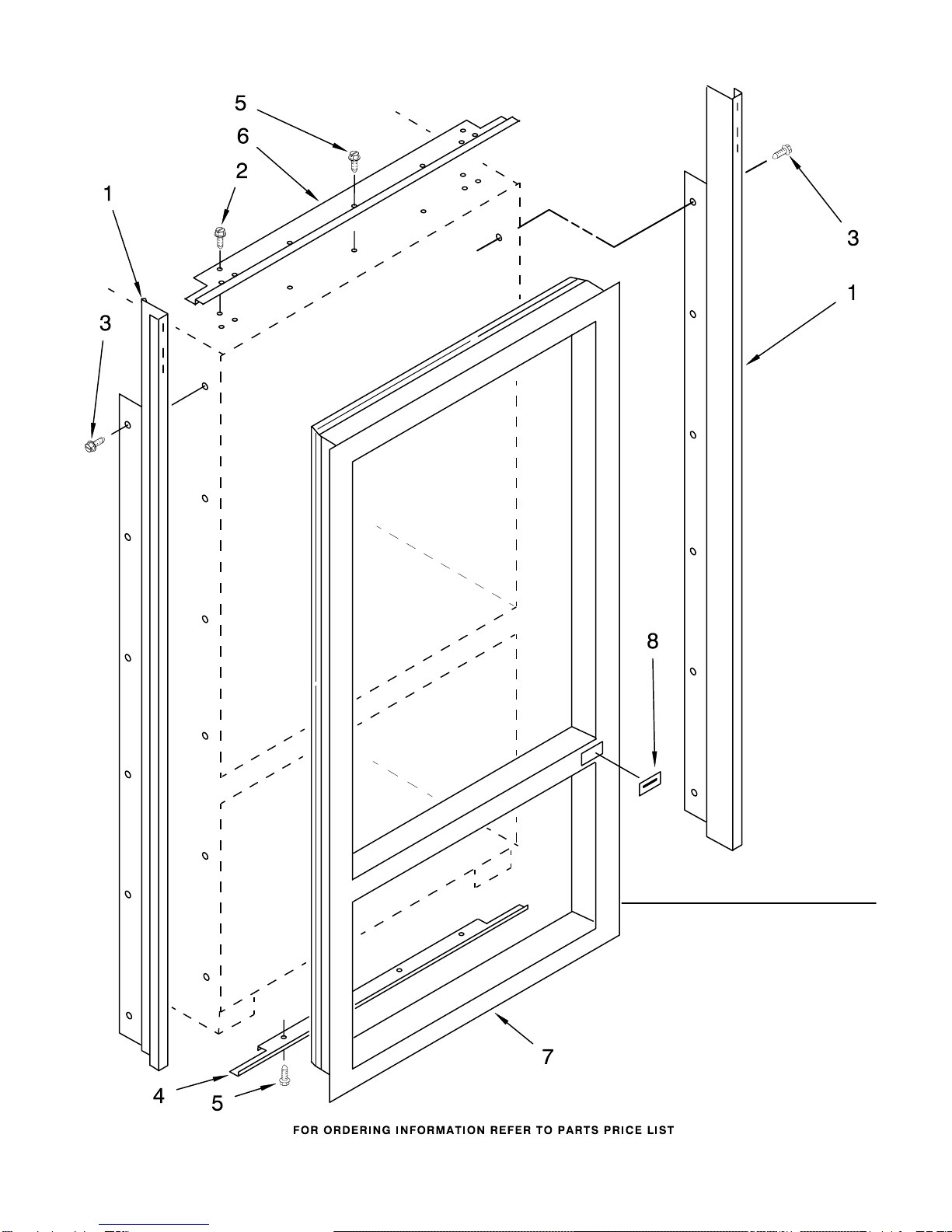

CABINET AND BREAKER TRIM PARTS

For Models: KBRC36MHS00

4398293

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

2005256 Right Side

2005493 Left Side

2 2003857 Screw

3 1163283 Screw

487246 Repair, Screw

4 2004536 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2003645 Cabinet, Trim Top

7 2005076 Breaker Trim

8 2005782 Cover, Hinge

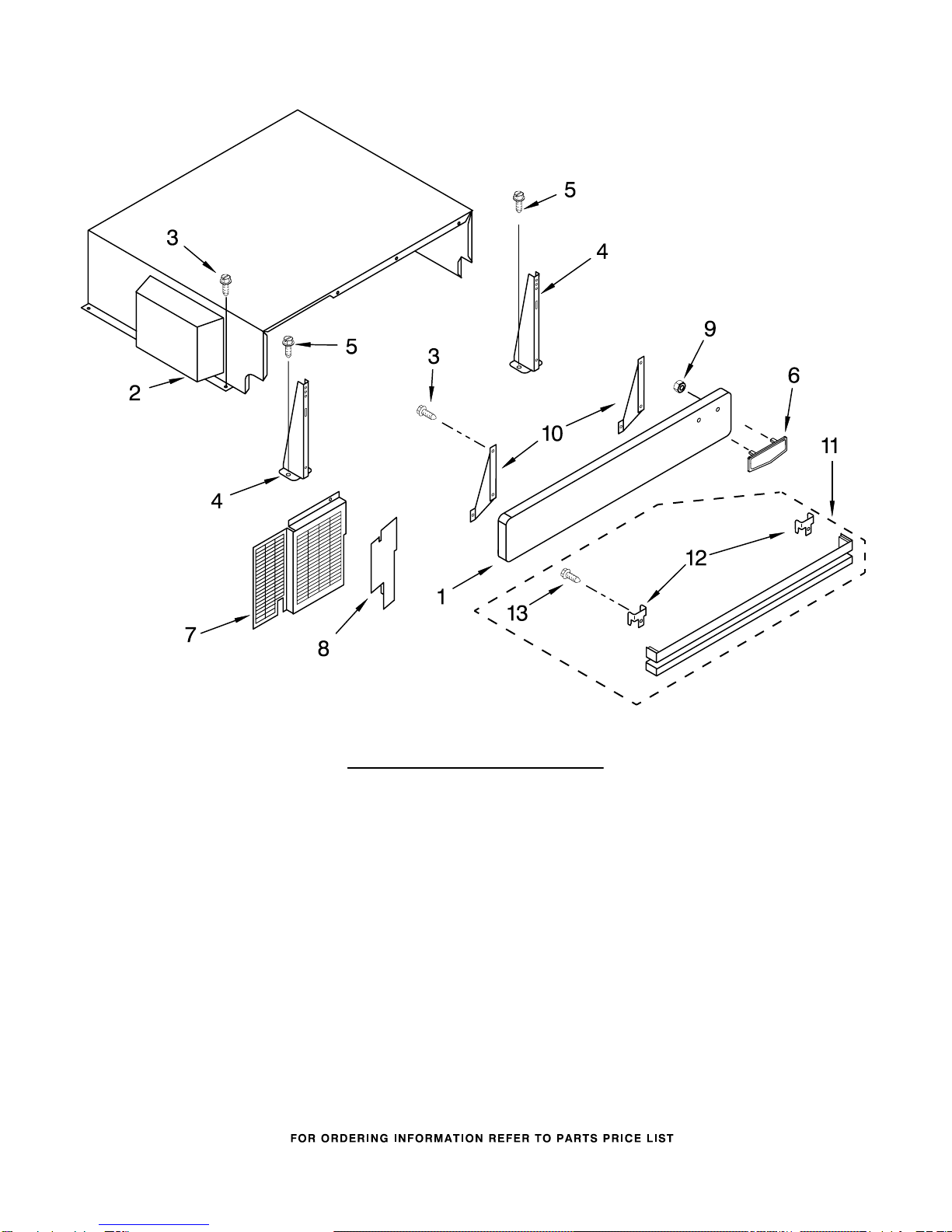

TOP GRILLE AND UNIT COVER PARTS

For Models: KBRC36MHS00

4398293

Illus. Part

No. No. DESCRIPTION

1 2005312 Top Grille

Assembly

2 2005549 Cover, Unit

3 486194 Screw

4 2002484 Grille, Bracket

5 2001415 Screw

6 2005292 Nameplate

7 2005534 Guard, Compressor

Wiring

8 2006445 Baffle-Air,

Condenser

9 2004333 Nut

10 2005485 Bracket,

Trim Panel

11 2006192 Louver, Vent

12 2005483 Bracket, Louver

13 488649 Screw

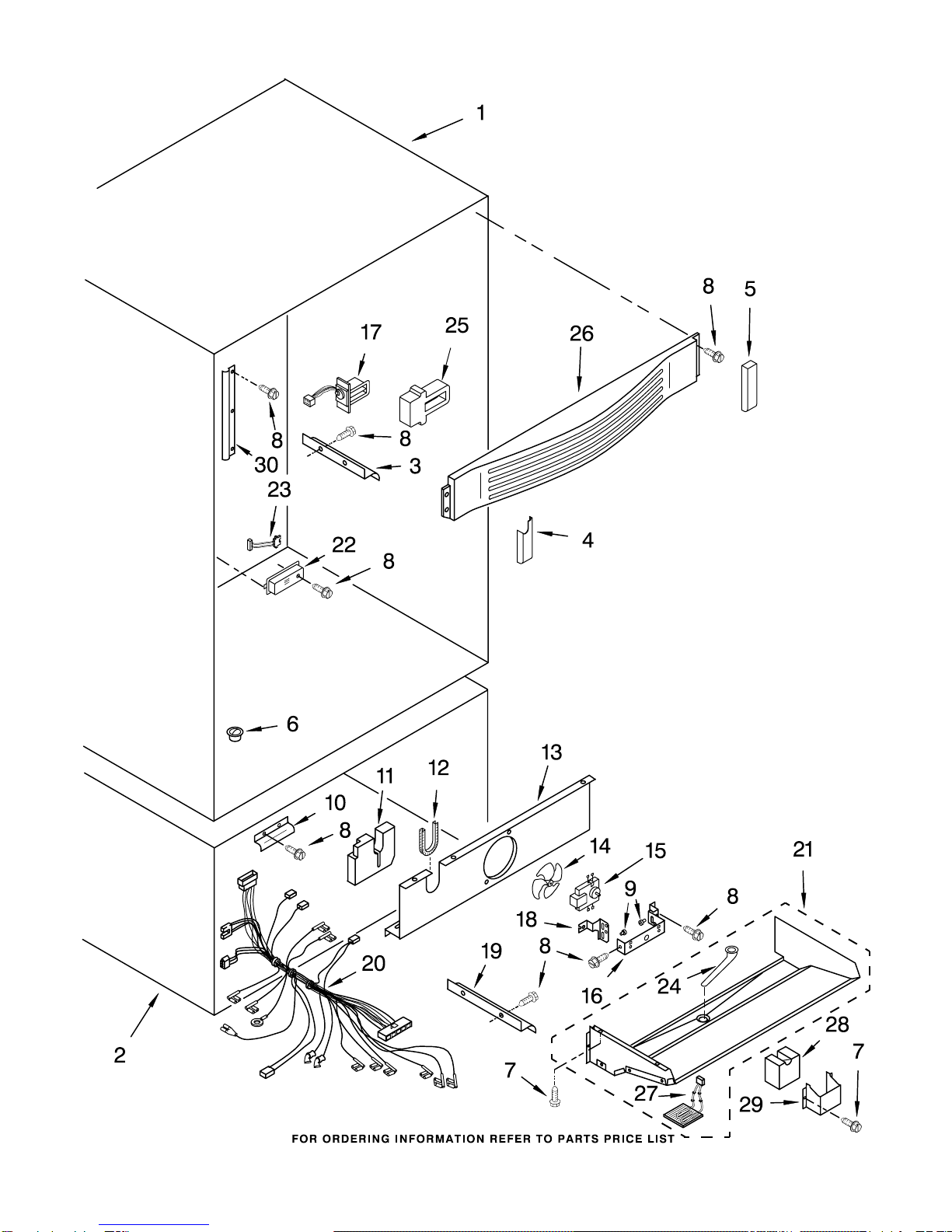

LINER PARTS

For Models: KBRC36MHS00

4398293 5

LINER PARTS

For Models: KBRC36MHS00

4398293

Illus. Part

No. No. DESCRIPTION

1 Liner,

Refrigerator

(Not Servicable)

2 Liner,Freezer

(Not Servicable)

3 2005775 Wiring Channel

Side

4 2005932 Diffuser Cap,

Left Side

5 2005931 Diffuser Cap,

Right Side

6 2171846 Release Valve

7 487539 Screw, 8-15 x .500

8 486194 Screw

9 548268 Grommet

10 2006148 Wiring Channel,

Freezer Rear

11 2204505 Foam, Fan Shroud

12 2207430 Grommet, Flexible

13 2204506 Shroud, Evaporator

Fan

14 2169142 Blade, Fan

15 2003200 Motor, Fan

16 938224 Bracket (Single)

17 2005584 Air Baffle

Assembly

18 548263 Bracket (Double)

19 2006147 Wiring Channel

Freezer, Side

20 2005115 Wiring Harness,

Freezer

21 2204504 Cover, Evaporator

Assembly

22 1116793 Cover, Thermistor

23 1116959 Thermistor

24 2204514 Drain Tube,

Condesate

25 2005117 Insulation, Baffle

26 2005422 Cover, Air

Diffuser

27 2204595 Heater-Tube,

Drain

28 2204538 Insulation, Tube

Drain

29 2204537 Cover, Tube

Drain

30 2006476 Guard, Capillary

Tube

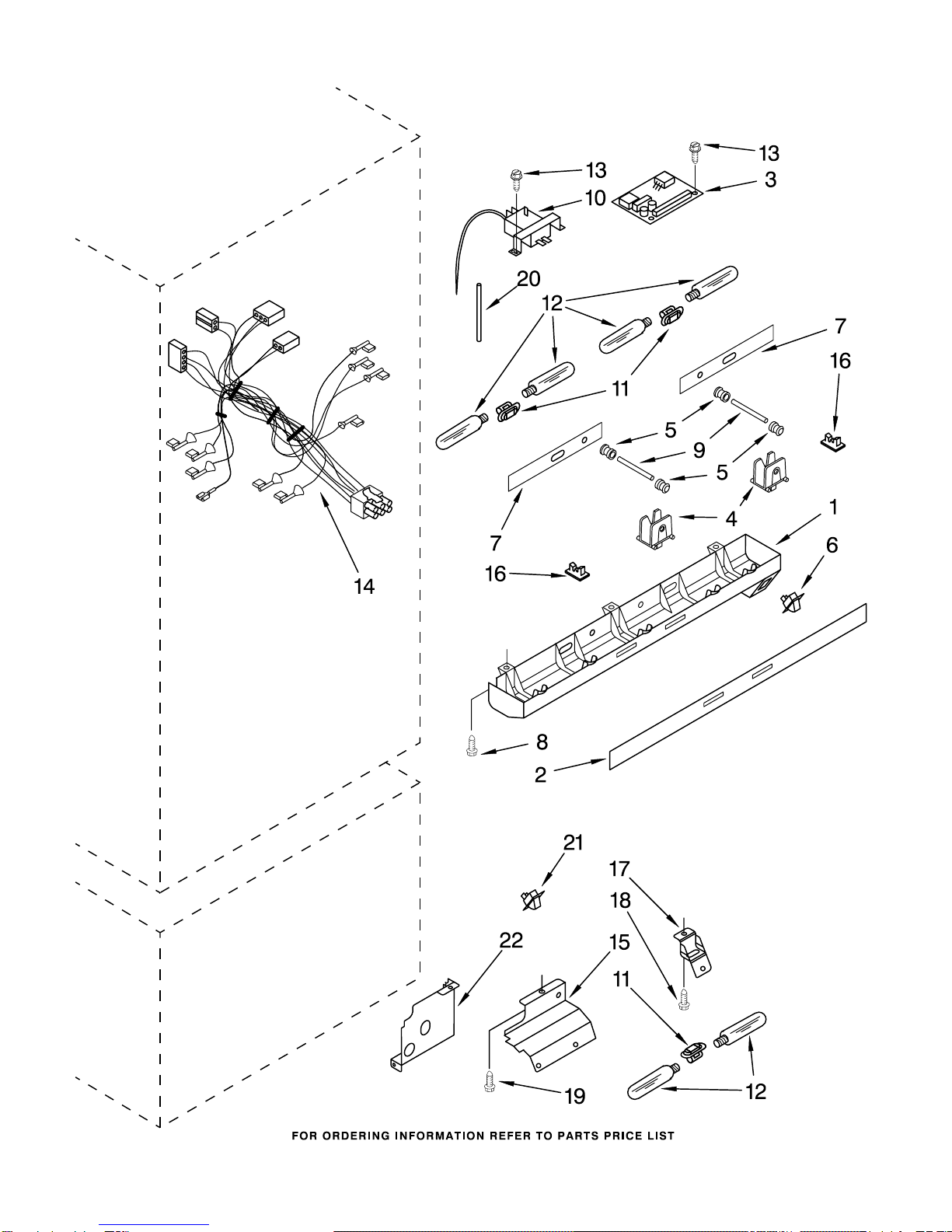

CONTROL PANEL PARTS

For Models: KBRC36MHS00

4398293

CONTROL PANEL PARTS

For Models: KBRC36MHS00

4398293

Illus. Part

No. No. DESCRIPTION

1 2005489 Control Panel

2 2005940 Overlay, Control

Panel

3 2005585 Circuit Board

4 2005414 Slide, Control

5 2172906 Grommet, Light

Fiber

6 1118894 Switch, Rocker Arm

7 2005935 Heat Shield, Lamp

8 489260 Screw (3)

9 2179920 Fiber Optic

10 2005936 Thermostat

11 2005043 Socket, Light

12 548049 Light Bulb

13 489214 Screw

14 2005100 Harness, Control

Box

15 2207411 Channel, Wiring

Freezer Light

16 1115375 Clip, Wiring

17 2207410 Bracket, Freezer

Light

18 488500 Screw

19 486194 Screw

20 2207416 Tube-Barrier,

Thermostat

21 1115373 Switch, Rocker

22 2005792 Wiring Cover,

Icemaker

For Models: KBRC36MHS00

4398293

REFRIGERATOR SHELF PARTS

For Models: KBRC36MHS00

4398293

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2005134 Slide, Freezer

Basket

2 2005981 Spacer, Slide

3 487559 Screw,

8-15 x 1.250

4 Spacer, Crisper

2005138 Right Side

2005139 Left Side

5 2179375 Rack, Wine

6 2169933 Egg Bin

7 2188212 Roller

8 2164373 Egg Carrier

9 2174478 Eyelet, Roller

10 489211 Screw,

10-16 x .750

11 489261 Screw

12 2169935 Cover

13 1113169 Roller Stop

14 486194 Screw

15 2005987 Support, Crisper

Shelf (2)

16 2006454 Rail, Deli

Center

18 2005571 Shelf (4)

19 2005429 Air Damper, Deli

20 2005151 Rail-Rear, Deli

21 2005152 Glass Shelf, Deli

22 2005153 Rail-Front, Deli

23 2005415 Control Knob, Deli

24 2006235 Screw,

10-16 x .375

25 2006252 Washer

26 2005165 Connector, Deli

Pan

27 2005428 Lid, Deli Pan

28 2005923 Hinge Rod, Deli

Pan

29 2005157 Cripser Pan

30 2005480 Handle, Crisper

Pan

31 2006253 Screw,

8-32 x .340

32 2005986 Overlay, Crisper

Pan

33 2005424 Rail-Front,

Crisper Shelf

34 2005425 Vent, Crisper

Shelf

35 2005413 Slide-Humidity,

Crisper Shelf

36 2006254 Screw,

6-19 x .250

37 2005477 Glass, Crisper

Shelf

38 2005478 Rail-Rear,

Crisper Shelf

39 2005479 Seal-Front,

Crisper Shelf

40 2005984 Insulation,

Crisper Rail

41 2005985 Baffle-Center,

Crisper Shelf

42 2005794 Center Support,

Left Half

43 2005795 Center Support,

Right Half

44 2005796 Bracket, Center

Support

45 2003478 Screw,

10-16 x .625

46 2006235 Screw,

10-16 x .375

47 2005163 Deli Pan

48 2005410 Ladder, Shelf (4)

49 2006475 Screw,

50 2005797 Ladder, Crisper

Support

51 2004068 Shelf Stud
