KitchenAid KEHU309SSS02 User manual

OVEN PARTS

For Models: KEHU309SSS02

(Stainless)

1−09 Litho in U.S.A. (amd)(bay) Part No. W10243115 Rev. A

30" BUILT−IN ELECTRIC

COMBINATION OVEN

CONVECTION MICROWAVE UPPER

OVEN PARTS

For Models: KEHU309SSS02

(Stainless)

W10243115

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10140564

Installation

Instructions

Use & Care Guide

W10162201

Oven

W10138787

Microwave

Tech Sheet

W10220958

English

W10220959

French

Safer Cooking Tips

9762761 English

W10065852

French

W10153090

Bracket, Base

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door (2)

5 8303829 Exhaust,Vent Slope

W10181196

Divider, Vent

W10204470

Top Chassis

8 4449809 Screw

9 3196176 Screw

10 4452163 Lens, Light

11 4448972 Oven Light,

Assembly

12 4452164 Bulb, Light

13 3400832 Screw

W10115861

Frame, Front

15 8304493 Gasket, Door

16 4452158 Tube, Vent

17 4449040 Screw

18 3400893 Screw

19 4451478 Support, Insulation

20 8303685 Center Vent

21 Mounting Rail,Side

8303679BL

Right

8303680BL

Left

22 8303692 Latch, Mortorized

23 4449743 Screw

24 4448444 Mounting Grommet,

Rail (6)

25 4455641 Side, Chassis

W10153104

Back, Chassis

27 Liner, Oven

(Not serviceable)

28 8304452 Thermal Fuse

W10131825

Sensor

30 4449748 Screw

31 8303516 Base, Chassis

W10153361

Retainer, Gasket

33 8303517 Cover, Back

W10216230

Trim, Bottom Vent

35 9758597 Orifice, Boiler

Slip Fit

W10153098

Cover, Boiler

Orifice

37 8304640 Screw

W10155510

Enclosure

W10077010

Gasket, Enclosure

W10111418

Valve, Solenoid

W10076760

Sensor,

Conductivity

Slip Fit

W10169348

Bracket,

Thermostat

W10076910

Tubing

45 9761146 Clamp, Crimp

46 9758598 Boiler Assembly

W10194453

Switch, Pressure

W10076930

Hose

(includes clamp)

W10142627

Tube−Copper, Steam

50 4450038 Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8303965 Insulation, Wrap

W10141379

Insulation, Back

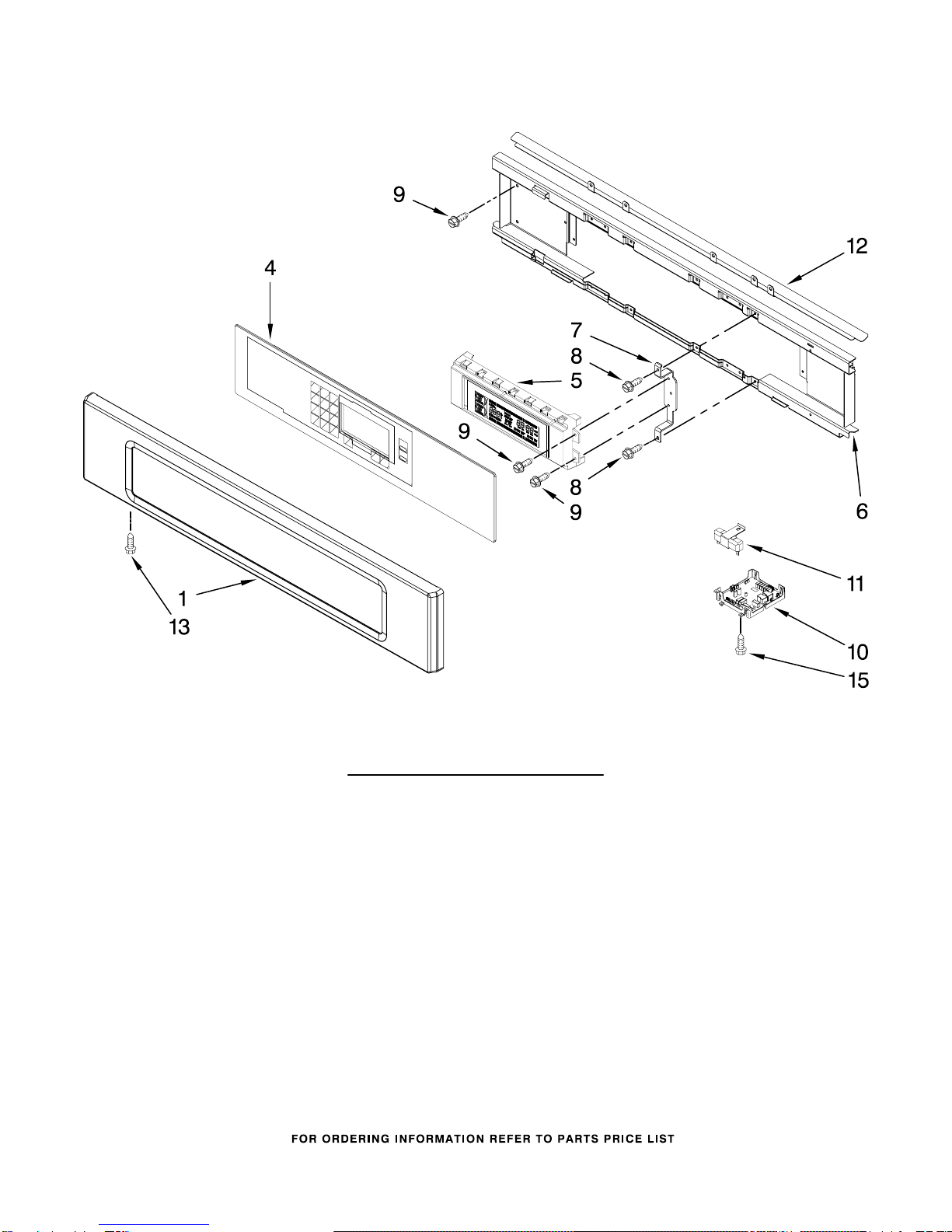

CONTROL PANEL PARTS

For Models: KEHU309SSS02

(Stainless)

W10243115

Illus. Part

No. No. DESCRIPTION

W10216219

Panel, Control

W10110694

Control Panel,

Glass Touch

W10143290

User Interface

6 8303719 Backer, Control

7 8303887 Bracket,Enclosure

8 4449154 Screw

9 3400832 Screw

W10160958

Appliance Manager

11 8304441 Resistor, Drop

W10134765

Vapor, Stop

13 3400805 Screw

15 4449809 Screw

OVEN DOOR PARTS

For Models: KEHU309SSS02

(Stainless)

W10243115

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

8303737BL

Door Liner

W10174285

Hinge, Door (2)

3 3196183 Screw

8304581BL

Vent, Door Top

5 Bracket, Door

8304377 Right

8304378 Left

6 8303746 Door, Top Bracket

7 8303731 Glass, Inner

8 4449743 Screw

8303745BL

Frame, Door Side

10 8304523 Seal

8304360BL

Bracket, Handle

W10237350

Door Glass,

Assembly

8303774SS

Door Handle

W10143950

Screw

8304603SS

Badge

16 8304522 Bumper, Glass

17 Cover,Hinge

W10137044

Right

W10137043

Left

W10143950

Screw

W10143334

Bracket, Air Glass

INTERNAL OVEN PARTS

For Models: KEHU309SSS02

(Stainless)

W10243115

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9760774 Element, Broil

2 8303841 Rack, Oven

3 9760768 Element, Bake

4 4455037 Tray, Bake

5 4449154 Screw

6 4450039 Cover, Bake Tray

7 4449809 Screw

W10196895

Motor, Convection

Fan

W10116351

Blade, Fan

W10116349

Nut

W10141211

Cover, Fan

12 3400968 Nut

W10150011

Jack, Meat Probe

14 9755547 Lockwasher

15 9755546 Locknut

16 8304602 Shield, Broil

W10153105

Plate, Mounting

Convection Fan

W10116434

Element,

Convection

19 9755542 Probe, Temperature

TOP VENTING PARTS

For Models: KEHU309SSS02

(Stainless)

W10243115

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4449154 Screw

2 4454949 Holder, Fuse

3 4449809 Screw

4 8303972 Blower

5 9760588 Transformer,

Lights

6 8304643 Exhaust Vent

7 9762885 Transformer,

Control

8 8285593 Control Cover

9 4449868 Block, Terminal

W10017410

Fuse

11 8304509 Back Chassis

Panel

12 Side, Combo

8304546 Right

8303539 Left

13 8303537 Back, Control

14 8303519 Cover, Top Rear

7103P027−60

Nut

16 8304569 Support (2)

17 3400080 Screw

CABINET AND STIRRER PARTS

For Models: KEHU309SSS02

(Stainless)

W10243115

CABINET AND STIRRER PARTS

For Models: KEHU309SSS02

(Stainless)

W10243115

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10120227

Control, Electric

2 8205669 Support

W10130892

Plate, Air

W10130901

Insulation, Side Left

W10120471

Cover, Side Left

W10120223

Thermostat

W10120224

Element,

Convection

8 4375418 Fan

W10120233

Nut, Speed

W10130891

Holder

W10120220

Noise Filter

W10120228

Control, Electric

Converter

W10130909

Bracket, Support

W10131249

Screw

15 8205692 Transformer

16 4375427 Actuator

17 4375321 Fuse

18 4375231 Block, Fuse

W10130897

Bracket, Support

20 8205653 Filter, Noise

21 8205654 Thermostat

W10120113

Magnetron

W10130895

Plate, Air

24 4375319 Spring, Lamp

25 8205685 Spring

26 8205658 Housing, Lamp

27 4375348 Lamp

W10120222

Thermostat

W10131248

Switch

30 8205683 Holder, Switch

31 4375320 Reflector

32 4375318 Lens, Lamp

W10120231

Clip. Spring

W10120477

Top Vent

36 Trim, Side

W10120473

Right

W10120475

Left

W10120469

Bushing

W10130905

Bracket, Support

39 8205708 Bracket, Support

40 8205682 Shaft, Turntable

Turntable

41 8205681 Cover, Motor

Turntable

W10120234

Cover

43 4375252 Gasket, Shaft

44 8205655 Motor, Turntable

45 4375202 Screw

46 8205707 Support

W10120478

Hinge, Door

W10130903

Cover, Plate

W10130904

Cover, Rear

50 8205680 Cover, Side Right

W10120221

Convection, Motor

Assmebly

52 8205721 Blower Assembly

W10130907

Cover, Inverter

W10120229

Inverter

W10130906

Holder, Inverter

W10130890

Screw

W10130908

Baffle, Air

W10130899

Plate, Air

W10120235

Rod, Release

W10120225

Sensor

61 8205685 Spring

64 8205683 Interlock

W10130900

Insulation

66 8205704 Spring

W10130902

Insulation

68 8205689 Spring

69 8205688 Arm

70 8205686 Support

W10120236

Arm

W10120470

Pin, Damper

73 8205690 Sensor

W10130898

Duct, Magnetron

INTERNAL MICROWAVE PARTS

For Models: KEHU309SSS02

(Stainless)

W10243115

Illus. Part

No. No. DESCRIPTION

W10120480

Crisp Plate

W10120484

Steamer

3 4452220 Rack, Convection

W10120486

Plate, Baking

W10120483

Rack

6 8205676 Turntable

7 8205678 Ring

8 8205677 Drive, Turn Table

W10120481

Handle, Pan

W10120226

Grill Heater

W10120230

Cover, Plates (2)

W10120232

Bracket, Mounting

MICROWAVE DOOR PARTS

For Models: KEHU309SSS02

(Stainless)

W10243115

Illus. Part

No. No. DESCRIPTION

8304588BL

Button, Plug (2)

2 4449809 Screw

W10216226

Door, Microwave

4 4449154 Screw (4)

5 8303033 Bracket, Handle

6 8304026 Glass Assembly

8303774SS

Handle, Door

W10143304

Screw
