KitchenAid KEBS207BAL2 User manual

UPPER OVEN PARTS

For Model: KEBS207BBL2, KEBS207BWH2, KEBS207BAL2

(BLACK) (WHITE) (ALMOND)

1−95 Litho in U.S.A. (drs) Part No. 4174489

30" ELECTRIC

BUILT−IN

DOUBLE OVEN

Convection Upper

Self Clean Lower

UPPER OVEN PARTS

For Model: KEBS207BBL2, KEBS207BWH2, KEBS207BAL2

(BLACK) (WHITE) (ALMOND)

4174489

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3186975

Frame Front

307985

Pin, Hinge Ear (2)

309111

Snubber, Door (2)

308306

Pushnut (2)

3182031

Oven 30"

311056

Screw (3)

310713

Bracket, Oven

Mounting (2)

343641

Screw (6)

3185086

Button, Plug

3185944

Insulation Tray

3148107

Screw (2)

311774

Support, Side

Wrapper (4)

3148107

Screw (4)

Side Wrapper

3185953

Right Side

3185956

Left Side

3148107

Screw,

Hinge Ear

3185662

Right Side

3185663

Left Side

310659

Plate (2)

(Side Panel)

308544

Screw (4)

3185664

Channel Arm (2)

307986

Pin, Hinge (2)

307594

Retainer Ring (2)

308125

Anchor Spring (2)

308126

Spring, Oven

Door (2)

3183792

Tube, Vent

343641

Screw, Ground

3186684

Eliminator, Smoke

310662

Plate Cover

3148107

Screw (2)

3185197

Seal, Pyro

3150505

Oven Light Assy.

311255

Bulb, Oven Light

3184533

Gasket, Light

3183796

Baffle, Top

Insulation

3148107

Screw (2)

3182585

Bracket, Mounting

Control Frame

3179847

Screw

312713

Screw

310345

Switch, Door

3184099

Cover, Top

3148107

Screw (4)

Side Trim L.H.

3149737

Black Model

3187909

White Model

3187910

Almond Model

Side Trim R.H.

3149738

Black Model

3187903

White Model

3187904

Almond Model

3182052

Panel, Back

3148107

Screw (16)

Trim, Center vent

3188144

Black Model

3188145

White Model

3188146

Almond Model

309133

Screw (3)

311582

Stand Off

3185961

Cover, Rear

3148107

Screw (9)

309102

Bracket Stand Off

3148107

Screw

3182042

Bracket, Motor

3179117

Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4454421

Insulation, Wrap

310435

Insulation, Oven

3149328

Insulation, Top

LOWER OVEN PARTS

For Model: KEBS207BBL2, KEBS207BWH2, KEBS207BAL2

(BLACK) (WHITE) (ALMOND)

4174489

LOWER OVEN PARTS

For Model: KEBS207BBL2, KEBS207BWH2, KEBS207BAL2

(BLACK) (WHITE) (ALMOND)

4174489

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3186975

Frame, Front

307985

Pin, Hinge Ear (2)

309111

Snubber, Door (2)

308306

Pushnut (2)

3182032

Oven 30"

311056

Screw (3)

3185086

Button, Plug

310713

Bracket, Oven

Mounting (2)

3182814

Button, Plug

3185944

Insulation Tray

3148107

Screw (2)

Side Wrapper

3185955

Right Side

3185958

Left Side

311774

Support, Side

Wrapper (4)

3148107

Screw (2)

Hinge Ear

3185662

Right Side

3185663

Left Side

310659

Plate, Side

Panel (2)

308544

Screw (4)

3185664

Channel Arm (2)

307986

Pin Hinge

307594

Retainer, Ring

308125

Anchor, Spring (2)

308126

Spring, Oven

Door (2)

343641

Screw

3182159

Tube, Vent (Lower)

3186684

Eliminator, Smoke

3148107

Screw (2)

310662

Plate Cover

3148107

Screw (2)

3182161

Tube, Vent (Upper)

3183796

Baffle, Top

3184533

Gasket, Light

Insulation

3150532

Screw (4)

3150505

Oven Light Assy.

311255

Bulb, Oven Light

310345

Switch, Door

3185197

Seal, Door

3182052

Panel, Back

3148107

Screw (6)

255095

Angle Support (2)

3148107

Screw (6)

Side Trim L.H.

3149236

Black Model

3187912

White Model

3187913

Almond Model

Side Trim R.H.

3149237

Black Model

3187906

White Model

3187907

Almond Model

3148107

Screw (14)

Grill, Bottom

3150349

Black

3150350

White

3150351

Almond

309029

Screw, 8−15 x 1/2

Black (3)

311592

Angle Support (2)

3185945

Cover, Bottom

3148107

Screw (4)

3185961

Cover, Rear

3148107

Screw (11)

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4454421

Insulation, Wrap

310435

Insulation, Oven

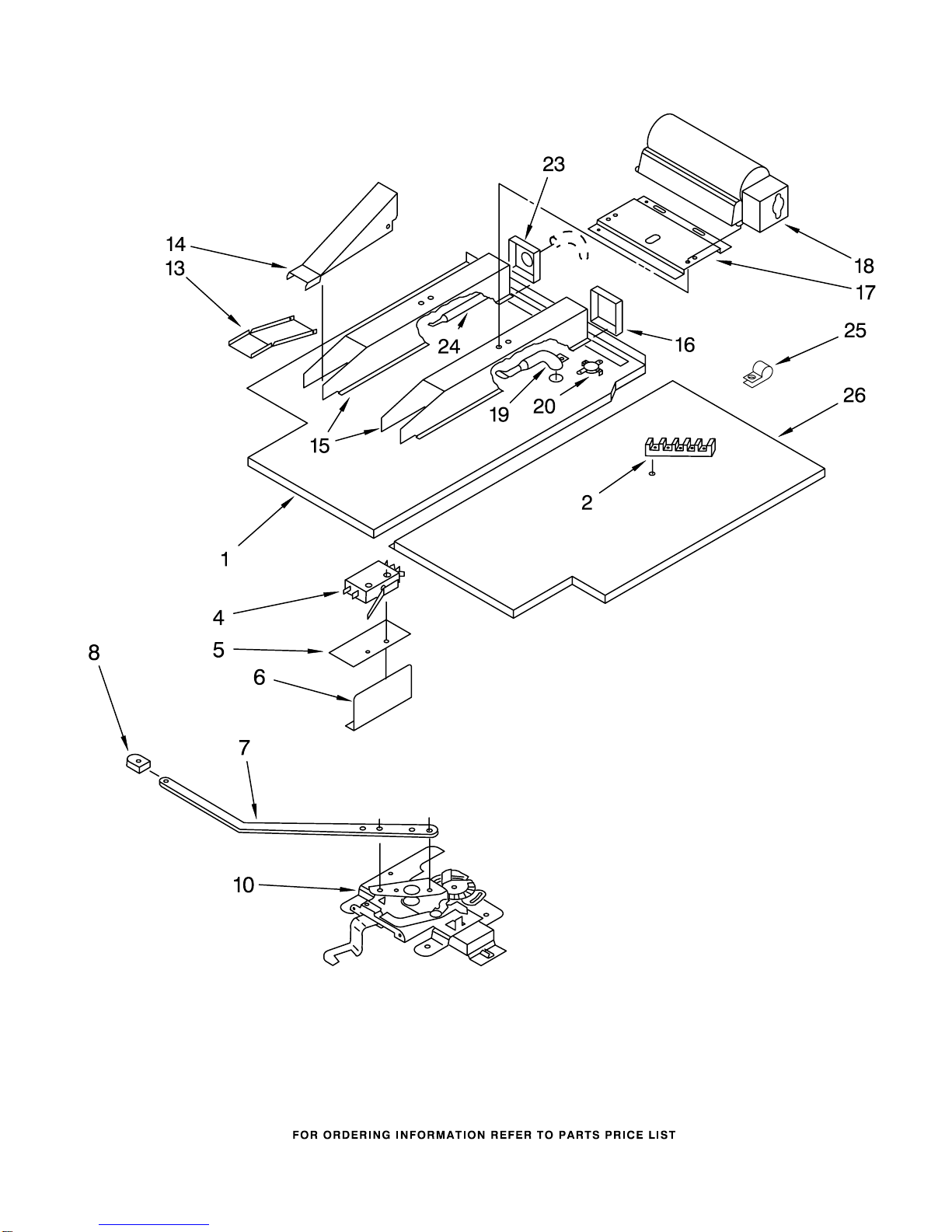

LATCH AND VENT PARTS

For Model: KEBS207BBL2, KEBS207BWH2, KEBS207BAL2

(BLACK) (WHITE) (ALMOND)

4174489

LATCH AND VENT PARTS

For Model: KEBS207BBL2, KEBS207BWH2, KEBS207BAL2

(BLACK) (WHITE) (ALMOND)

4174489

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3183948

Baffle, Vent Mtg.

258076

Block, Terminal

308043

Screw

112432

Nut, Hex (3)

Switch, Latch

3183784

Upper Oven

3178668

Lower Oven

98106

Screw

309245

Insulator, Switch

313035

Shield, Terminal

309258

Screw (2)

Handle, Latch

3184002

Upper Oven

3183637

Lower Oven

308422

Screw (2)

3184039

Knob, Latch

3183294

Screw

Latch Assembly

3183800

Upper Oven

3187081

Lower Oven

3183954

Nozzle, Vent

Bottom

3183955

Nozzle, Vent Top

3184078

Box, Vent

4173231

Screw

3179116

Screw

3183964

End, Vent Box

3183533

Bracket, Mounting

Fan

3177991

Screw

3183720

Blower, Fan

3183792

Tube, Vent

343641

Screw

3149650

SPST Thermostat

3183965

End, Vent Box

Lower Oven

3183793

Tube, Vent

Lower Oven

3183532

Clamp, Tube

3183949

Extension, Baffle

3148107

Screw

CONTROL PANEL PARTS

For Model: KEBS207BBL2, KEBS207BWH2, KEBS207BAL2

(BLACK) (WHITE) (ALMOND)

4174489

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

Membrane, Switch

4454378

Black

4454379

White

4454380

Almond

3181889

Bracket, Mounting

Switch Membrane

3181705

Microcomputer

3179117

Screw

3182985

Clip, Retainer

3182162

Trim, Door

Door, Latch Handle

3182152

Black

3182155

White

3182158

Almond

3183703

Trim, Panel

3148443

Screw

3185424

Bracket

3182939

Screw

Frame, Control

Panel

3187948

Black Model

3187949

White Model

3187950

Almond Model

3184567

Clip, Control

Frame

FOLLOWING PARTS

NOT ILLUSTRATED

LITERATURE PARTS

LIT3185962

Tech Sheet

LIT3182137

Installation

Instructions

LIT3188199

Use & Care Guide

LIT3150693

Cookbook

LIT3183987

Guide−Autoset

LIT3183739

Guide−Quickset

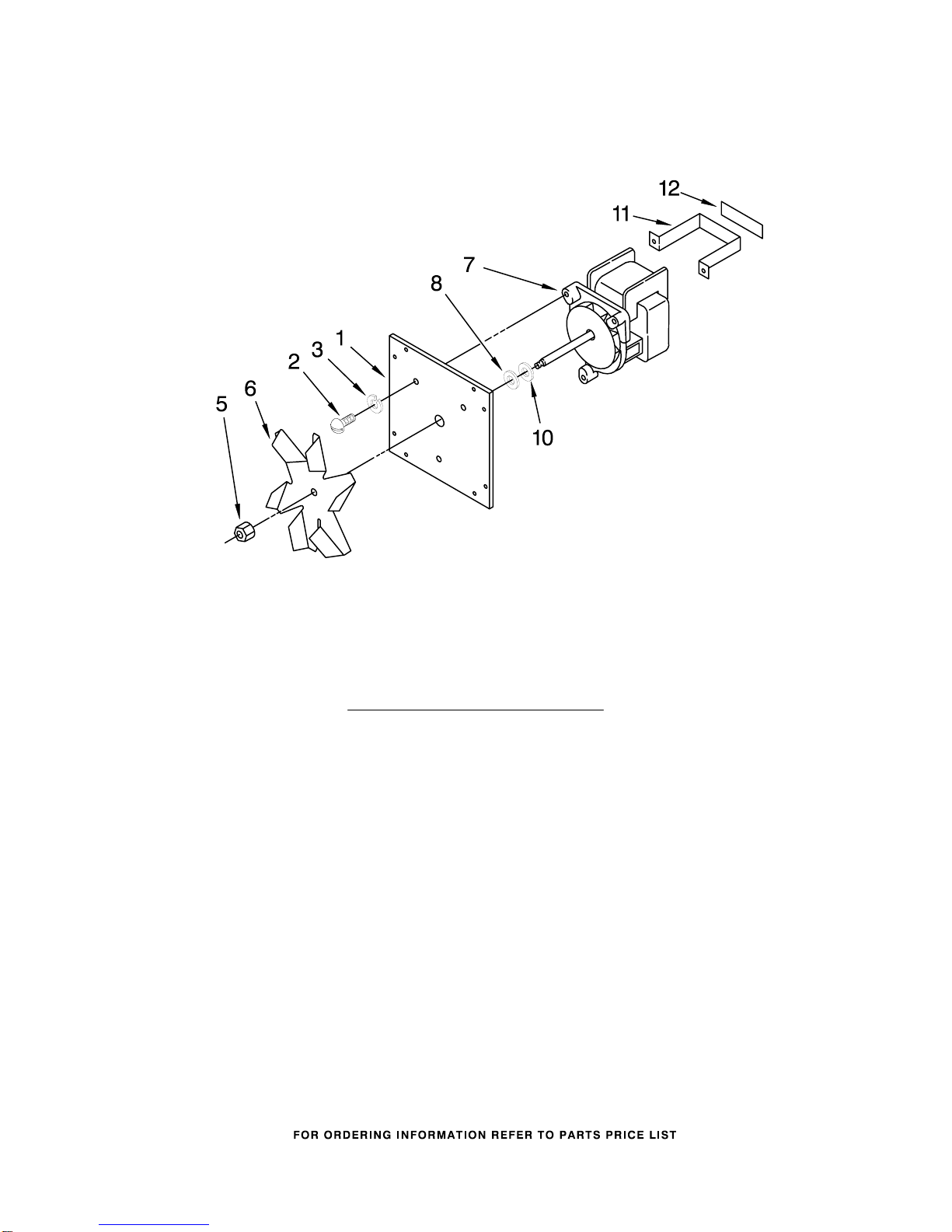

CONVECTION FAN PARTS

For Model: KEBS207BBL2, KEBS207BWH2, KEBS207BAL2

(BLACK) (WHITE) (ALMOND)

4174489

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3182045

Mounting Plate

4173193

Screw (3)

4173194

Lockwasher (3)

4173237

Nut(Left Hand)

4173236

Fan

3183220

Motor

4173238

E−Ring

4173230

Flatwasher

3181750

Bracket, Guard

3179790

Gasket, Foam

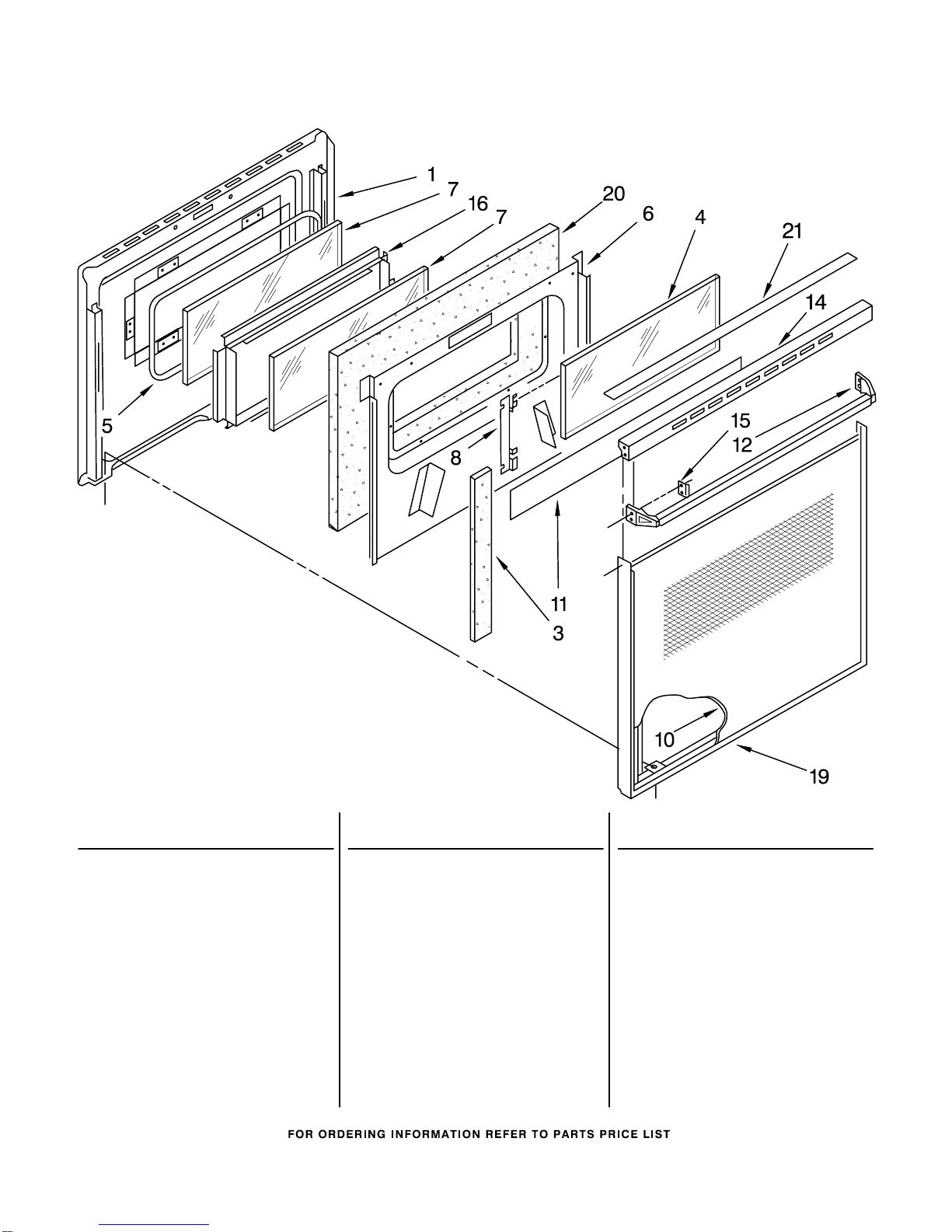

UPPER AND LOWER OVEN DOOR PARTS

For Model: KEBS207BBL2, KEBS207BWH2, KEBS207BAL2

(BLACK) (WHITE) (ALMOND)

4174489

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3172218

Liner, Door

3148441

Seal, Flange (2)

3169202

Glass, Clear

3185647

Screw (4)

3148183

Seal, Door

3148159

Retainer,

4173601

Screw

3169203

Glass, Inner & Outer

3188720

Retainer,

Glass (2)

Glass, Panel

3188052

Black

3188050

White

3188051

Almond

3188706

Foil, Door

Handle, Door

3186524

Black

3186525

White

3186526

Almond

3149253

Screw (4)

Top, Door

3148223

Black Model

3149355

White/Almond

Model

3149333

Screw

3148282

Clip, Mtg. (2)

3149333

Screw

3148234

Frame, Inner

3185647

Screw (6)

Frame, Panel

3171530

Black Model

3187920

White Model

3187921

Almond Model

3147951

Insulation, Door

Cap, Top

3181366

Black Model

3181367

White Model

3188375

Almond Model

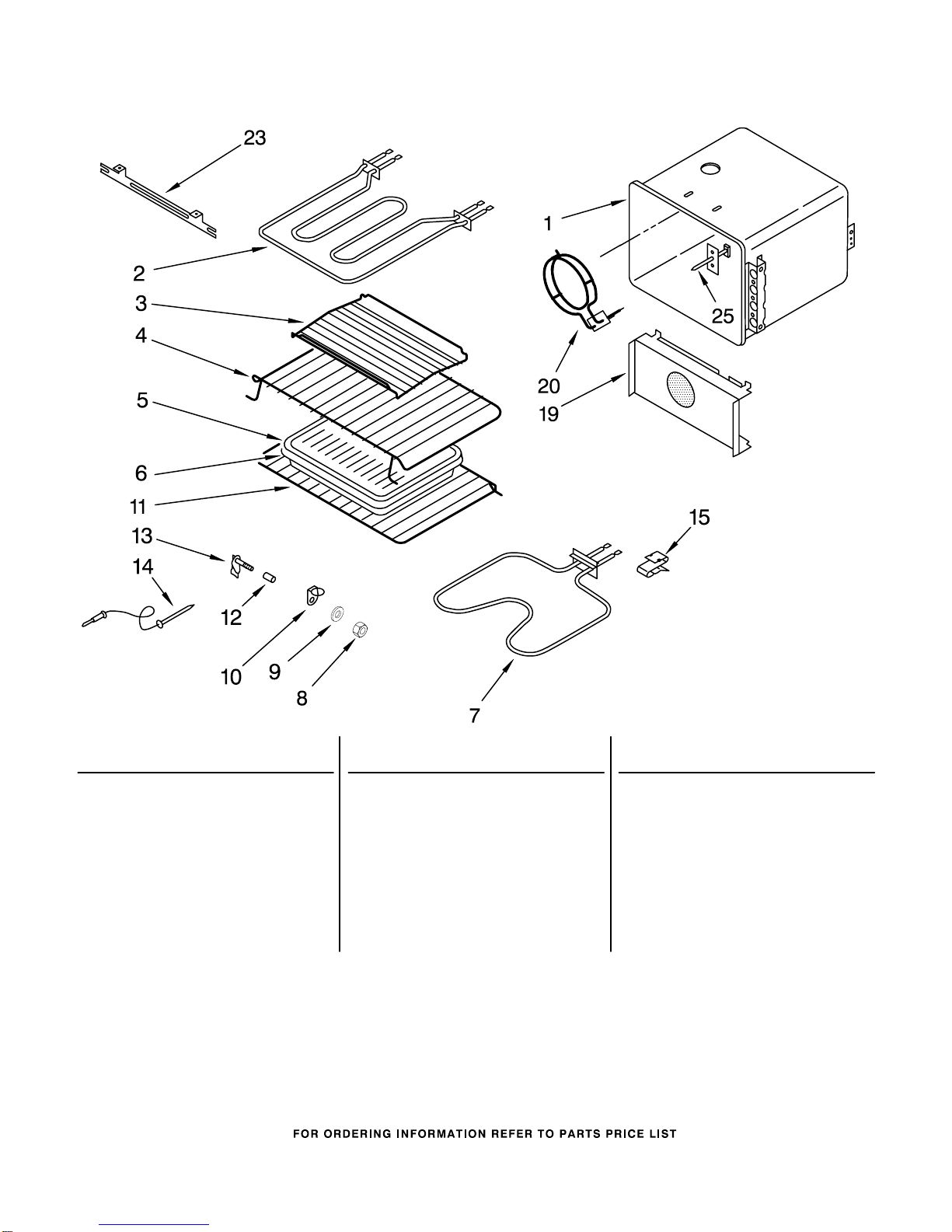

INTERNAL OVEN PARTS

For Model: KEBS207BBL2, KEBS207BWH2, KEBS207BAL2

(BLACK) (WHITE) (ALMOND)

4174489

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

Liner, Oven

3182032

Self Clean

3182031

Convection

3182451

Element, Broil

3150532

Screw

3181534

Rack, Roaster

3181639

Rack, Offset

3147563

Grill, Broiler

3147845

Pan, Broiler

661416

Element, Bake

3150532

Screw (2)

4167277

Nut, Meat Probe

4163975

Gasket, Meat Probe

4167266

Probe Cover

3181638

Rack, Straight Oven

3179672

Spacer − Tubing

3150107

Meat Probe Jack

3150144

Meat Probe

313570

Clip, Tubing

3181724

Cover, Fan

3179117

Screw

661460

Element, Convect.

3180694

Bracket, Element

3150532

Screw

3148440

Sensor, Heat

3148107

Screw

This manual suits for next models

Table of contents

Other KitchenAid Oven manuals

KitchenAid

KitchenAid KEBK101S User manual

KitchenAid

KitchenAid KEMS308SSS03 User manual

KitchenAid

KitchenAid Superba KEBS107 User manual

KitchenAid

KitchenAid KOCCX 45600 User manual

KitchenAid

KitchenAid KEBS276SBL3 User manual

KitchenAid

KitchenAid KOSE500ESS Use and maintenance manual

KitchenAid

KitchenAid KEBC247KBL - Architect Series: 24'' Double Electric Wall... User manual

KitchenAid

KitchenAid KFDD500ESS User manual

KitchenAid

KitchenAid KESK901SBL04 User manual

KitchenAid

KitchenAid KCO223CCU User manual

KitchenAid

KitchenAid W10162200A Use and maintenance manual

KitchenAid

KitchenAid OVEN KEB246B User manual

KitchenAid

KitchenAid Superba KEBS146 User manual

KitchenAid

KitchenAid KEBK101BSS User manual

KitchenAid

KitchenAid Superba KEBS276WBL1 User manual

KitchenAid

KitchenAid KEBS207DBL10 User manual

KitchenAid

KitchenAid KESC300BWH1 User manual

KitchenAid

KitchenAid KEBS2777W User manual

KitchenAid

KitchenAid KEMI301B User manual

KitchenAid

KitchenAid KOMP 6610 User manual

KitchenAid

KitchenAid KEBU208SSS - 30" Double Wall Oven User instructions

KitchenAid

KitchenAid KEBS277DBL8 User manual

KitchenAid

KitchenAid KC0223CU User manual

KitchenAid

KitchenAid KOSC504ESS User manual

Popular Oven manuals by other brands

Bosch

Bosch HVA531NS0 instruction manual

Electrolux

Electrolux EOF6P46X user manual

NEFF

NEFF B44S32 5GB Series instruction manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Electrolux

Electrolux air-o-convect 20 GN 2/1 user manual

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual
