KitchenAid KEBS276XBL3 User manual

c1992 KITCHENAID

BL−Black Glass

MODEL

SUPERBA

27" BUILT−IN ELECTRIC

DOUBLE OVEN

Self Clean Upper

and Lower Oven

KEBS276XBL3

Part No. 4174203

2−92 Litho in U.S.A.

CONTROL PANEL PARTS

For Model: KEBS276XBL3

4174203

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

CONTROL PANEL PARTS

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3178273 Thermostat

Upper Oven

155023 Screw (2)

3 3178233 Switch, Selector

Upper Oven

155023 Screw (2)

4 4168598 Light, Indicator

5 3179891 Switch, Oven Light

6 98788 Nut, Timer (4)

7 4173385 Insert, Top

8 3177804 Bracket, Control

9 3148111 Timer, Electronic

10 3181282 Glass, Control

Panel

11 3177760 Frame, Control

Panel

12 3179916 Insert, Vent

3179847 Screw (4)

13 3179704 Knob, Timer (2)

14 3179705 Knob, Timer

15 3177972 Door, Latch

Handle

16 3178400 Knob, Control (4)

17 3178262 Disc, Selector

Lower Oven

18 3178477 Disc, Thermostat

Upper & Lower

Oven

20 4168838 Nut (3)

21 3177971 Hinge, Door (2)

3179847 Screw (2)

22 4167590 Retainer, Glass

4159456 Screw (6)

23 3178274 Thermostat

Lower Oven

155023 Screw (2)

24 3177747 Bracket, Control

Panel

3177991 Screw(2)

25 4169372 Bezel, Switch

26 3177650 Support, Frame

3177991 Screw(2)

27 3180156 Indicator,

Meat Probe

254225 Screw (2)

28 4163840 Knob, Meat Probe

29 3178264 Disc. Selector

Upper Oven

30 3178234 Switch, Selector

Lower Oven

155023 Screw (2)

LITERATURE PARTS

LIT4174203 Repair Parts List

LIT3185200 Tech Sheet

LIT3178195 Installation

Instructions

LIT3181351 Use & Care Guide

For Model: KEBS276XBL3

4174203

UPPER OVEN PARTS

For Model: KEBS276XBL3

4174203

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

UPPER OVEN PARTS

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

2 3177545 Bracket, Mounting

3 3177623 Cabinet, Back

300890 Screw (14)

6 3178136 Cabinet, Top

300890 Screw (5)

7 3177436 Top, Module

300890 Screw (8)

8 Side, Cabinet

3177440 Left Hand

3177438 Right Hand

300890 Screw (18)

9 3181699 Tube, Vent

3179117 Screw (3)

10 3150505 Oven Light Assy.

12 311255 Bulb, Oven

Light

13 313382 Clip, Thermostat

Bulb

14 3177682 Frame, Front

15 3179813 Seal, Door

16 3179848 Clip, Oven Seal

17 3177681 Bracket, Switch

18 3177923 Insulator, Switch

19 3177621 Bottom, Module

20 3179220 Rail, Support (2)

300890 Screw (4)

21 3181733 Insert, Middle

Vent Trim

4173601 Screw (2)

22 3177434 Support, Oven

300890 Screw (2)

23 3178612 Shield, Radiation

300890 Screw (2)

24 3177433 Bracket, Hinge

3179795 Screw (6)

300890 Screw (2)

25 3177572 Side, Module

(R.H. & L.H.)

300890 Screw (4)

26 3177556 Back, Module

300890 Screw (8)

27 3180828 Liner, Oven

28 3178298 Hinge, Door (2)

3178000 Screw (4)

31 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

33 3179587 Retainer, Seal

4159450 Screw (2)

3179776 Screw (4)

34 3181965 Vent, Middle Trim

3180022 Screw (4)

35 3179922 Vent, Tube

(Upper, Female)

36 3180891 Vent, Tube

(Upper, Male)

37 3180890 Shield, Vent

300890 Screw (2)

38 3178132 Extension, Shelf

3177991 Screw (8)

39 4168203 Cover, Cap Tube

4159445 Screw

40 4167518 Plate, Cover

4168874 Screw

41 4167469 Plate, Mounting

Rotisserie

42 4163836 Motor, Rotisserie

4159334 Screw (3)

4159501 Washer, Lock Tooth

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

3177862 Insulation, Wrap

3177872 Insulation, Back

For Model: KEBS276XBL3

4174203

LOWER OVEN PARTS

For Model: KEBS276XBL3

4174203

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LOWER OVEN PARTS

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

3 3177436 Top, Module

300890 Screw (8)

4 3181699 Tube, Vent

3179117 Screw (3)

5 3180828 Liner, Oven

6 3177572 Side, Module

(R.H. & L.H.)

300890 Screw (4)

7 311255 Bulb, Oven Light

9 3150505 Oven Light Assy.

10 313382 Clip, Bulb (2)

12 3177684 Frame, Front

13 3179813 Seal, Door

14 3177681 Bracket, Switch

3177991 Screw (2)

15 3177923 Insulator, Switch

16 3177551 Bottom, Oven

17 3179220 Rail, Support (2)

300890 Screw (4)

18 3177433 Bracket Hinge (2)

3179795 Screw (6)

300890 Screw (2)

19 3177621 Bottom, Module

20 3178612 Shield, Radiation

3179795 Screw (6)

300890 Screw (2)

21 3177434 Support, Oven

300890 Screw (2)

22 3177556 Back, Module

300890 Screw (8)

24 3179848 Clip, Seal (3)

25 3178298 Hinge, Door (2)

3178000 Screw (4)

26 3185109 Button, Plug

27 3185108 Button, Plug

28 3179945 Tube, Vent (Male)

300890 Screw (3)

29 3181964 Tube, Vent (Female)

30 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

32 3179587 Retainer, Seal

4159450 Screw (2)

3179776 Screw (4)

33 4168203 Cover, Cap Tube

4159445 Screw

34 3177787 Trim, Lower Vent

35 4167518 Plate, Cover

4168874 Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

3177862 Insulation, Wrap

3177872 Insulation, Back

For Model: KEBS276XBL3

4174203

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3177599 Liner, Door

4168863 Screw (6)

3178001 Screw, Black (2)

2 3178584 Gasket, Window

3 3179693 Spacer, Window

4 3177831 Latch, Strike

300890 Screw (2)

5 3177718 Insulation

Retainer

300890 Screw (4)

6 Clip, Channel

3179506 Bottom (2)

3179507 Top (2)

300890 Screw (4)

7 3181548 Glass, Door

8 4164243 Glass, Reflective

9 3181402 Frame, Door

10 3178646 Handle, Door

3181637 Screw (2)

11 3178740 Spacer (2)

13 4164235 Window Pack

14 3180094 Insulation, Door

15 3181651 Bushing, Door

Handle

16 3181701 Bumper, Door

Glass

UPPER AND LOWER OVEN DOOR PARTS

For Model: KEBS276XBL3

4174203

COMPONENT SHELF AND LATCH PARTS

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3178089 Shelf, Component

300890 Screw (7)

2 258076 Block, Terminal

98445 Screw (2)

3 4159035 Bushing

4 3178668 Switch, Latch

98106 Screw (2)

5 3178185 Insulator, Switch

6 3177662 Guard, Latch

3177991 Screw (1)

254225 Screw (2)

7 Handle, Latch

3177969 Upper

3181963 Lower

4159187 Screw (2)

3179950 Screw (2)

8 3183293 Knob, Latch

Handle

3183294 Screw

9 3177986 Spacer, Handle

10 3178410 Latch, Mechanism

3177991 Screw (3)

11 3177496 Plate, Mounting

12 3179777 Button, Plug

13 3178132 Extension, Shelf

3177991 Screw (8)

14 3178232 Support, Latch

4159334 Screw

15 3179695 Bracket, Buzzer

313806 Screw (2)

16 3179914 Buzzer, Meat Probe

98445 Screw (2)

17 3179532 Transformer

3177991 Screw (2)

For Model: KEBS276XBL3

4174203

Illus. Part

No. No. DESCRIPTION

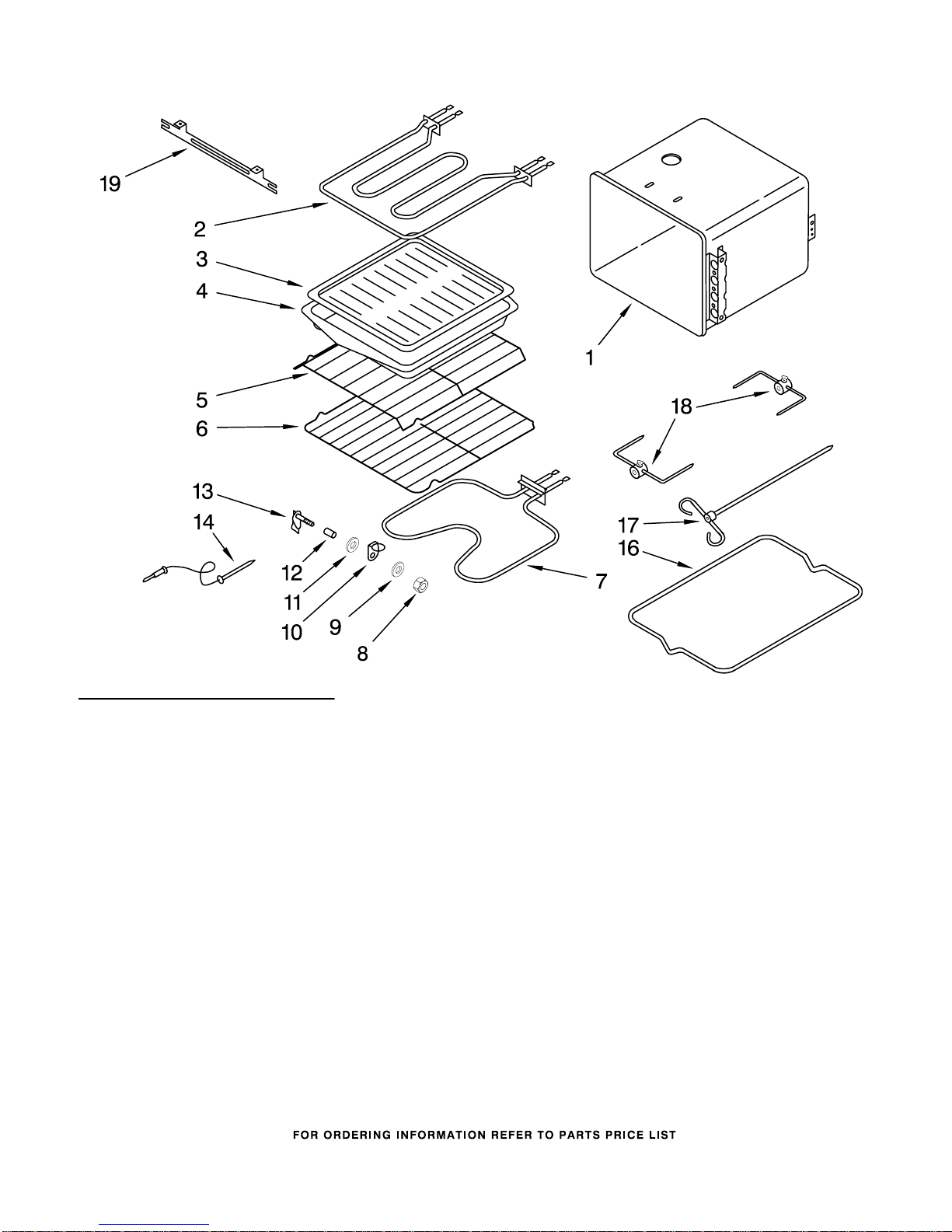

UNIT PARTS

4174203

For Model: KEBS276XBL3

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3180828 Liner, Oven

2 661415 Element, Broil

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3180865 Rack, Offset

6 3180864 Rack, Oven

7 661416 Element, Bake

3179117 Screw (2)

8 4167277 Nut, Meat Probe

9 4163975 Gasket, Meat Probe

10 4167266 Probe Cover

11 4159557 Washer

12 3179672 Spacer, Tubing

13 4173575 Meat Probe Jack

14 4167267 Meat Probe

16 4168412 Rack, Rotisserie

17 4168724 Spear, Rotisserie

18 4166352 Skewer

19 3180694 Bracket, Element

3179117 Screw (4)
