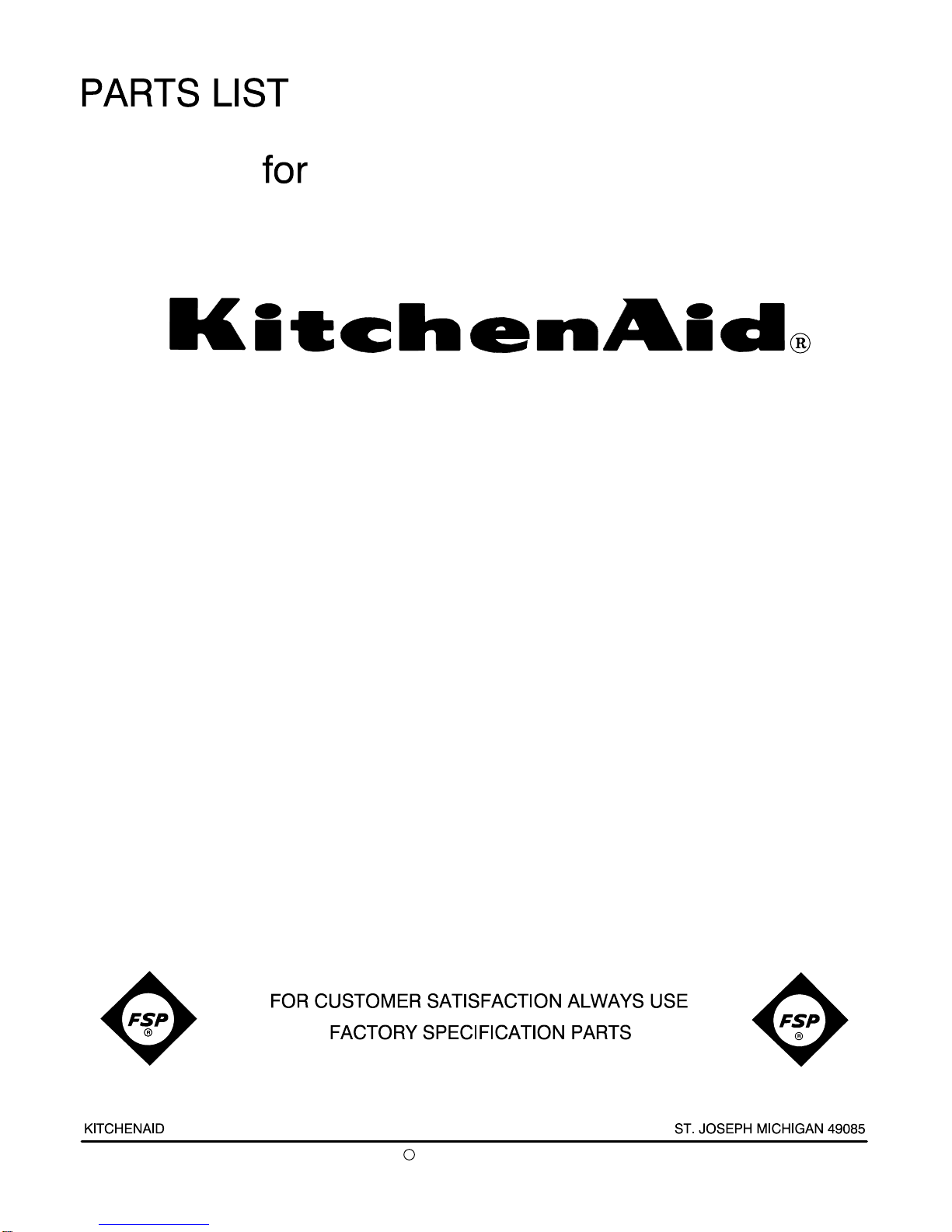

KitchenAid KV25G0XGC5 User manual
c2007 KITCHENAID
4−07 Litho in U.S.A. (skr) Part No. W10136426 Rev. A
5 QT. STAND MIXER
PROFESSIONAL 5 PLUS BOWL LIFT
MODELS:
KV25G0XWW5 (White on White)
KV25G0XWH5 (White)
KV25G0XBU5 (Cobalt Blue)
KV25G0XCV5 (Caviar)
KV25G0XCY5 (Bing Cherry)
KV25G0XER5 (Empire Red)
KV25G0XGR5 (Imperial Grey)
KV25G0XMC5 (Metallic Chrome)
KV25G0XOB5 (Onyx Black)
KV25G0XBW5 (Blue Willow)
KV25G0XGC5 (Gloss Cinnamon)
COLOR VARIATION PARTS
2
For Model: KV25G0X__5
W10136426
COLOR VARIATION PARTS
3
For Model: KV25G0X__5
W10136426
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Colors Subject To Change.
Any Color Not Listed is
No Longer Available.
If Additional Colors Are Added,
This Page Will Be Updated.
1 Motor Housing
9703311 White
9703433 Metallic Chrome
9705296 Onyx Black
9705300 Empire Red
9705380 Cobalt Blue
9703531 Imperial Grey
9705693 Caviar
9708813 Bing Cherry
W10114574
Blue Willow
W10114555
Gloss Cinnamon
2 Trim Band
9708264 White on White
9708312 Grey
9708010 Black
3 Planetary
9708172 White
9708175 Metallic Chrome
9708176 Onyx Black
9708180 Empire Red
9708182 Cobalt Blue
9708173 Imperial Grey
9708183 Caviar
9708817 Bing Cherry
W10114578
Blue Willow
W10114559
Gloss Cinnamon
4 Bowl Supprt & Pins
9703674 White
9705356 Onyx Black
9703397 Metallic Chrome
9705360 Empire Red
9705390 Cobalt Blue
9703519 Imperial Grey
9705682 Caviar
9708824 Bing Cherry
W10114585
Blue Willow
W10114566
Gloss Cinnamon
5 Lower Gearcase
9706047 White
9706306 Metallic Chrome
9706311 Onyx Black
9706331 Empire Red
9706341 Cobalt Blue
9706296 Imperial Grey
9706346 Caviar
9708820 Bing Cherry
W10114581
Blue Willow
W10114562
Gloss Cinnamon
6 Column
9703673 White
9703349 Metallic Chrome
9705320 Onyx Black
9705324 Empire Red
9705384 Cobalt Blue
9703525 Imperial Grey
9705679 Caviar
9708827 Bing Cherry
W10114588
Blue Willow
W10114569
Gloss Cinnamon
7 Base And Foot
Assembly
9703690 White
9703346 Metallic Chrome
9705344 Onyx Black
9705348 Empire Red
9705388 Cobalt Blue
9703510 Imperial Grey
9705676 Caviar
9708830 Bing Cherry
W10114591
Blue Willow
W10114572
Gloss Cinnamon
CASE, GEARING AND PLANETARY UNIT
4
For Model: KV25G0X__5
W10136426
CASE, GEARING AND PLANETARY UNIT
5
For Model: KV25G0X__5
W10136426
Illus. Part
No. No. DESCRIPTION
1 Gearcase Motor Housing
2 9707507 Motor (10 Tooth)
3 9703315 Cap, Attachment
Hub (Hinged)
4 Thumb Screw
9709196 Grey
9709194 Black
5Band, Trim
6 Power Cord
9706551 White
9706552 Black
7 9709125 Transmission
Housing Assembly
8 Control Assembly
9706648 Black Knob
9706649 Grey Knob
9 9703312 Sensor, Hall
Effect
10 9706090 Washer
11 9703434 Washer, Fiber
12 9707627 Gear, Pinion
13 9703438 Clip, Retaining
14 9708191 Shaft, Agitator
15 Planetary Assembly
16 16897 Bearing, Lower
Center
17 9709231 Gear, Worm
18 9707223 Pin, Retaining
19 9706529 Gear, Worm
Follower
20 9703338 Gear, Attachment
Hub Bevel
21 9703337 Gear, Bevel
22 3400617 Screw
23 3400814 Screw
24 Lower Gear Case
25 9703680 Retaining Clip
26 9703339 Gear, Internal
27 3400200 Screw
28 Bearing
9703560 Front
9703570 Rear
29 9703445 Bearing, Thrust
30 9704677 Pin, Groove
31 9709511 Gasket,
Transmission
32 9706036 Lead, Motor to
Control
33 9706247 Seal, Motor Shaft
34 67500−55 "O" Ring
35 8533910 Washer
Refer To Pages 2 & 3
Color Variation Parts
BASE AND PEDESTAL UNIT
6
For Model: KV25G0X__5
W10136426
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
9708307 Use & Care Guide
W10136426
Repair Parts List
2 9708649 Foot, Rubber
3Column Assembly
4Bowl Support
5 9703474 Latch, Bowl Spring
6 9706885 Arm, Bowl Lift
7 9706787 Rod, Bowl Lift
8Base And Foot
Supports
9 9703439 Washer
10 9237 Spring
11 8533907 Nut
12 9706788 Handle, Bowl Lift
13 3400863 Screw
14 9703550 Bowl (5 Qt)
15 9708610 Beater, Flat
16 9703656 Hook, Dough
17 9703491 Whip, Wire
20 9703426 Cam, Adjusting
21 3400200 Screw
22 3400018 Screw
23 9703307 Clip
24 240185 Pin, Bowl Locating
Refer To Pages 2 & 3
Color Variation Parts
7
ACCESSORY PARTS
For Model: KV25G0X__5
W10136426
Illus. Part
No. No. DESCRIPTION
4164778 Mixer Attachment
Pak (Includes Food
Grinder (FG−A),
Food Strainer
(FVSP), And
Vegetable Slicer,
(RVS−A)
(FPP−A)
4164749 Food Grinder
(FG−A)
8211924 Grain Mill
(KGMA)
4164768 Pasta Maker And
Food Grinder
(Includes SNP
Pasta Maker
Plates)
(SN/FG−A)
4164775 Fruit/Vegetable
Strainer Parts (Use
With FG−A Model
Only) (FVSP)
4164750 Rotor Slicer/Shredder
(With 4 Standard
Cones) Fine Shredder,
Coarse Shredder,
Thick Slicer, And
Thin Slicer (RVS−A)
4164824 Pasta Maker Plates
(SNP−A)
4164774 Fruit/Vegetable
Strainer And Food
Grinder (FVS/FG−A)
4162838 Food Tray (FT)
4164748 Juicer (JE)
4164747 Can Opener (CO)
4164803 Sausage Stuffer
Kit (SSA)
4160588 Grease, Planetary
8212519 Ice Cream Maker
(KICA0WH0)
This manual suits for next models
10
