KitchenAid KP26M1XBR5 User manual

c2007 KITCHENAID

8−07 Litho in U.S.A. (skr) Part No. 8212278 Rev. B

6 QT. STAND MIXER

PROFESSIONAL 600 BOWL LIFT

MODELS:

KP26M1XMR5 (Meringue)

KP26M1XBS5 (Blue Steel)

KP26M1XCM5 (Cinnamon)

KP26M1XDP5 (Dark Pewter)

KP26M1XLC5 (Licorice)

KP26M1XMC5 (Metallic Chrome)

KP26M1XNP5 (Nickel Pearl)

KP26M1XPM5 (Pearl Metallic)

KP26M1XBP5 (Brass Pearl)

KP26M1XBR5 (Bronze Pearl)

KP26M1XCE5 (Copper Pearl)

KP26M1XRC5 (Cayenne)

KP26M1XSV5 (Silver Sage)

KP26M1XSE5 (Seashell)

KP26M1XAZ5 (Azure Blue)

KP26M1XER5 (Empire Red)

KP26M1XWG5 (Williams Sonoma Green)

KP26M1XOB5 (Onyx Black)

KP26M1XWH5 (White)

KP26M1XCV5 (Caviar)

4KP26M1XMR5 (Meringue)

4KP26M1XBS5 (Blue Steel)

4KP26M1XDP5 (Dark Pewter)

4KP26M1XLC5 (Licorice)

4KP26M1XMC5 (Metallic Chrome)

4KP26M1XNP5 (Nickel Pearl)

4KP26M1XPM5 (Pearl Metallic)

COLOR VARIATION PARTS

For Models: KP26M1X_ _5, 4KP26M1X_ _5

8212278

COLOR VARIATION PARTS

For Models: KP26M1X_ _5, 4KP26M1X_ _5

8212278

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Colors Subject To Change.

Any Color Not Listed is

No Longer Available.

If Additional Colors Are Added,

This Page Will Be Updated.

1 Motor Housing

9708658 Meringue

9708730 Blue Steel

9708527 Cinnamon

9708711 Dark Pewter

9708677 Licorice

9703433 Metallic Chrome

9708749 Nickel Pearl

9707981 Pearl Metallic

9709131 Brass Pearl

9709173 Bronze Pearl

9709152 Copper Pearl

9709321 Cayenne

9709202 Silver Sage

9709813 Seashell

9709794 Azure Blue

9705300 Empire Red

W10114294

WS Green

9705296 Onyx Black

9703311 White

9705693 Caviar

2 Trim Band

9708371 Platinum/Frost

3 Lower Gearcase

9708665 Meringue

9708737 Blue Steel

9709073 Cinnamon

9708718 Dark Pewter

9708684 Licorice

9706306 Metallic Chrome

9708756 Nickel Pearl

9707974 Pearl Metallic

9709138 Brass Pearl

9709180 Bronze Pearl

9709159 Copper Pearl

9709328 Cayenne

9709209 Silver Sage

9709820 Seashell

9709801 Azure Blue

9706331 Empire Red

W10114301

WS Green

9706311 Onyx Black

9706047 White

9706346 Caviar

4 Planetary

9708662 Meringue

9708734 Blue Steel

9708531 Cinnamon

9708715 Dark Pewter

9708543 Licorice

9708175 Metallic Chrome

9708753 Nickel Pearl

9707977 Pearl Metallic

9709135 Brass Pearl

9709177 Bronze Pearl

9709156 Copper Pearl

9709325 Cayenne

9709206 Silver Sage

9709817 Seashell

9709798 Azure Blue

9708180 Empire Red

W10114298

WS Green

9708176 Onyx Black

9708172 White

9708183 Caviar

5 Bowl Support

and Pins

9708669 Meringue

9708741 Blue Steel

9709059 Cinnamon

9708722 Dark Pewter

9708688 Licorice

9703397 Metallic Chrome

9708760 Nickel Pearl

9707970 Pearl Metallic

9709142 Brass Pearl

9709184 Bronze Pearl

9709163 Copper Pearl

9709332 Cayenne

9709213 Silver Sage

9709824 Seashell

9709805 Azure Blue

9705360 Empire Red

W10114305

WS Green

9705356 Onyx Black

9703674 White

9705682 Caviar

6 Column

and Pins

9708672 Meringue

9708744 Blue Steel

9709062 Cinnamon

9708725 Dark Pewter

9708691 Licorice

9703349 Metallic Chrome

9708763 Nickel Pearl

9707967 Pearl Metallic

9709145 Brass Pearl

9709187 Bronze Pearl

9709166 Copper Pearl

9709335 Cayenne

9709216 Silver Sage

9709827 Seashell

9709808 Azure Blue

9705324 Empire Red

W10114308

WS Green

9705320 Onyx Black

9703673 White

9705679 Caviar

7 Base & Foot

Assembly

9708675 Meringue

9708747 Blue Steel

9709065 Cinnamon

9708728 Dark Pewter

9708694 Licorice

9703346 Metallic Chrome

9708766 Nickel Pearl

9707964 Pearl Metallic

9709148 Brass Pearl

9709190 Bronze Pearl

9709169 Copper Pearl

9709338 Cayenne

9709219 Silver Sage

9709830 Seashell

9709811 Azure Blue

9705348 Empire Red

W10114311

WS Green

9705344 Onyx Black

9703690 White

9705676 Caviar

For Models: KP26M1X_ _5, 4KP26M1X_ _5

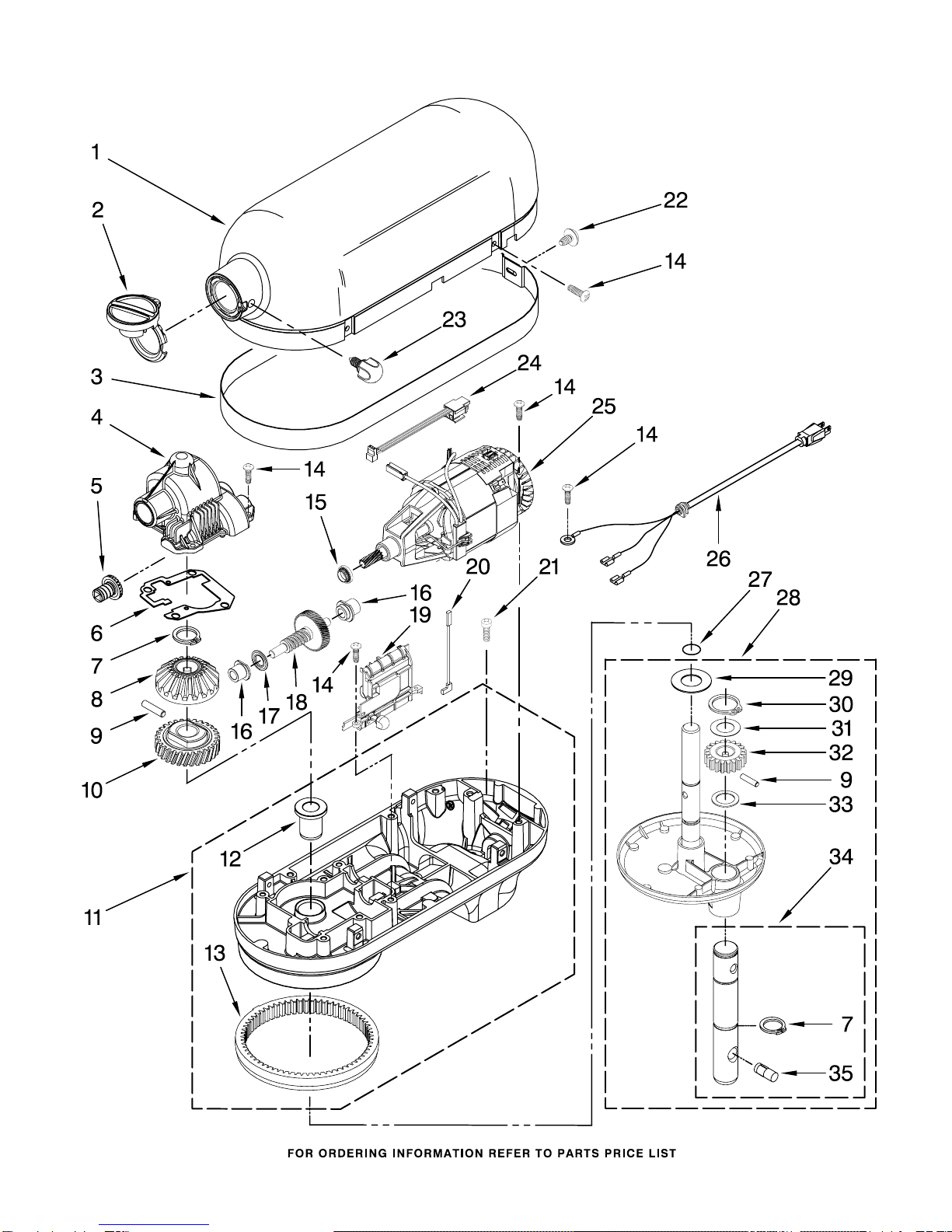

CASE, GEARING AND PLANETARY UNIT

8212278 4

CASE, GEARING AND PLANETARY UNIT

For Models: KP26M1X_ _5, 4KP26M1X_ _5

8212278

Illus. Part

No. No. DESCRIPTION

1 Gearcase Motor

Housing

29707983 Cap, Attachment

Hub

3Band, Trim

4 9709125 Transmission

Housing

5 9703338 Gear, Attachment

Hub Level

6 9709511 Gasket,

Transmission Cover

7 9703680 Clip, Retaining

8 9703337 Gear, Bevel

9 9707223 Pin, Retaining

10 9706529 Gear, Worm

Follower

11 Lower Gearcase

12 16897 Bearing, Lower

Center

13 9703339 Gear, Internal

14 3400814 Screw

15 9706247 Seal, Motor

Shaft

16 Bearing

9703560 Front

9703570 Rear

17 9703445 Bearing, Thrust

18 9709231 Gear, Worm

19 Control Assembly

9706648 Black Knob

9706649 Grey Knob

20 9706036 Lead, Motor to

Control

21 3400200 Screw

22 3400617 Screw

23 Thumb Screw

9709194 Black

9709196 Grey

24 9703312 Sensor, Hall

Effect

25 9707507 Motor (10 Tooth)

26 Cord, Power

9706551 White

9706552 Black

27 67500−55 "O" Ring

28 Planetary Assembly

29 9703434 Washer, Fiber

30 9703438 Clip, Retaining

31 9706090 Washer

32 9707627 Gear, Pinion

33 8533910 Washer

34 9708191 Shaft, Agitator

35 9704677 Pin, Groove

Refer To Page 3

Color Variation Parts

BASE AND PEDESTAL UNIT

For Models: KP26M1X_ _5, 4KP26M1X_ _5

8212278

BASE AND PEDESTAL UNIT

For Models: KP26M1X_ _5, 4KP26M1X_ _5

8212278

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Use & Care Guide

9708307 U.S.

9708308 Canada

8212278 Repair Parts List

2 9709924 Shield, Pouring

3 9703687 Bowl, 6 Qt.

4 240185 Pin, Bowl Locating

5 9703474 Latch, Bowl Spring

6 3400018 Screw

7Bowl Support

8Base and Foot

Assembly

9 9708649 Foot, Rubber

10 9703307 Clip

11 9706787 Rod, Bowl Lift

12 9237 Spring

13 9703439 Washer

14 8533907 Nut

15 Column Assembly

16 9703485 Beater, Flat

17 9703655 Hook, Dough

18 9706885 Arm, Bowl Lift

19 9703491 Whip, Wire

20 9703426 Cam, Adjusting

21 3400863 Screw

22 9706788 Handle, Bowl Lift

23 9703698 Handle

24 3400200 Screw

Refer To Page 3

Color Variation Parts

ACCESSORY PARTS

For Models: KP26M1X_ _5, 4KP26M1X_ _5

8212278

Illus. Part

No. No. DESCRIPTION

4164778 Mixer Attachment

Pak (Includes Food

Grinder (FG−A),

Food Strainer

(FVSP), And

Vegetable Slicer,

(RVS−A)

(FPP−A)

4164749 Food Grinder

(FG−A)

8211924 Grain Mill

(KGMA)

4164768 Pasta Maker And

Food Grinder

(Includes SNP

Pasta Maker

Plates)

(SN/FG−A)

4164775 Fruit/Vegetable

Strainer Parts (Use

With FG−A Model

Only) (FVSP)

4164750 Rotor Slicer/Shredder

(With 4 Standard

Cones) Fine Shredder,

Coarse Shredder,

Thick Slicer, And

Thin Slicer (RVS−A)

4164824 Pasta Maker Plates

(SNP−A)

4164774 Fruit/Vegetable

Strainer And Food

Grinder (FVS/FG−A)

4162838 Food Tray (FT)

4164748 Juicer (JE)

4164747 Can Opener (CO)

4164803 Sausage Stuffer

Kit (SSA)

4160588 Grease, Planetary

9707963 Ice Cream Maker

(KICA0WH0)
