KitchenAid KSM95BU0 User manual
4 1/2 QT. STAND MIXER
ULTRA POWER TILT
MODELS:
KSM95WH0 (White)
KSM95ER0 (Empire Red)
KSM95GR0 (Imperial Grey)
KSM95OB0 (Onyx Black)
KSM95BU0 (Cobalt Blue)
KSM95GA0 (Green Apple)
KSM95PWH0 (White)
KSM95SM0 (Silver Metallic)
KSM95TG0 (Tangerine)
7−08 Litho in U.S.A. (skr) (eeb) Part No. W10161157 Rev. B
COLOR VARIATION PARTS
2
For Models: KSM95__0
W10161157
3
COLOR VARIATION PARTS
W10161157
For Models: KSM95__0
Illus. Part
No. No. DESCRIPTION
1 Motor Housing
240291−1 White
240291−21
Empire Red
240291−13
Onyx Black
240291−7 Cobalt Blue
9709688 Green Apple
W10121193
Silver Metallic
9706849 Tangerine
240291−22
Imperial Grey
2 Trim Band
9702645 Black
W10211509
Pink
3 Planetary
240286−1 White
240286−23
Empire Red
240286−24
Imperial Grey
240286−16
Onyx Black
240286−10
Cobalt Blue
9709685 Green Apple
W10121190
Silver Metallic
9706852 Tangerine
4 End Cover
240253−1 White
240253−22
Empire Red
240253−23
Imperial Grey
240253−14
Onyx Black
240253−8 Cobalt Blue
9709683 Green Apple
W10121188
Silver Metallic
9706854 Tangerine
5 Lower Gearcase
240350−4 White
240350−84
Empire Red
240350−86
Imperial Grey
240350−56
Onyx Black
240350−31
Cobalt Blue
9709691 Green Apple
W10121196
Silver Metallic
9706845 Tangerine
6 Pedestal w/Feet
3179260 White
9702304 Empire Red
9702305 Imperial Grey
3179275 Onyx Black
3179263 Cobalt Blue
9709694 Green Apple
W10121199
Silver Metallic
9706843 Tangerine
Colors Subject To Change.
Any Color Not Listed is
No Longer Available.
If Additional Colors Are Added,
This Page Will Be Updated.

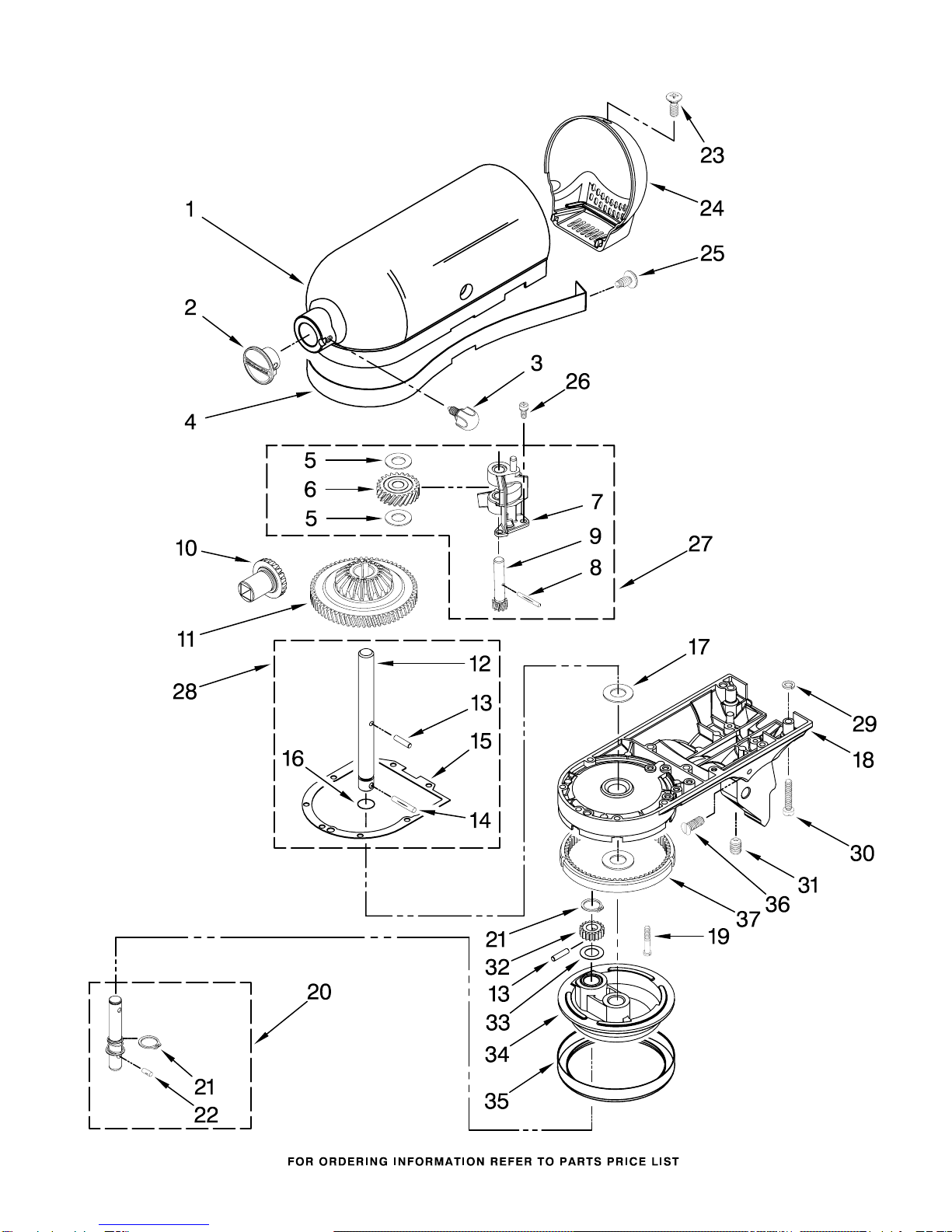

CASE, GEARING AND PLANETARY UNIT
4
For Models: KSM95__0
W10161157
CASE, GEARING AND PLANETARY UNIT
5W10161157
For Models: KSM95__0
Illus. Part
No. No. DESCRIPTION
1 Gearcase Motor
Housing
2 Cap, Attachment
Hub
242765−2 Chrome
242765−4 Painted
3 Thumb Screw
9709194 Black
9709196 Grey
4Band, Trim
5 3180161 Washer
6
W10112253
Worm Gear
7 240308 Worm Gear Bracket
And Bearing
8 9705444 Pin
9 240210−2 Shaft & Pinion
10 9705130 Gear, Attachment
Hub Level
11 9709627 Bevel Pinion
Center Gear
12 240026 Shaft, Vertical
Center
13 240018−1 Pin (Vertical
Center Shaft)
14 9705443 Pin, Groove
15 4162324 Gasket, Transmissn
16 67500−55 O−Ring
17 3180163 Washer
18 Lower Gear Case
19 103994 Screw
20 4176067 Shaft, Agitator
21 9703438 Ring, Retaining
22 9704677 Pin, Groove
23 4162914 Screw
24 Cover, End
25 311932 Screw
26 3400022 Screw
27 240309−2 Gear, Worm and
Bracket
28 4160474 Center Shaft &
O−Ring
29 8533914 Washer, Spring
Lock
30 3400025 Screw
31 3400203 Screw, Set
32 9703903 Pinion, Gear
Agitator Shaft
33 9706090 Washer
34 Planetary
35 240285 Ring, Planetary
Drip
36 89411 Screw, Adjusting
37 9703904 Gear, Internal
Refer to Pages 2 & 3
MOTOR AND CONTROL PARTS
6
For Models: KSM95__0
W10161157
MOTOR AND CONTROL PARTS
7W10161157
For Models: KSM95__0
Illus. Part
No. No. DESCRIPTION
1 110679 Screw, Pivot
2 116241 Washer, Spring
3 Lever, Speed
Control Assy
9709276 Black
9709277 Grey
4 3183680 Spring, Control
Plate
5 9704324 Washer, Ball
Bearing (Front)
6 9708315 Armature & Bearing
7 3180162 Washer
8 16998 Stud, Governor
Drive
9 3180526 Bracket, Bearing
Assembly
10 240775−1 Seal, End
11
W10131078
Nut
12 3180238 Washer
13 240769 Screw
14
W10068270
Washer
15 3184176 Speed Link & Cam
16 240205 Spring, Flat
17 9702695 Field Assembly
18 4162634 Sleeve, Motor Stud
19 9706416 Brush, Carbon
20 9707926 Screw, Set
21 4162546 Brush Holder
22 3179908 Housing, Brush
Holder
23 240680 Insert, Brush
Holder
24 116286 Cap, Spring Seat
25 116287 Spring, Cap
26 Cap, Brush Holder
3184212 Black
3184211 White
27
W10068260
Screw
28
W10119326
Plate, Control Asy
29 17830 Governor Assembly
30 9706595 Board, Phase
Control
31 Cord, Power
W10164882
White
W10164883
Black
32 3184609 Screw, Self Tap
BASE AND PEDESTAL UNIT
8
W10161157
For Models: KSM95__0
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
9709785 Use & Care, Trilin
W10161157
Repair Parts List
3 9709961 Beater, Flat
4 77686 Bowl, 4 1/2 Qt.
5 3400020 Screw
6
W10191926
Screw Cap Kit
7 9709707 Foot, Base
8 9706446 Whip, Wire
9 9706626 Hook, Dough
10 9709055 Latch
11 Latch, Link &
24452 Black
24452−2 Grey
Lever
12 110679 Screw, Pivot
13 116241 Washer, Spring
14 8533912 Washer
15 103993 Screw, Latch
Bearing
16 24450 Link, Latch
17 Lever, Latch
9709280 Black
18 16910 Pin, Hinge
19 Pedestal
REFER TO PAGES 2 & 3
ACCESSORY PARTS
9W10161157
For Models: KSM95__0
Illus. Part
No. No. DESCRIPTION
FOLLOWING PARTS
NOT ILLUSTRATED
4164839 Speed Disc
(Service Tool)
4160588 Grease, Planetary
4164778 Mixer Attachment
Pak (Includes Food
Grinder (FGA),
Food Strainer
(FVSP), And
Vegetable Slicer,
(RVSA)
(FPPA)
4164749 Food Grinder
(FGA)
8211924 Grain Mill
(KGMA)
4164768 Pasta Maker And
Food Grinder
(Includes SNP
Pasta Maker
Plates)
(SNFGA)
4164775 Fruit/Vegetable
Strainer Parts
(Use With FGA
Model Only) (FVSP)
4164750 Rotor Slicer/
Shredder(With
4 Standard Cones)
Fine Shredder,
Coarse Shredder,
Thick Slicer,and
Thin Slicer
(RVSA)
9704568 Pouring Shield
(KPS2CL)
4164824 Pasta Maker Plates
(SNPA)
4164774 Fruit/Vegetable
Strainer and Food
Grinder (FVSFGA)
3180617 Cover, Decorative
(Cotton Polyester)
4162838 Food Tray (FT)
4164748 Juicer (JE)
4164747 Can Opener (CO)
4164803 Sausage Stuffer
Kit (SSA)
8212519 Ice Cream Maker
(KICA0WH0)
3177924 Bowl Cover,
Plastic Non−
Sealing
4163337 Bowl, Stainless
With Handle
3180262 Bowl, 3 Qt.
4162160 Bowl, Satin
Stainless
