KitchenAid KSN1JA User manual

KSM1JA

INSTRUCTIONS

INSTRUCCIONES

The KitchenAid

Juicer is designed exclusively for use with all KitchenAid

household

Stand Mixers, except KSM6573C. For complete information on the use of these

Stand Mixers, please read the instructions that came with your Stand Mixer.

L’extracteur à jus KitchenAid

est conçu pour être utilisé exclusivement avec des batteurs sur

socle à usage domestique KitchenAid

, à l’exception du modèle KSM6573C. Pour des renseignements

complets sur l’utilisation de ces batteurs sur socle, lire le guide d’instructions fourni avec le batteur sur socle.

La juguera KitchenAid

está diseñada exclusivamente para usarse con todas las batidoras domésticas

con base KitchenAid

, excepto el modelo KSM6573C. Para obtener la información completa sobre

el uso de estas batidoras con base, lea las instrucciones que vienen con su batidora con base.

USA: 1.800.541.6390

Canada: 1.800.807.6777

WELCOME TO THE WORLD OF KITCHENAID.

We’re committed to helping you

create a lifetime of delicious meals for

family and friends. To help ensure the

longevity and performance of your

appliance, keep this guide handy. It will

empower you with the best way to

use and care for your product. Your

satisfaction is our #1 goal. Remember

to register your product online at

www.kitchenaid.com or by

mail using the enclosed

Product Registration Card.

Join us in the kitchen at www.kitchenaid.com.

KitchenAid.com

KitchenAid.ca

English

JUICER INSTRUCTIONS

PROOF OF PURCHASE & PRODUCT REGISTRATION

Model Number ______________________________________________________________________

Serial Number ______________________________________________________________________

Date Purchased _____________________________________________________________________

Store Name ________________________________________________________________________

Always keep a copy of the itemized sales receipt showing the date of purchase of your Juicer.

Proof of purchase will assure you of in-warranty service. Before you use your Juicer, please

ll out and mail your product registration card packed with the unit, or register on-line

at www.kitchenaid.com. This card will enable us to contact you in the unlikely event of a

product safety notication and assist us in complying with the provisions of the Consumer

Product Safety Act. This card does not verify your warranty. Please complete the following

for your personal records:

JUICER SAFETY

Important safeguards.......................................................................................... 4

PARTS AND FEATURES

Parts and accessories...........................................................................................6

ASSEMBLING THE JUICER

Assembling the Juicer parts ................................................................................ 7

Attaching the Juicer assembly to the Stand Mixer.............................................. 8

OPERATING THE JUICER

Making juice...................................................................................................... 10

TIPS FOR GREAT RESULTS

Quick tips ......................................................................................................... 11

RECIPES.................................................................................................................. 12

CARE AND CLEANING

Cleaning the Juicer............................................................................................ 17

TROUBLESHOOTING......................................................................................... 18

WARRANTY AND SERVICE............................................................................... 19

TABLE OF CONTENTS

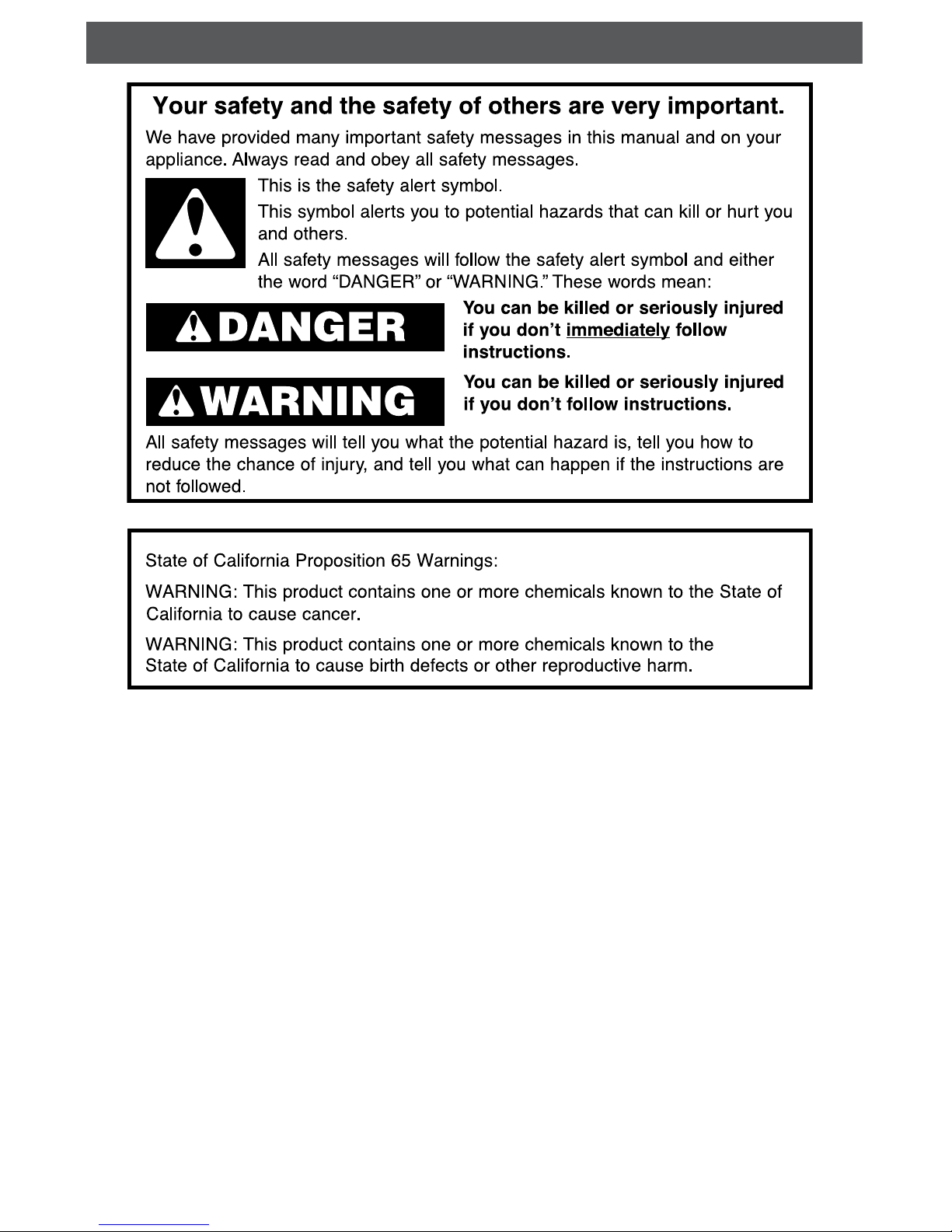

JUICER SAFETY

English

JUICER SAFETYJUICER SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be

followed, including the following:

1. Read all instructions.

2. Always make sure Juicer lid is securely closed before Stand Mixer motor is

turned on. Do not remove the lid while Juicer is in operation.

3. Be sure to turn the Stand Mixer OFF (and detach Juicer from Stand Mixer)

after each use of the Juicer and before cleaning. Make sure the motor stops

completely before disassembling.

4. Do not put your ngers or other objects into the Juicer opening while it is in

operation. If food becomes lodged in opening, use pusher or another piece of

fruit or vegetable to push it down. Never feed by hand. Always use the pusher.

When this method is not possible, turn the motor off and disassemble Juicer to

remove the remaining food.

5. Avoid contacting moving parts.

6. The use of attachments not recommended or sold by KitchenAid may cause

re, electric shock, or injury.

7. Do not use outdoors.

8. Close supervision is necessary when any appliance is used by or near children.

9. Do not use the appliance if the rotating auger or rotating parts are damaged.

Contact the Authorized Service Facility for information on product examination,

repair, or electrical or mechanical adjustment.

10. To protect against risk of electrical shock, do not put mixer in water or

other liquid.

11. Do not let the cord hang over the edge of table or counter.

12. Blades are sharp. Handle carefully.

13. Do not open until blade stops.

14. To prevent damage to gear assembly, do not immerse in water or other liquids.

15. This product is designed for household use only.

SAVE THESE INSTRUCTIONS

Auger/blade

assembly

High pulp

screen

Removable

drip stop

valve**

Screen storage

container Counter rest

Low pulp

screen

Saucing

screen

Hopper

PARTS AND FEATURES

Juicing

bowl

Drive assembly*

Cleaning brush

(for screens)

Pulp chute

Feed chute

Screen wiper basket

2-in-1 food pusher

Pulp container

Juice container

*Wipe clean only. See “Care and cleaning” section for more information.

**Removable drip stop valve can be cleaned as an assembly.

Parts and accessories

ASSEMBLING THE JUICER

English

PARTS AND FEATURES

Assembling the Juicer parts

1Slide pulp chute out and insert gasket

behind chute as shown.

Before First Use

Before using your Juicer for the first time, wipe Juicer parts with a warm damp cloth,

then wipe clean with a damp cloth. To avoid damaging the juicer, do not wash or

immerse the drive assembly in water or other liquids. Dry with a soft cloth. See “Care

and Cleaning” section.

3Put the screen wiper basket into

the bowl.

4Place the screen of your choice into the

screen wiper basket, matching up the

red alignment marks on the screen and

bowl as shown.

Pulp

chute

Gasket

5Place the auger/blade assembly inside

the screen.

ASSEMBLING THE JUICER

Alignment

marks

6Place the lid on the juicer, aligning the

unlocked icon on the lid with the red

arrow on the juicing bowl. Rotate lid

clockwise until lid locks into place.

2Place the bowl into the drive assembly.

ASSEMBLING THE JUICER

2For Stand Mixers with a hinged attachment hub cover: Flip up to open.

For Stand Mixers with a removable attachment hub cover: Turn the attachment

knob counterclockwise to remove attachment hub cover.

Attaching the Juicer assembly to the Stand Mixer

1Turn Stand Mixer OFF and unplug.

ASSEMBLING THE JUICER

7Place hopper on top of feed chute.

Insert food pusher in feed chute.

English

ASSEMBLING THE JUICER

4Tighten attachment knob until the Juicer

attachment is completely secured

to Stand Mixer.

3Insert the juicer into the attachment

hub. Rotate attachment back and forth

if necessary. The pin on the attachment

housing will fit into the notch of the hub

rim when in proper position.

ASSEMBLING THE JUICER

5Place a container under both the juice

spout and pulp chute.

OPERATING THE JUICER

2Place items to be juiced into the hopper.

Use the food pusher to slowly feed

items into the Juicer bowl.

IMPORTANT: Large seeds or pits need

to be removed prior to juicing to avoid

damage to the auger or baskets. This

includes fruits such as: nectarines, peaches,

mangoes, apricots, plums, cherries, etc.

Making juice

1Plug the mixer into a grounded

3-prong outlet. Turn on the Stand

Mixer to speed 10.
