KitchenAid KT2651XWW User manual

c2005 KITCHENAID

4−05 Litho in U.S.A. (skr) Part No. 8211765

6 QT. STAND MIXER

EPICUREAN BOWL LIFT

MODEL:

KT2651XWW3 (White on White)

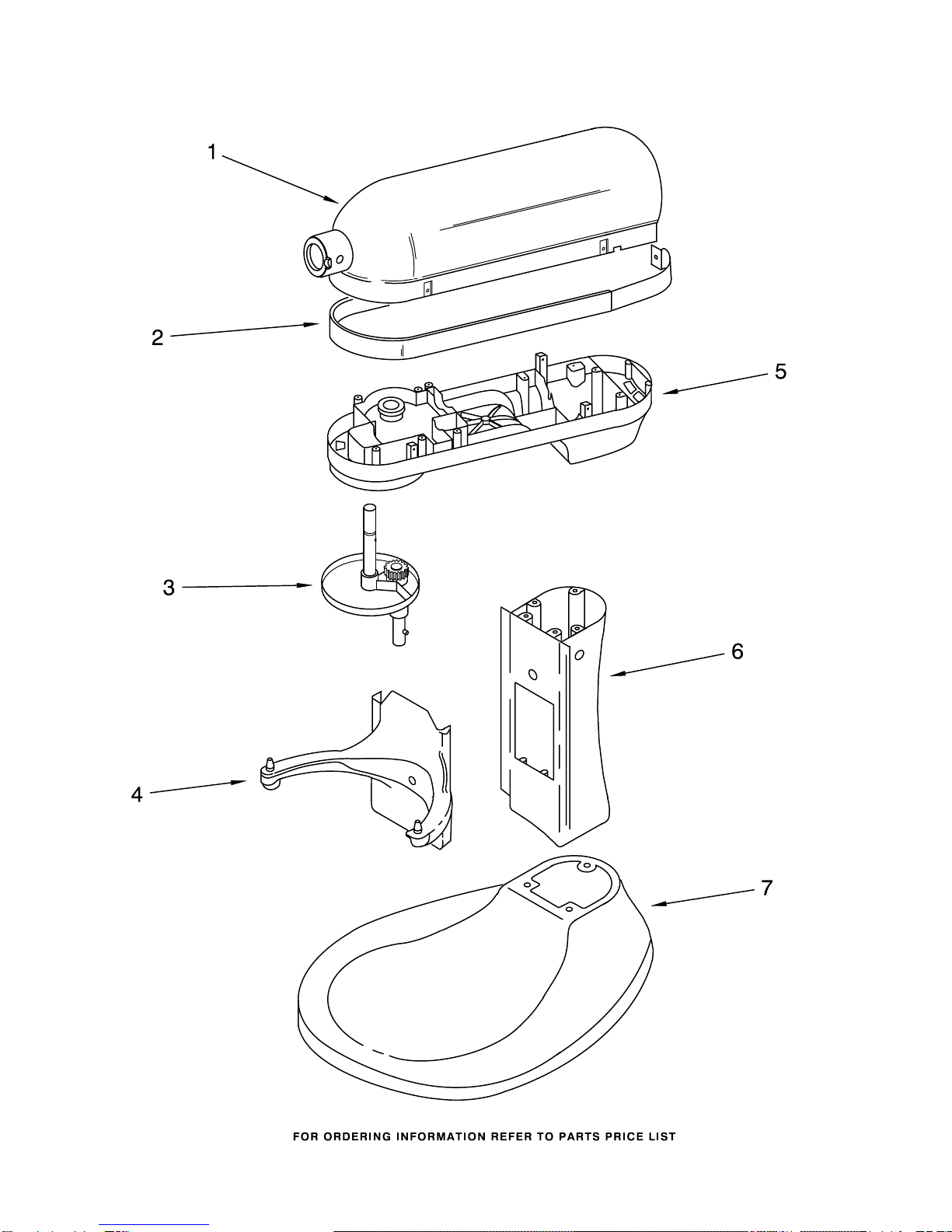

COLOR VARIATION PARTS

For Model: KT2651XWW3

8211765

COLOR VARIATION PARTS

For Model: KT2651XWW3

8211765

Illus. Part

No. No. DESCRIPTION

Availability of All Colors

Subject to Change.

Any Color Not Listed is

No Longer Available.

If Additional Colors Are Added,

This Page Will Be Updated.

1 Motor Housing

9703311 White

2 Trim Band

9703638 White on White

3 Planetary

9708172 White

4 Bowl Support

9703674 White

5 Lower Gearcase

9706047 White

6 Column

9703673 White

7 Base & Foot

Assembly

9703690 White

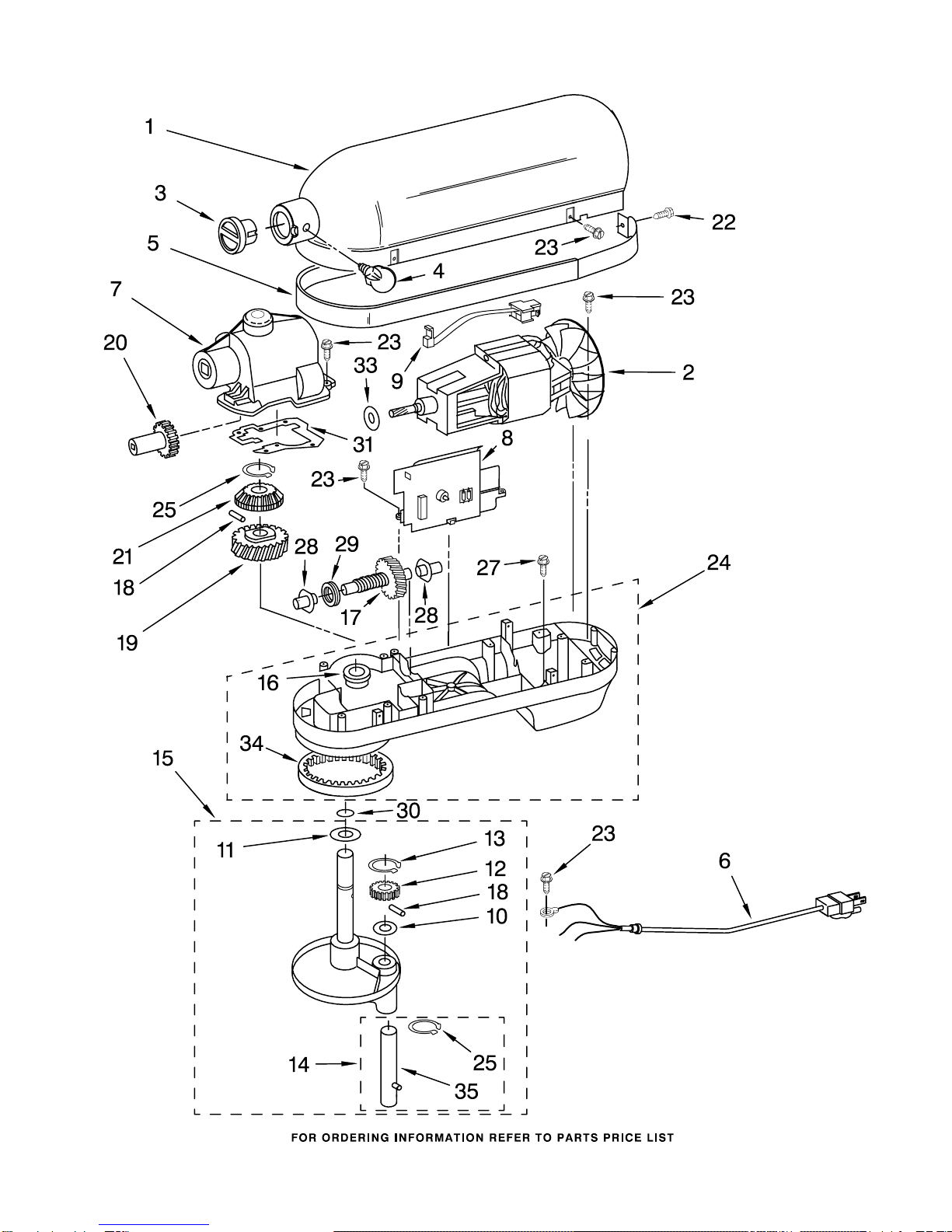

CASE, GEARING AND PLANETARY UNIT

For Model: KT2651XWW3

8211765

CASE, GEARING AND PLANETARY UNIT

For Model: KT2651XWW3

8211765

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Gearcase Motor

Housing

2 9706548 Motor (10 Tooth)

3 Cap, Attachment

Hub

9703315 Chrome

4 Thumb Screw

240374−2 Gray

5Band, Trim

6 Power Cord

9706551 White

7 9703671 Transmission

Housing

8 Control Assembly

9706649 Gray Knob

9 9703312 Sensor, Hall

Effect

10 9706090 Washer

11 9703434 Washer, Fiber

12 9703340 Gear, Pinion

13 9703438 Retaining Clip

14 9708191 Agitator Shaft

15 Planetary Assembly

16 16897 Bearing, Lower

Center

17 9709231 Worm Gear

18 9707223 Retaining Pin

19 9706529 Gear, Worm

Follower

20 9703338 Gear, Attachment

Hub Bevel

21 9703337 Gear, Bevel

22 3400617 Screw, 6−32 x 1/4

23 3400814 Screw (13),

8−32 X 5/8

24 Lower Gear Case

25 9703680 Retaining Clip

27 3400200 Screw (3)

1/4 − 20 x 3/4

28 Bearing

9703560 Front

9703570 Rear

29 9703445 Thrust Bearing

30 67500−55 "O" Ring

31 9707425 Gasket,

Transmission Cover

33 9706247 Seal, Motor

Shaft

34 9703339 Gear, Internal

35 9704677 Pin, Groove

Refer To Page 3

Color Variation Parts

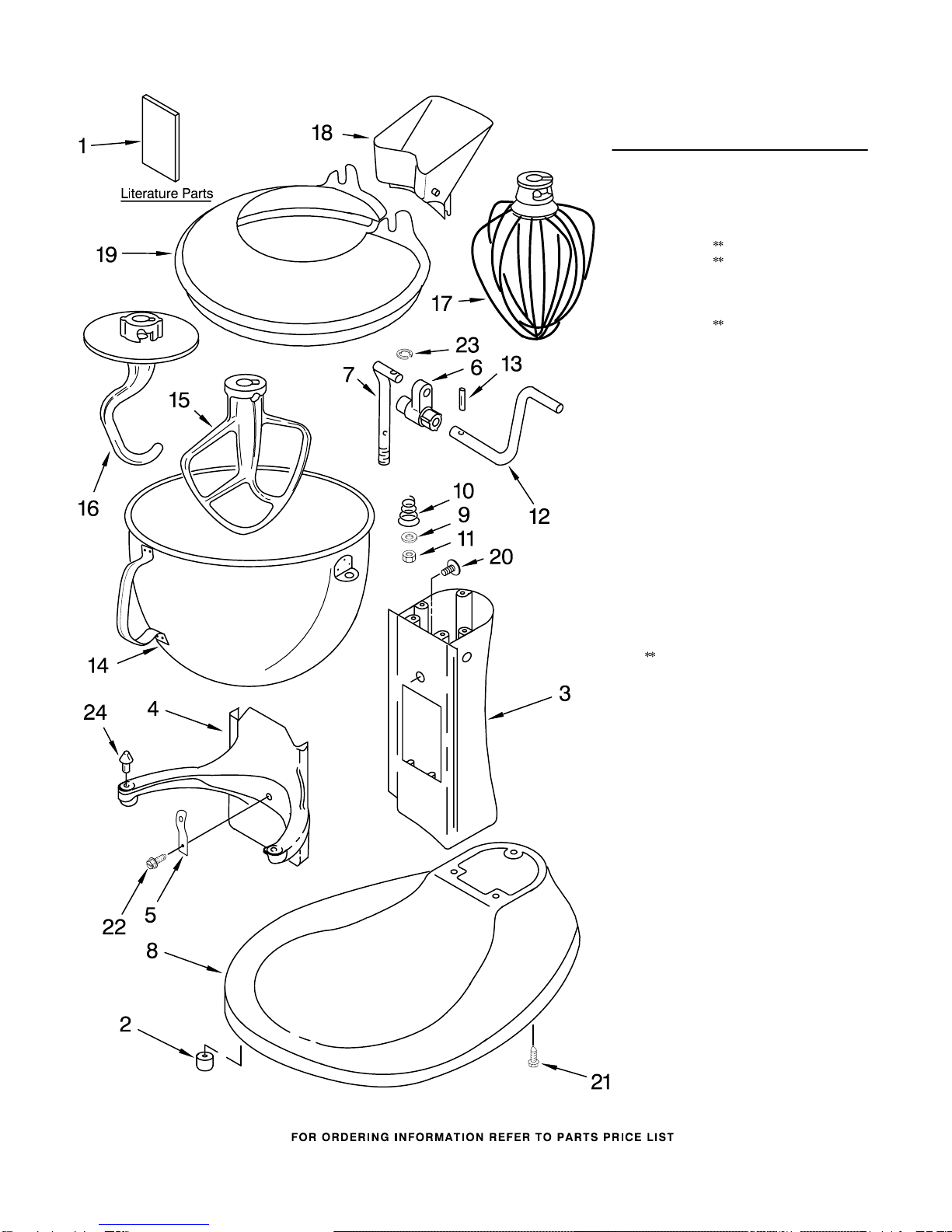

BASE AND PEDESTAL UNIT

For Model: KT2651XWW3

8211765

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9707946 Use & Care Guide

8211765 Repair Parts List

2 9708649 Foot, Rubber (5)

3Column Assembly

4Bowl Support

5 9703474 Latch, Bowl Spring

6 9706885 Arm, Bowl Lift

7 9706787 Rod, Bowl Lift

8Base And Foot

Supports

9 9703439 Washer

10 9237 Spring

11 4159092 Nut

12 9706788 Handle, Bowl Lift

13 3400863 Screw

14 9703687 Bowl (6 Qt)

15 9708610 Beater, Flat

16 9708833 Dough Hook

17 9703491 Wire Whip

18 9703534 Pouring Spout

19 9703533 Pouring Shield

20 9703426 Cam, Adjusting

21 3400200 Screw (3),

1/4−20 x 3/4

22 3400018 Screw,

10−24 x 1/2

23 9703307 Clip

24 4162028 Pin, Bowl Locating

Refer To Page 3

Color Variation Parts

ACCESSORY PARTS

For Model: KT2651XWW3

8211765

Illus. Part

No. No. DESCRIPTION

4164778 Mixer Attachment

Pak (Includes Food

Grinder (FG−A),

Food Strainer

(FVSP), And

Vegetable Slicer,

(RVS−A)

(FPP−A)

4164749 Food Grinder

(FG−A)

4164751 Grain Mill

(GM−A)

4164768 Pasta Maker And

Food Grinder

(Includes SNP

Pasta Maker

Plates)

(SN/FG−A)

4164775 Fruit/Vegetable

Strainer Parts (Use

With FG−A Model

Only) (FVSP)

4164750 Rotor Slicer/Shredder

(With 4 Standard

Cones) Fine Shredder,

Coarse Shredder,

Thick Slicer, And

Thin Slicer (RVS−A)

4164824 Pasta Maker Plates

(SNP−A)

4164774 Fruit/Vegetable

Strainer And Food

Grinder (FVS/FG−A)

4162838 Food Tray (FT)

4164748 Juicer (JE)

4164747 Can Opener (CO)

4164803 Sausage Stuffer

Kit (SSA)

4160588 Grease, Planetary
