KitchenAid KECD805HBL04 User manual

COOKTOP PARTS

For Models: KECD805HBL04, KECD805HWH04, KECD805HBT04

(Black) (White) (Biscuit)

8−03 Litho in U.S.A. (cre) Part No. 8186132

30" ELECTRIC

BUILT−IN

DOWNDRDAFT COOKTOP

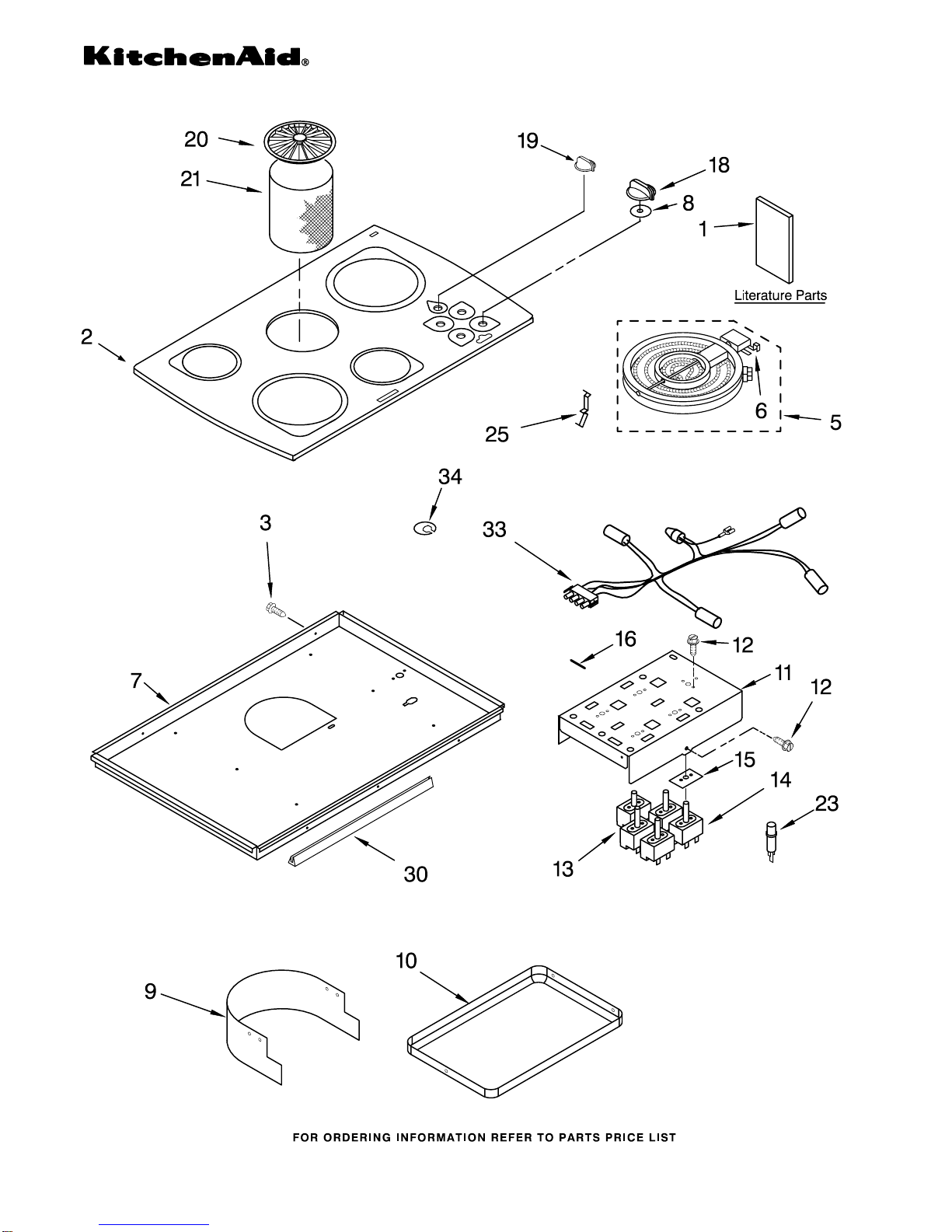

COOKTOP PARTS

For Models: KECD805HBL04, KECD805HWH04, KECD805HBT04

(Black) (White) (Biscuit)

8186132

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8285364

Installation

Instructions

LIT3192708

Wiring Diagram

LIT3192515

Use & Care Guide

LIT3191638

Safe Cooking Tips

2 Cooktop, Glass &

Bracket Assembly

4455586 Black

4455584 White

4455585 Honeycomb

3 3196537 Screw, 8−18 x 3/8

5 Element, Surface

8523698 L.R. (1200W)

8523694 L.F. (2200W)

8523696 R.R. (1800W)

8523697 R.F. (1500W)

6 Rail, Element

3192520 Right Hand

3192521 Left Hand

7 4456522 Box, Burner

8 3191387 Seal, Switch

9 4455802 Shield, Vent

3177991 Screw

10 3190656 Drip Bowl, Grease

11 4455354 Bracket, Control

Mounting

3183956 Seal, Switch

Cover

12 311865 Screw, 8−32 x 7/32

13 3190639 Switch, Speed

Control

14 Switch, Infinite

3191049 LR & RF

3191050 RR & LF

15 8285469 Seal, Switch

16 3192439 Seal, Limiter

18 Knob, Control

9750372FF

Black

9750372FW

White

9750372FC

Biscuit

19 Knob, Blower

Switch

3190723 Black

3190724 White

3192502 Biscuit

20 3192418 Grille, Air

21 3192530 Filter, Grease

23 3193012 Light, Indicator

25 3191791 Spring, Locator

30 3193032 Gasket, Vent

Shield

33 3191343 Light, Hot Surface

Indicator

34 3193094 Plate, Cover

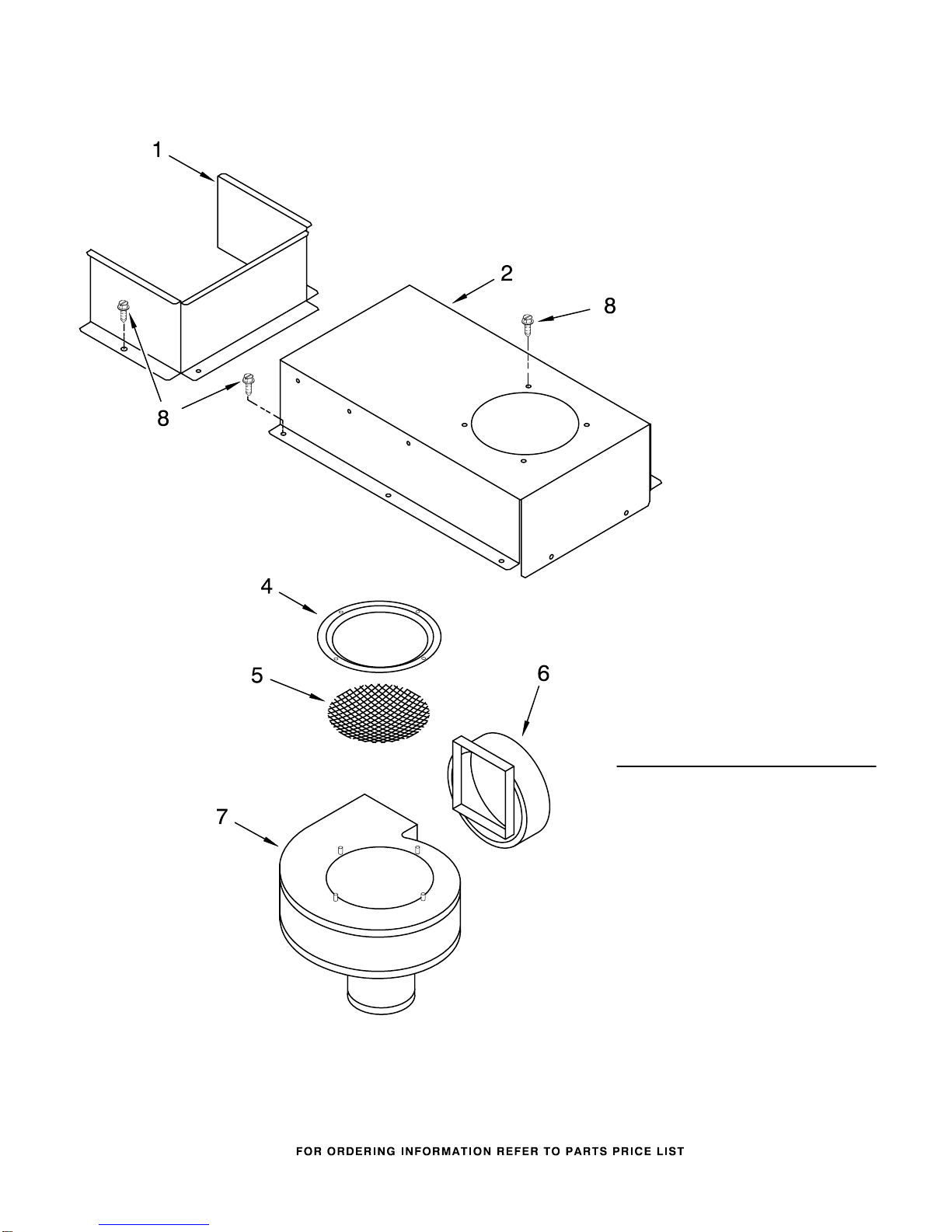

BLOWER UNIT PARTS

For Models: KECD805HBL04, KECD805HWH04, KECD805HBT04

(Black) (White) (Biscuit)

8186132

Illus. Part

No. No. DESCRIPTION

1 4455355 Bracket, Shield

2 3192403 Bracket, Blower

Mounting

4 3190735 Ring, Inlet

5 3190947 Screen, Inlet

6 3190736 Adapter, Vent

7 3190737 Blower Motor Asm.

(Includes Fan Asm)

8 3196537 Screw, 8−18 x 3/8

MISCELLANEOUS PARTS

For Models: KECD805HBL04, KECD805HWH04, KECD805HBT04

(Black) (White) (Biscuit)

8186132

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

Miscellaneous

3172515 Hardware, Mounting

3192408 Bracket, Mounting

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

3191048 Cleaner, Glass

WIRING HARNESS PARTS

4456587 Harness, Wire

(Ceran Downdraft)

3190722 Harness, Wire

(Blower/Switch)

98997 Clip

3190962 Strain Relief

4456514 Conduit, Downdraft

3400015 Screw, 10−32 x 3/8
