KitchenAid KECC567RSS05 User manual

COOKTOP PARTS

For Model: KECC567RSS05

(Stainless)

11−08 Litho in U.S.A. (amd) (eeb) Part No. W10240403 Rev. A

36" ELECTRIC

CERAN

COOKTOP

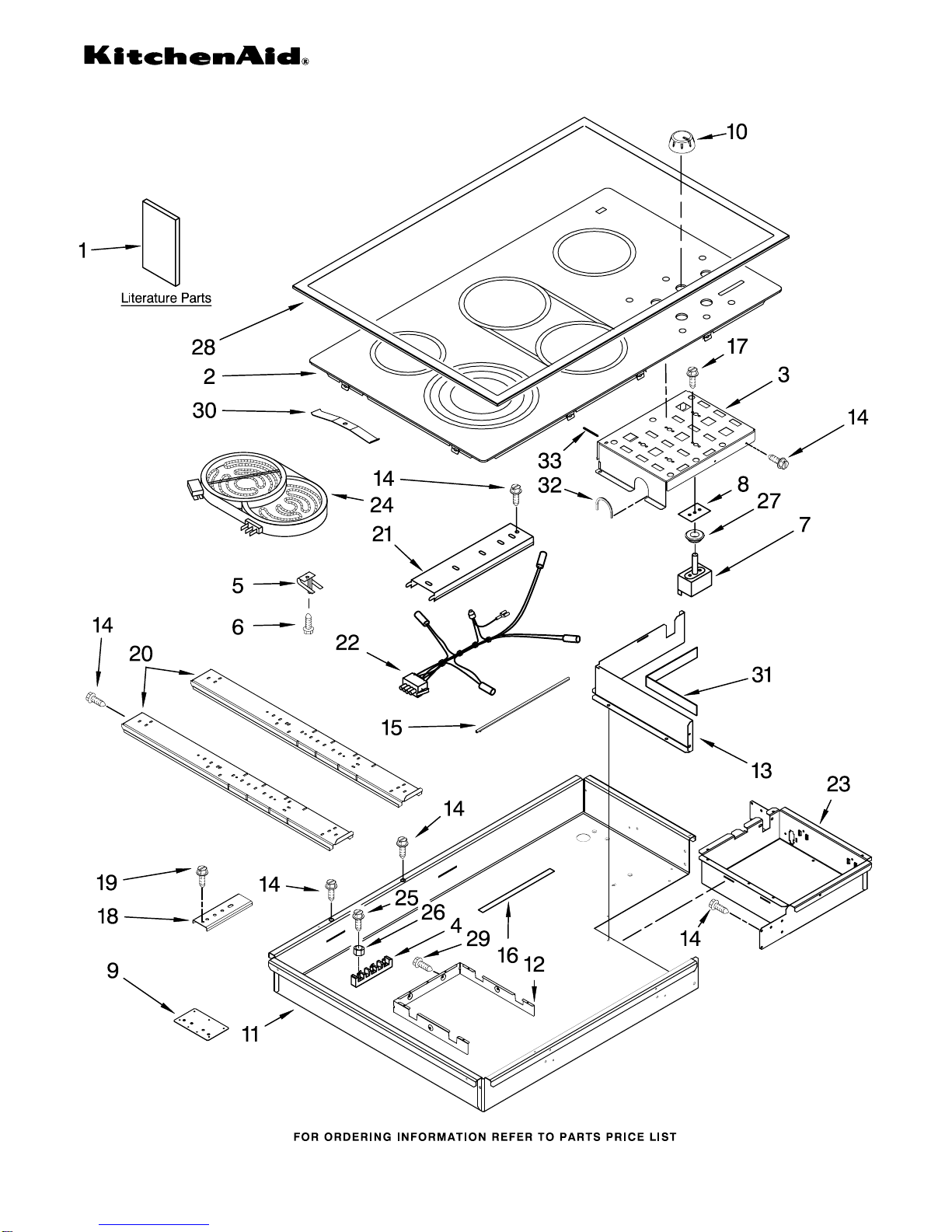

COOKTOP PARTS

For Model: KECC567RSS05

(Stainless)

W10240403

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

8286066 Cooktop

8304571 Undercounter Oven

8286430 Wiring Diagram

W10162162

Use & Care Guide

Safer Cooking Tips

9762761 English

W10065852

French

2 8286975 Cooktop, Glass

3 8285808 Bracket, Switch

4 4449868 Block, Terminal

5 9759094 Spring Locator(10)

6 246119 Screw (10)

7 Switch, Infinite

9763763 Single (3)

9763764 Dual

9763765 Triple

8 3183956 Seal, Switch Shaft

9 8286535 Bracket, Bottom

8286096BL

Knob, Control (5)

11 8286555 Box, Burner

12 9760762 Shield, Heat

13 8286578 Inside, Wall

14 3196537 Screw

15 8285242 Seal, Heat

16 8285439 Seal, Heat Shield

17 311865 Screw

18 4455917 Bracket, Mounting

19 3400093 Screw

20 9763517 Rail, Element

21 8286345 Rail, Element

22 8286056 Lamp, Hot

Surface Indicator

W10180229

Box, Control

24 Element, Surface

8285848 4300W (Bridge)

8286187 2500/1800/900W LF

8523698 1200W LR

8523697 1500W RR

25 3196163 Screw

26 112432 Nut

27 8285469 Seal, Switch

W10142239

Frame, Cooktop

29 3196160 Screw

30 8286582 Spring Clip,

Bridge (3)

31 8286600 Inside Wall,

Insulation

32 8286607 Gromment,

Flexible (2)

33 3192439 Seal, Limiter

OPTIONAL PARTS

For Model: KECC567RSS05

(Stainless)

W10240403

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

Miscellaneous

8286642 Tape, Foam

WIRING HARNESS PARTS

8286468 Harness, Main

8286382 Clip, Harness

3196160 Screw, Ground

8286338 Conduit, Harness

8286238 Thermostat
