KitchenAid KECC508GWW3 User manual

COOKTOP PARTS

For Models: KECC508GBL3, KECC508GWH3, KECC508GBT3, KECC508GWW3, KECC508GSS3

(Black) (White) (Biscuit) (Designer White) (Stainless Steel)

9−01 Litho in U.S.A. (cre) Part No. 8185526 Rev.A

30" ELECTRIC

BUILT−IN

COOKTOP

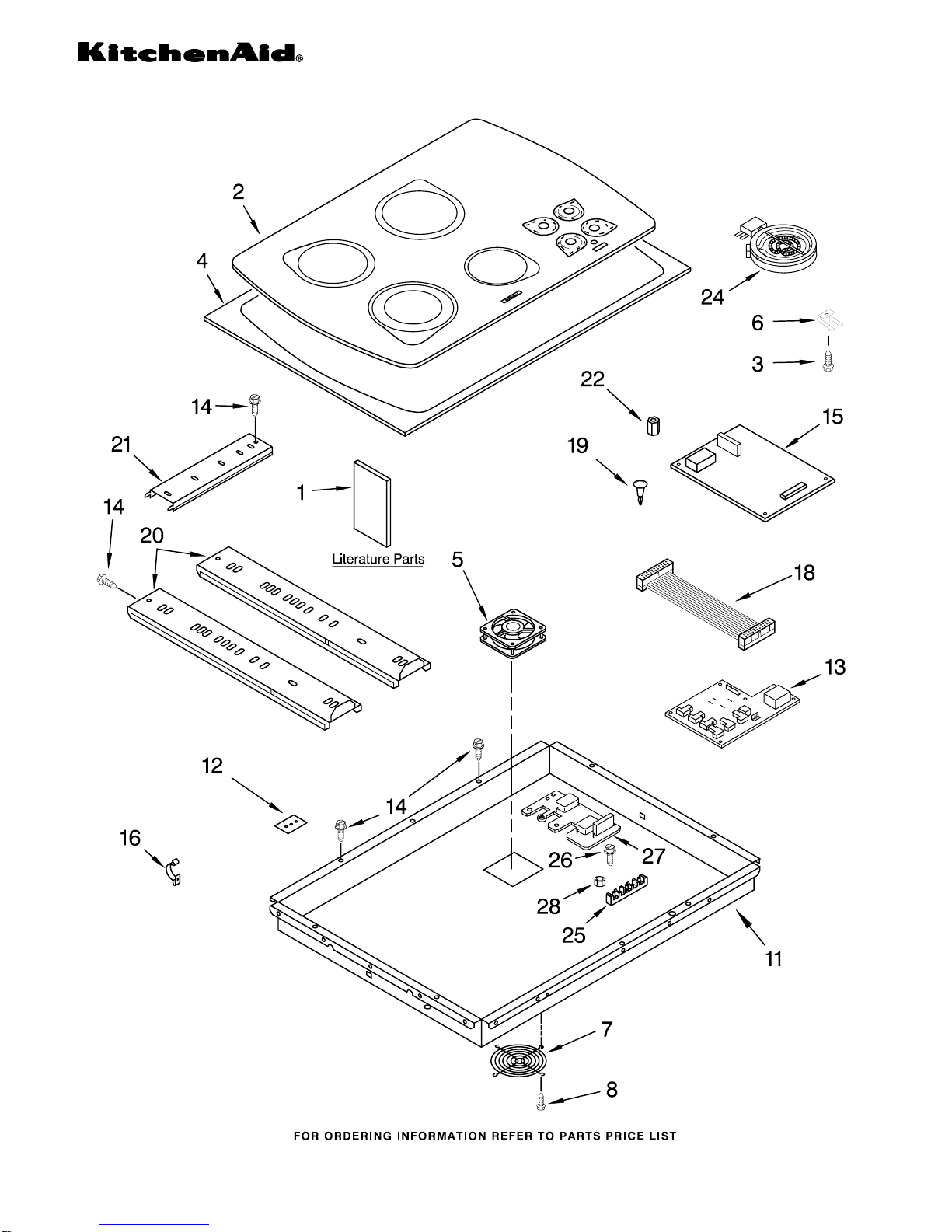

COOKTOP PARTS

For Models: KECC508GBL3, KECC508GWH3, KECC508GBT3, KECC508GWW3, KECC508GSS3

(Black) (White) (Biscuit) (Designer White) (Stainless Steel)

8185526

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3191771

Installation

Instructions

LIT3192472

Wiring Diagram

LIT3191524

Use & Care Guide

LIT3191638

Safer Cooking Tips

2 Cooktop, Glass

4455552 Black

4455554 White

4455553 Biscuit

4455714 Designer White

4455725 Black on Stainless

3 246119 Screw

4 8284627 Frame, Cooktop

(Stainless Steel

model only)

5 3191354 Fan, Cooling

6 3191791 Spring Locator (8)

7 3191949 Guard, Fan

8 4449746 Screw (4)

11 4455511 Box, Burner

12 3192439 Seal, Switch Shaft

13 3192698 Board, Power

14 3196537 Screw

15 3192771 Board, Control

16 98997 Clip, Wire

18 3191913 Cable Ass’y, Flat

19 3191693 Support,

Power Board

20 3191515 Rail, Element (2)

21 3192268 Rail, Element (1)

22 3191907 Standoff,

Power Board

488734 Screw

24 Element, Surface

8272567 1200W RF − LR

8272566 1800W RR

8272563 1000/2400W LF

25 4449868 Block, Terminal

26 3196163 Screw, 10−16 x 7/8

27 3192767 Suppressor

28 112432 Nut, #10−32 Hex

MISCELLANEOUS PARTS

For Models: KECC508GBL3, KECC508GWH3, KECC508GBT3, KECC508GWW3, KECC508GSS3

(Black) (White) (Biscuit) (Designer White) (Stainless Steel)

8185526

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

Miscellaneous

3172515 Mtg. Hardware Kit

3192408 Bracket,

Support (2)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

3191048 Cleaner, Glass

WIRING HARNESS PARTS

4455143 Wiring Harness

Surface Unit

3400015 Screw, Ground

4455282 Harness, Hot

Surface Indicator

3191521 Harness, Fan

535183 Wire, Tie

3192769 Conduit Assy.

3192770 Harness, Wire

Conduit
